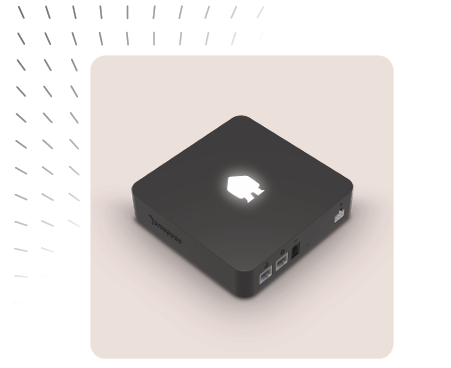

The Genius Flex is the new revision of the Smappee Genius, focussed on local control and measurement.
It has a build-in Smappee Powerbox so you don't need a seperate Smappee Power box to measure voltages or connect CT Hubs.
Please beware you do need a separate 3 phase cable as this is not included in the package, can be ordered seperately at your supplier (GF-CBL-3F-200)

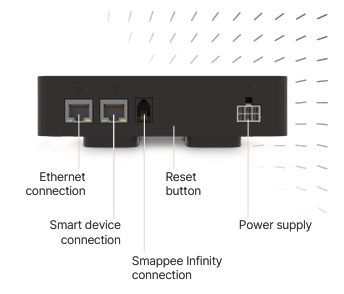

It has 2 ethernet ports
- One for the WAN (internet) connection
- One for the LAN (Smart device connection) connection
- Ethernet connection towards devices that need to be controlled by the Genius Flex.
It has a A-Bus port (Smappee Infinity connection) to connect CT Hubs directly to the Genius Flex.
Installation Manual
MQTT/Modbus - TCP
The Genius Flex support local MQTT and Modbus-TCP control of our chargers, see Genius Flex - MQTT / Modbus TCP - Local connection
Features
Local Multigateway
It can read out multiple Smappee Devices in the same network such as Connects and Smappee EV Chargers.
- This way you can combine multiple Connects in the same building measuring multiple circuitboards in one location
- This also allows you to control our chargers via Modbus-TCP
- This also allows you to control the Smappee Output module via a Connect Infinity setup
Smappee App store
Via the Smappee App store you can add integrations to the Smappee Eco system, more and more integrations will be added soon.
Current Apps:
- NIKO home control - To link with Niko home control
- Miele - To link with Miele Smart Home
- Home Connect - To link with Home Connect of Bosch, Siemens and other brands
- Modbus / TCP - Controlling Smappee Chargers via Modbus / TCP
- MQTT - Reading out measurements and linked Smappee Chargers via MQTT
-
Smappee BESS - Control Smappee's BESS solution
