Version
Revision 1
Used in
- (6630xxxxxx) (Cable version)
(6631xxxxxx) (Socket version)
Parts needed
- i1-EN3-1
Tools needed
- Key (Wall)
- Safety TX20 bit (base)
- Allen 3
- Small flat screwdriver
- PH2 screwdriver

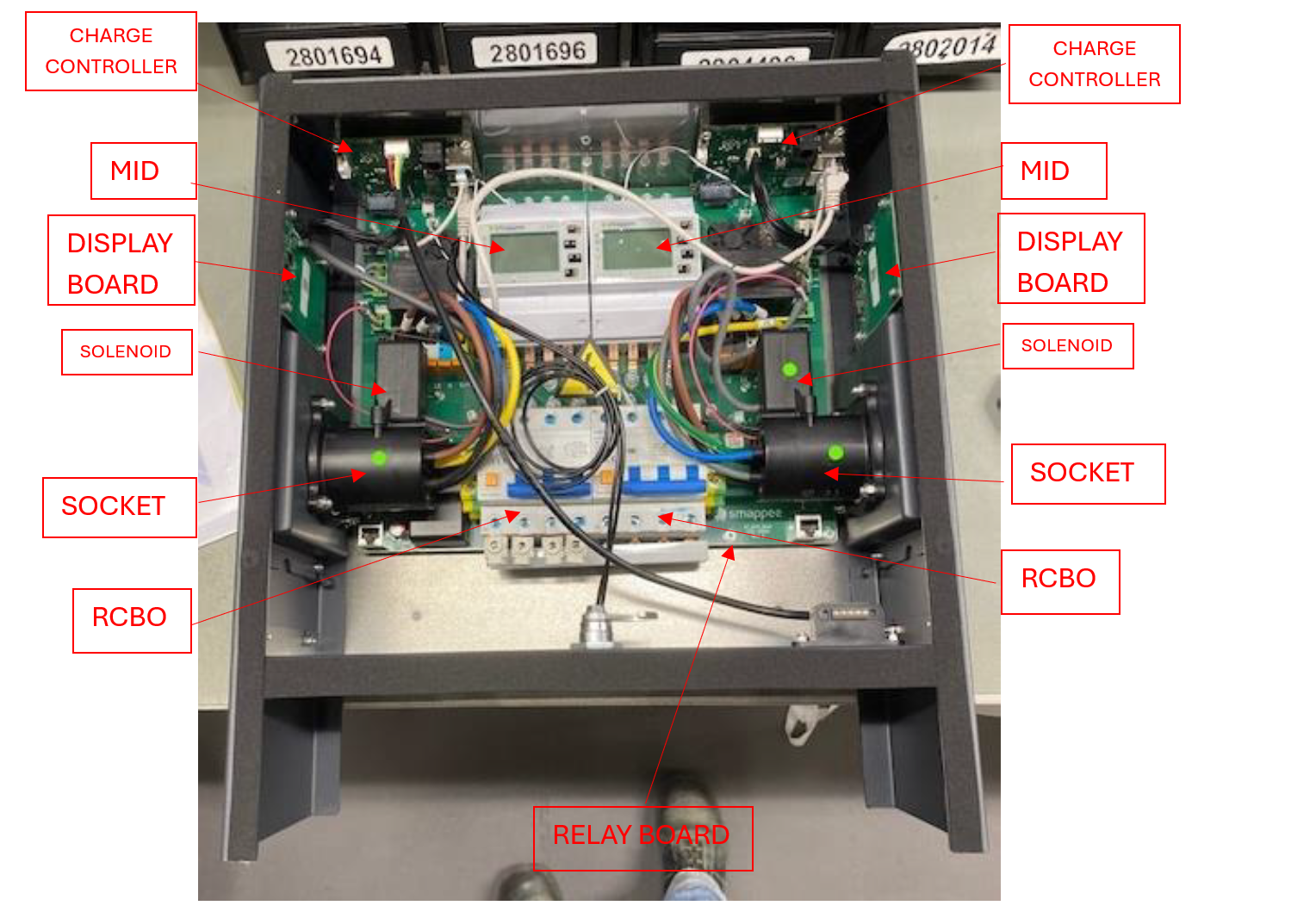

Charger Overview
Replacement Instructions
- Open the unit either by using the provided key (Wall version) or untightening the 6x safety screws (Base version). Place the front plate aside [Key (Wall) or Safety TX20 bit (Base)]

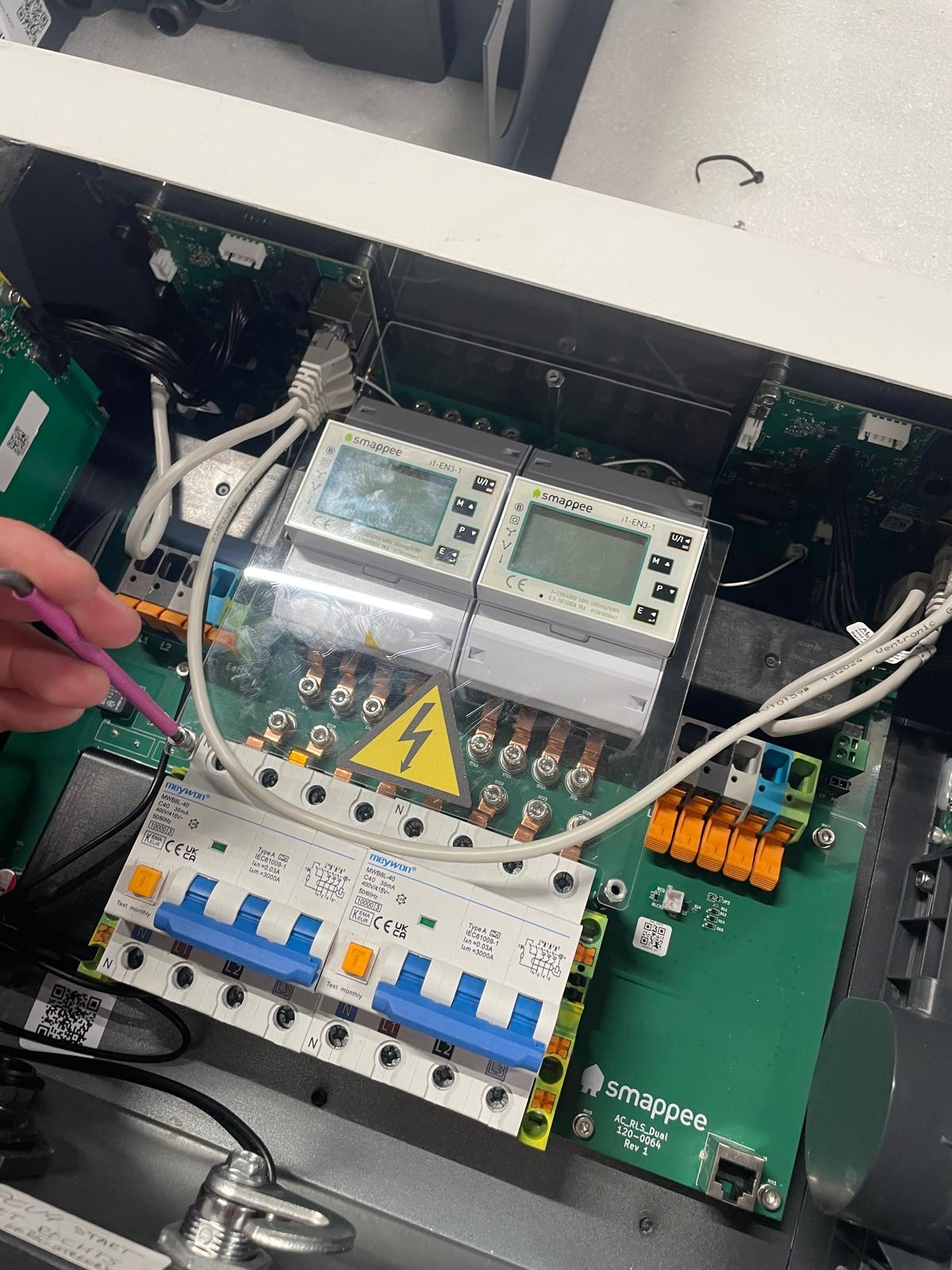

Loosen the 3 screws holding the plastic protection and remove it. [Allen 3]

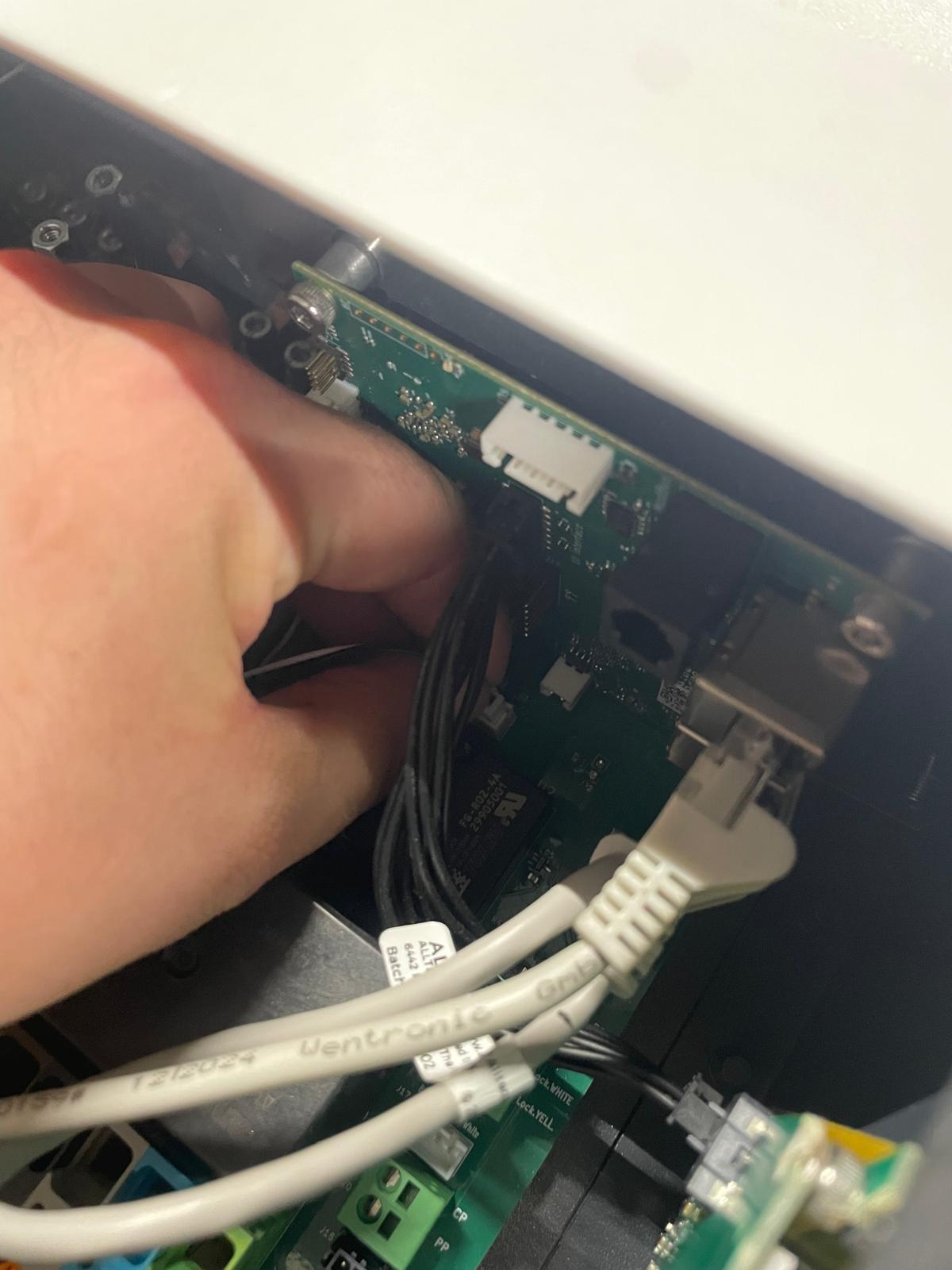

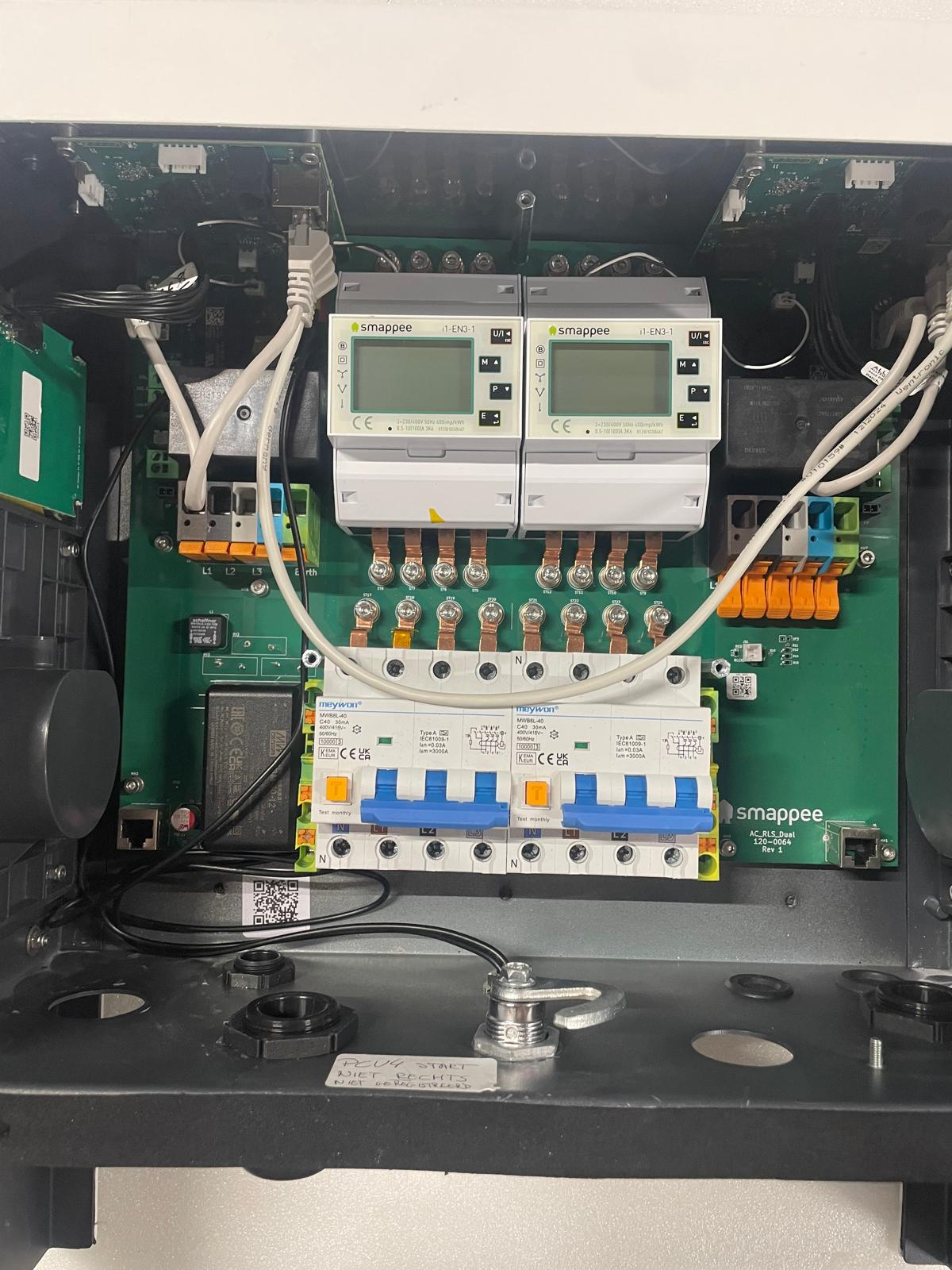

Disconnect the MID cable from the relays board.

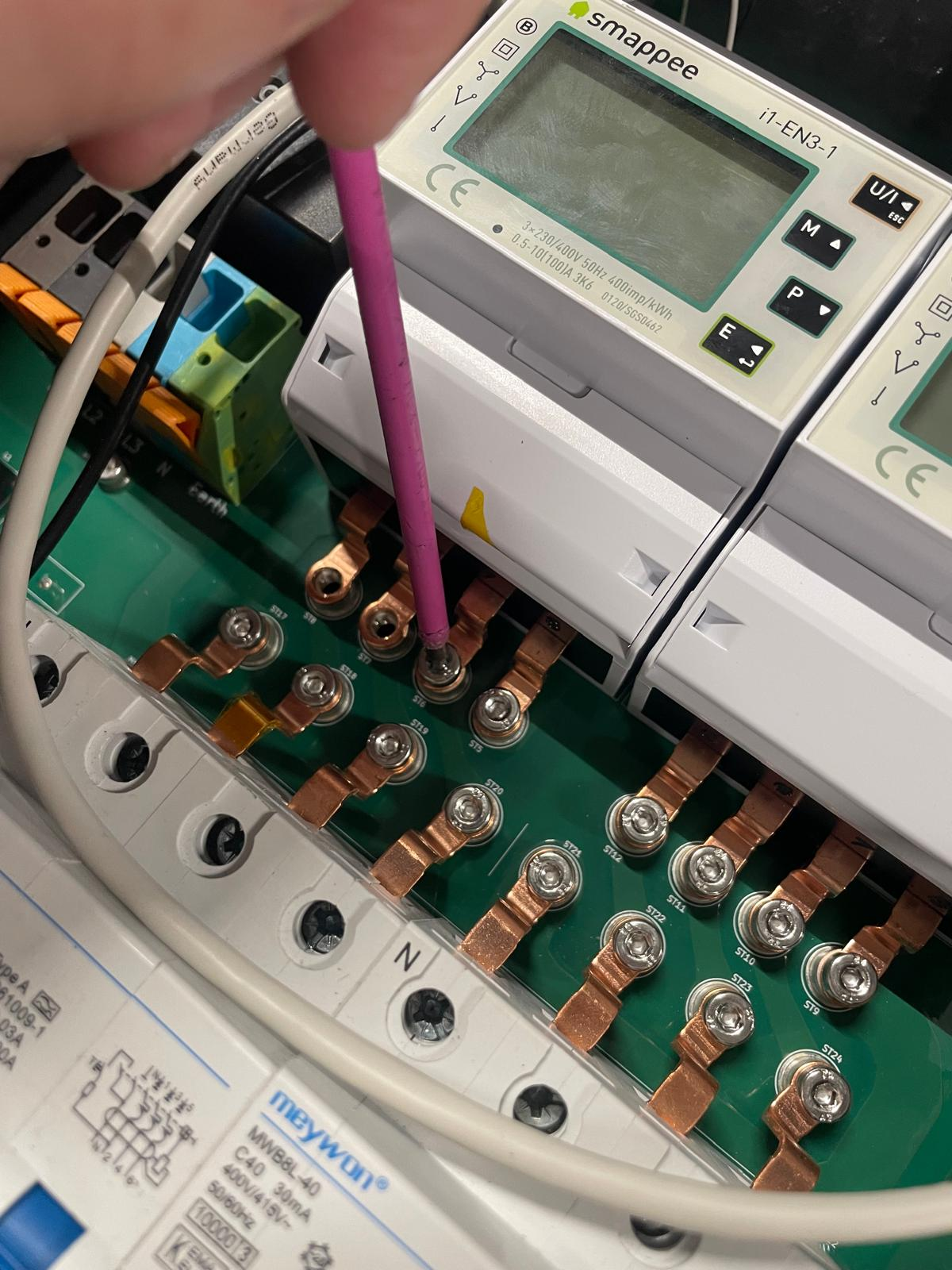

Loosen both the top and bottom screws of the copper bars before taking out the MID out of the unit. [Allen 3]

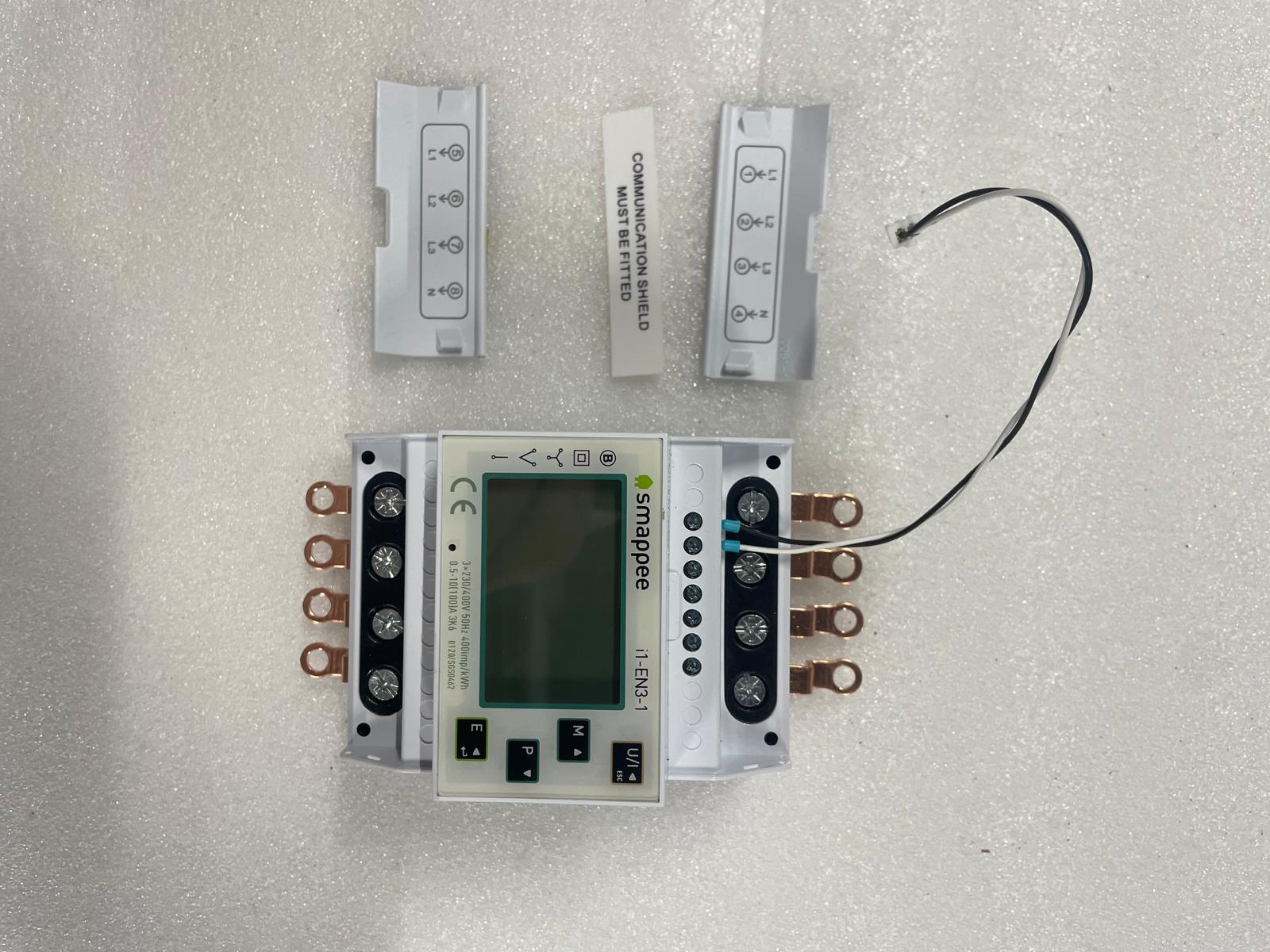

Remove both the top and bottom lid of the MID. Afterwards remove the shielding cover.

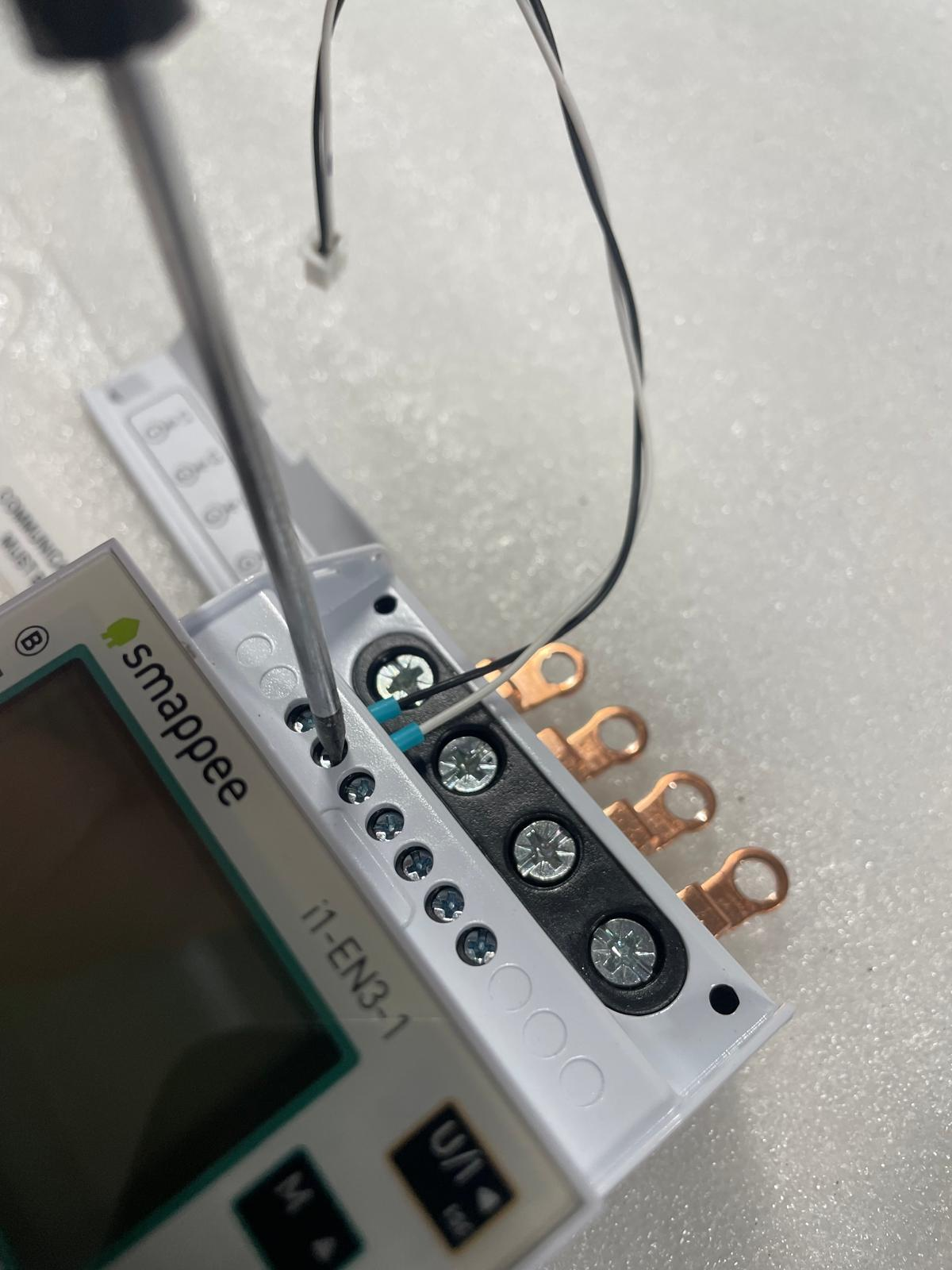

Disconnect the MID cable. [Small flat screwdriver]
Loosen the the top and bottom screws and remove the copper bars. [PH2 Screwdriver]

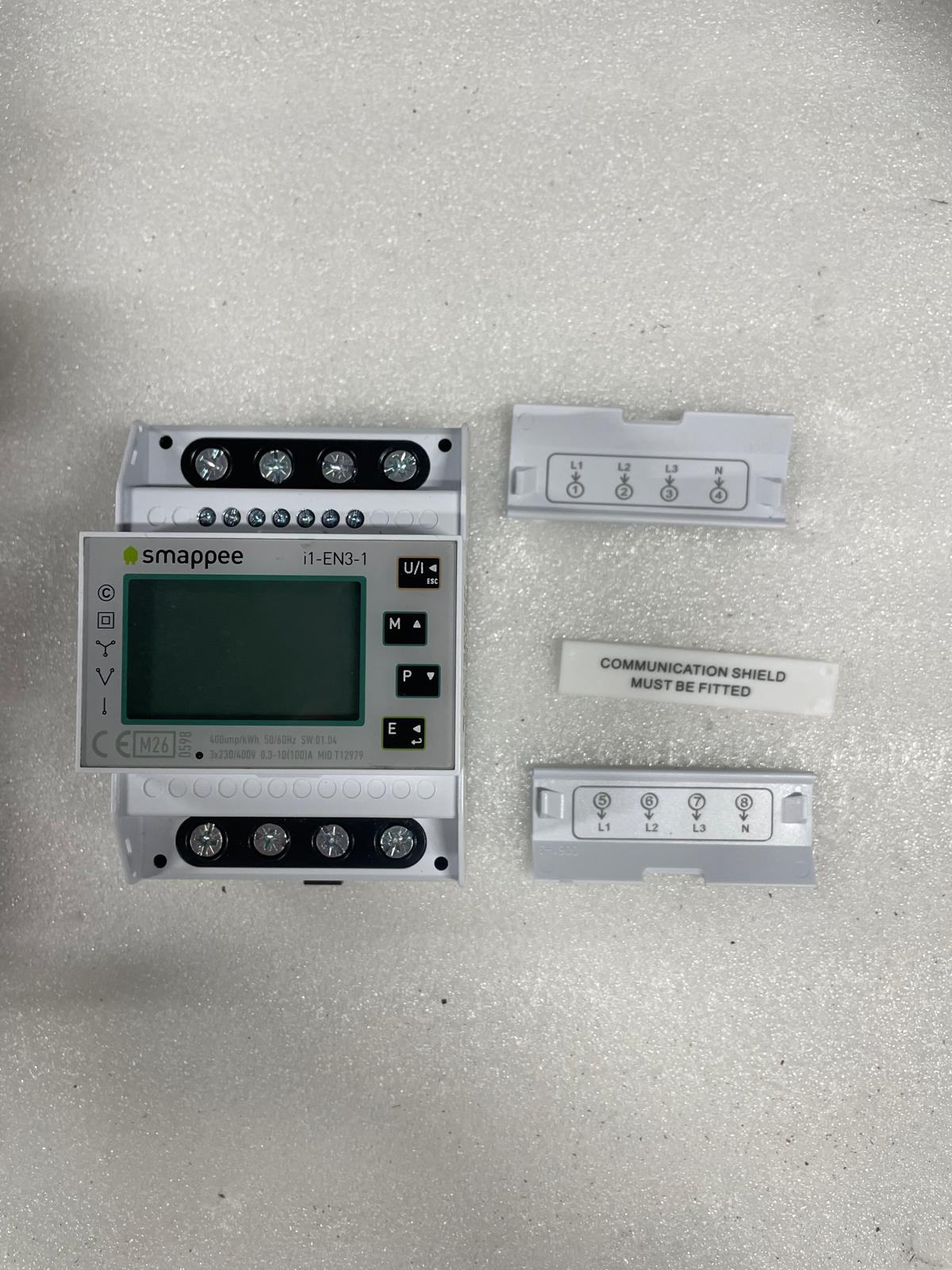

On the replacement MID remove the top and bottom lid and afterwards remove also the shielding cover.

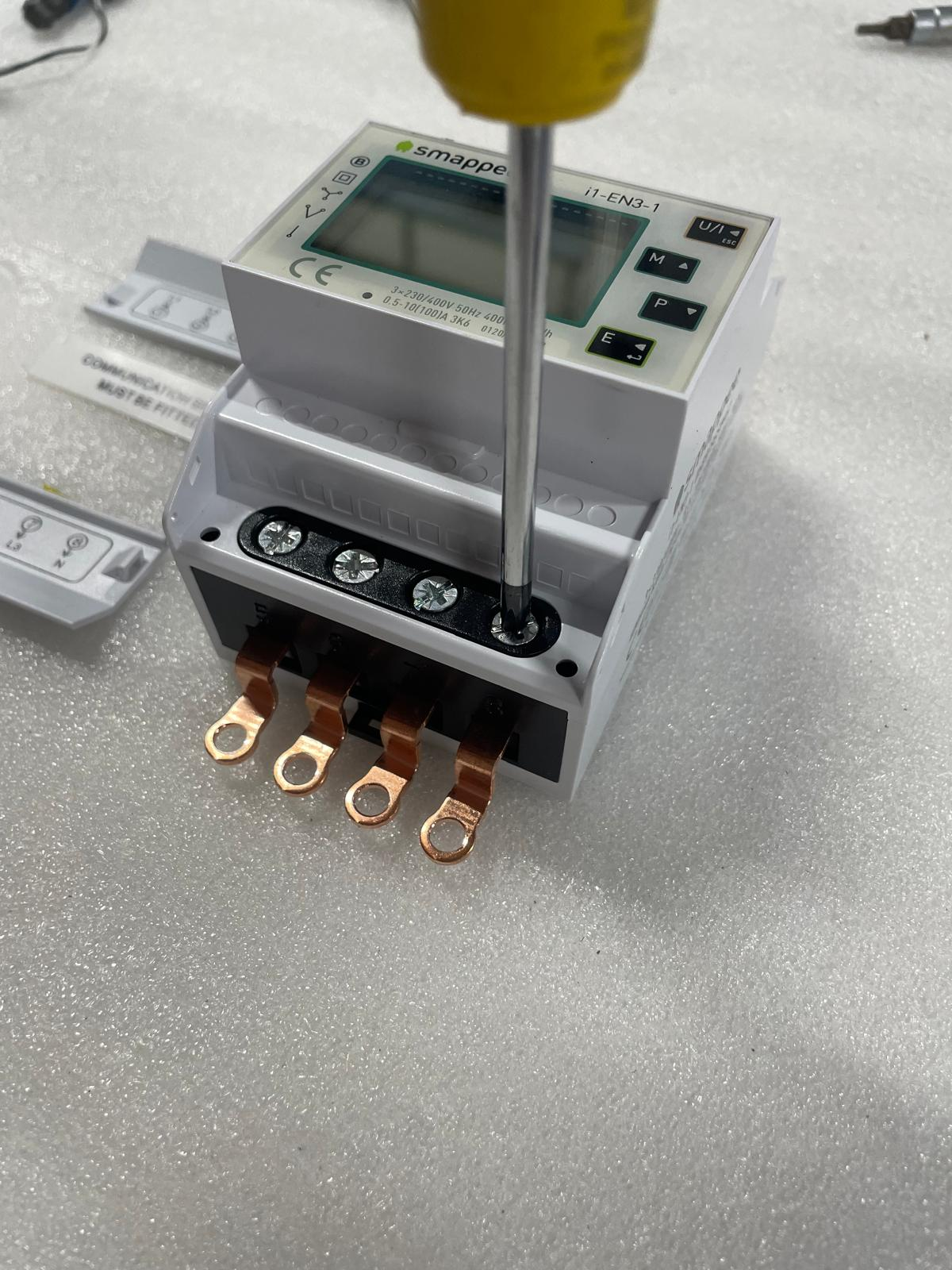

Reinstall the copper bars on the replacement MID. [PH2 screwdriver - Torque 2.5 N.m]

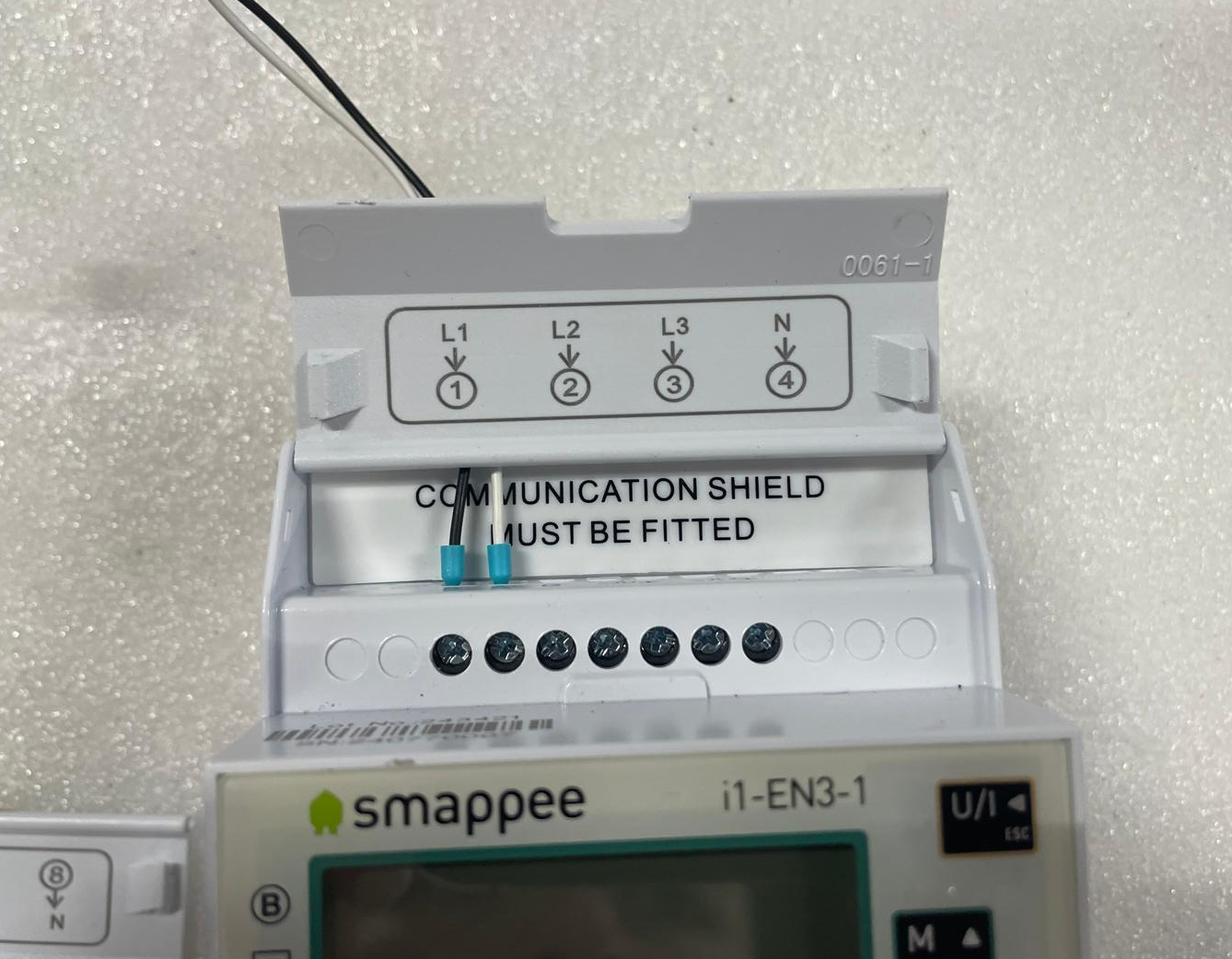

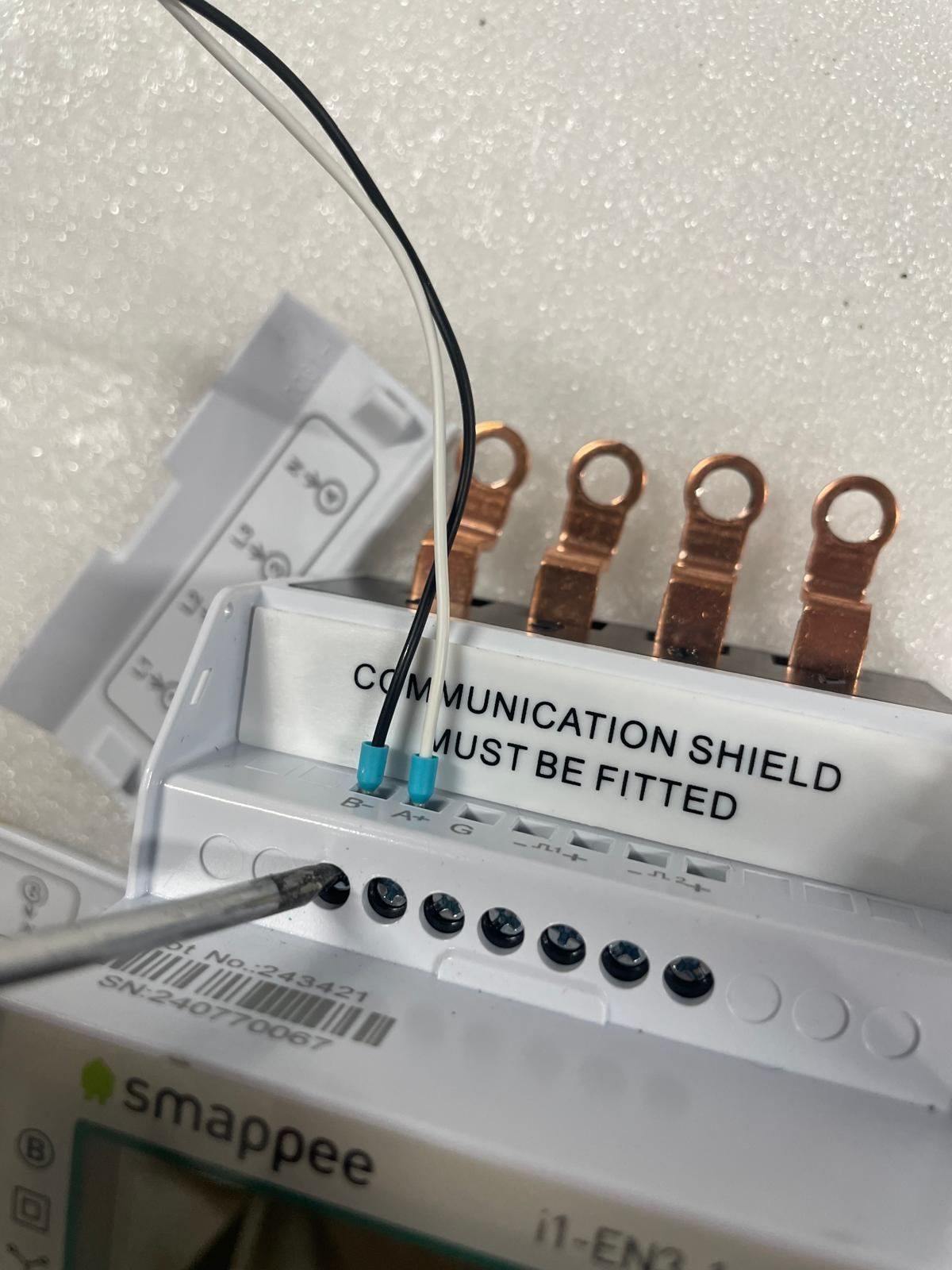

Put the shielding cover back into place. Reconnect the 2 open ends of the MID cable to the MID. Connect the black cable to the “B-” port and the white cable to the “A+” port [Small flat screwdriver - Torque 0.3 N.m]

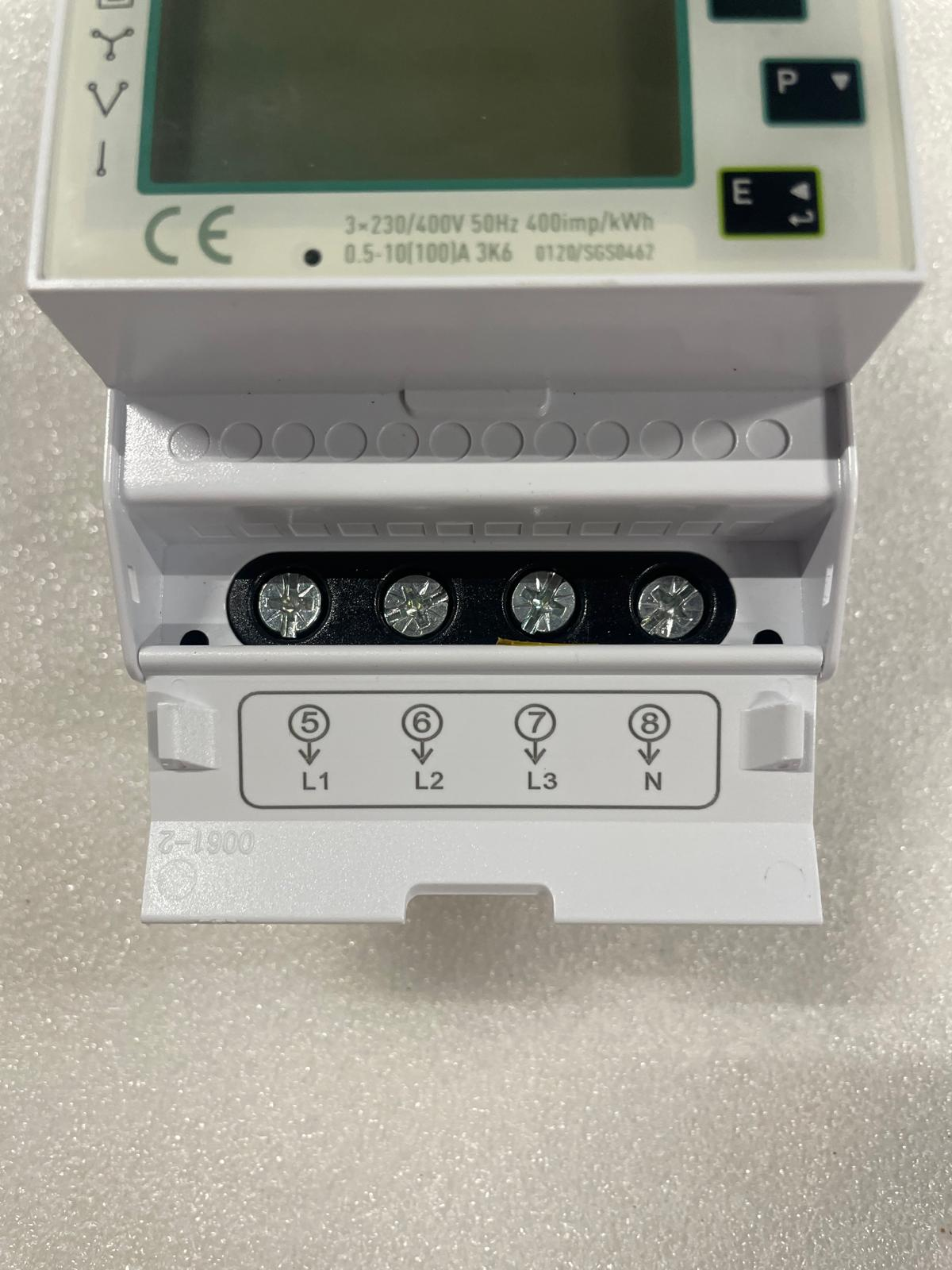

Put the top and bottom lids back into place.

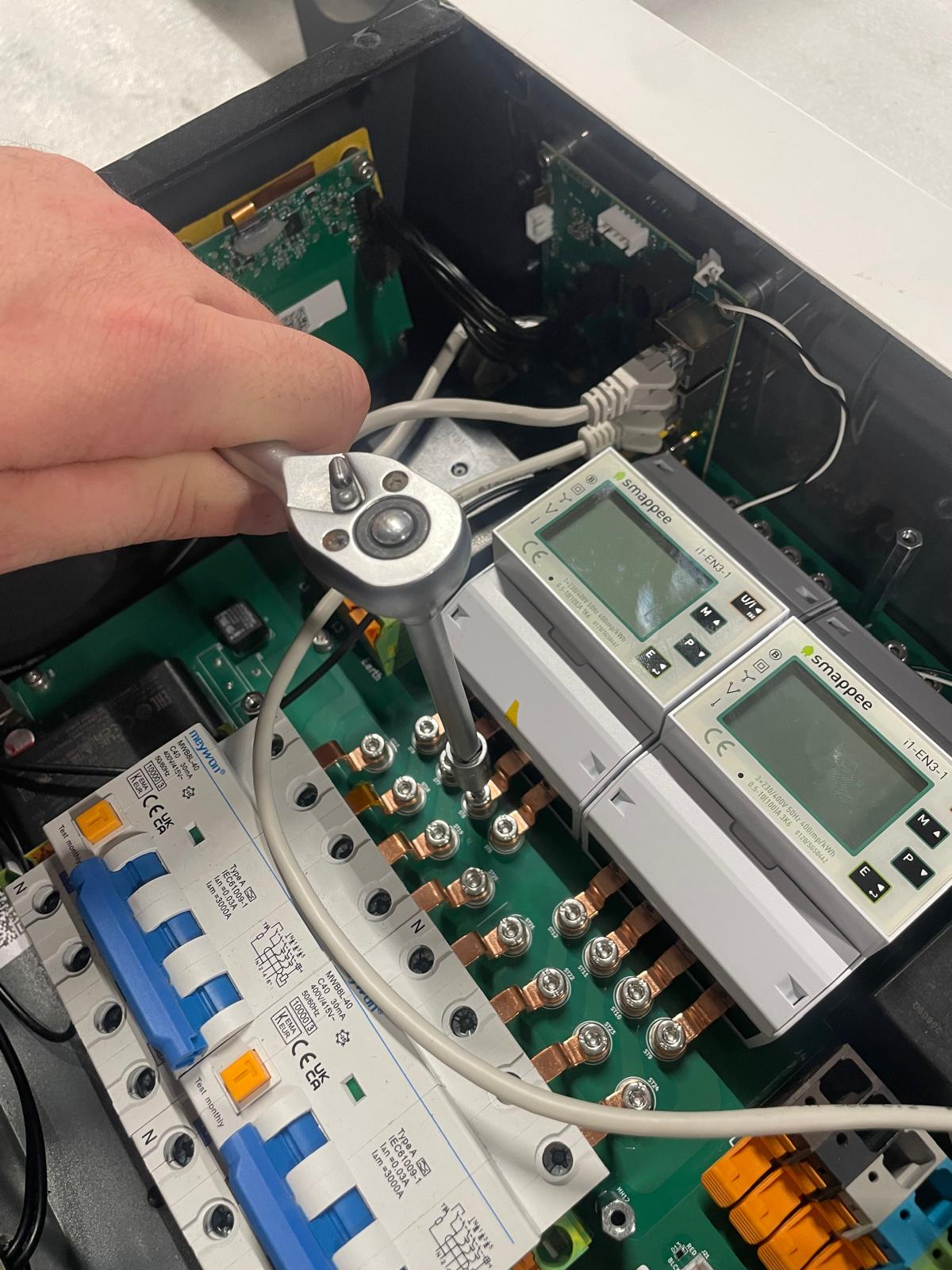

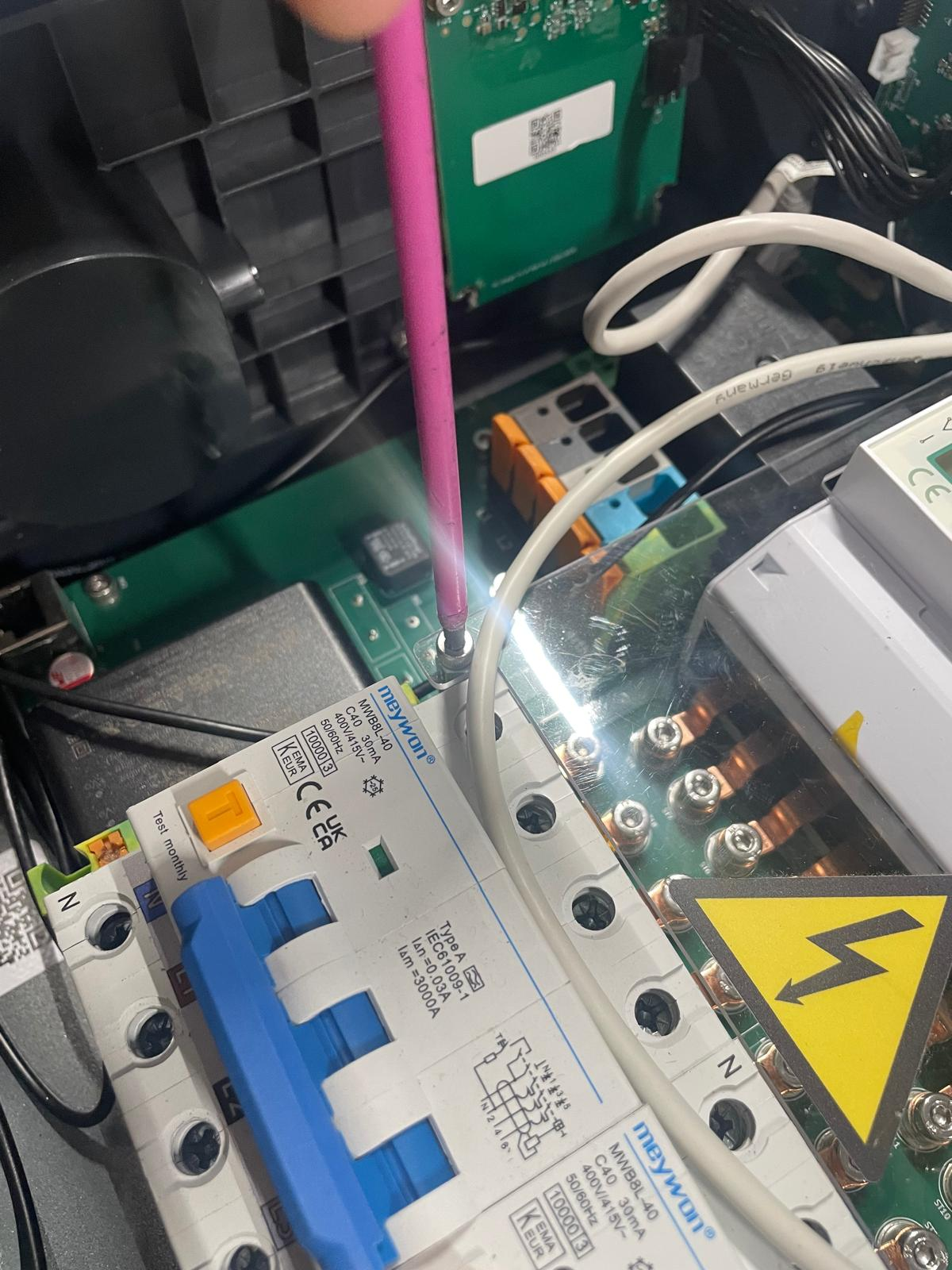

Position the MID in the correct position and fasten the Z-bars to the relays board. [Allen 3 - Torque 2.5 N.m]

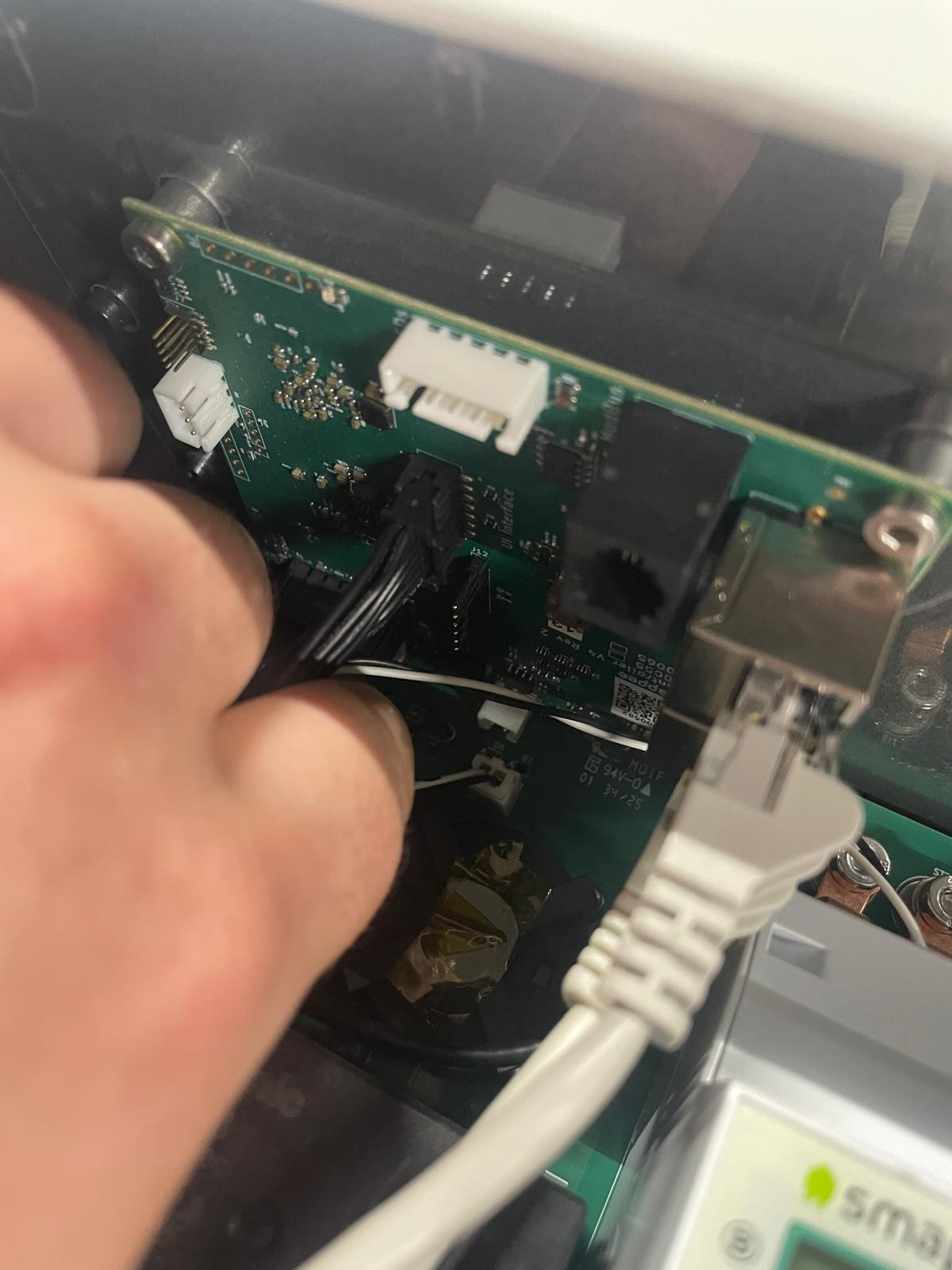

Reconnect the MID cable to the relays board.
Reinstall the plastic protection with the 3 screws [Allen 3 - Hand-tight]
- Power the unit and check if the MID screen is lighting up.
- Close the unit either by using the provided key (Wall version) or tightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)]
