Version
Revision 1
Used in
- (6630xxxxxx) (Cable version)
(6631xxxxxx) (Socket version)
Parts needed
- AC-RCBO-4P40A
Tools needed
- Key (Wall)
- Safety TX20 bit (base)
- Allen 3
- PH2 screwdriver

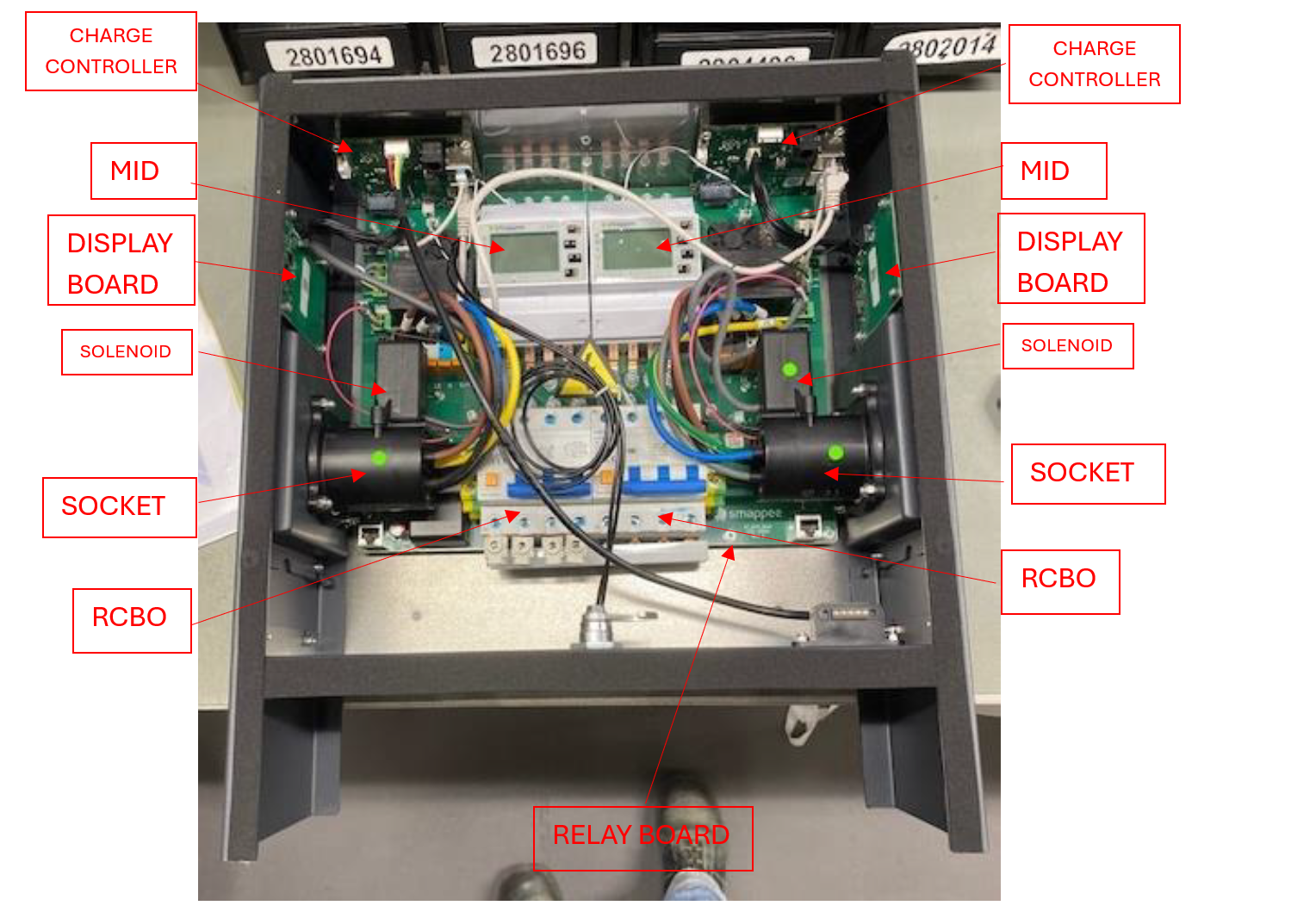

Charger Overview
Replacement Instructions
- Open the unit either by using the provided key (Wall version) or untightening the 6x safety screws (Base version). Place the front plate aside [Key (Wall) or Safety TX20 bit (Base)]

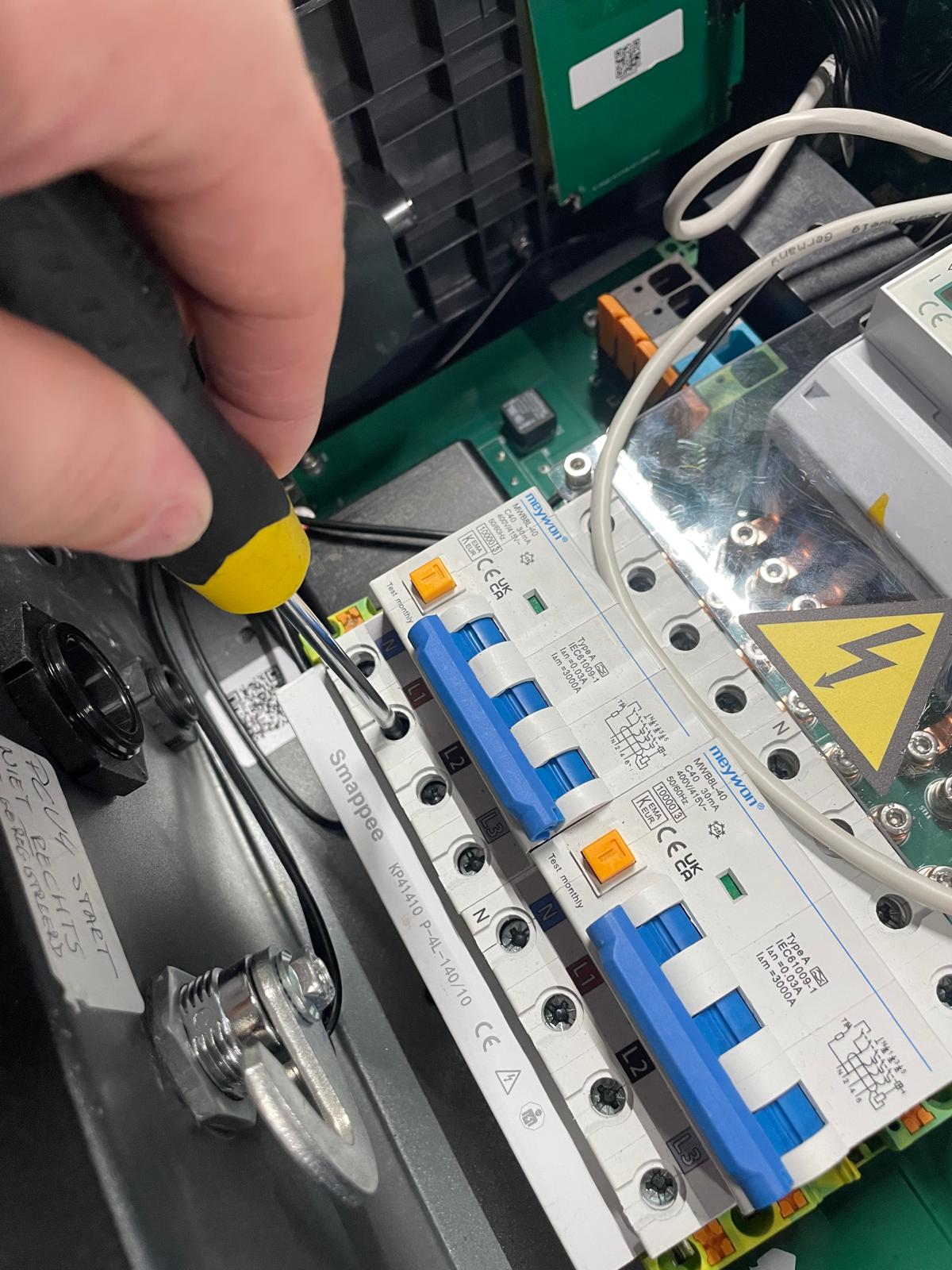

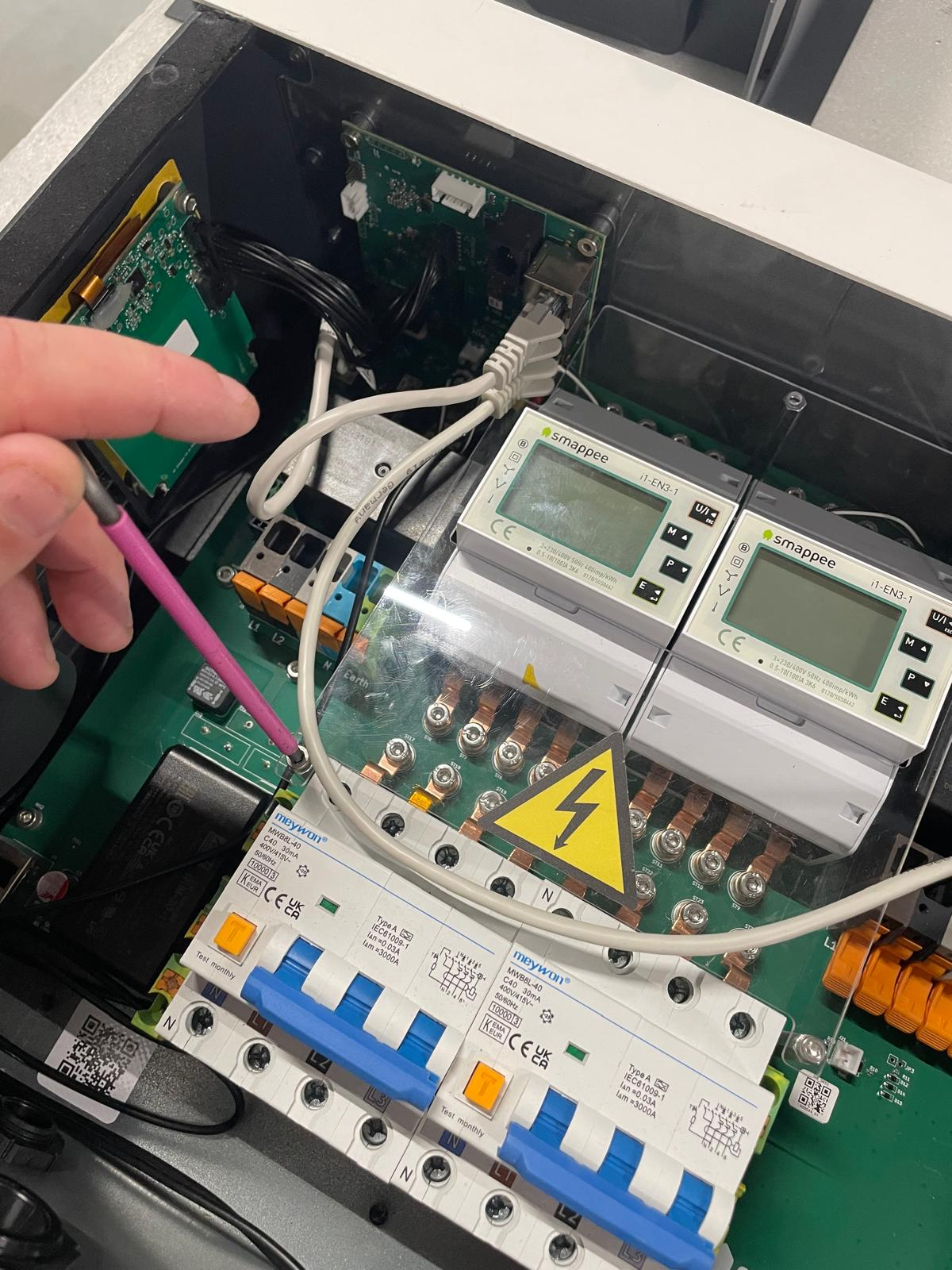

Loosen the bottom screws of the RCBO and remove the power lines (and busbar if installed). [PH2 screwdriver]

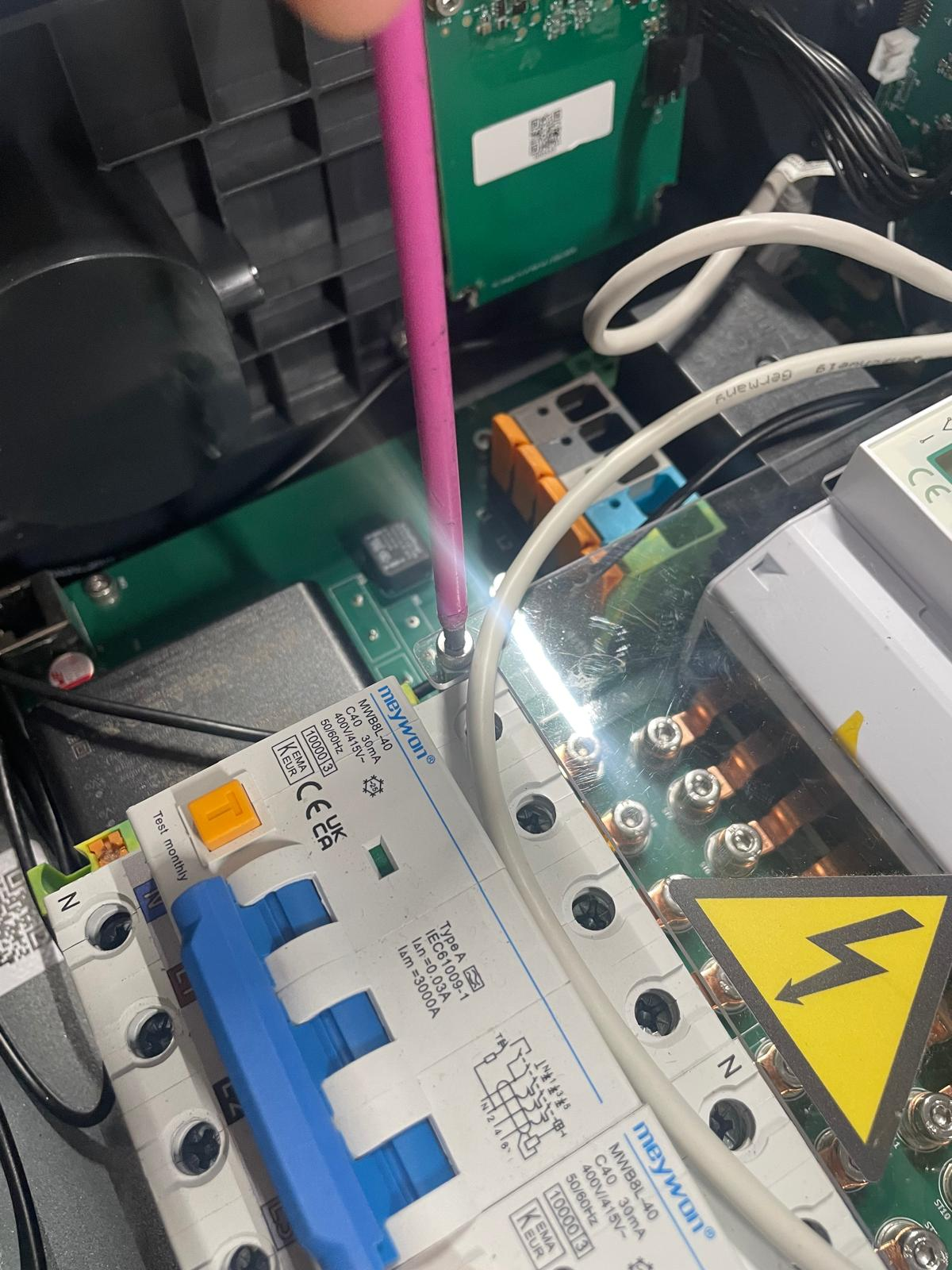

Loosen the 3 screws holding the plastic protection and remove it. [Allen 3]

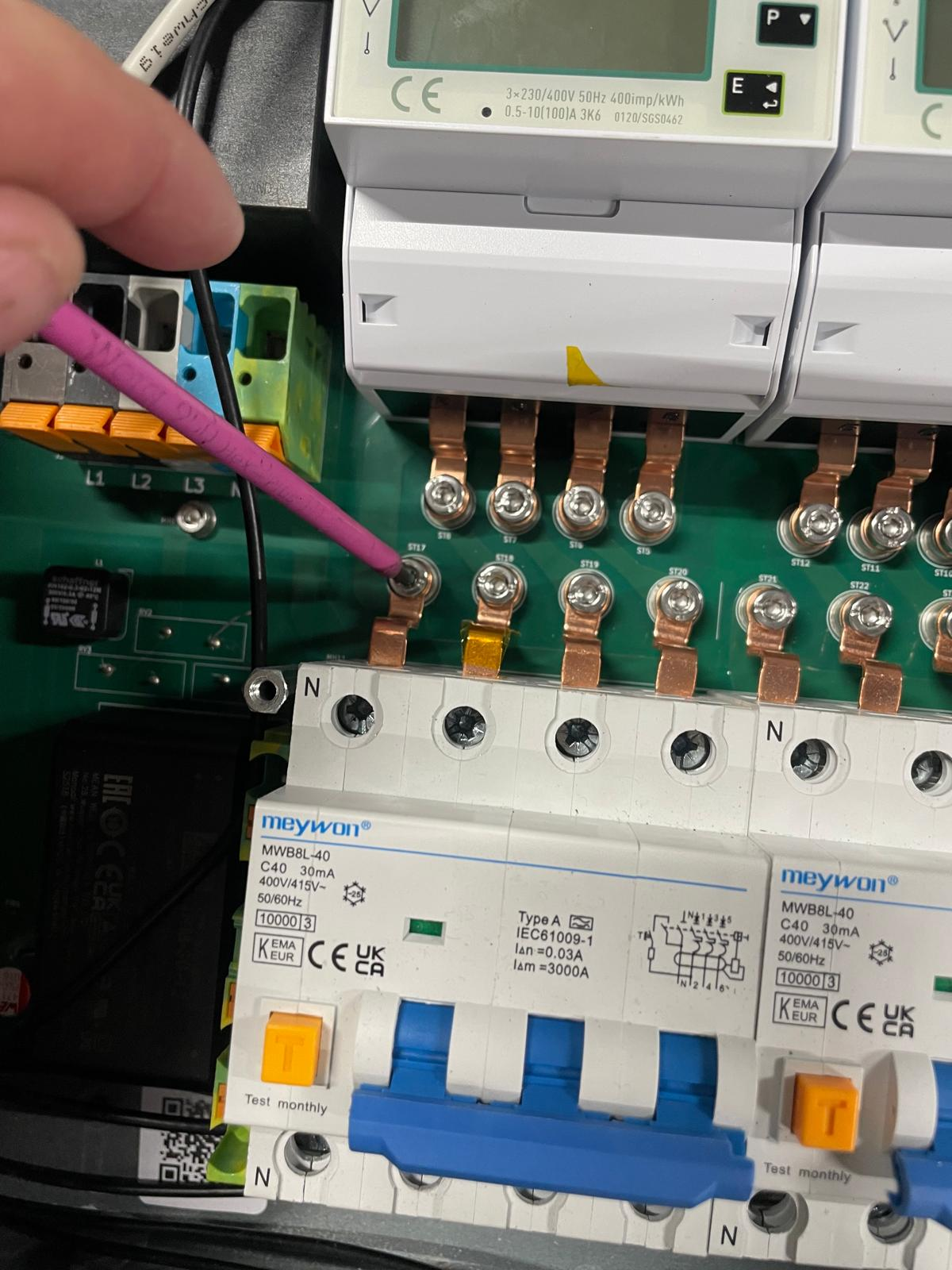

Loosen all of the screws holding the copper bars. [Allen 3]

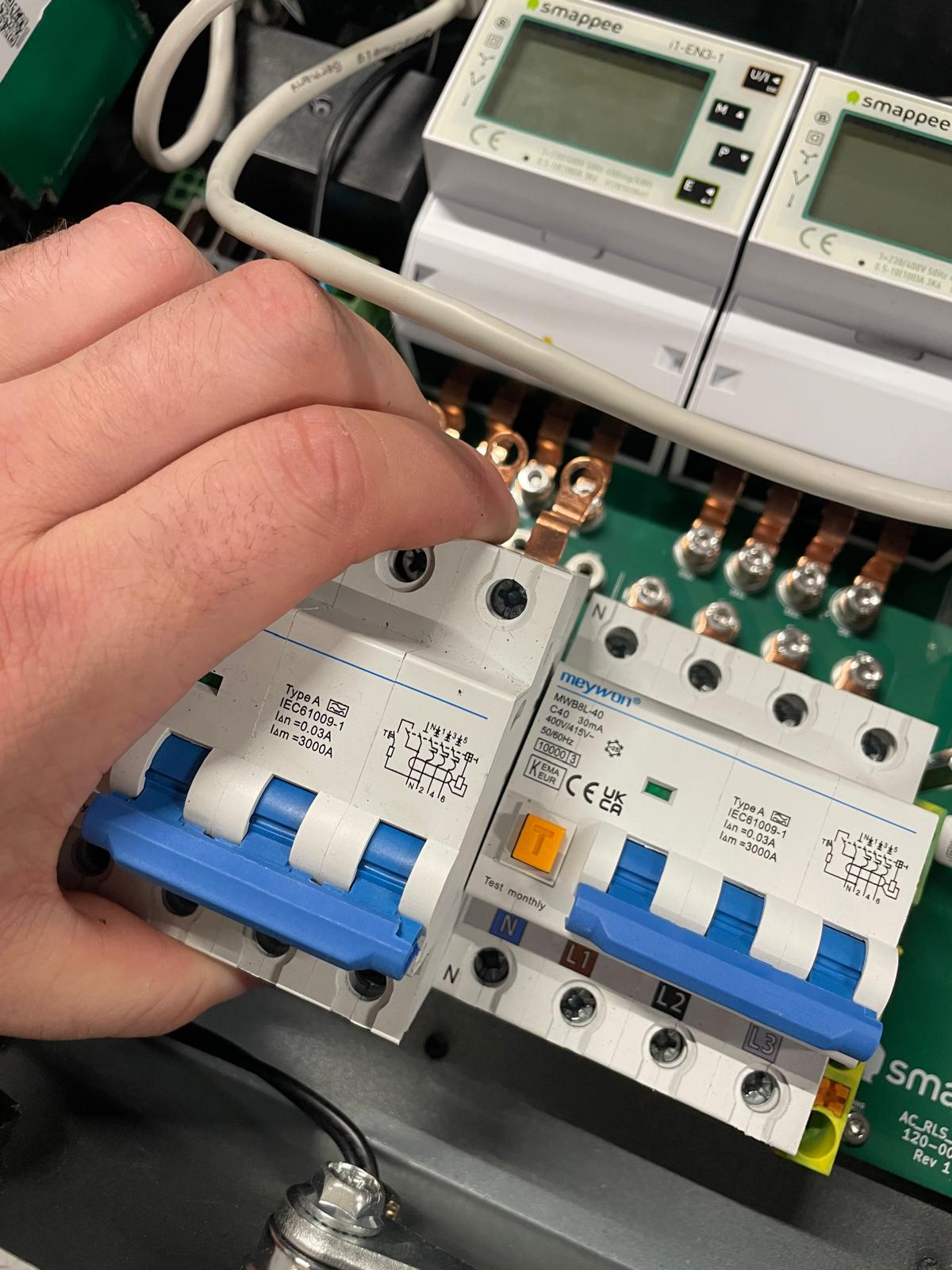

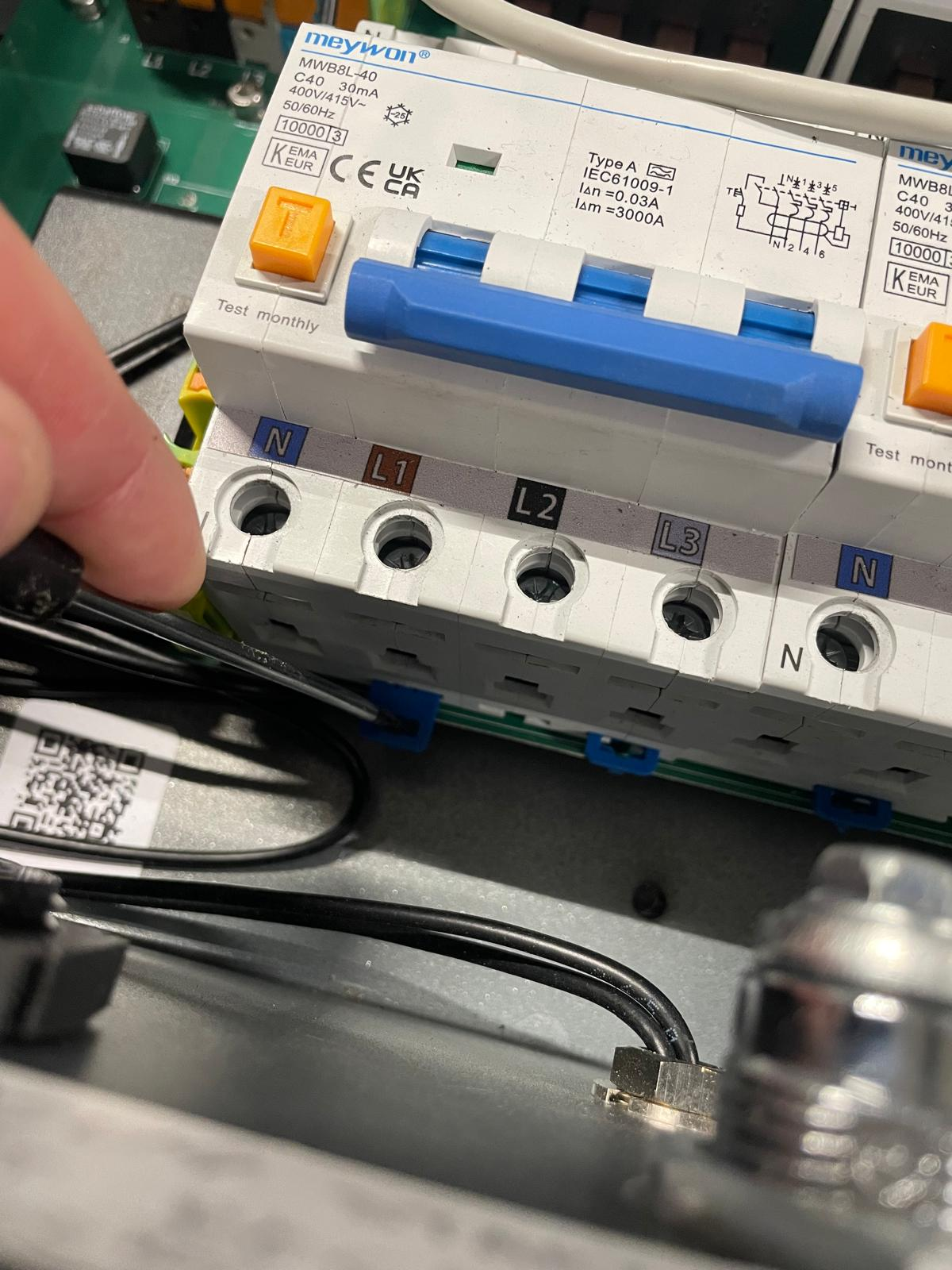

A blue hook at the bottom of the RCBO is locking the device onto the DIN rail. Pull the “hook” downwards and remove the RCBO. [Small flat screwdriver]

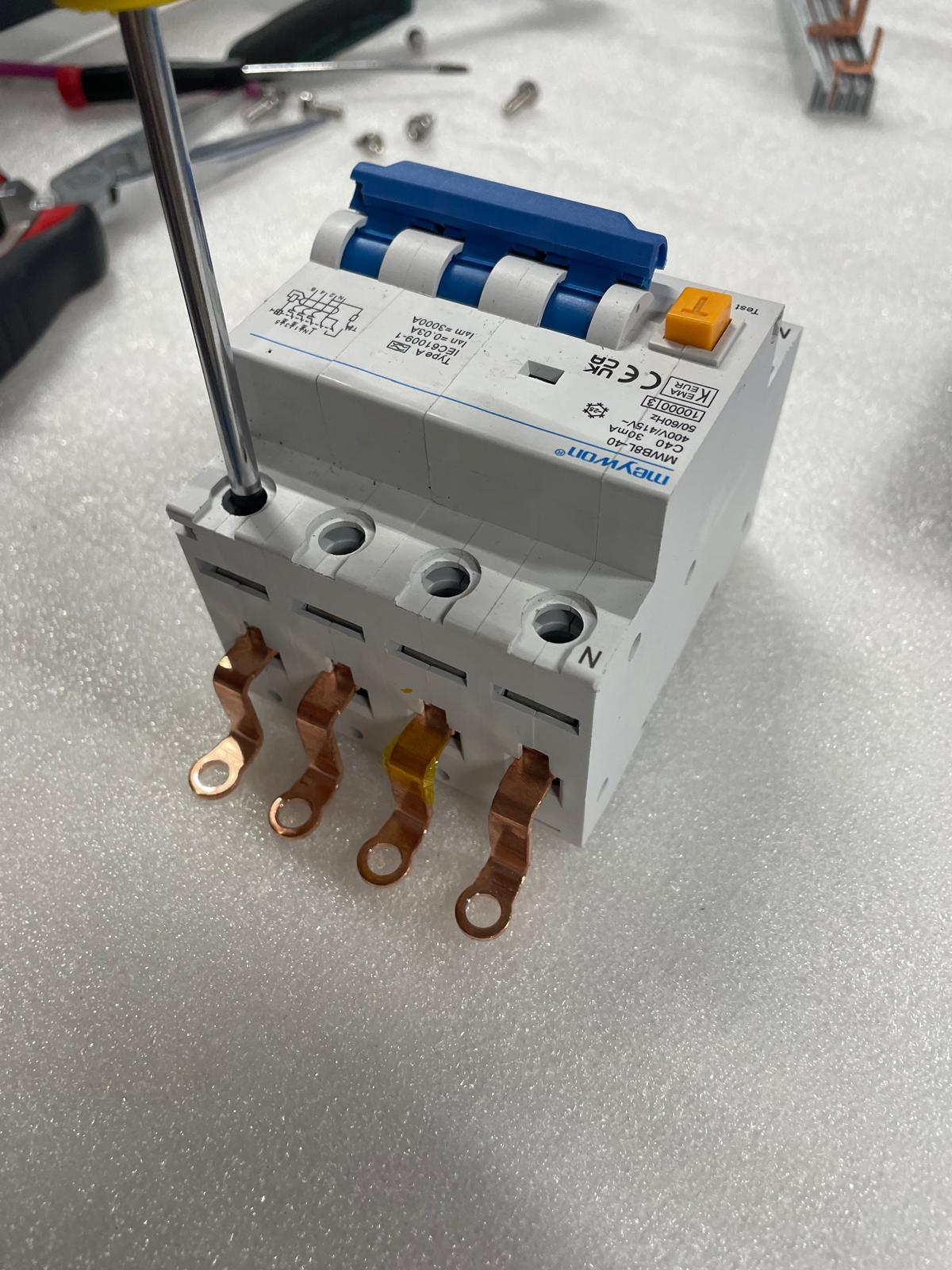

Remove the copper bars and reinstall them on the replacement RCBO. [PH2 screwdriver - Torque 2.5 N.m]

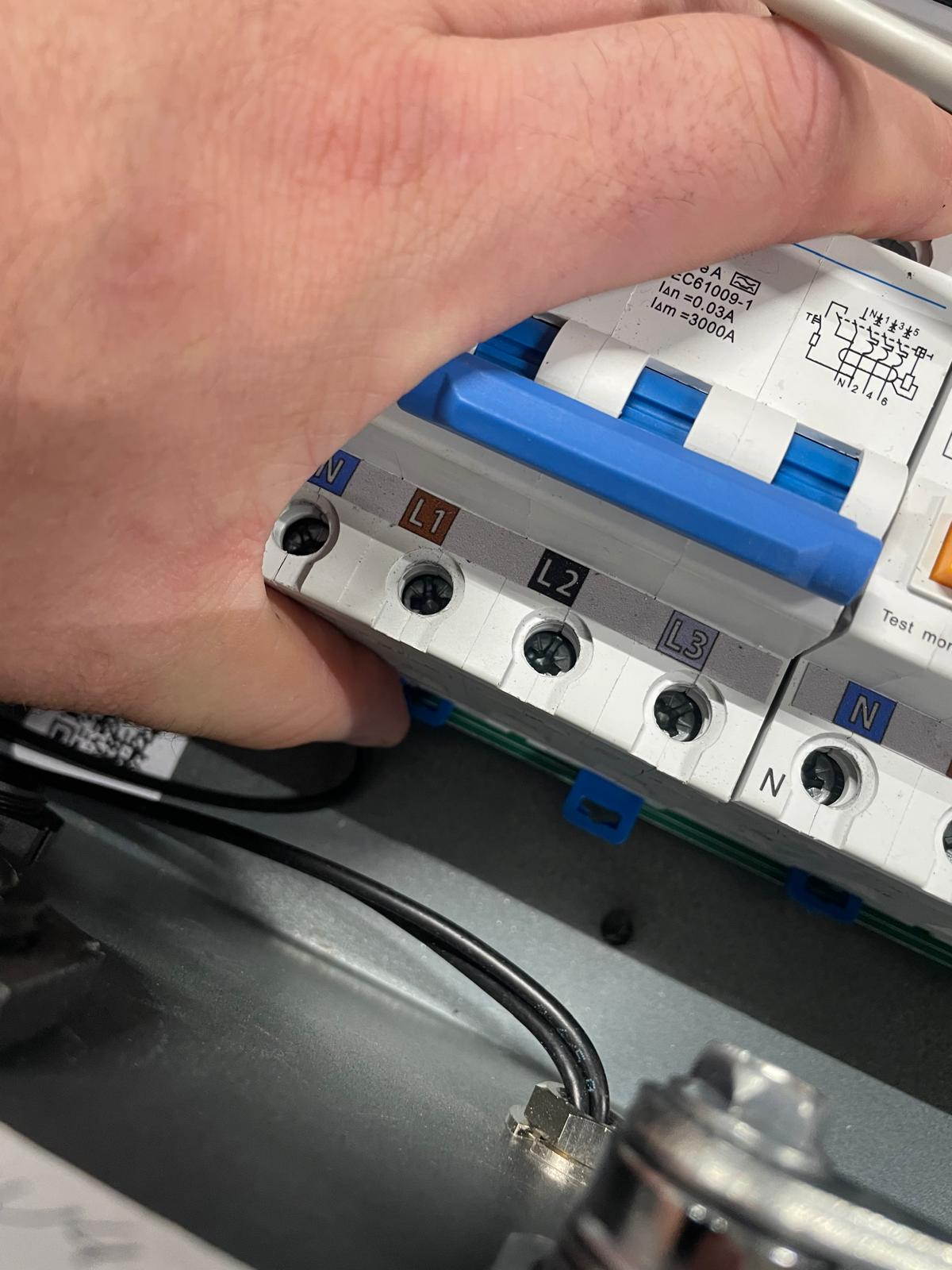

Reinstall the RCBO over the DIN rail and lock it into place by pushing the blue hook upwards. [Small flat screwdriver]
Fasten the copper bars back to the relay board using the screws. [Allen 3 - Torque 2.5 N.m]
Reinstall the protection cover [Allen 3 - Hand-tight]
- Reconnect the powerlines (and busbar if installed) to the bottom of the RCBOs. Make sure to turn the RCBOON, re-power the unit and check if the EV Dual is starting up. [PH2 screwdriver - Torque 2.5 N.m]
- Close the unit either by using the provided key (Wall version) or tightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)]
