EV Dual - Replace display board

Version

Revision 1

Used in

  • EV Dual Base
    (6630xxxxxx) (Cable version)
    (6631xxxxxx) (Socket version)

Parts needed

  • EV-PCB-UIBOARD-LCD

Tools needed

  • Safety TX20 or key
  • Allen 3

Charger Overview

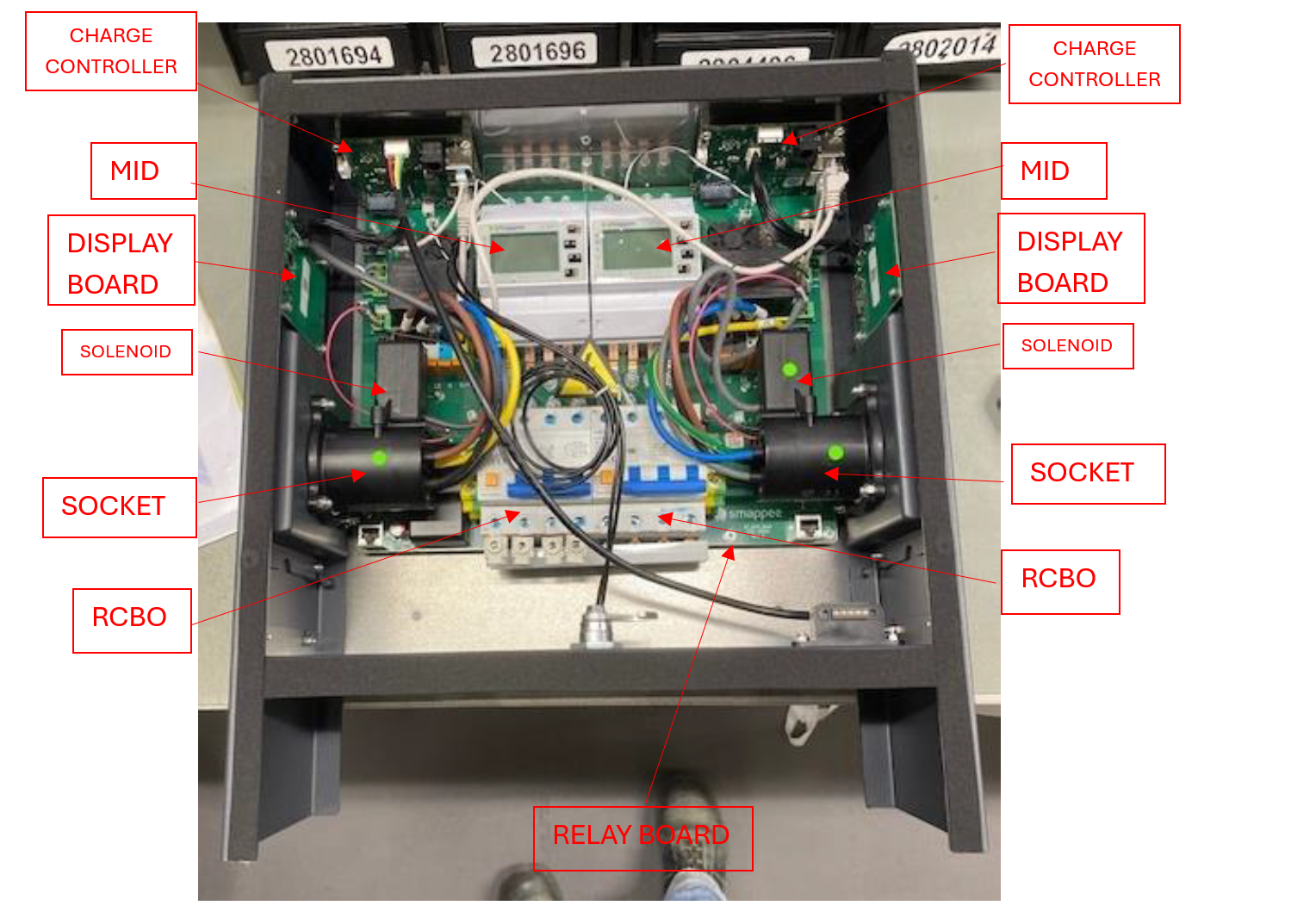

Charger overview

Replacement Instructions

  1. Open the unit either by using the provided key (Wall version) or untightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)] Place the front plate aside

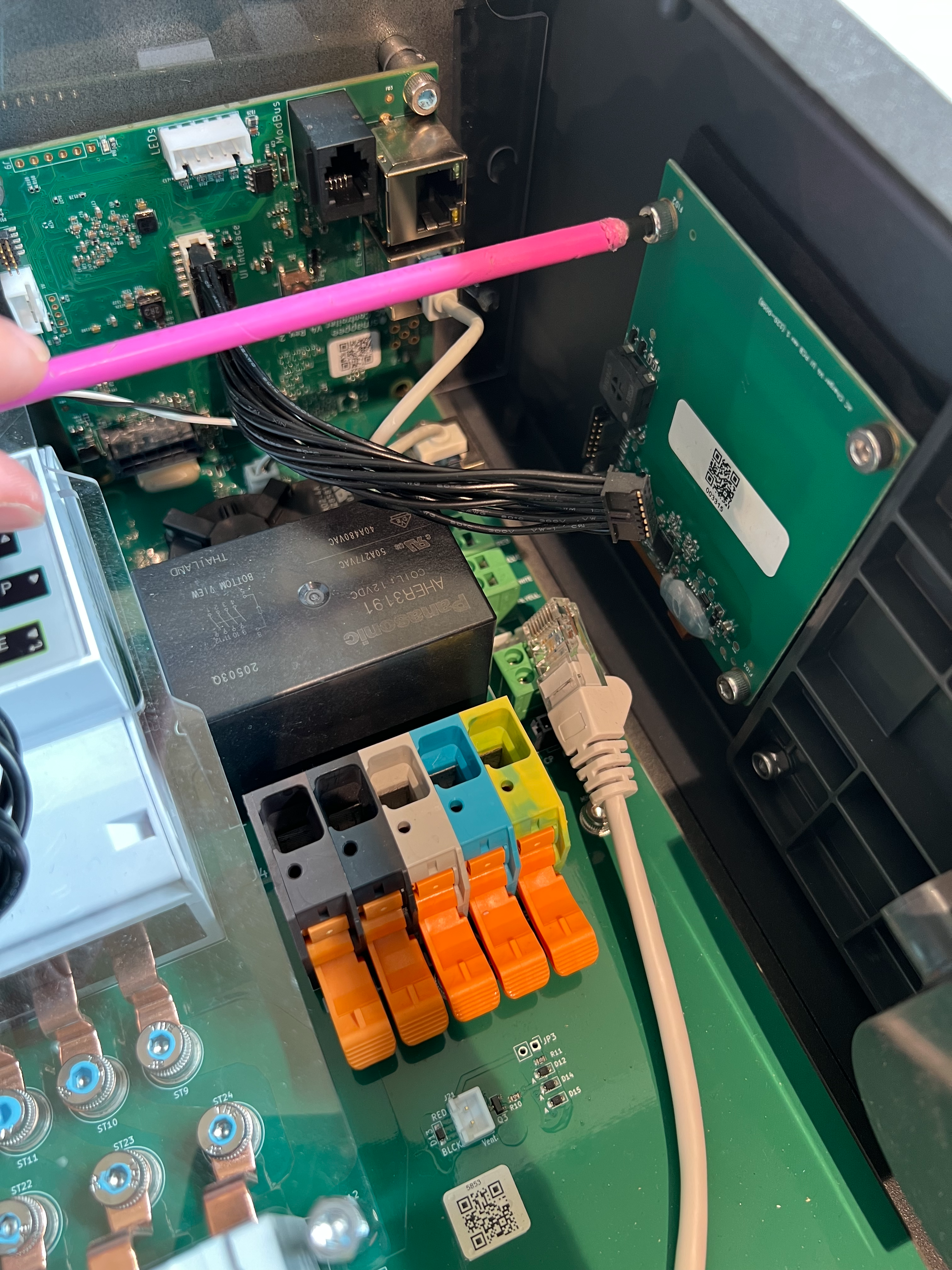

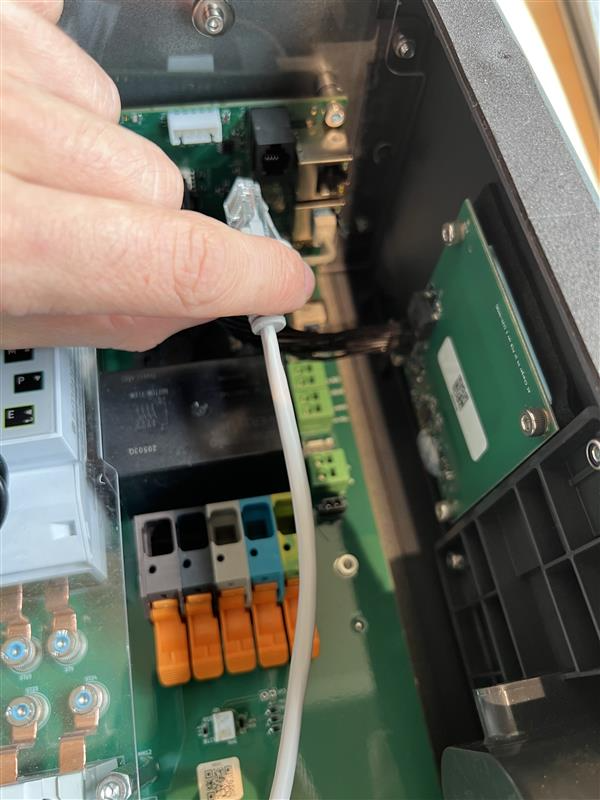

  2. Disconnect cables that might interfere with the change (RJ45 from charge controller for the display of connector 2 for example)

    Step image

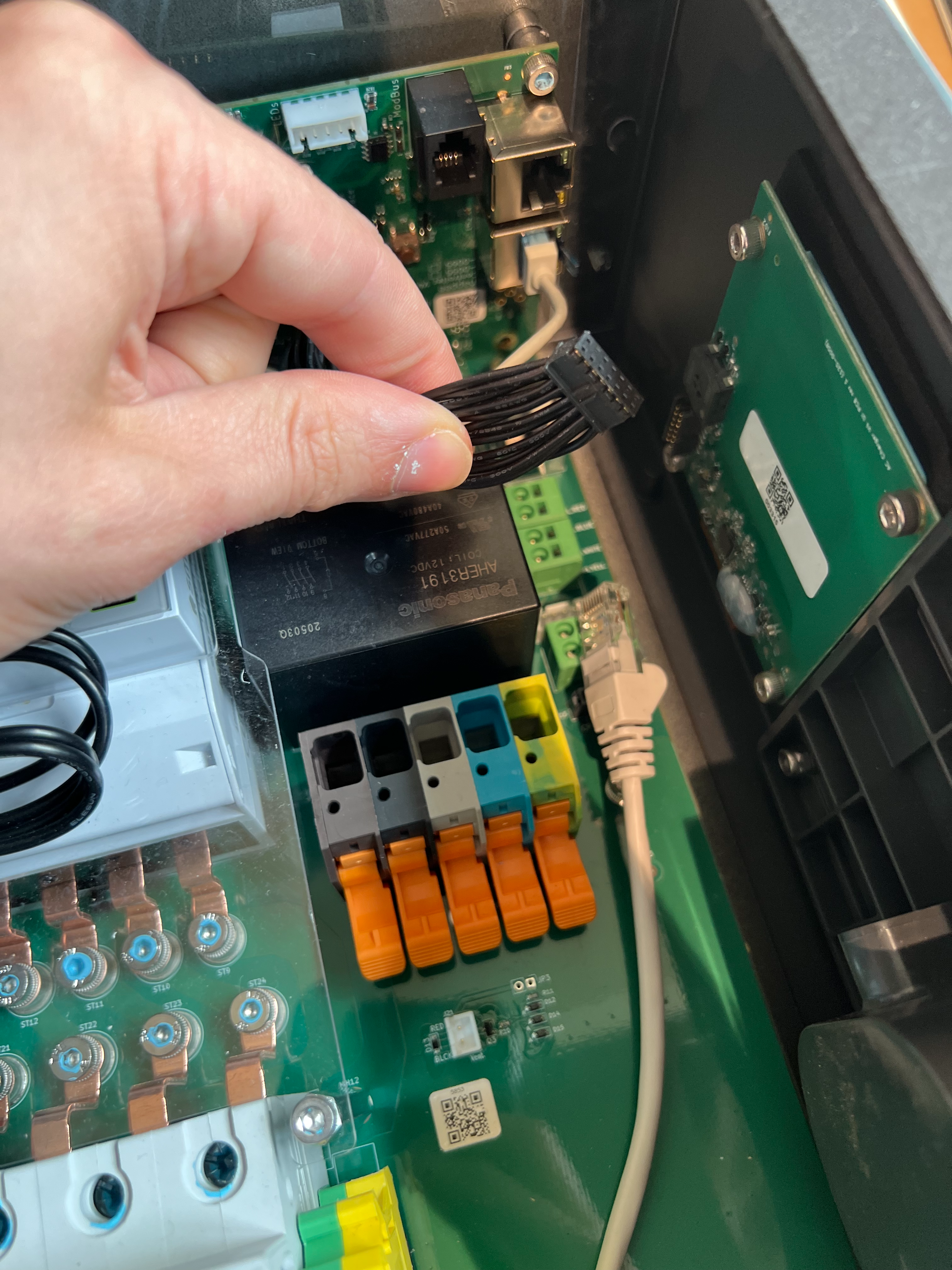

  3. Disconnect the cable from the display board Connector is very fragile, pay attention not to damage it.

    Step image

  4. Remove the display board from the side panel.

    • Untighten the 4x M4 screws of the board [Allen 3]
    • Remove the display board

    Step image

  5. Replace the display board by the new one.

    • Place the new display board
    • Retighten the 4x M4 screws [Allen 3 - Torque 2.5 N.m]

    Step image

  6. Reconnect the display board. Connector is very fragile, pay attention not to damage it; when connected it cable side should hook onto the connector from the board.

    Step image

  7. Reconnect any other cables that were disconnected
  8. Close the unit either by using the provided key (Wall version) or tightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)]
