Version
Revision 1
Used in
-
EV Dual Base
(6630xxxxxx) (Cable version)
(6631xxxxxx) (Socket version)
Parts needed
- Connector 1 : [EV-PCB-CONTROLBOARD-1] AC Charge controller with 4G modem
- OR Connector 2 : [EV-PCB-CONTROLBOARD-2] AC Charge controller without 4G modem
Tools needed
- Safety TX20 or key
- Allen 3
- Hex 8

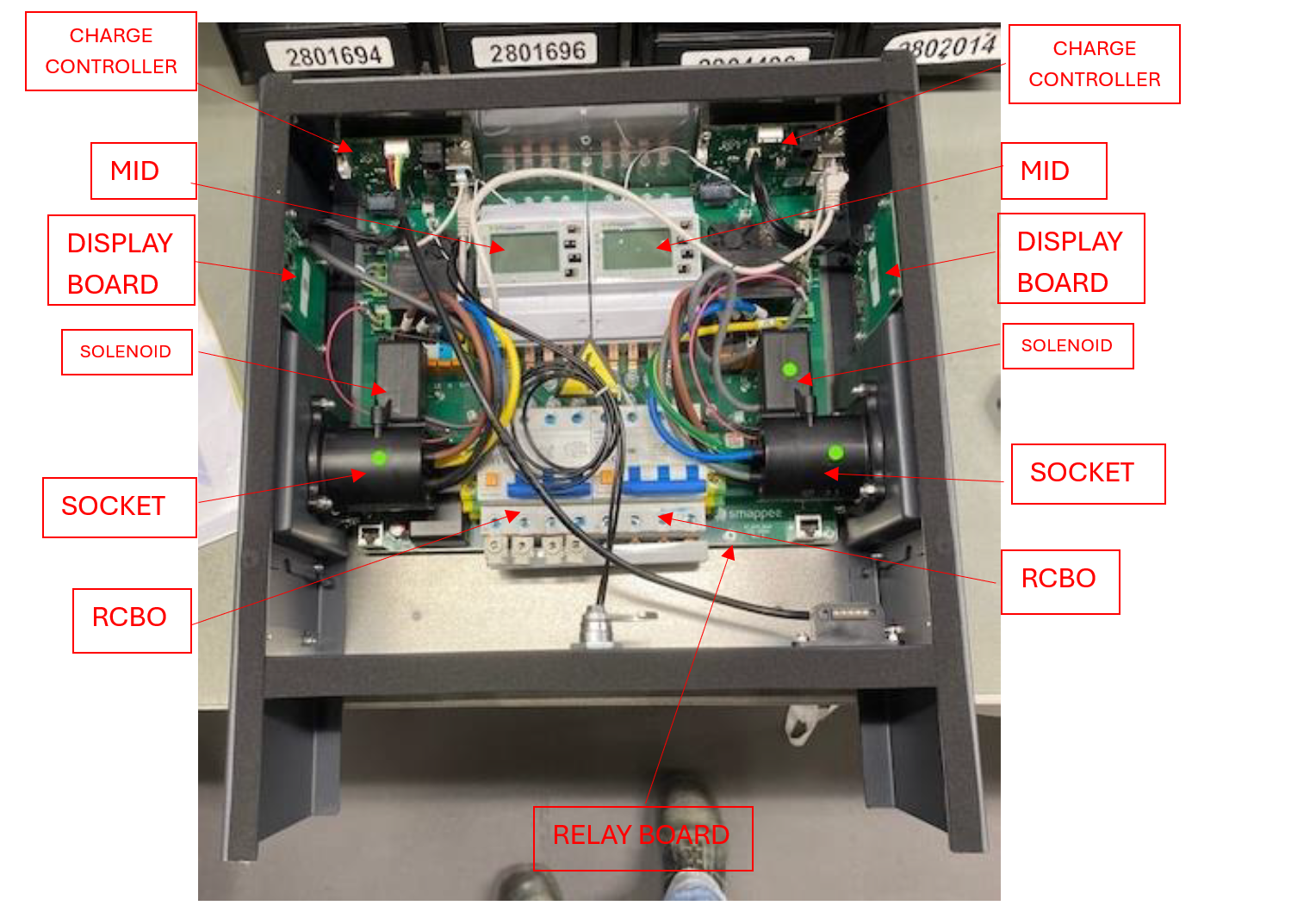

Charger Overview
Replacement Instructions (Connector 1)
- Open the unit either by using the provided key (Wall version) or untightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)] Place the front plate aside
-

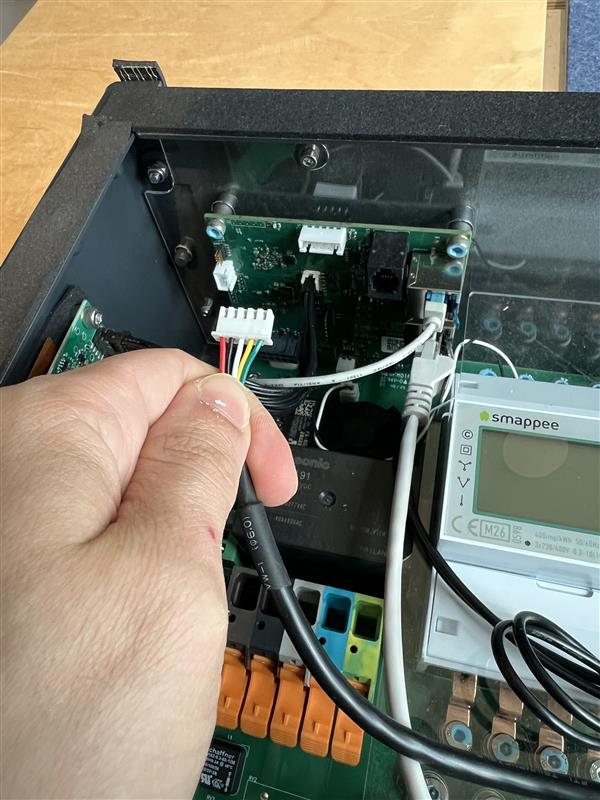

Disconnect the LED cable
-

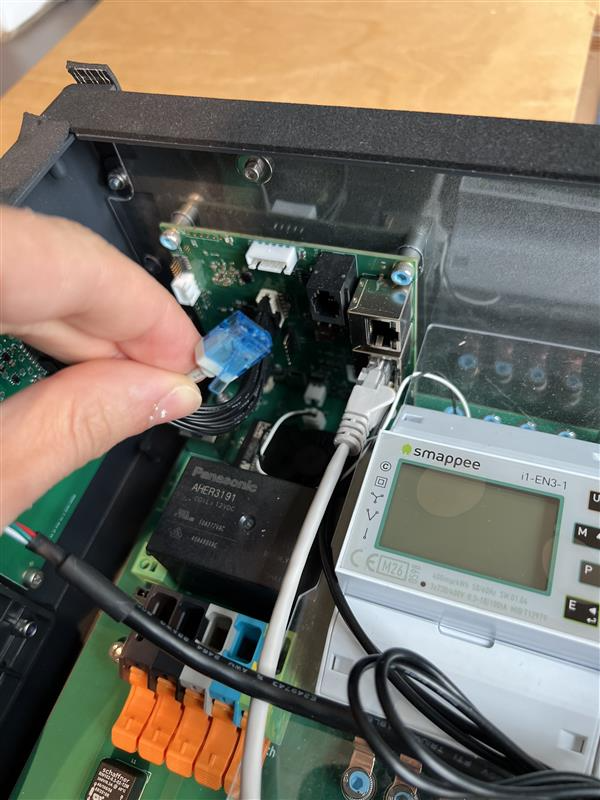

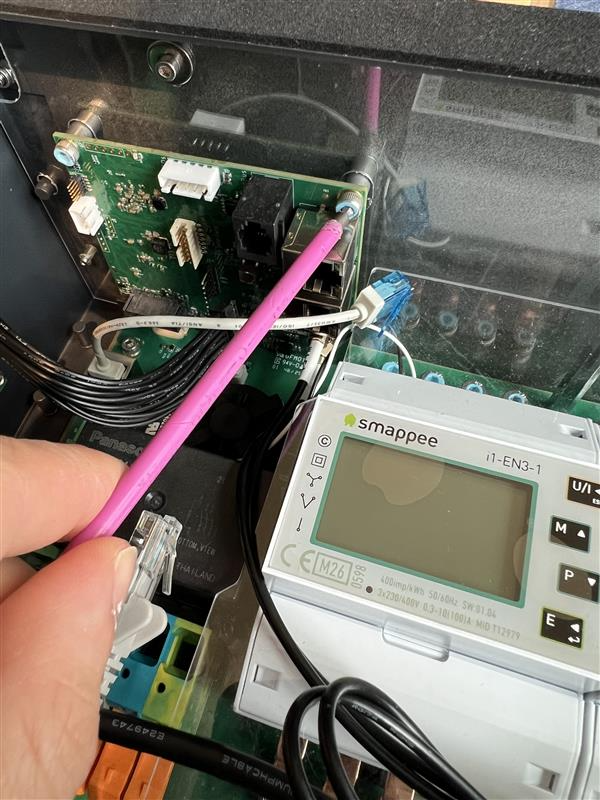

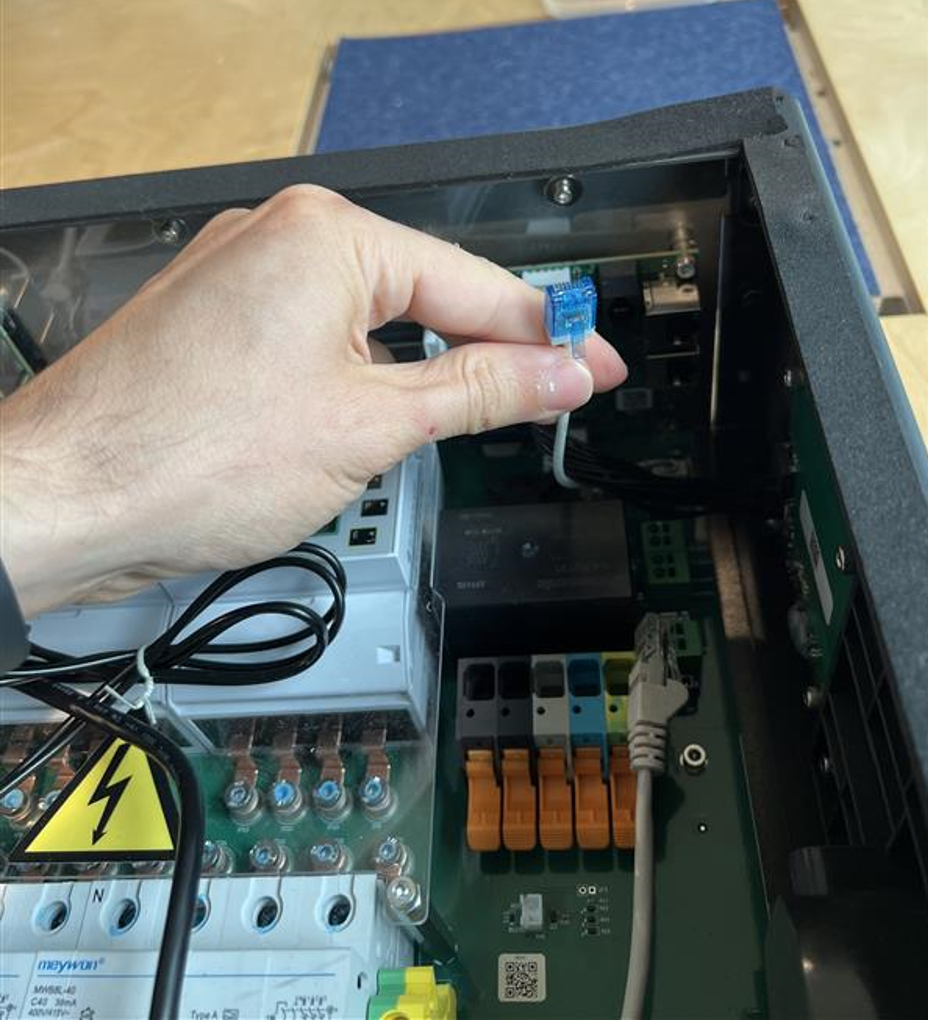

Disconnect the 2x RJ45 cables from the charge controller
-

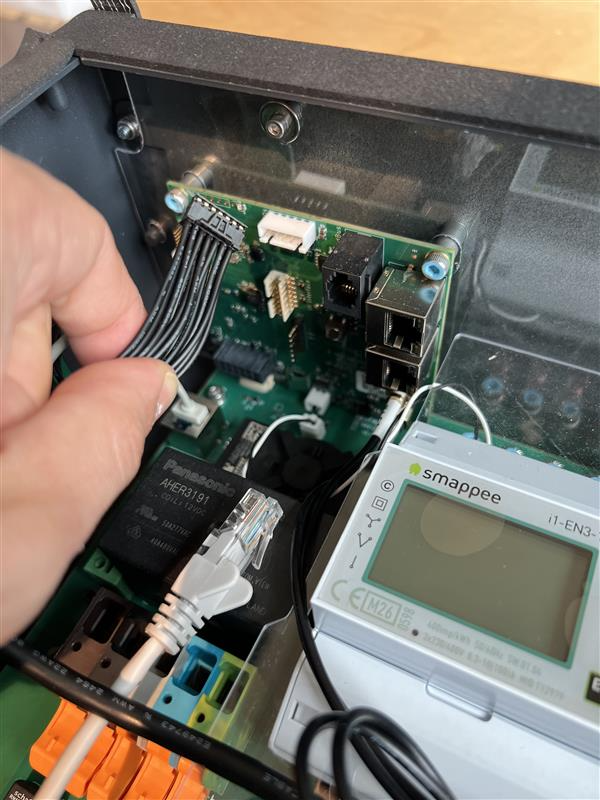

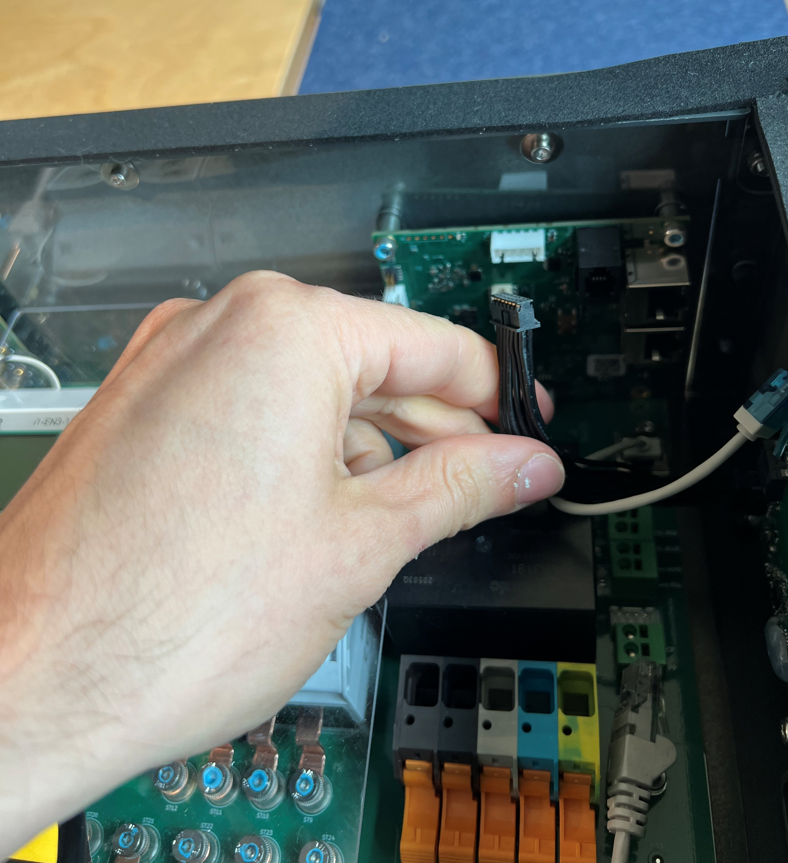

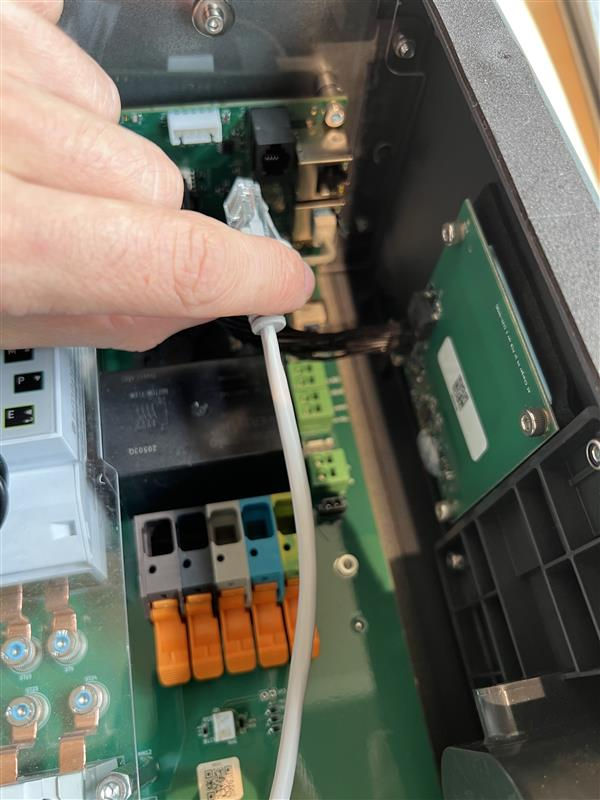

Disconnect the display cable
Connector is very fragile, pay attention not to damage it.
-

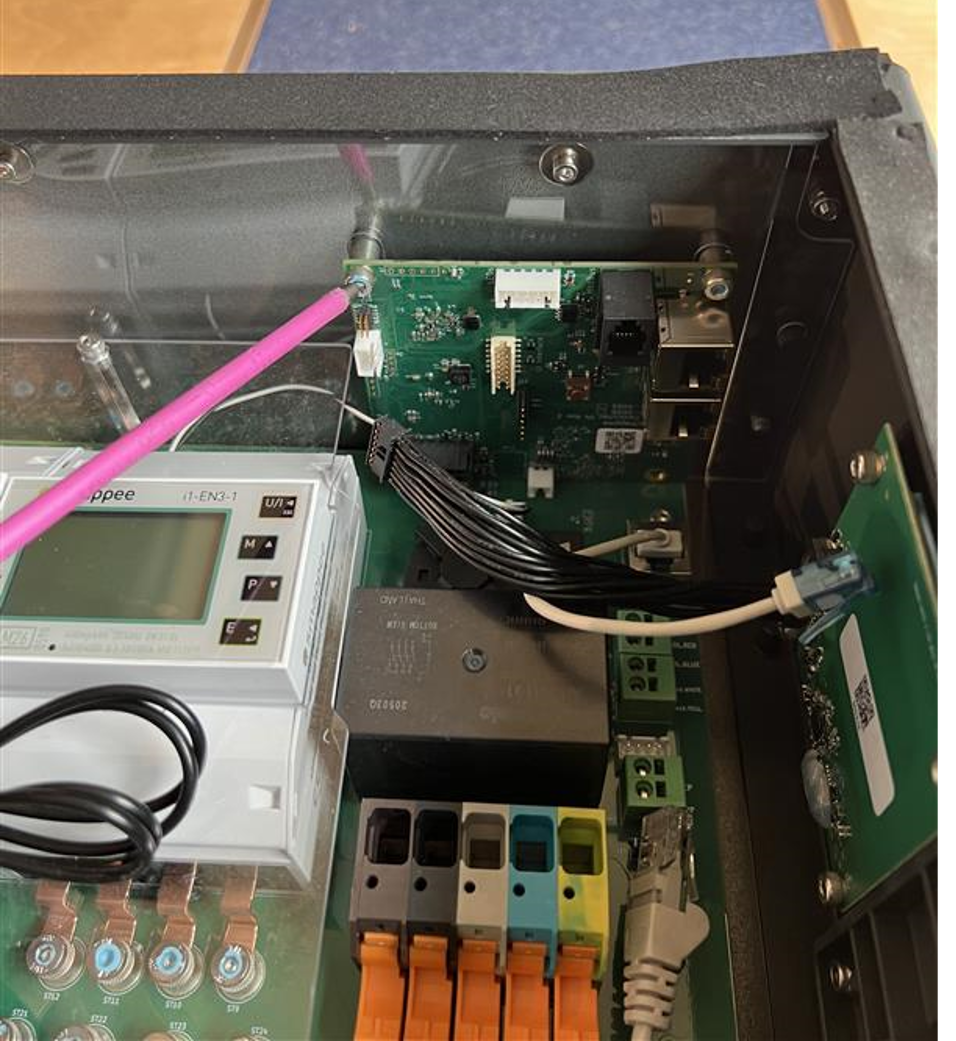

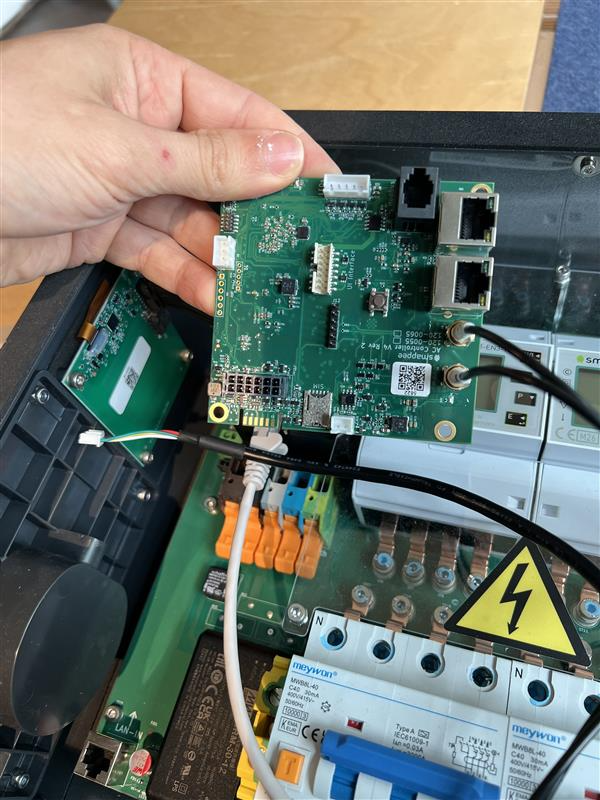

Remove the charge controller from the unit
- Untighten the 2x M4 screws of the board [Allen 3]
- Remove the charge controller
-

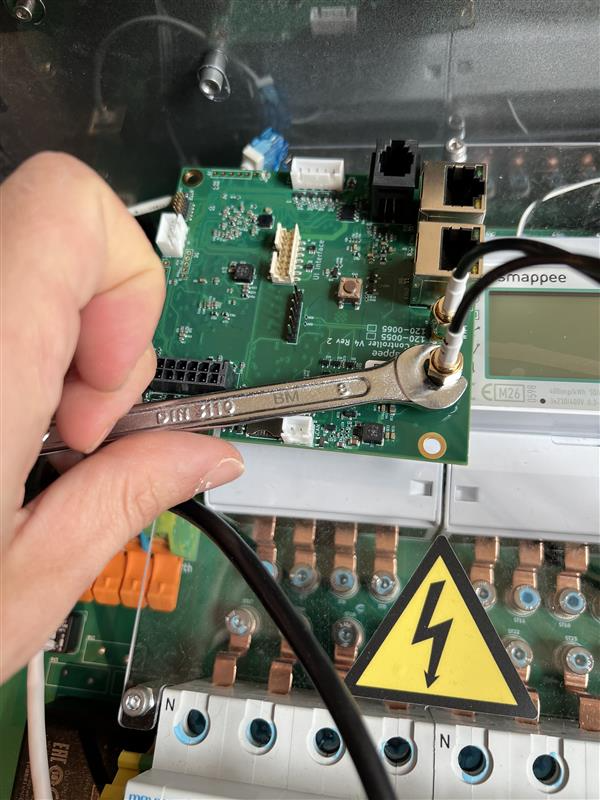

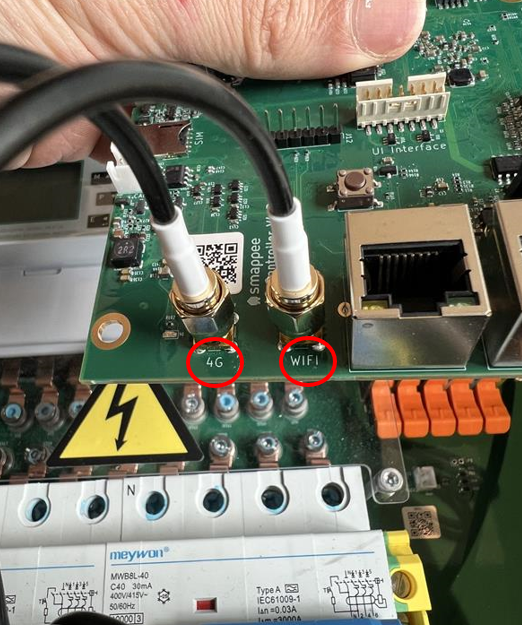

Disconnect the 2 antenna cables from the charge controller [Hex 8]
-
Replace the charge controller and retighten the 2 antenna cables
Follow the marking on the board and on the cables : Connect the “LTE” cable to “4G” port and the “Wifi” cable to the “Wifi” port
-
Reconnect the charge controller

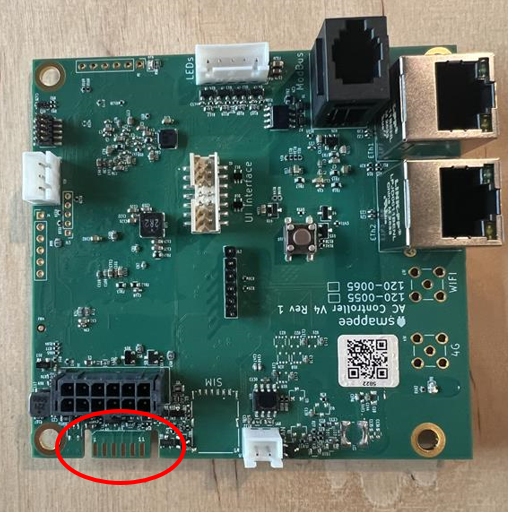

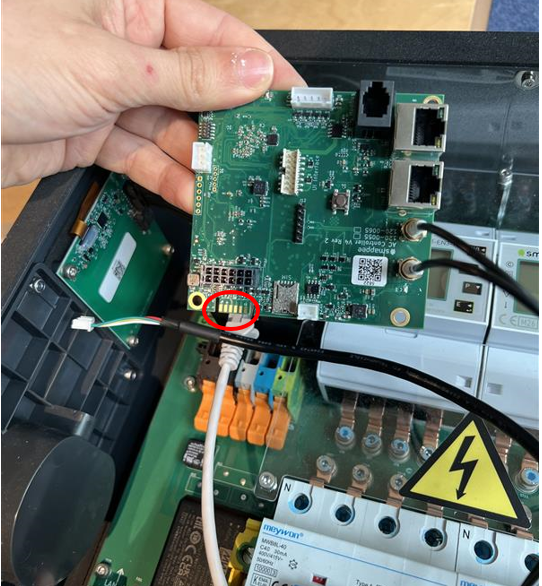

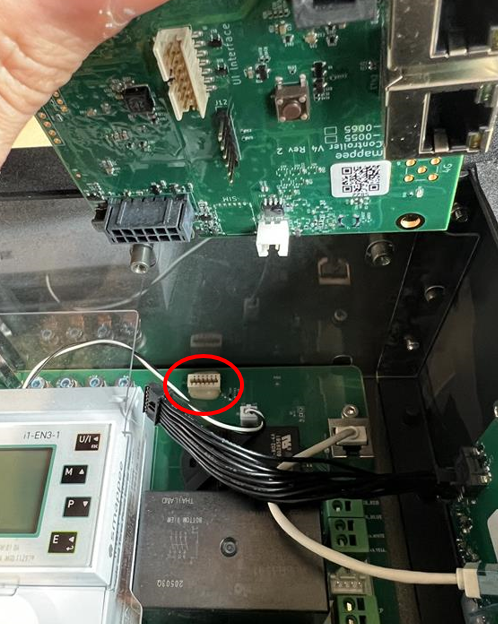

- Place the new charge controller onto the relay board. The connection area is directly integrated onto the board, and fits in the white connector on the relay board.
- Retighten the 2x M4 screws [Allen 3 - Torque 2.5 N.m]
-
Reconnect the display board.
Connector is very fragile, pay attention not to damage it; when connected it cable side should hook onto the connector from the board.
-

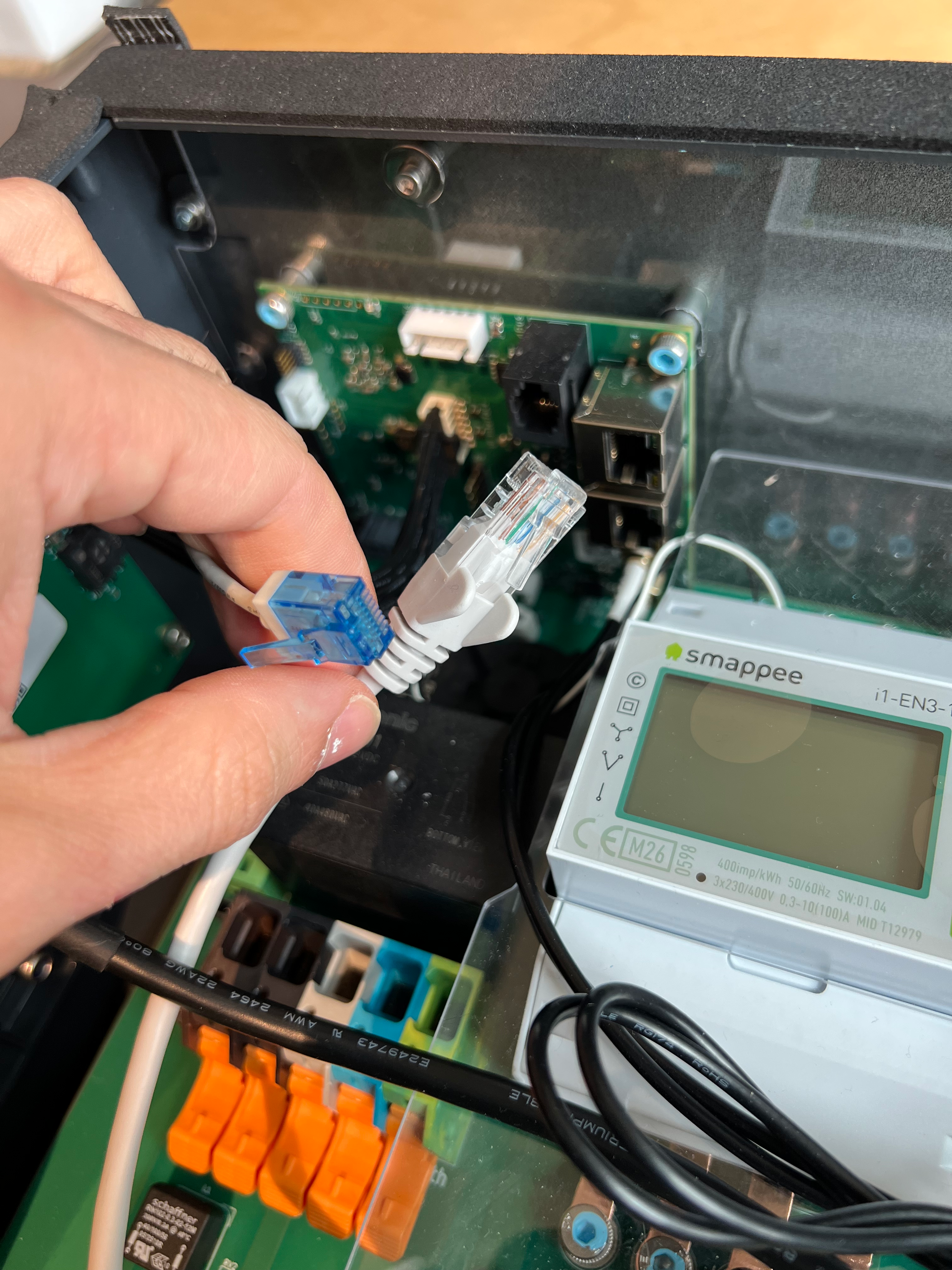

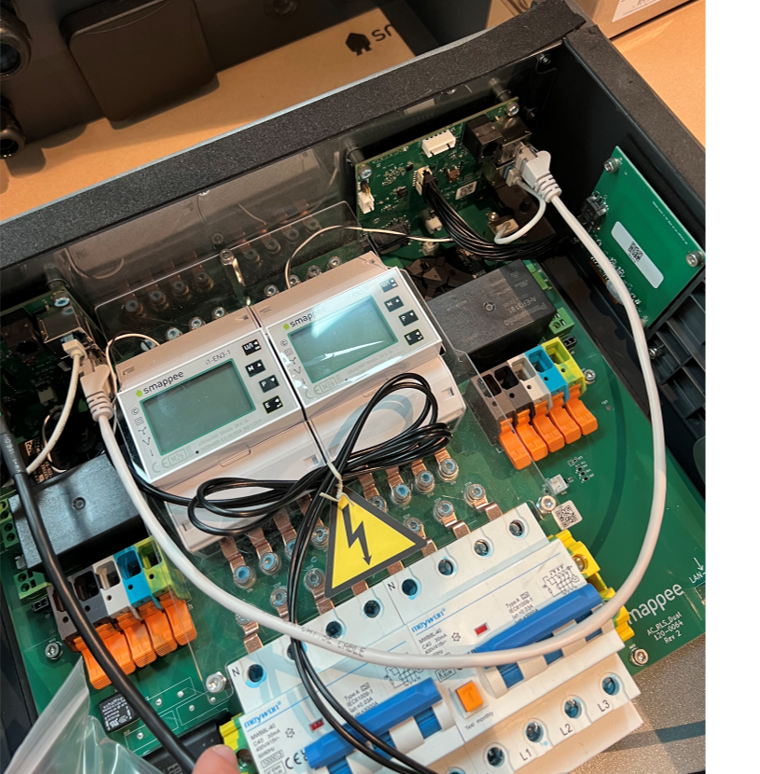

Reconnect the 2 RJ45 cables that were disconnected
Pay attention to which cable is connected to which port : For charge controller of connector 1, bottom port is connected to second charge controller, top port is connected to to relay board
- Close the unit either by using the provided key (Wall version) or tightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)]
Replacement Instructions (Connector 2)
- Open the unit either by using the provided key (Wall version) or untightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)] Place the front plate aside
-
Disconnect the 2x RJ45 cables from the charge controller
-
Disconnect the display cable Connector is very fragile, pay attention not to damage it.
-
Remove the charge controller from the unit
- Untighten the 2x M4 screws of the board [Allen 3]
- Remove the charge controller
-
Replace the charge controller by the new one.
- Place the new charge controller onto the relay board. The connection area is directly integrated onto the board, and fits in the white connector on the relay board.
- Retighten the 2x M4 screws [Allen 3 - Torque 2.5 N.m]
-
Reconnect the display board. Connector is very fragile, pay attention not to damage it; when connected it cable side should hook onto the connector from the board.
-
Reconnect the 2 RJ45 cables that were disconnected
Pay attention to which cable is connected to which port : For charge controller of connector 2, bottom port is connected to relay board, top port is connected to first charge controller
- Close the unit either by using the provided key (Wall version) or tightening the 6x safety screws (Base version) [Key (Wall) or Safety TX20 bit (base)]
Replacement Instructions App
When physically replace you will also need to replace the charging controllers via the App.
Settings → Charging station → Select module → Replace
