Version
Revision 1
Used in
EV Dual (manuals)
(6630xxxxxx) (Cable version)
(6631xxxxxx) (Socket version)
Parts needed
- EV Dual Core Cable & Socket
- [30-0398] XHP - 5 -22AWG - XHP - 5 - 80cm
Tools needed
- [100-0139] Socket key VDE5 (For opening the unit)

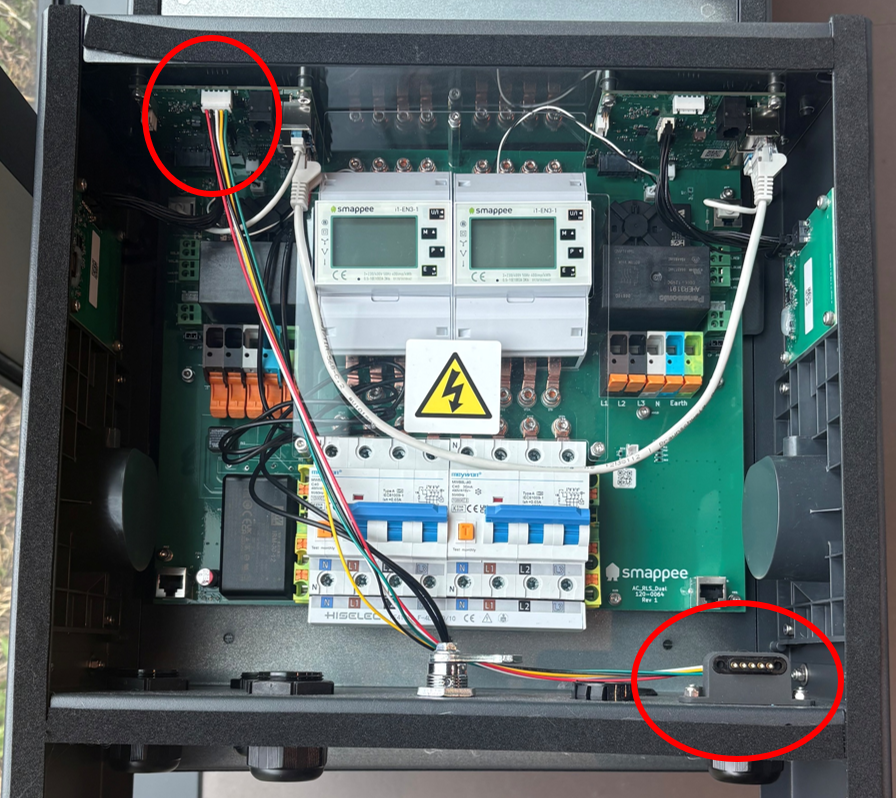

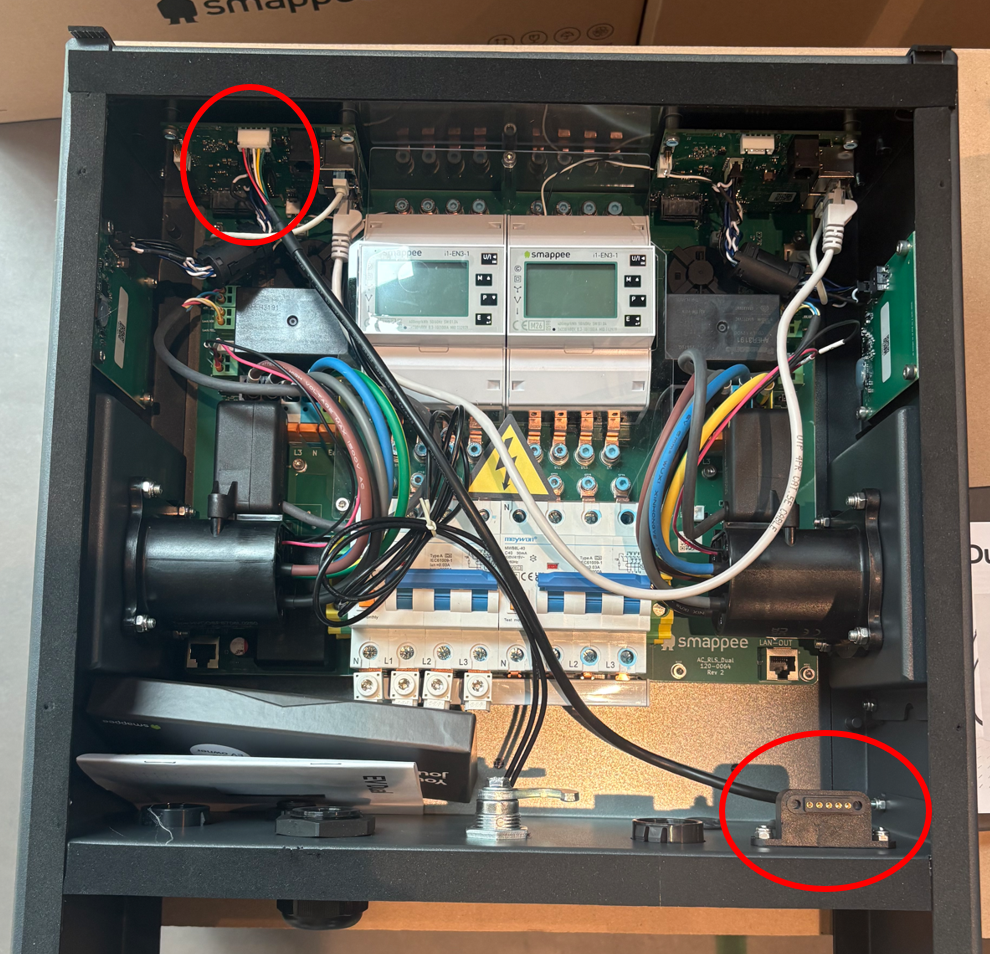

Charger Overview
Replacement Instructions
-

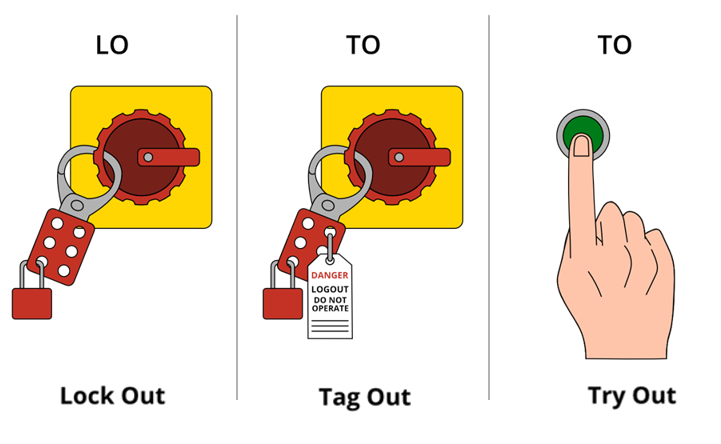

Make sure to Main power supply is disconnected And perform Lototo.
-

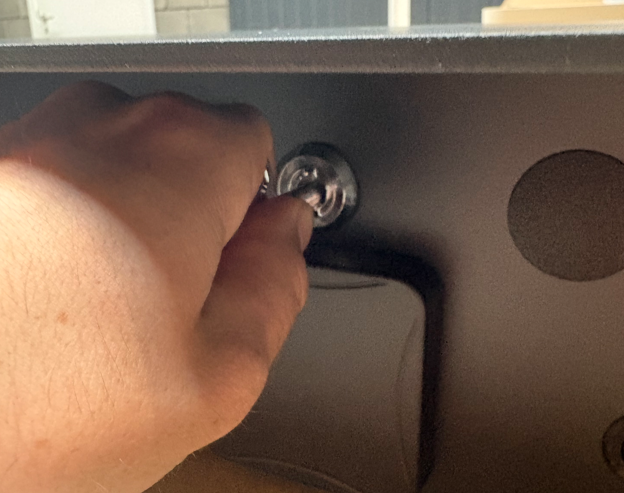

Open the unit with the VDE5 key [[100-0139] Socket key VDE5 (For opening the unit)]
-
Place the front plate on a safe location
-

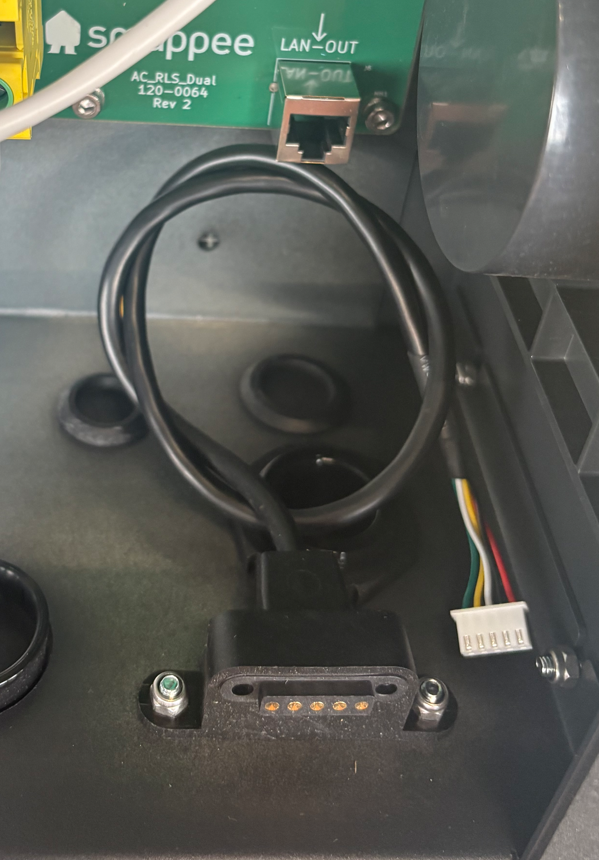

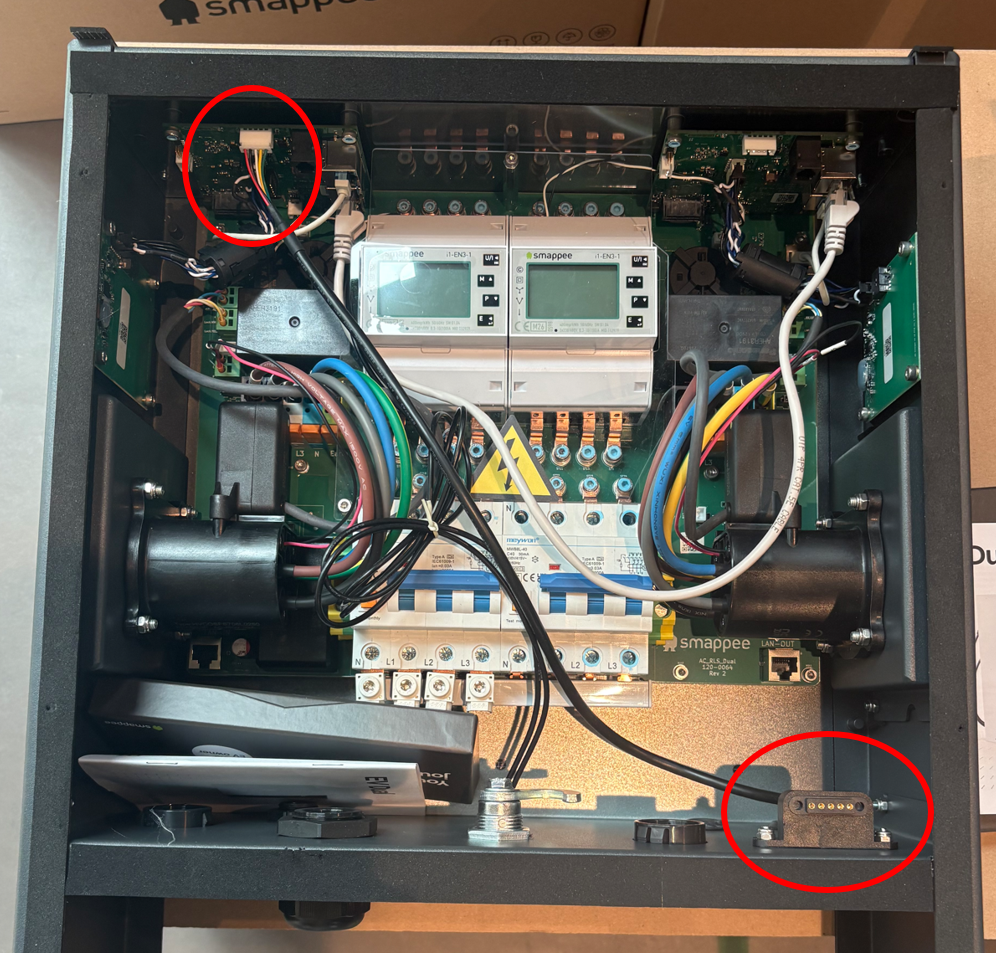

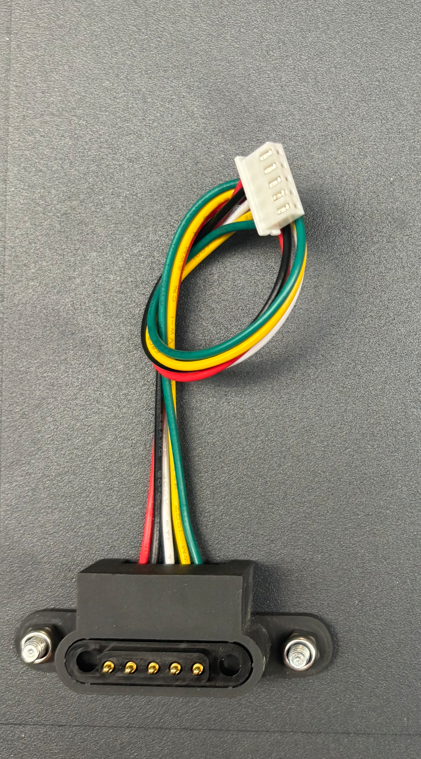

Locate the Pogo pin part
-

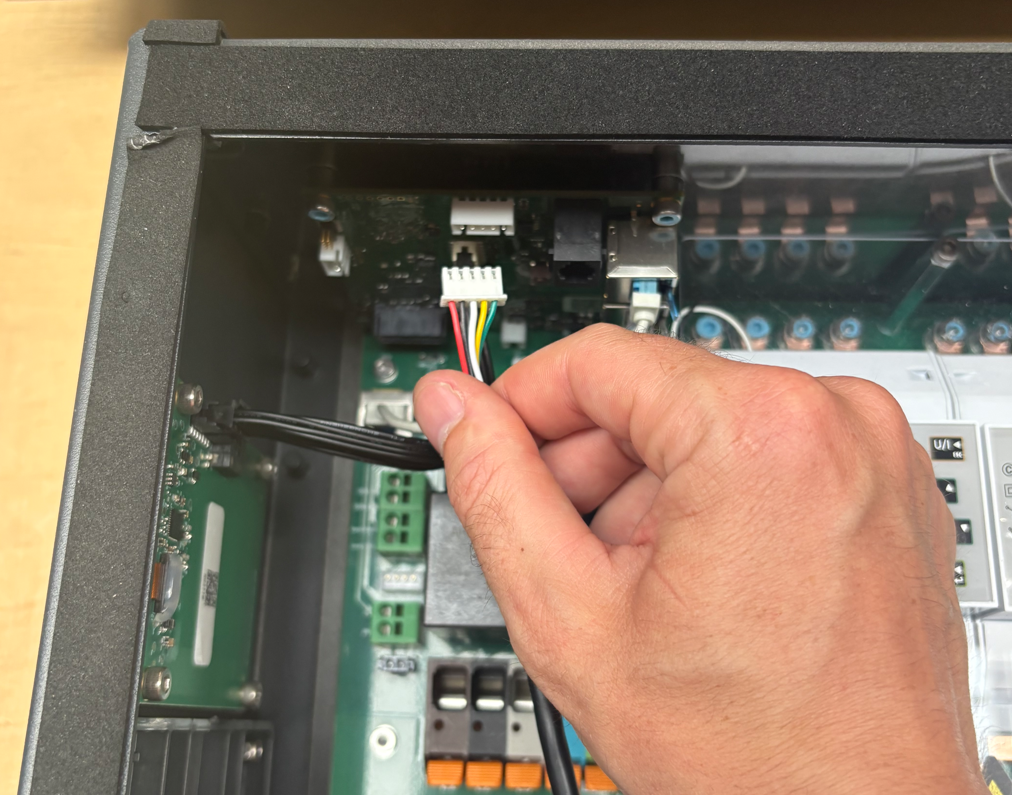

Remove the 5pin jst connector from the controller board
-

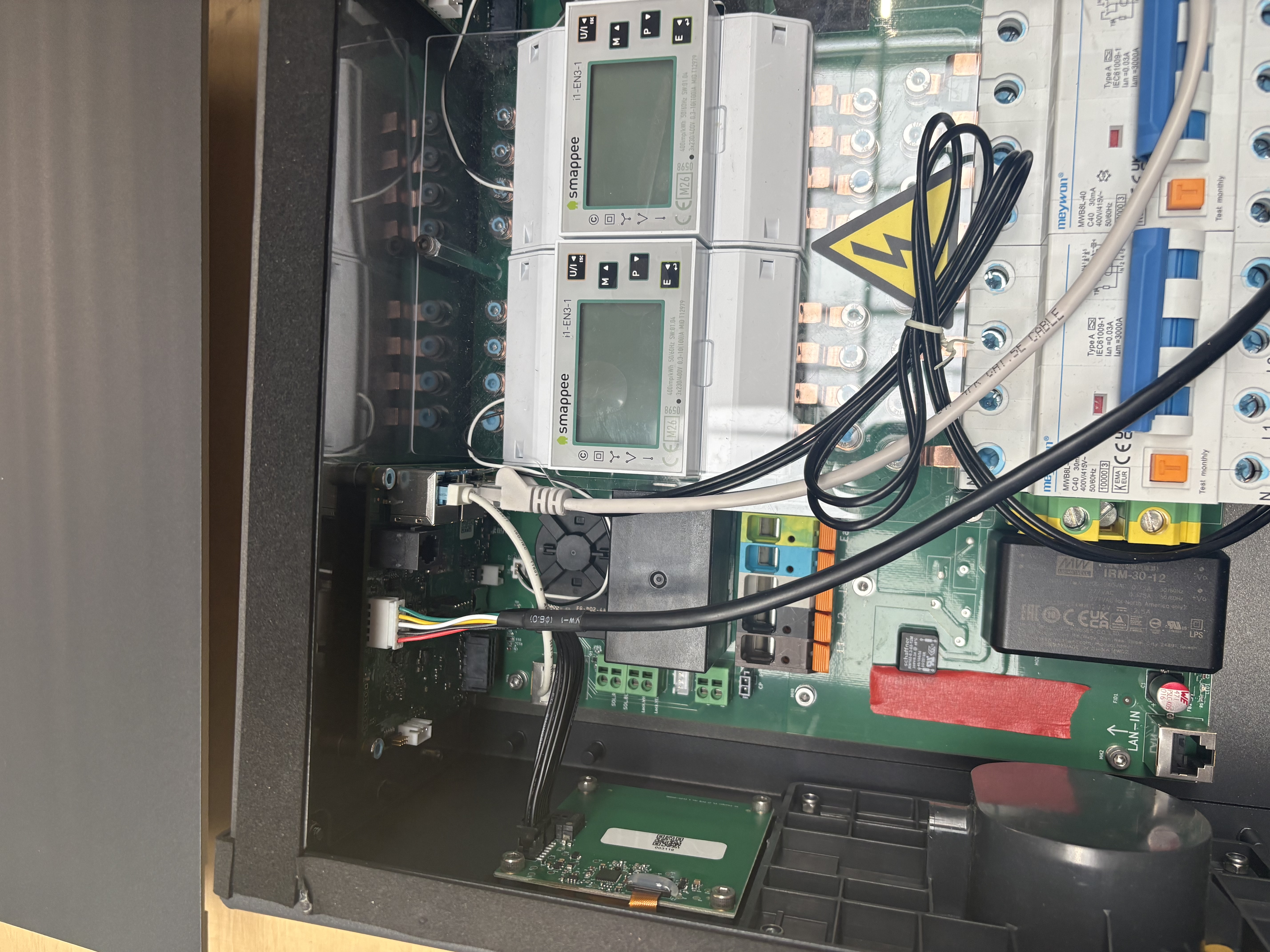

wrap the cable and leave it in the corner of the unit
-
Attach the 80cm power cable in the same position [[30-0398] XHP - 5 -22AWG - XHP - 5 - 80cm]
-

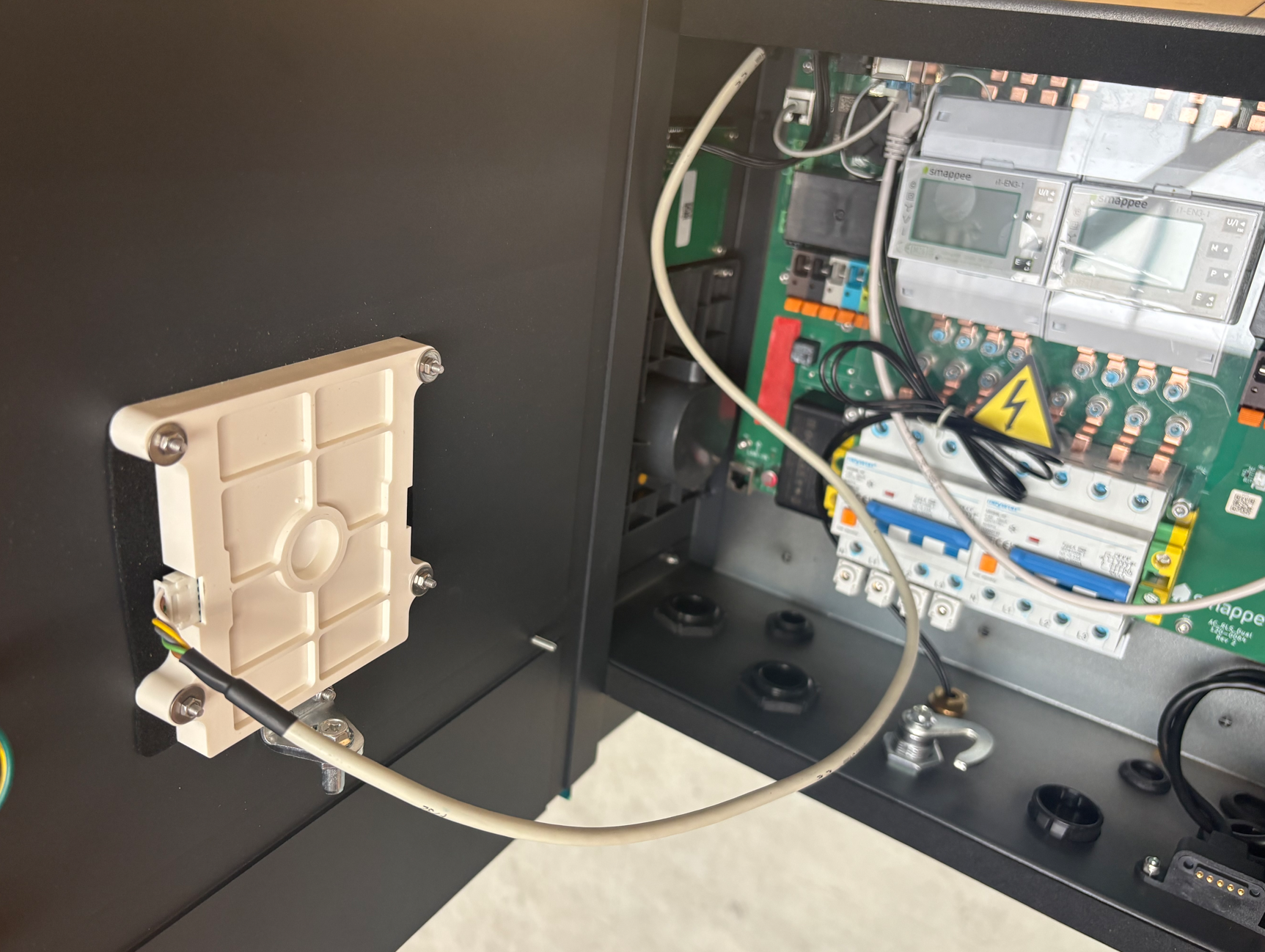

Pick up the frontplate
-

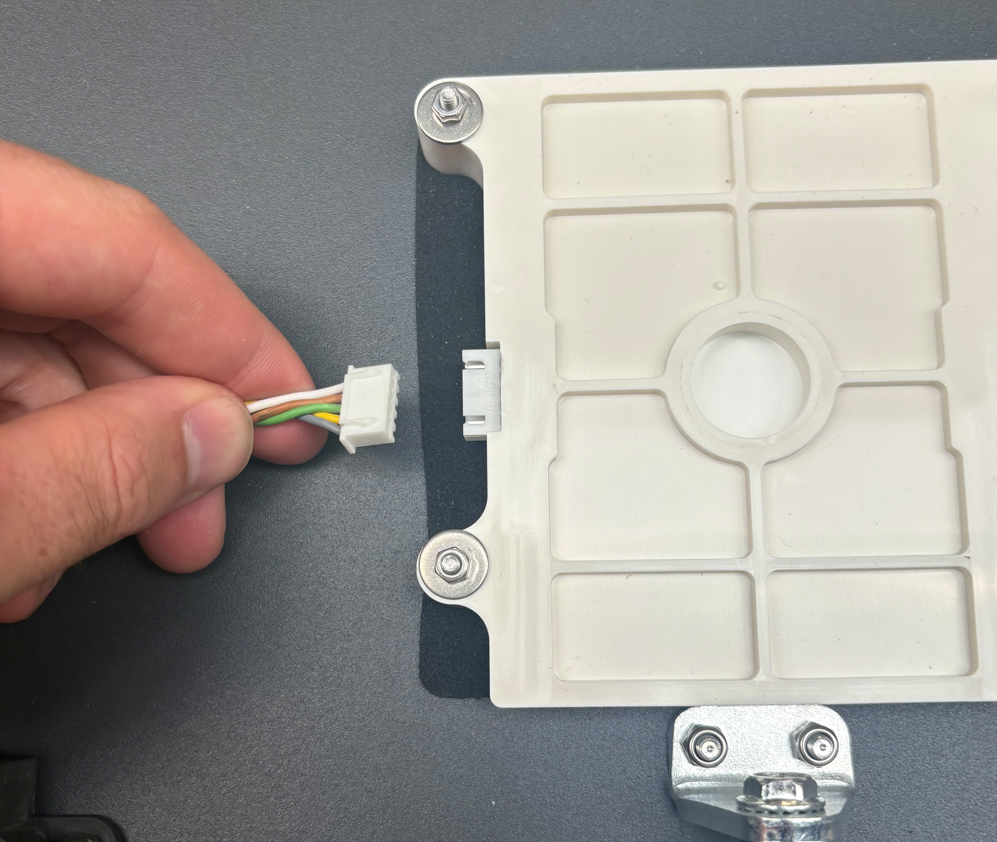

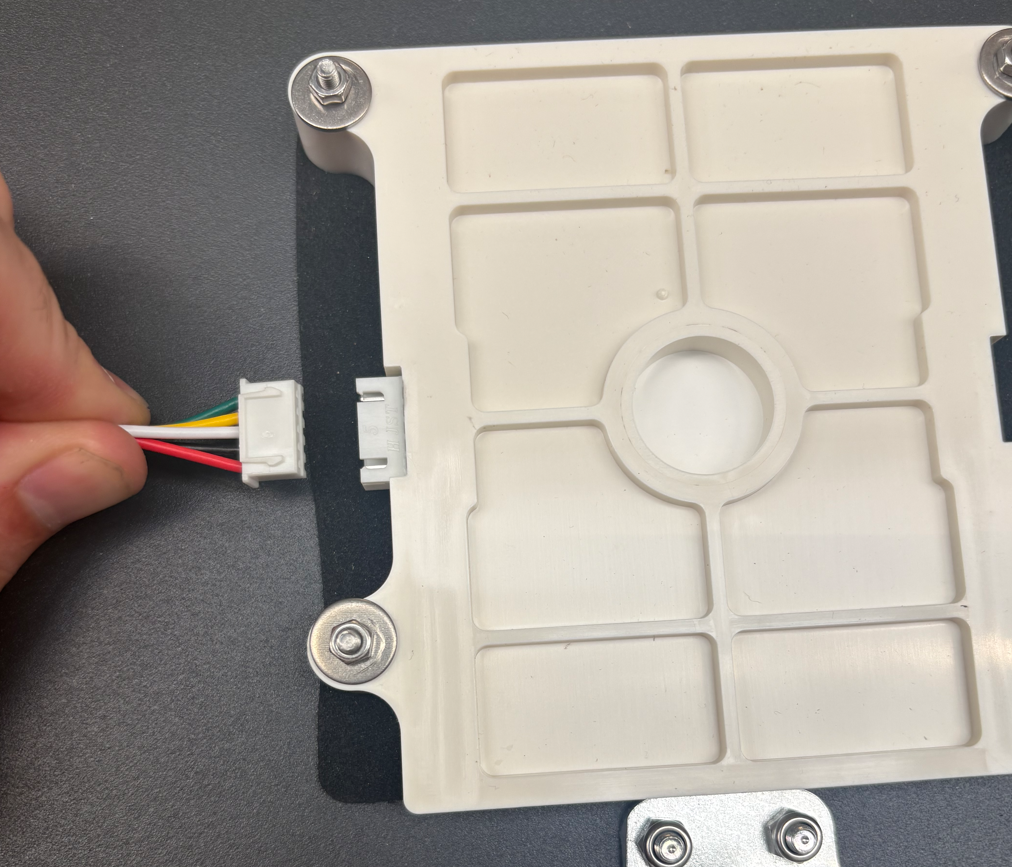

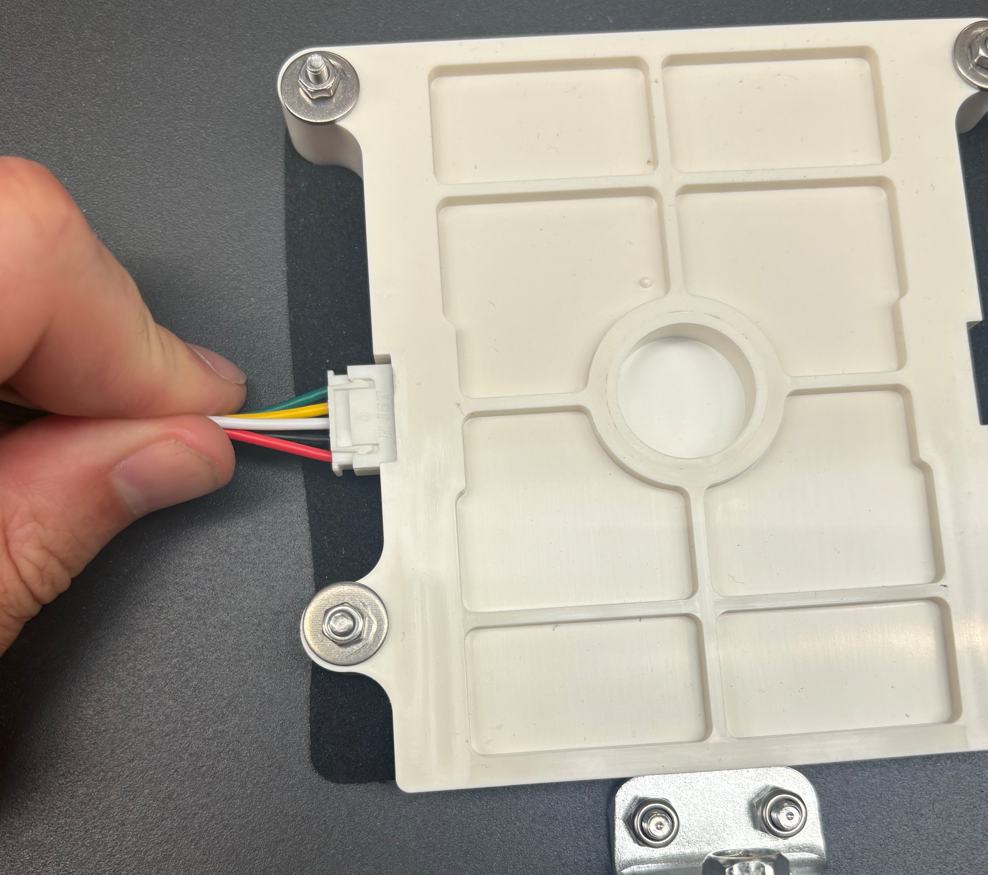

Also here remove the 5pin connector
-
Bind the cable in position
-

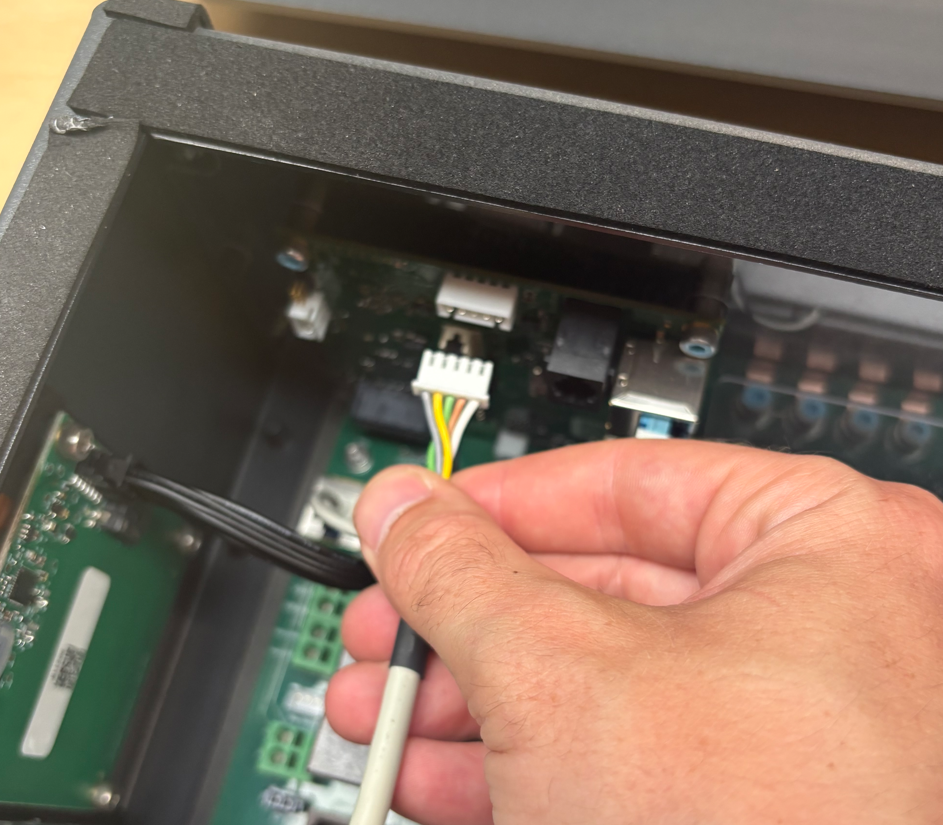

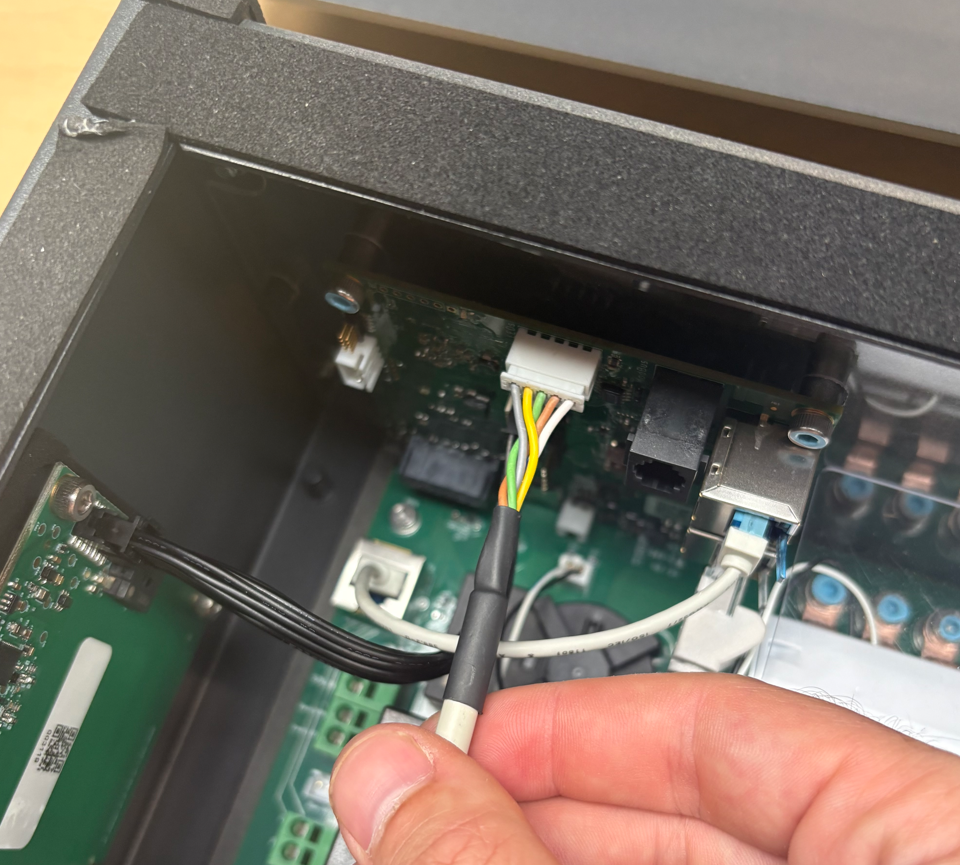

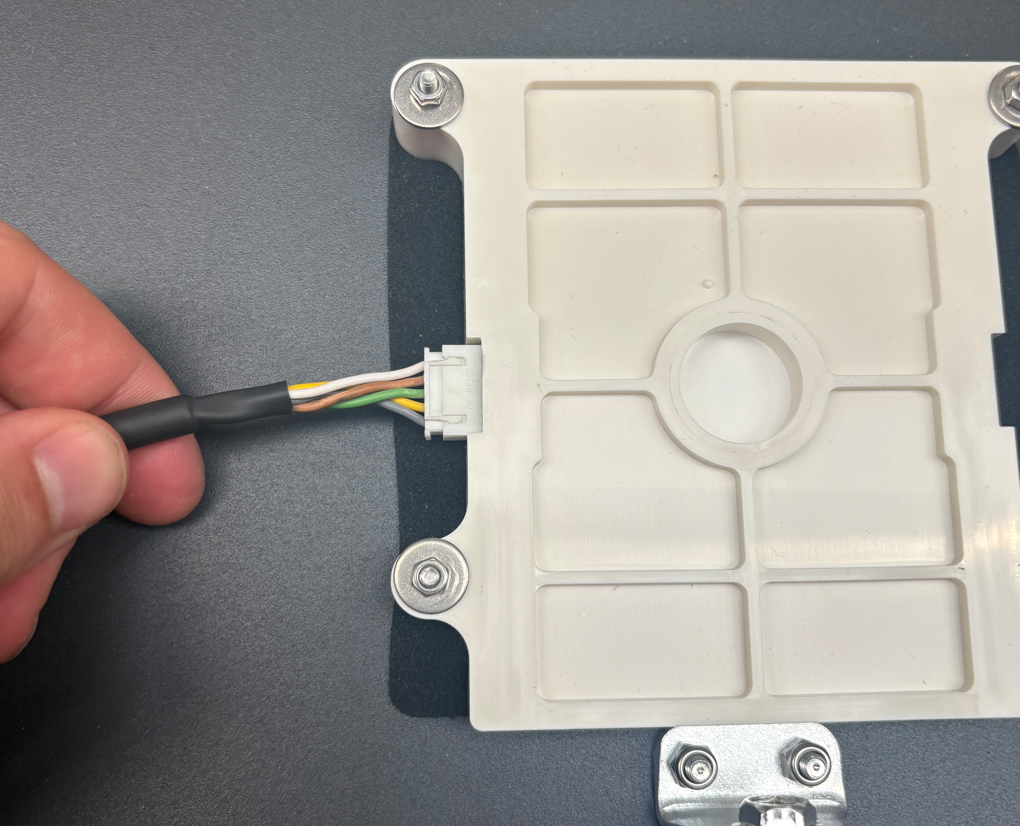

Attach the 80cm power cable to the board
-
now place the front panel back in place
-

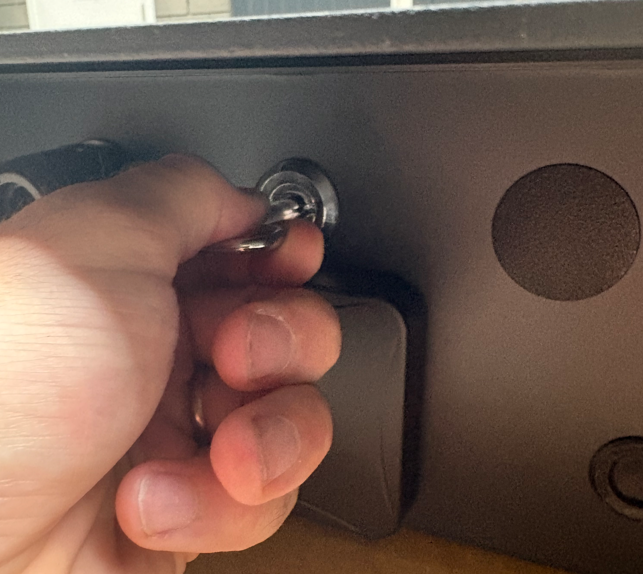

Close the unit [[100-0139] Socket key VDE5 (For opening the unit)]
-
Power the unit back on and validate the LED is working
