Replace antenna (One V4)

Version

Revision 1

Used in

  • EV One (6541xxxxxx)

Parts needed

  • 100-0155 LTE / WIFI antenna (Wall mount) 8,5mm TH SMA male 30cm

Tools needed

  • Safety torx T20H
  • Allen 2.5
  • Allen 2
  • Cutting pliers
  • Wrench SW17

Charger Overview

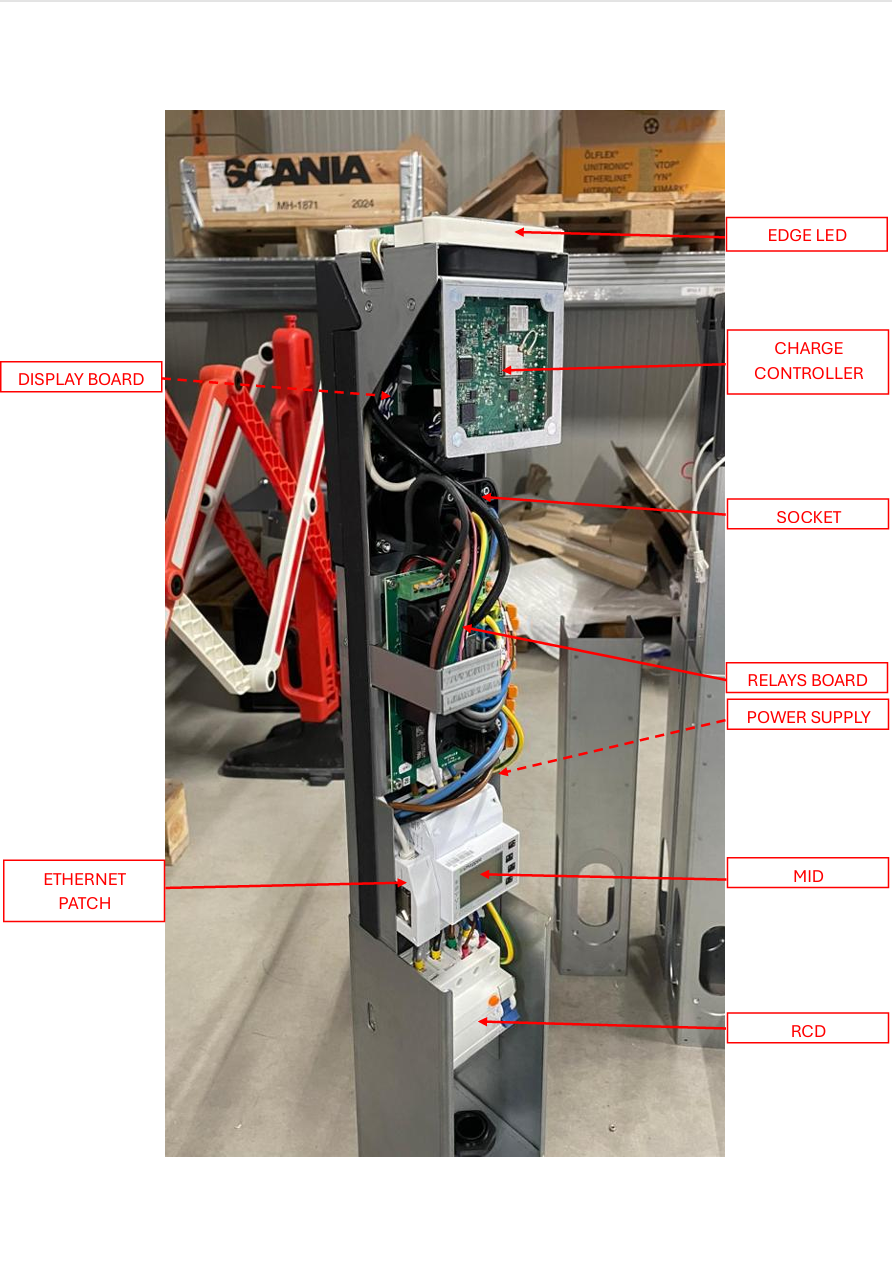

Charger overview

Replacement Instructions

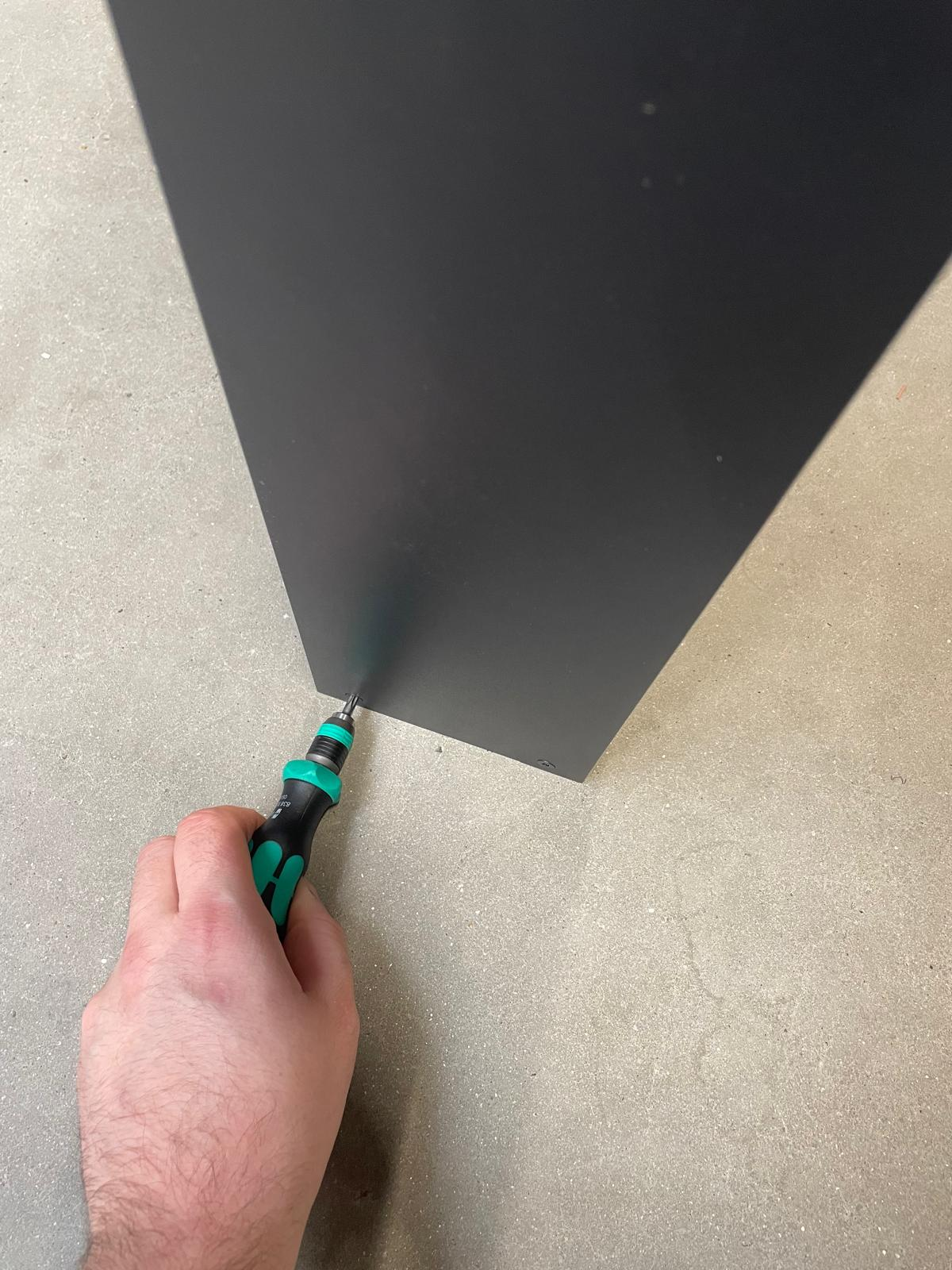

  1. Remove the 2 screws at the bottom of the housing. [Safety torx T20H]

    Step image

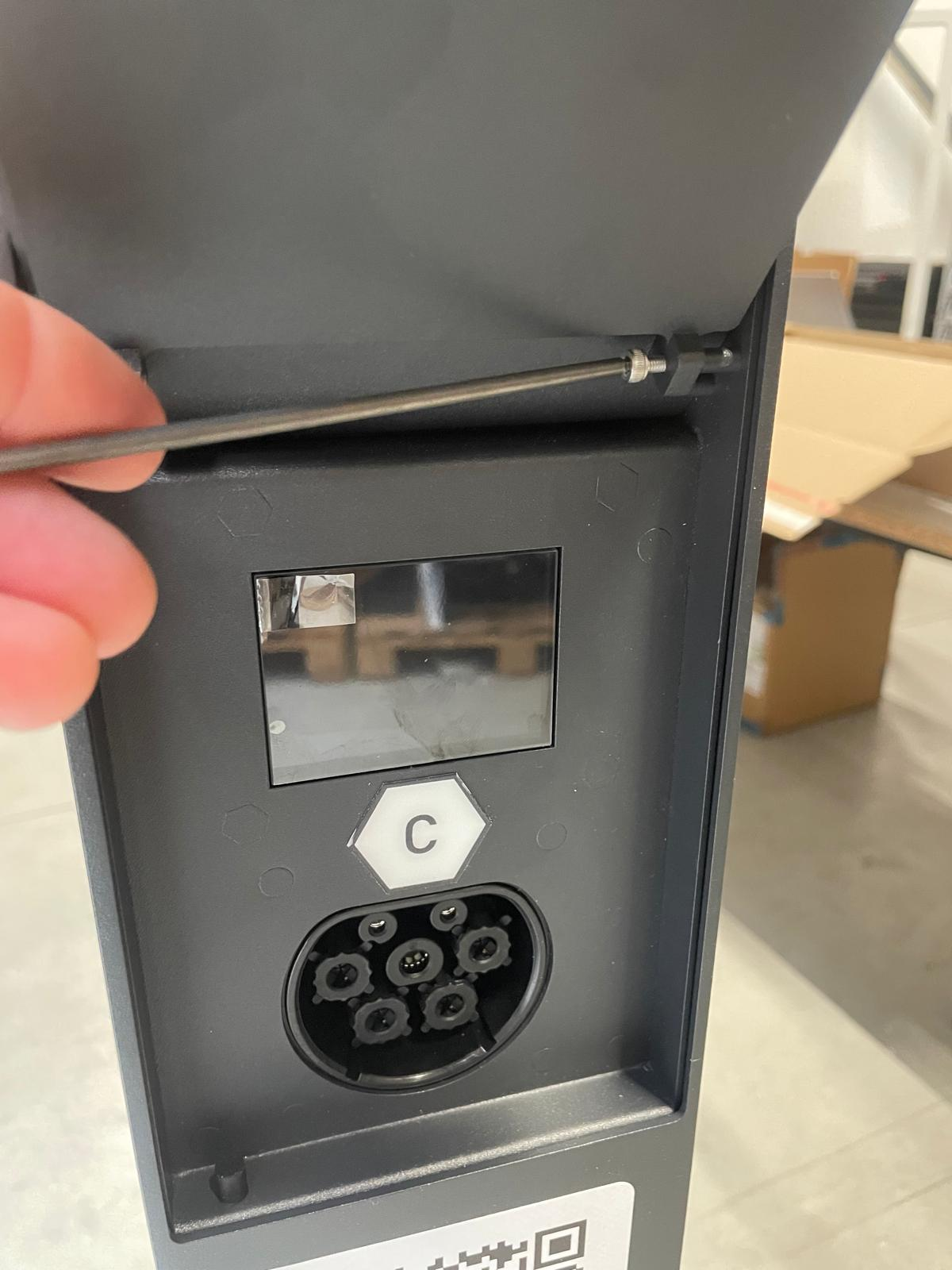

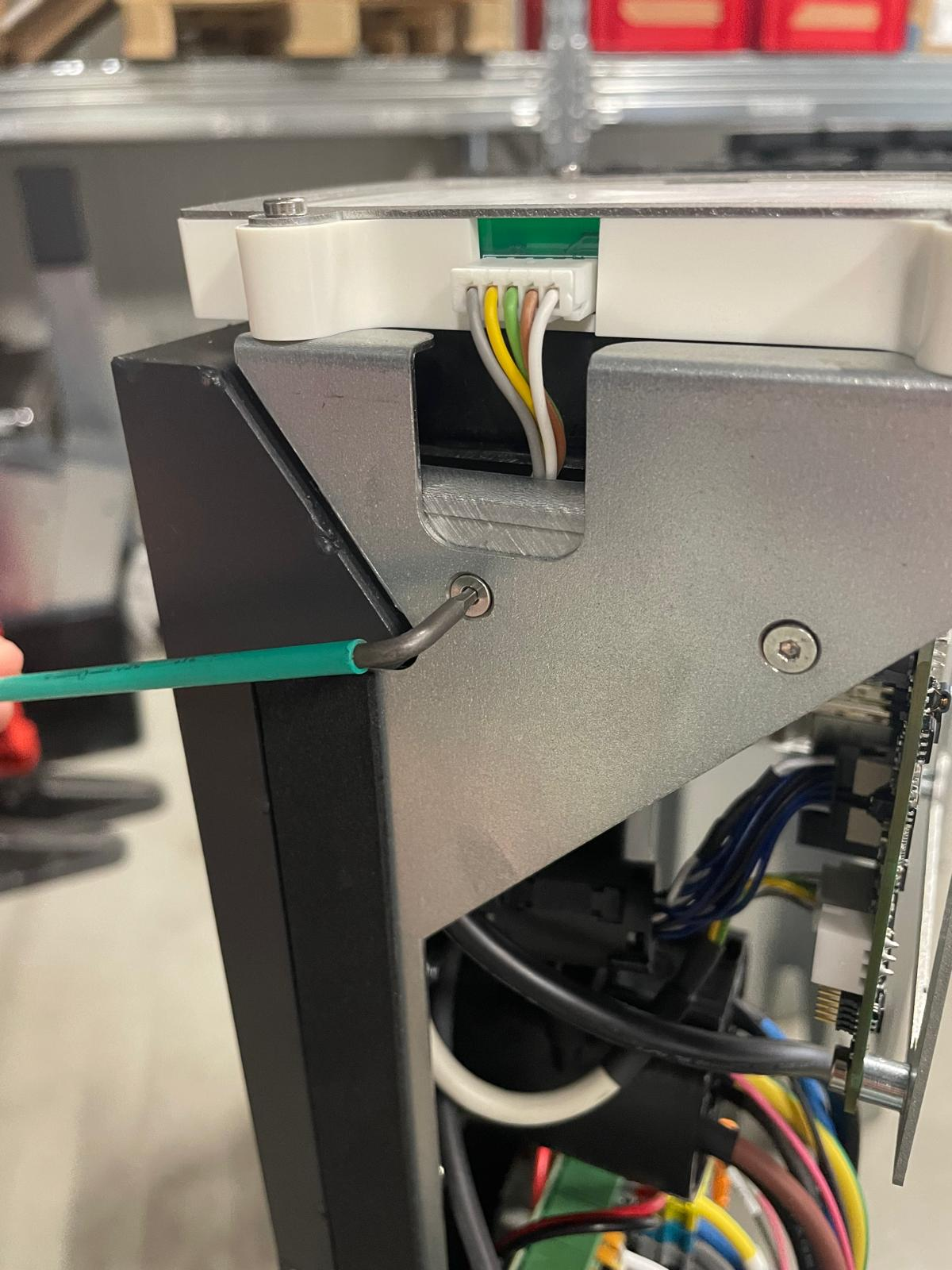

  2. Remove the 2 screws holding the door. Place the door in a safe location and remove the housing tube. [Allen 2.5]

    Step image

  3. Remove the 4 screws holding the charger controller. [Allen 2]

    Step image

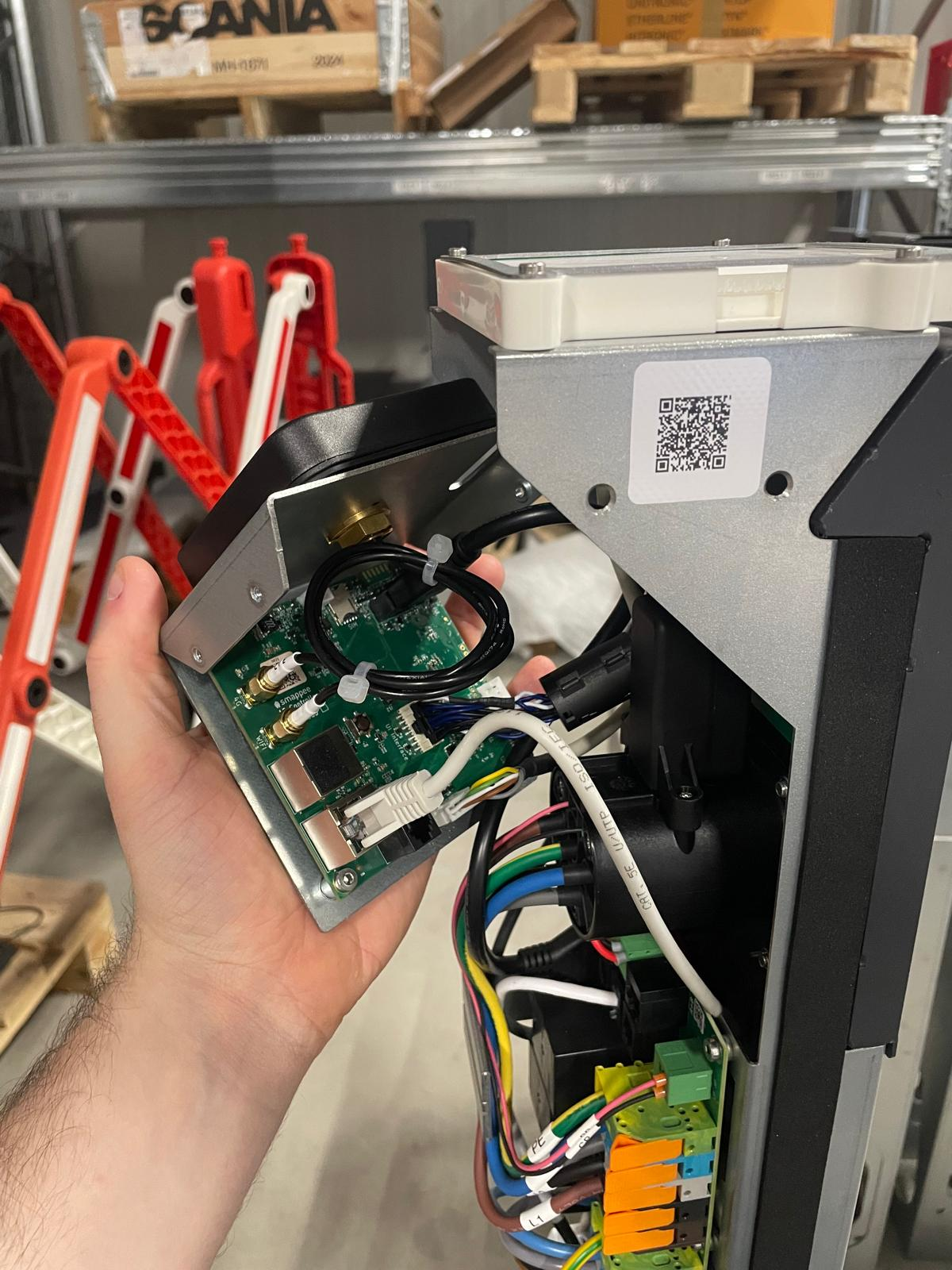

  4. Carefully remove the charge controller assembly.

    Step image

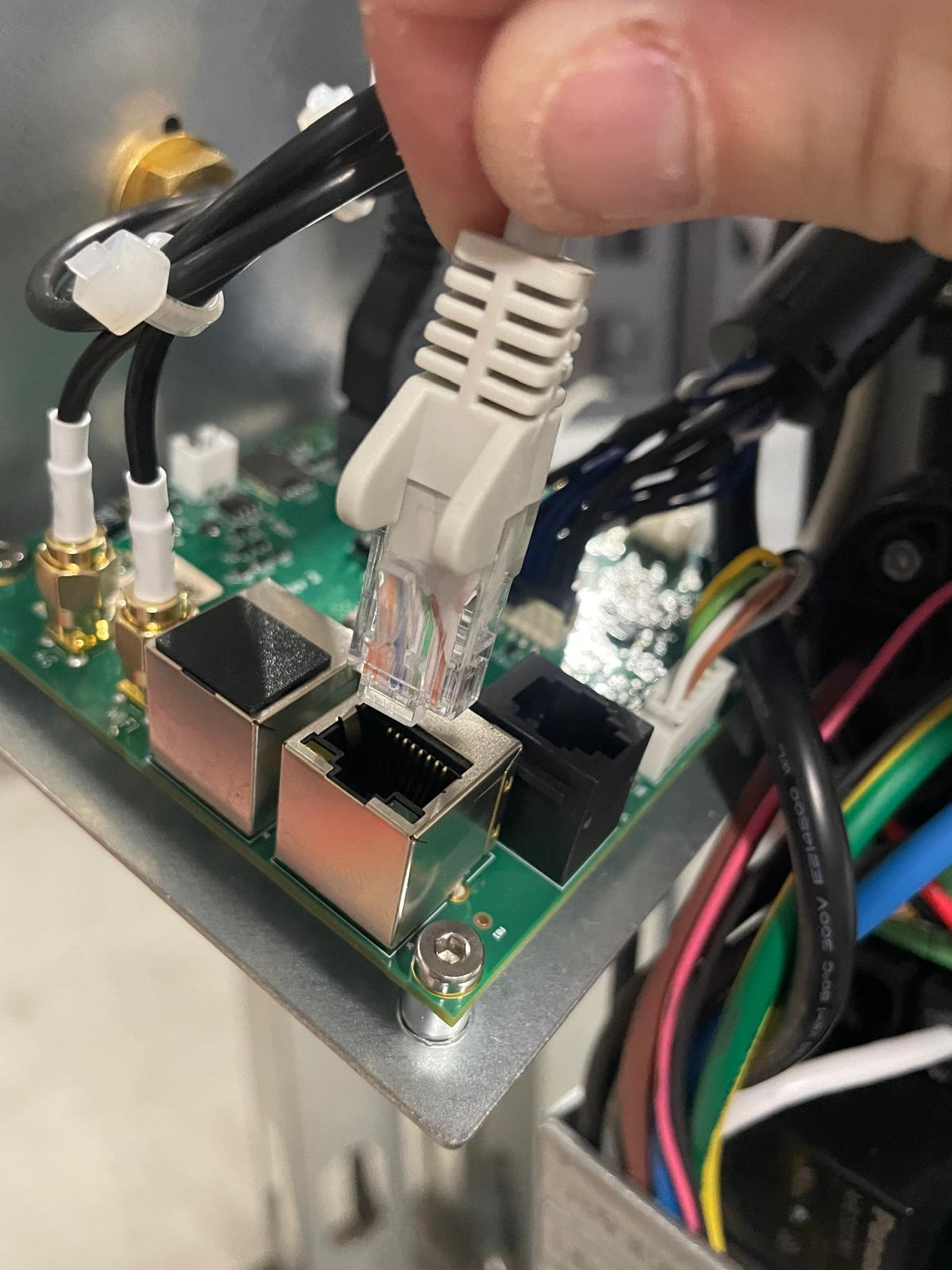

  5. Disconnect ethernet cable.

    Step image

  6. Disconnect the LED Cable.

    Step image

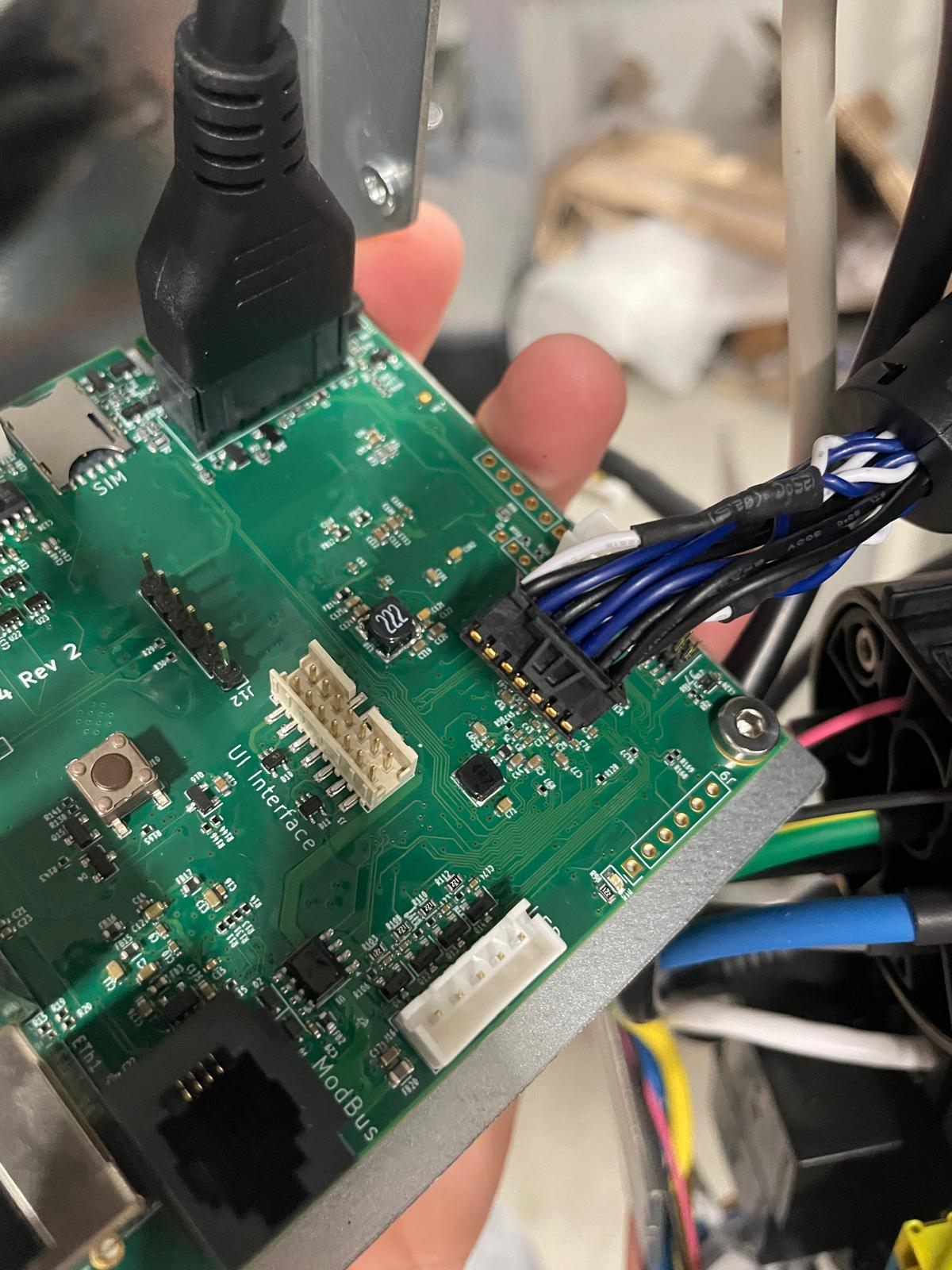

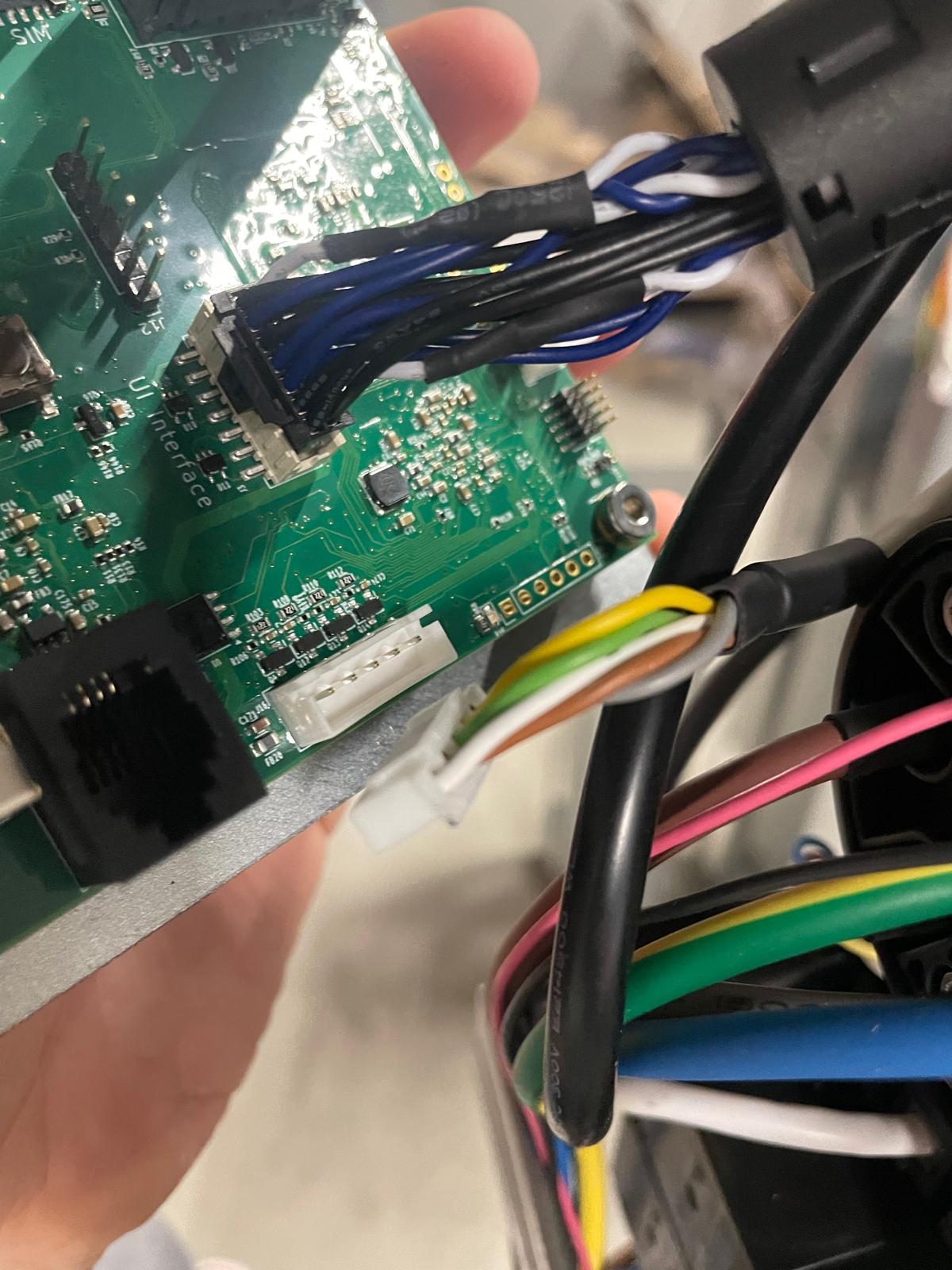

  7. Disconnect the display board cable. Connector is very fragile, pay attention not to damage it.

    Step image

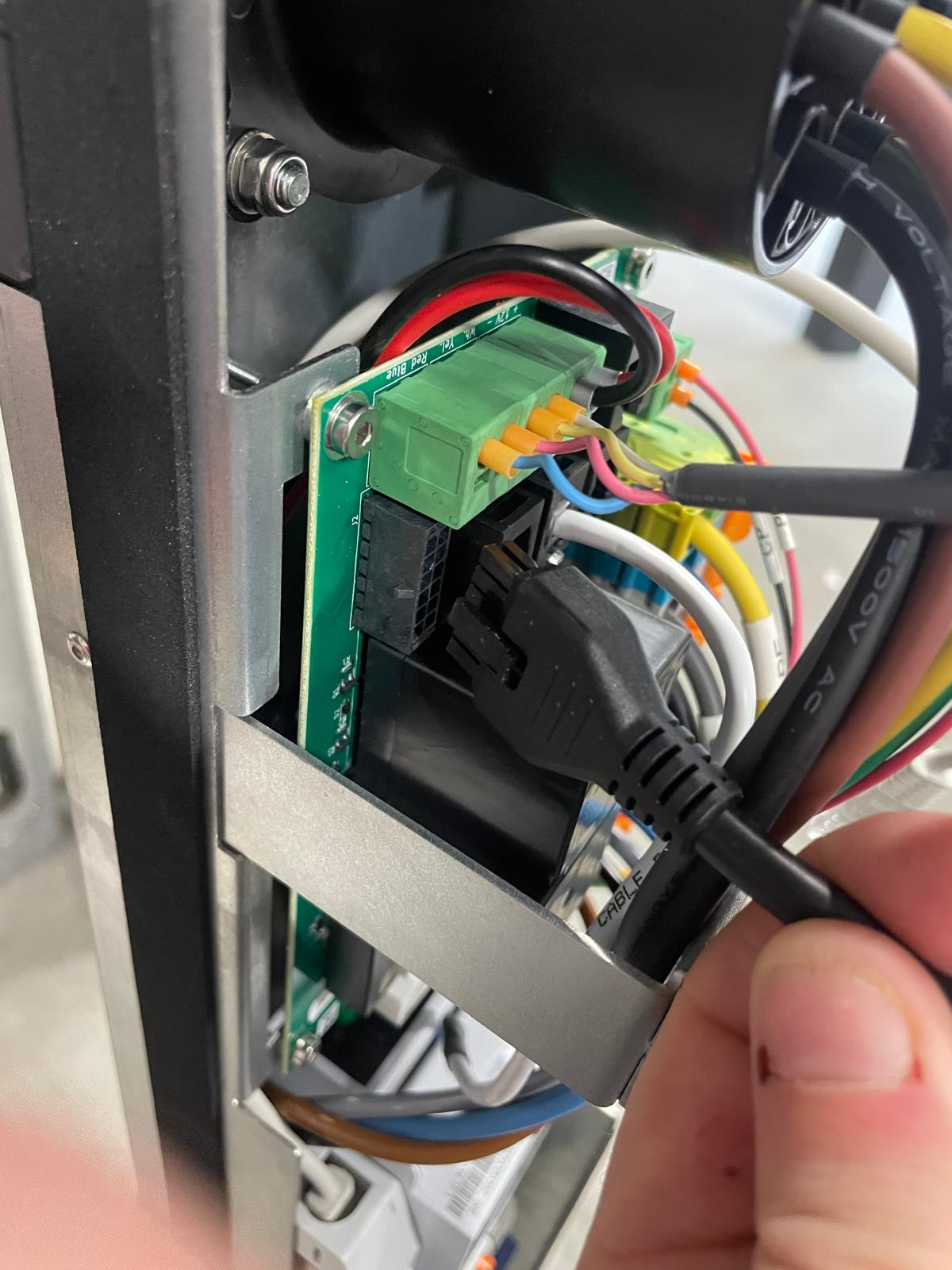

  8. Disconnect the 12P cable.

    Step image

  9. Disconnect the antenna cables.

    Step image

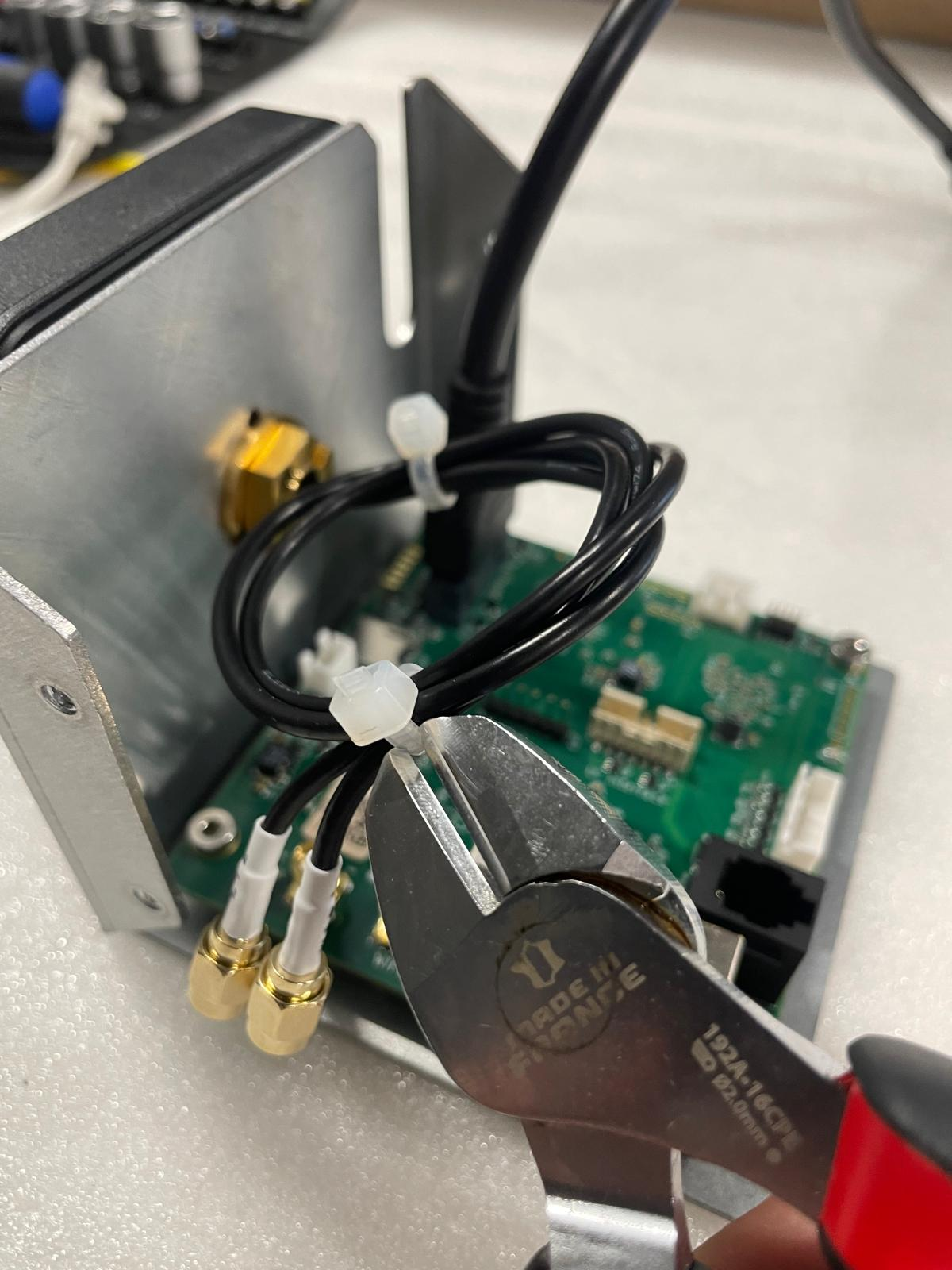

  10. Carefully cut the tie raps holding the antenna cables together. Make sure to not cut through the isolation of the wires. [Cutting pliers]

    Step image

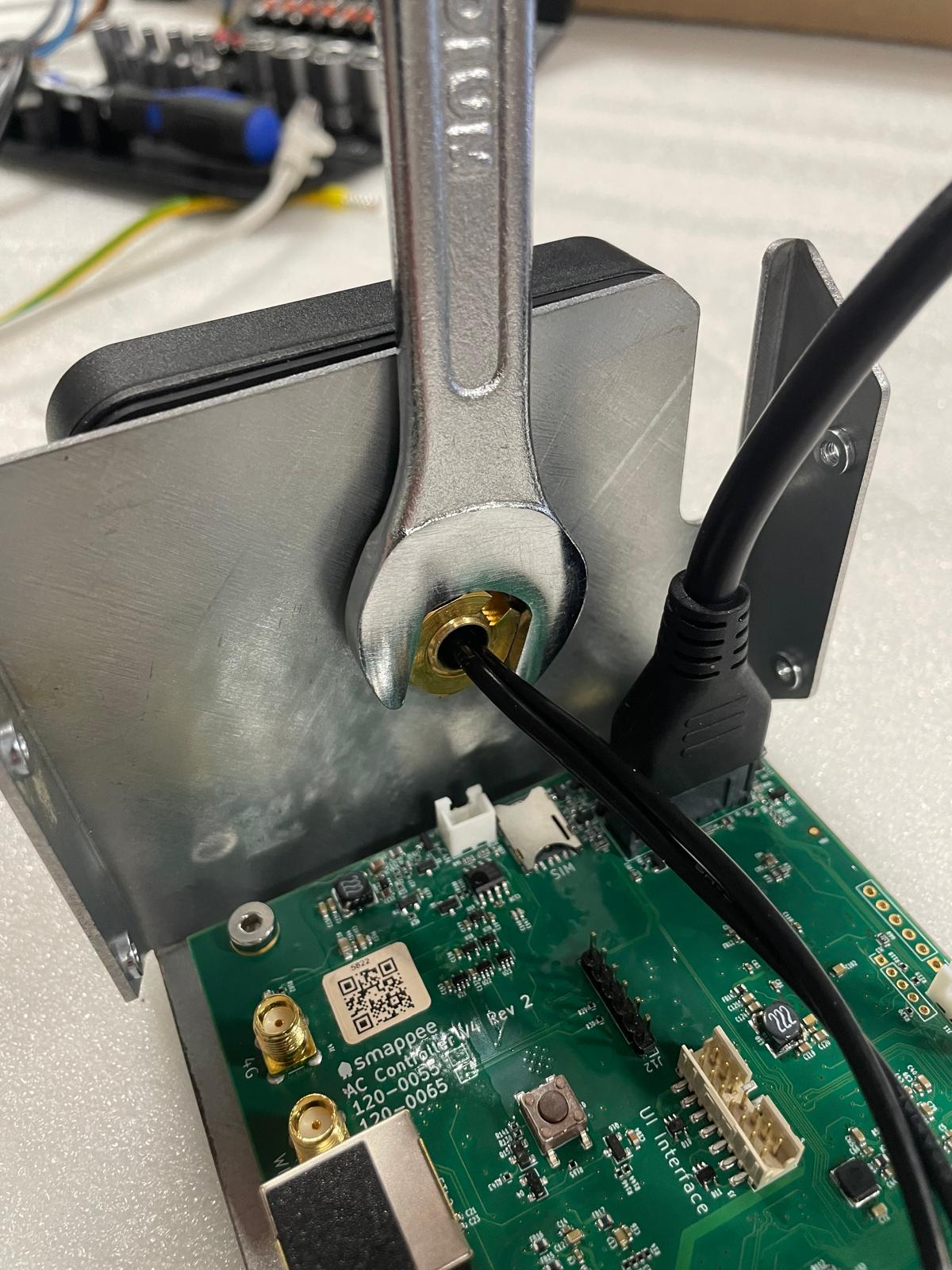

  11. Loosen the antenna. [Wrench SW17]

    Step image

    Step image

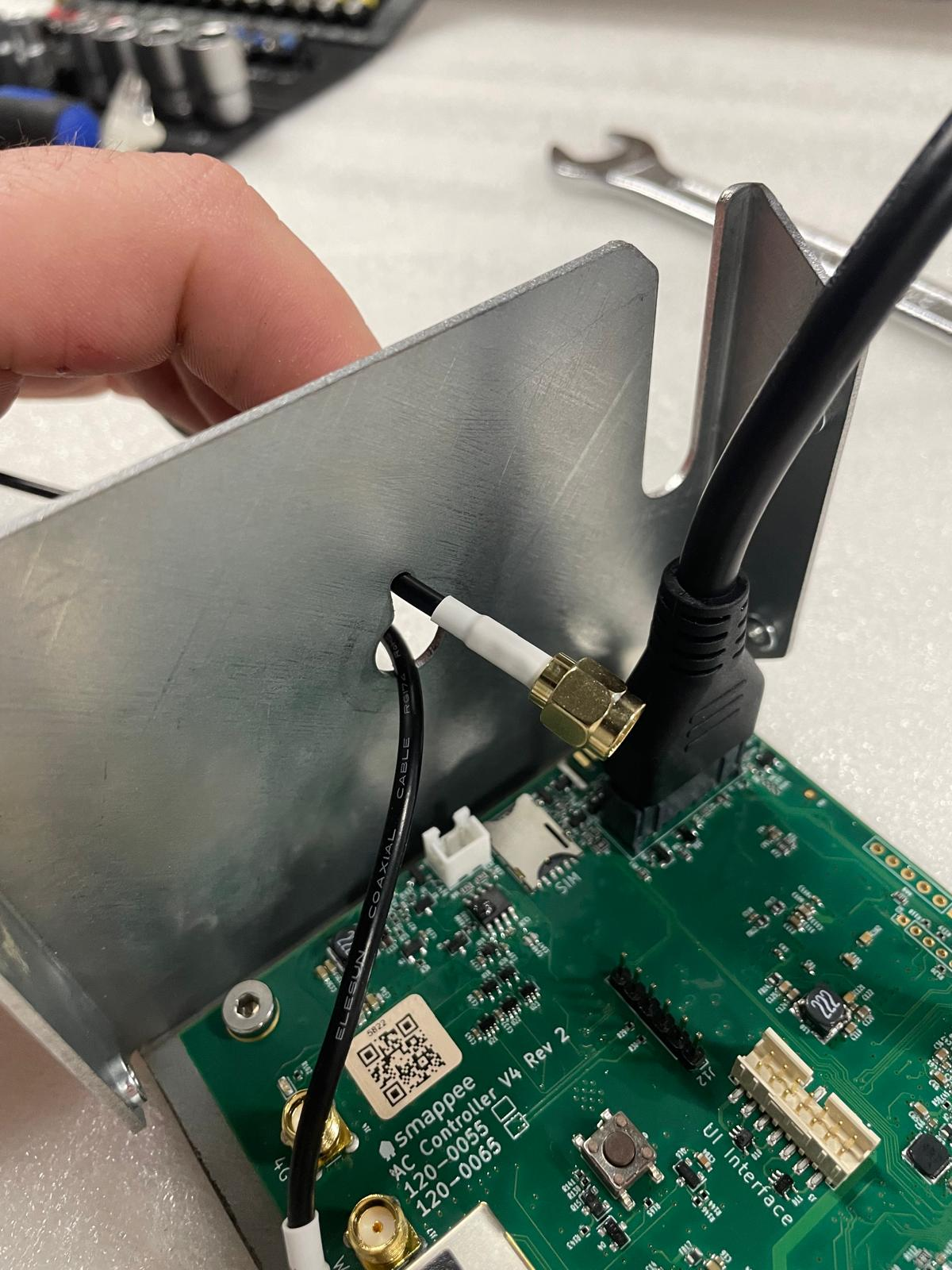

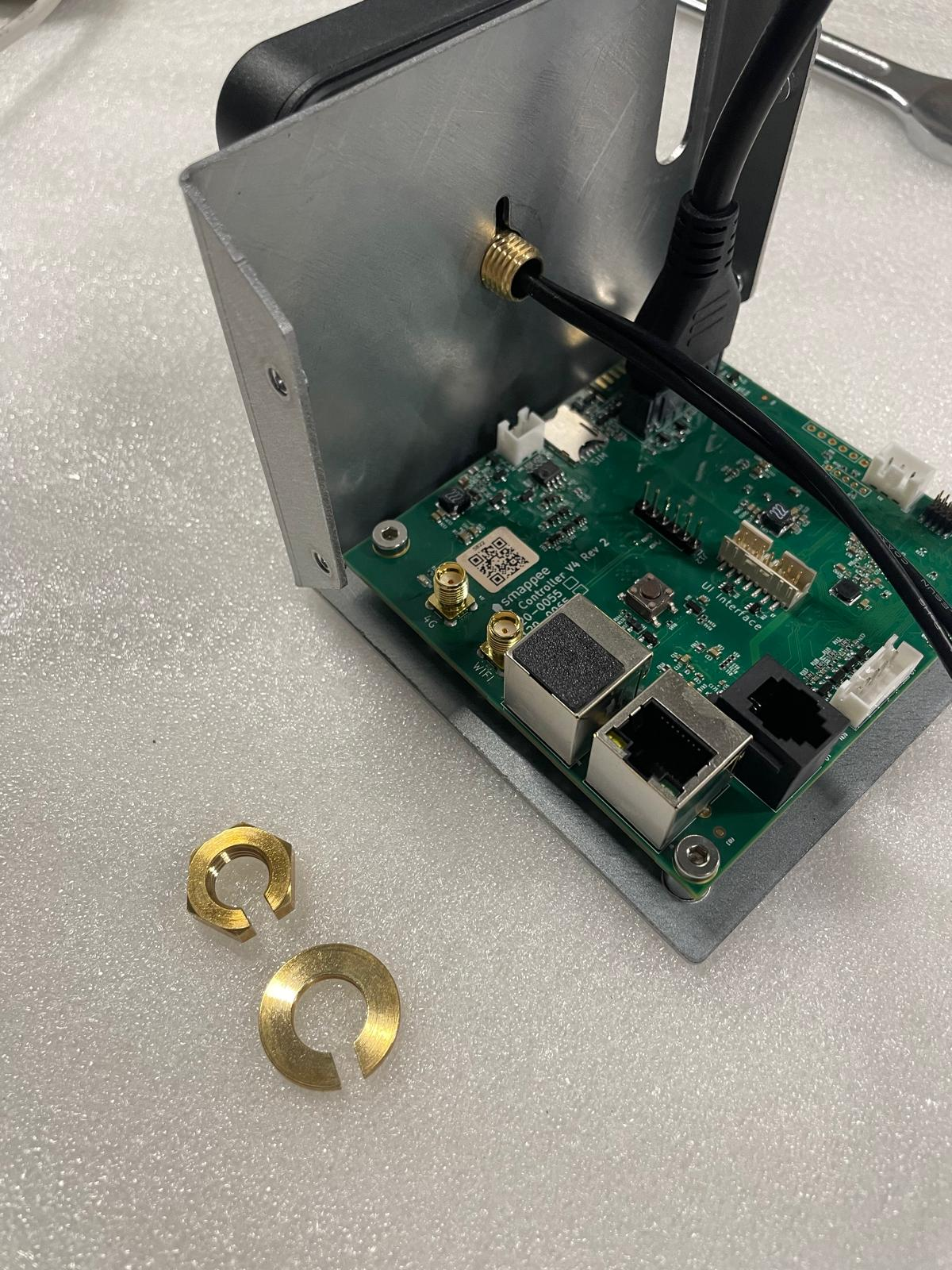

  12. Remove the antenna. make sure to not damage the cables when putting through the hole. New antenna can be installed.

    Step image

  13. Fasten antenna with washer and nut. [SW17 - Torque: 5 N.m]

    Step image

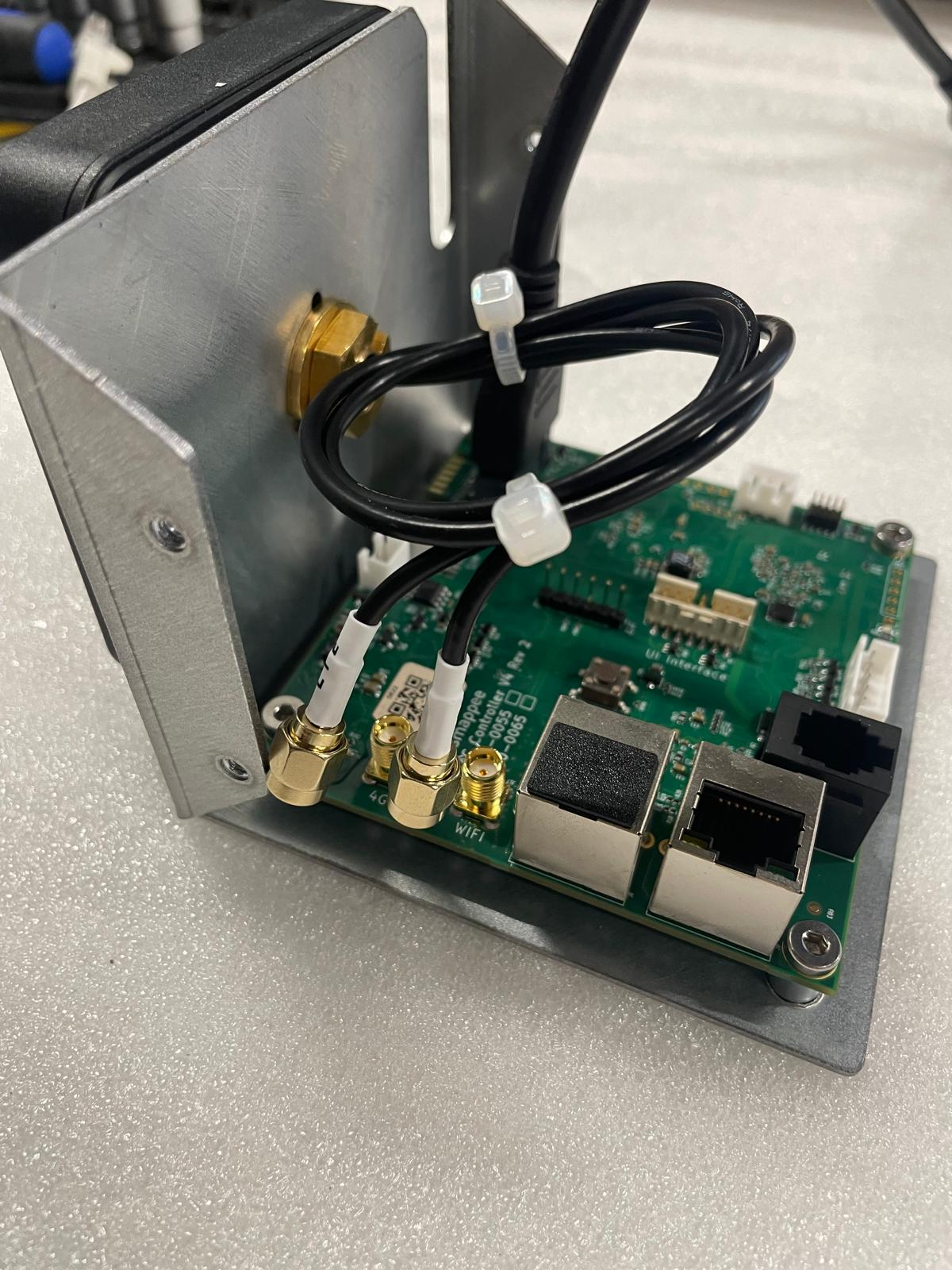

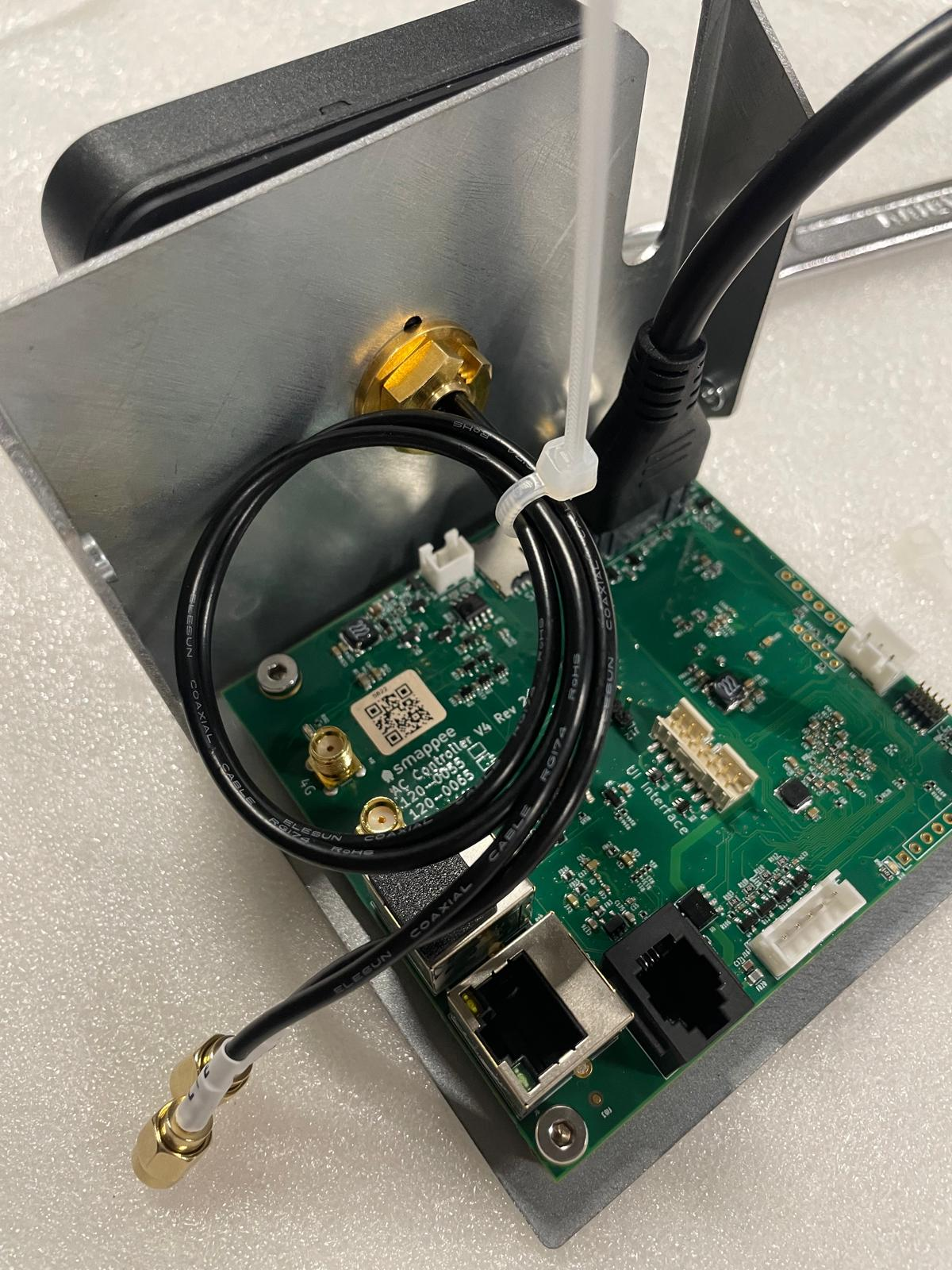

  14. Bundle the antenna cables and hold them together with 2 tie raps. afterwards cut the ends of the tie raps. [Cutting pliers]

    Step image

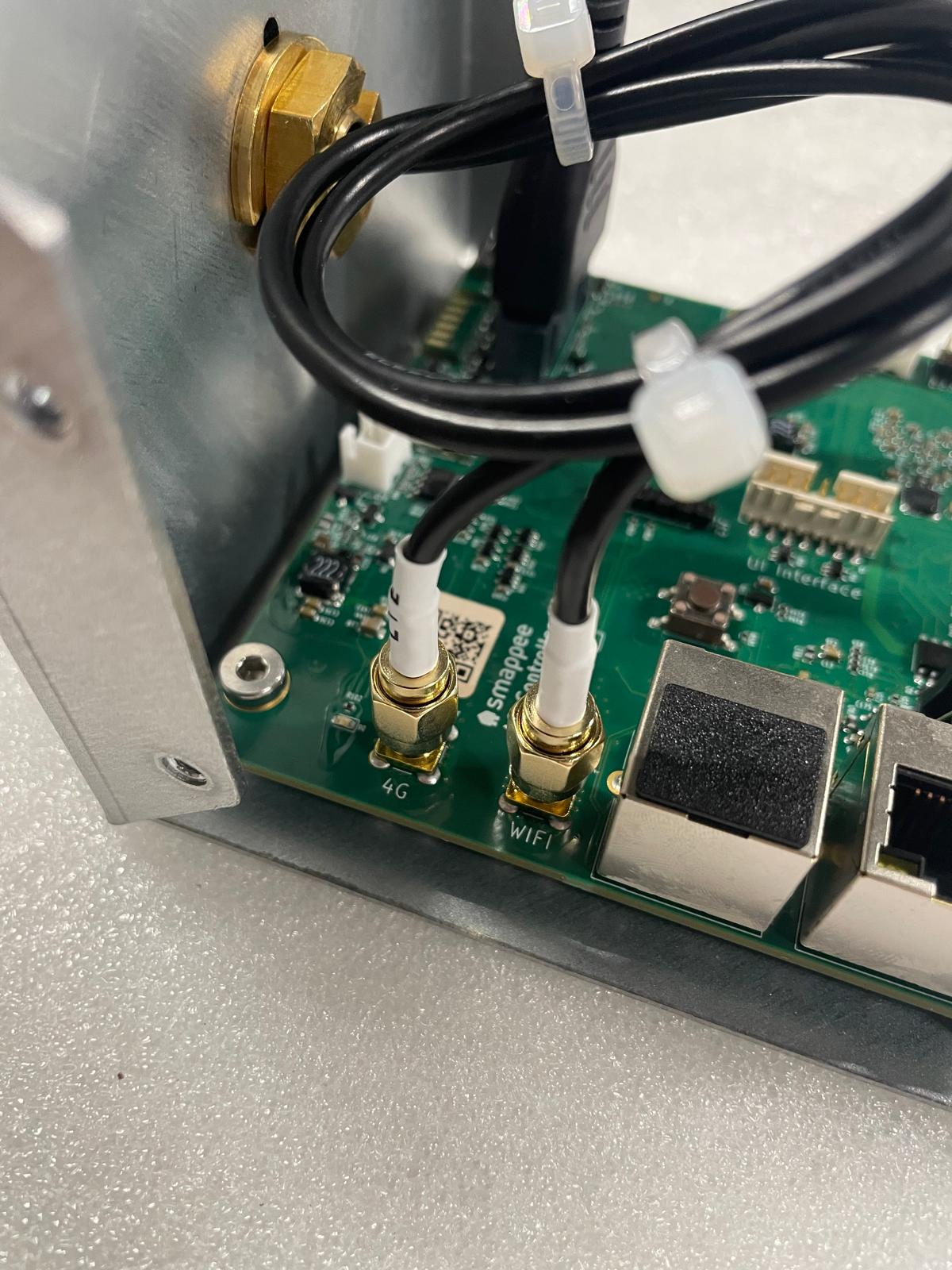

  15. Reconnect the antenna. Start with the Wifi cable (left side) and assemble the 4G cable afterwards (right side) - 4G cable is marked with the mention “LTE” Be careful during assembly, connectors are very fragile. [Hex 8 - Torque : 1 N.m]

    Step image

  16. Reconnect the 12P cable

    Step image

  17. Reconnect the display board to the charge controller. Connector is very fragile, pay attention not to damage it; when connected it cable side should hook onto the connector from the board.

    Step image

  18. Reconnect ethernet cable.

    Step image

  19. Reconnect LED cable.

    Step image

  20. Carefully put the charge controller back in position. Pay attention not to pinch any of the cables.

    Step image

  21. Fasten the 4 screws holding the charge controller. [Allen 2 - Torque : 1N.m]

    Step image

  22. Put the casing back in and secure the door with the 2 screws. [Allen 2.5 (Handtight)]

    Step image

  23. Install the 2 screws in the bottom. [Safety torx T20H (Handtight)]

    Step image
