Replace defective socket (One V3)

Version

Revision 1

Used in

EV One Home (V3) (manuals) (wiring)
(6521xxxxxx) (Socket version)

EV One Business (V3) (manuals) (wiring)
(6522xxxxxx) (Socket version)

EV One Latest version (manuals) (wiring)
(6531xxxxxx) (Socket version)

Parts needed

  • [EV-SOCKET-ASSY] EV Socket assembly

Tools needed

  • Allen 2.5
  • Small flat screwdriver
  • Flat screwdriver
  • Hex 8

Charger Overview

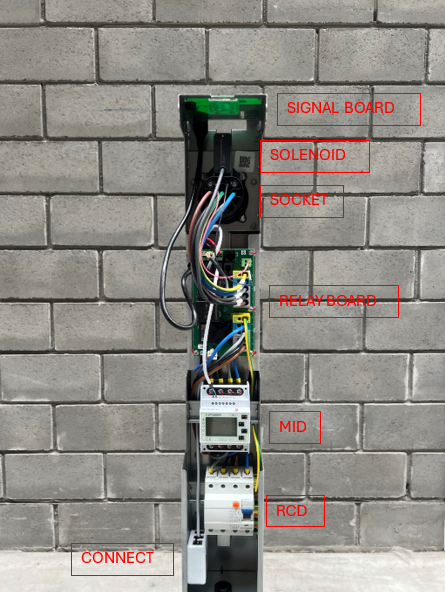

Charger overview

Replacement Instructions

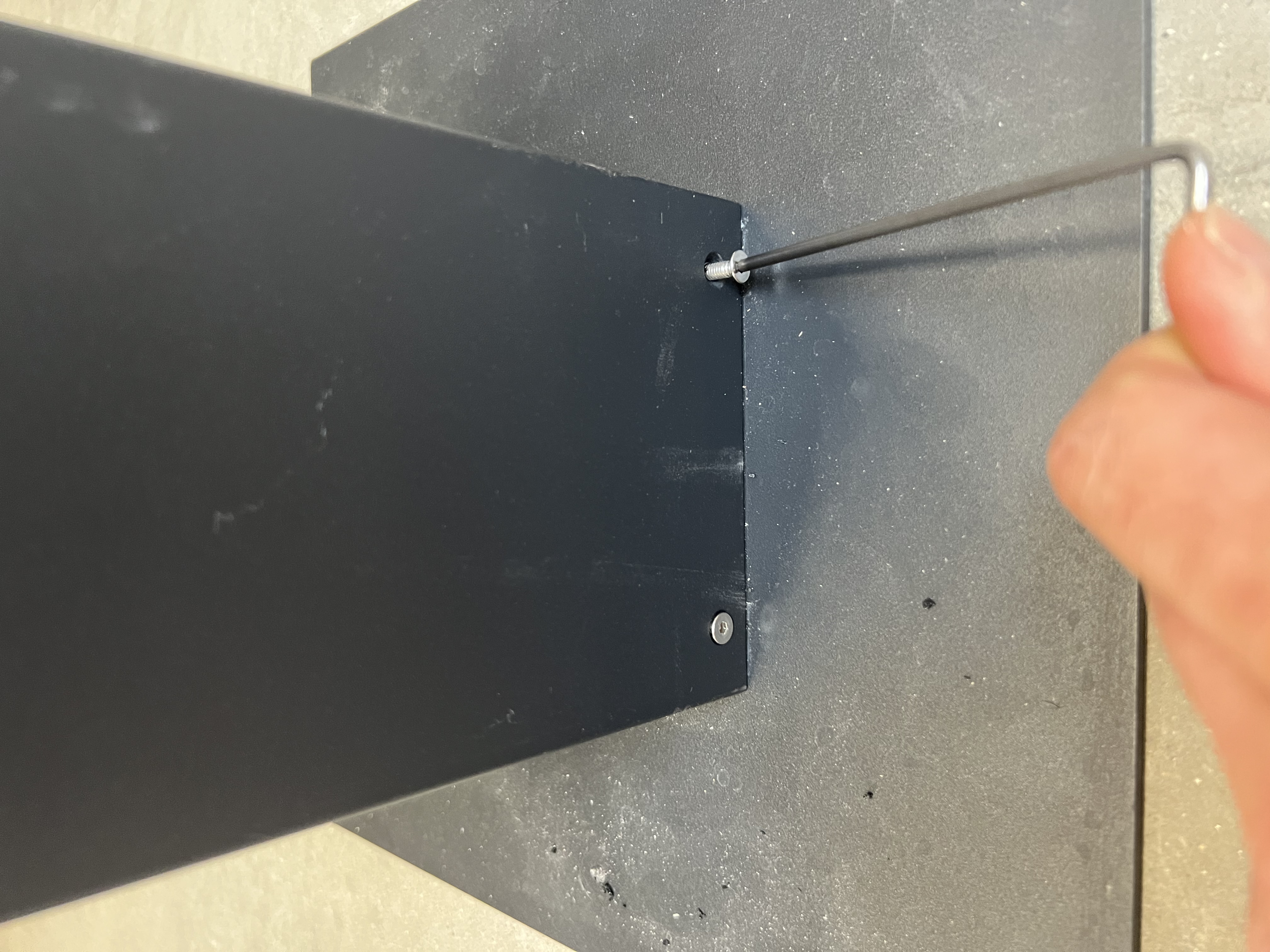

  1. Remove the 2 screws at the bottom of the housing [Allen 2.5]

    Step image

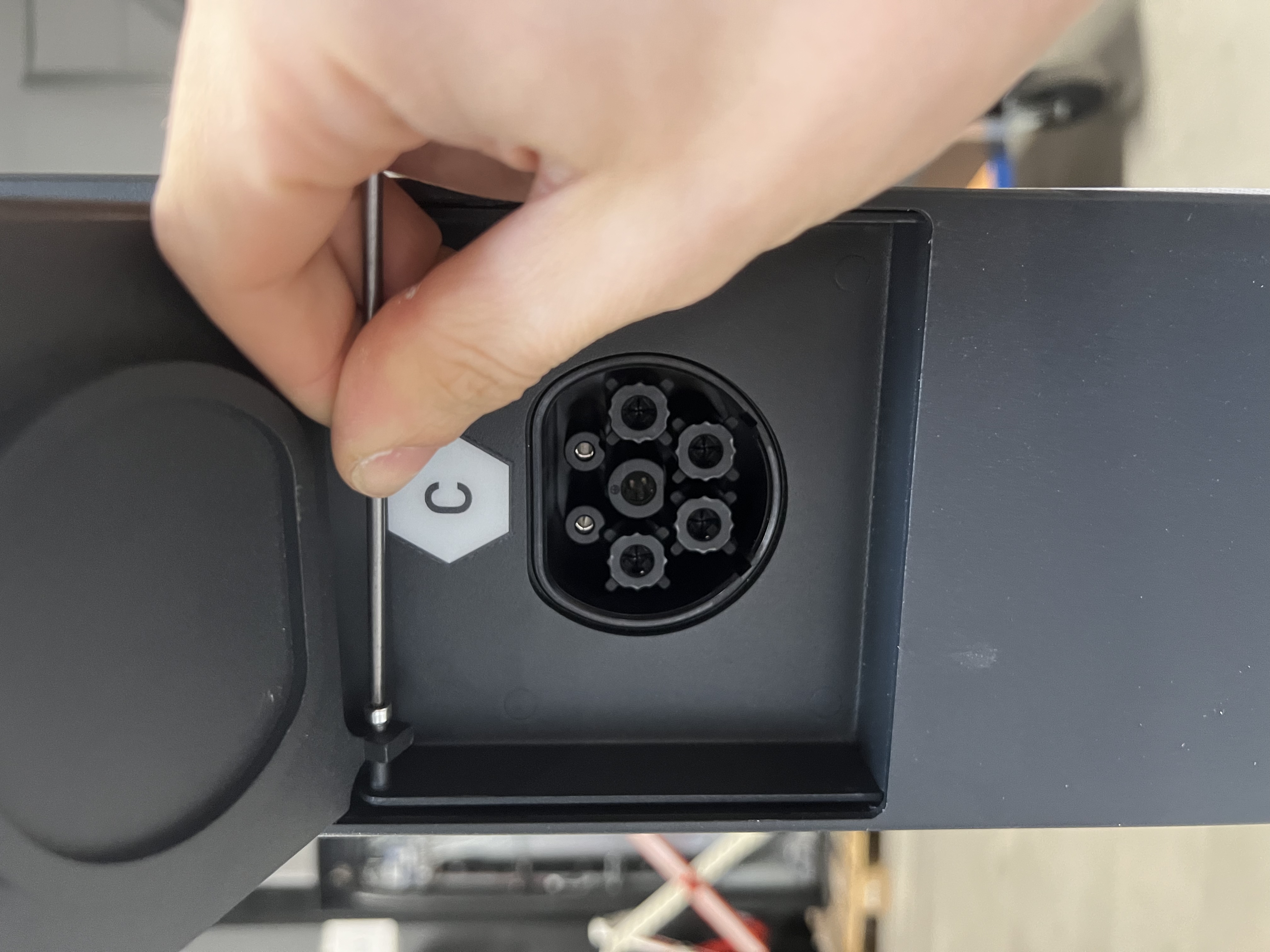

  2. Remove the 2 screws holding the door. Place the door in a safe location and remove the housing tube. [Allen 2.5]

    Step image

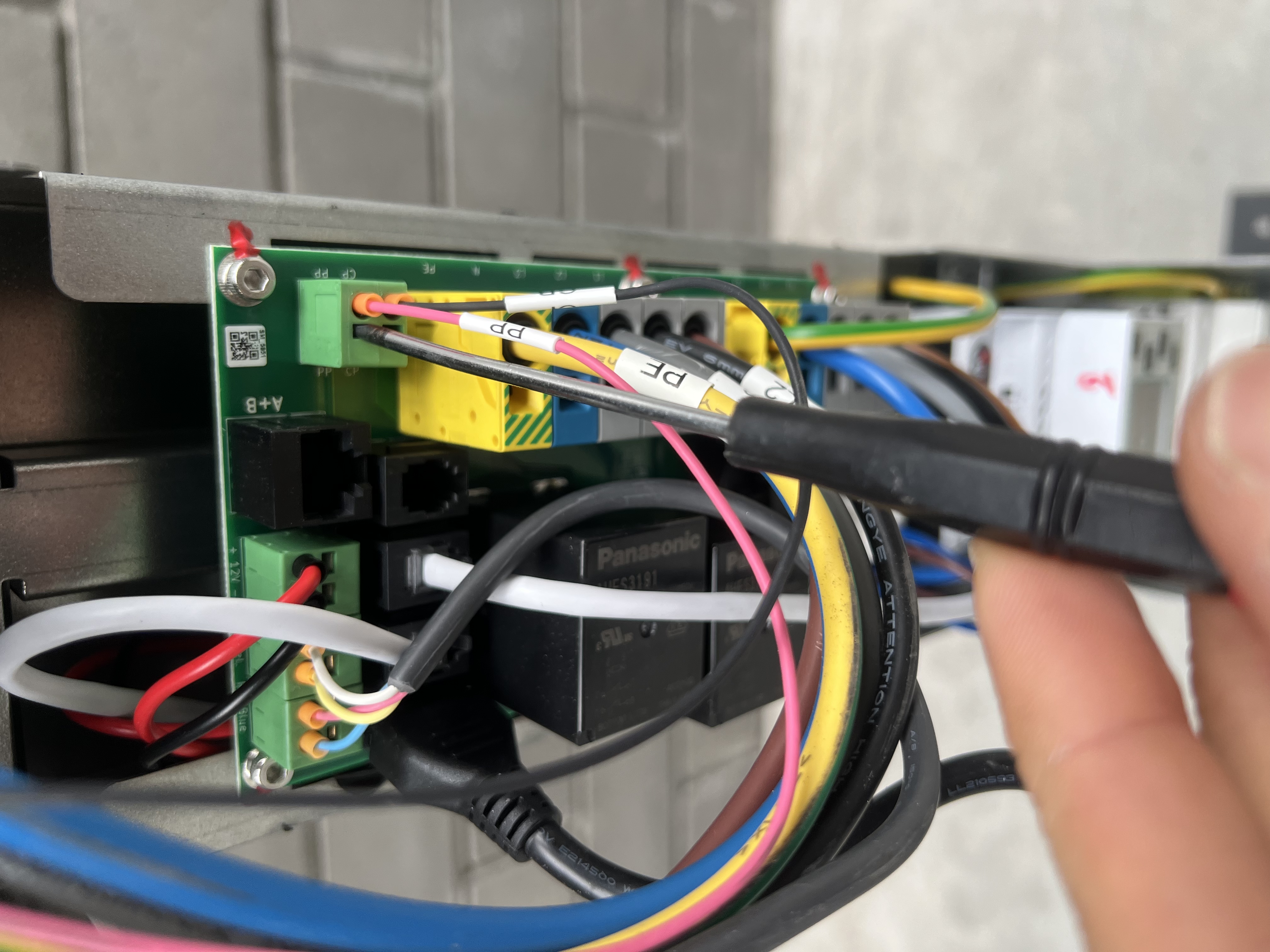

  3. Disconnect the CP and PP line of the socket to the relay board. Push in the openings of the connector to release the ferrules. [Small flat screwdriver]

    Step image

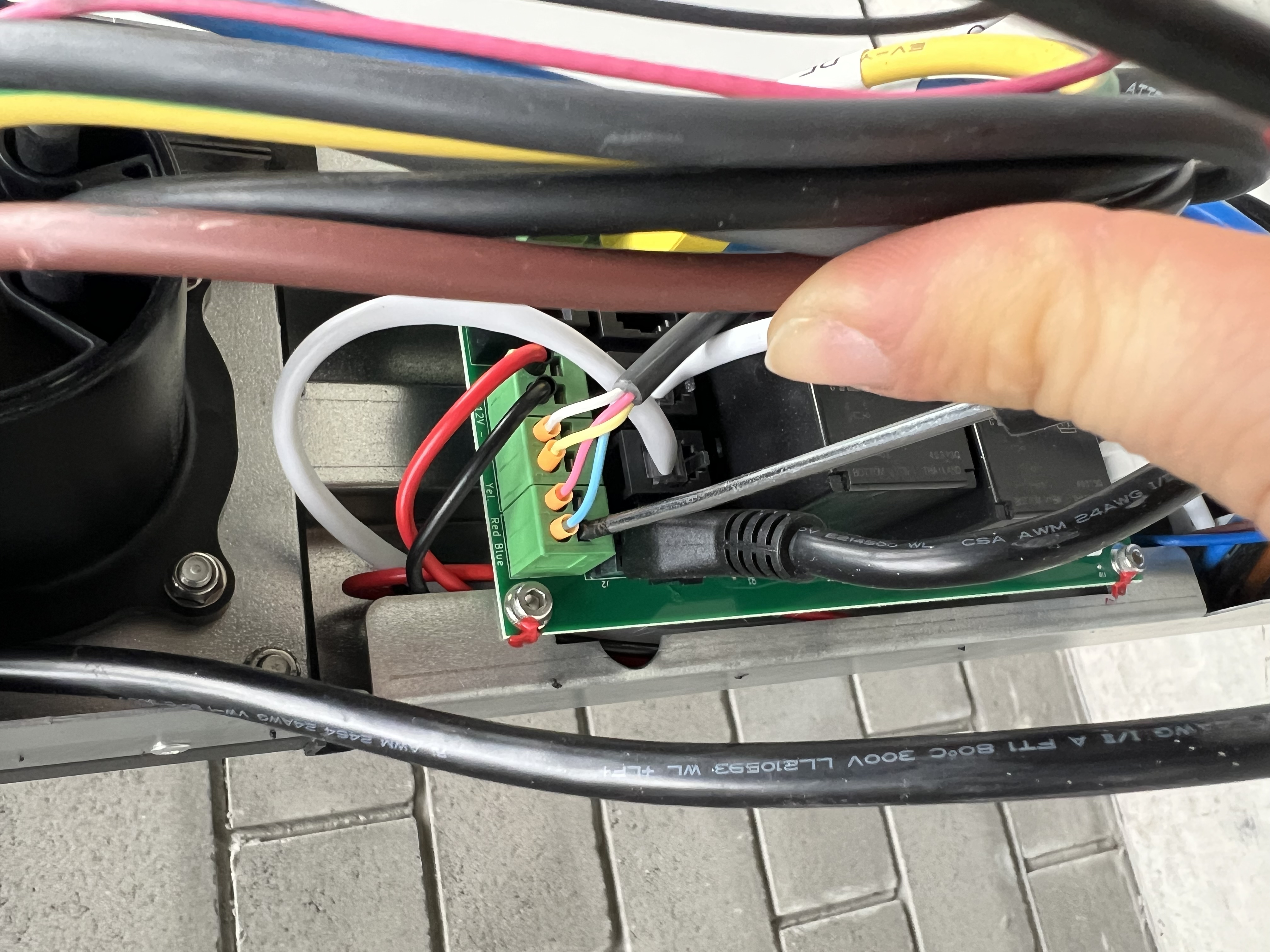

  4. Disconnect the solenoid wires from the relay board. Push in the openings of the connector to release the ferrules. [Small flat screwdriver]

    Step image

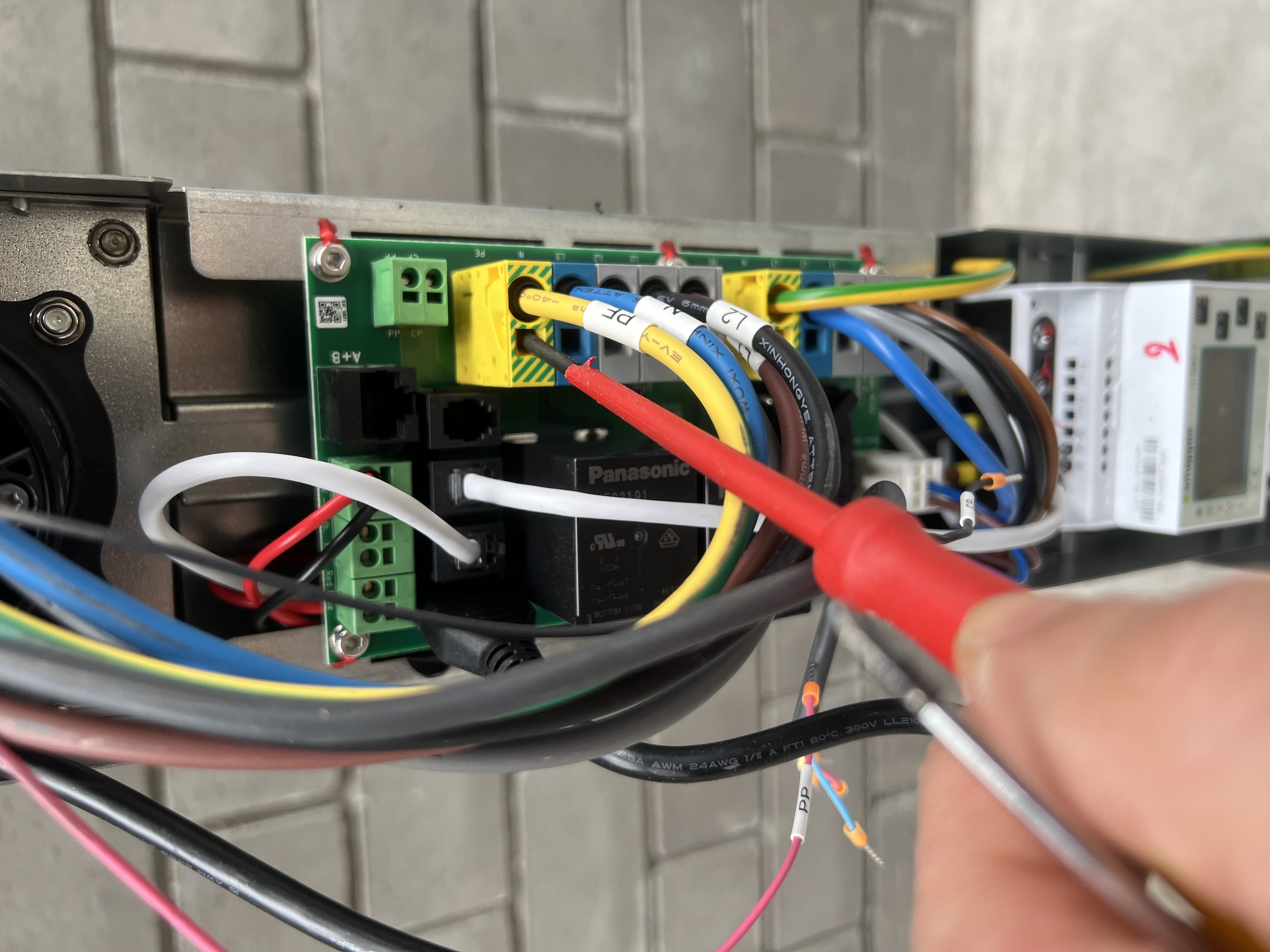

  5. Disconnect the phases, PE and neutral cables of the socket to the relay board Push in the openings of the charging controller to release the ferrules. [Flat screwdriver]

    Step image

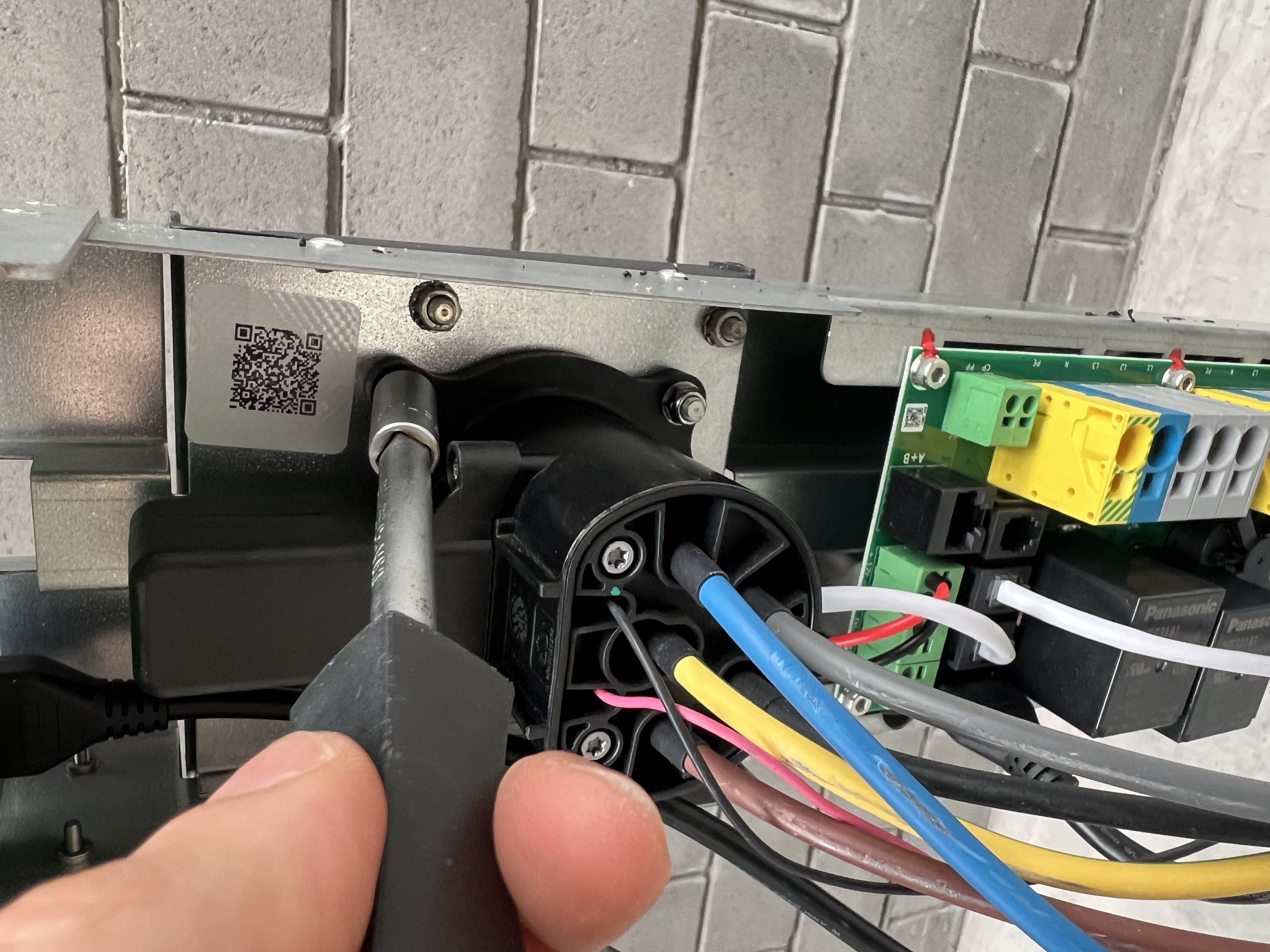

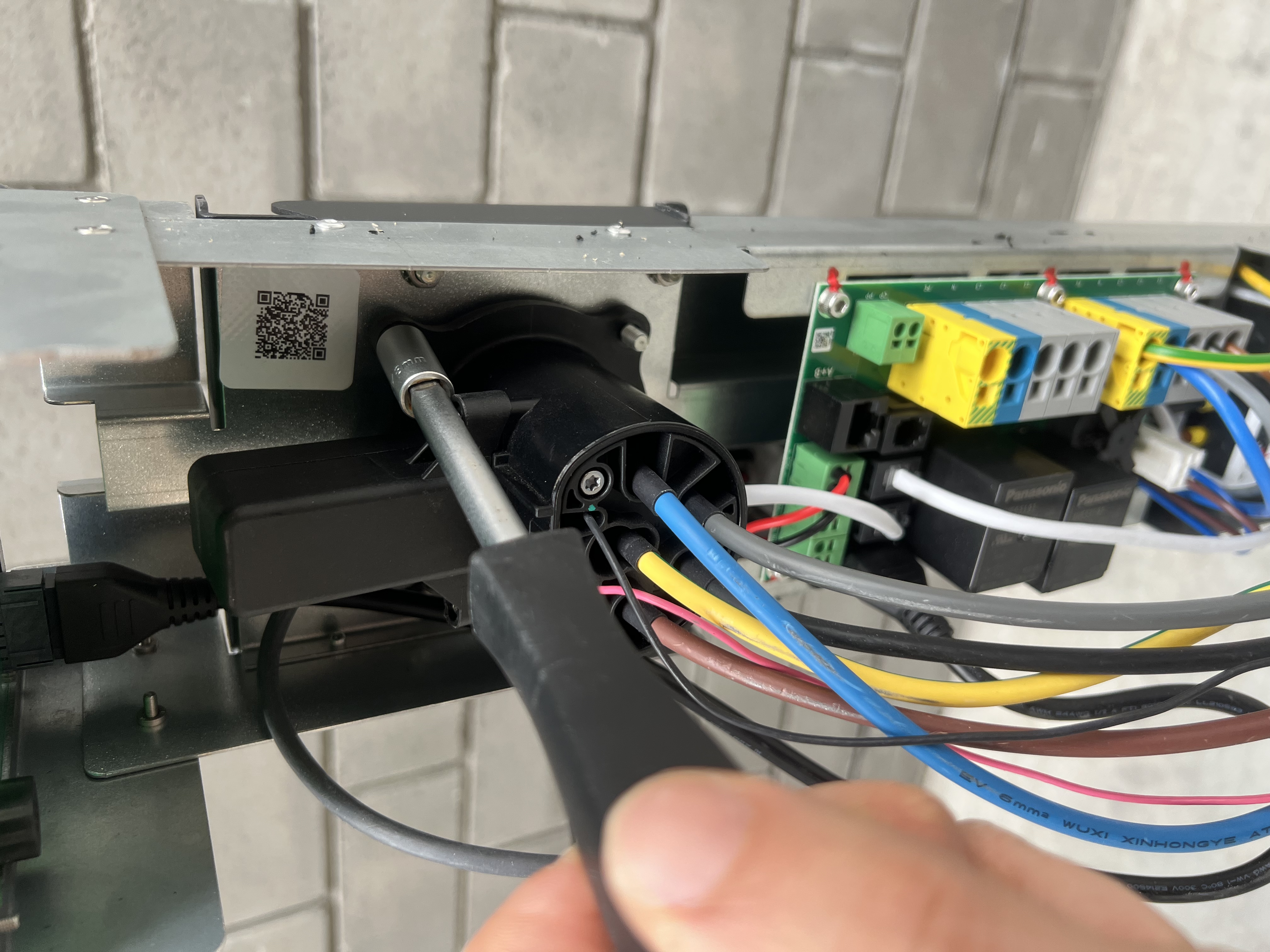

  6. Remove the socket from the structure - Untighten the 4x M5 nuts of the socket [Hex 8]

    Step image

  7. Place the new socket assembly and tighten it thanks to the 4x M5 washers and M5 locknuts. Note : The solenoid is rotated 90° but this doesn’t cause any functional or assembly difference [Hex 8 - Torque : 2.5 N.m]

    Step image

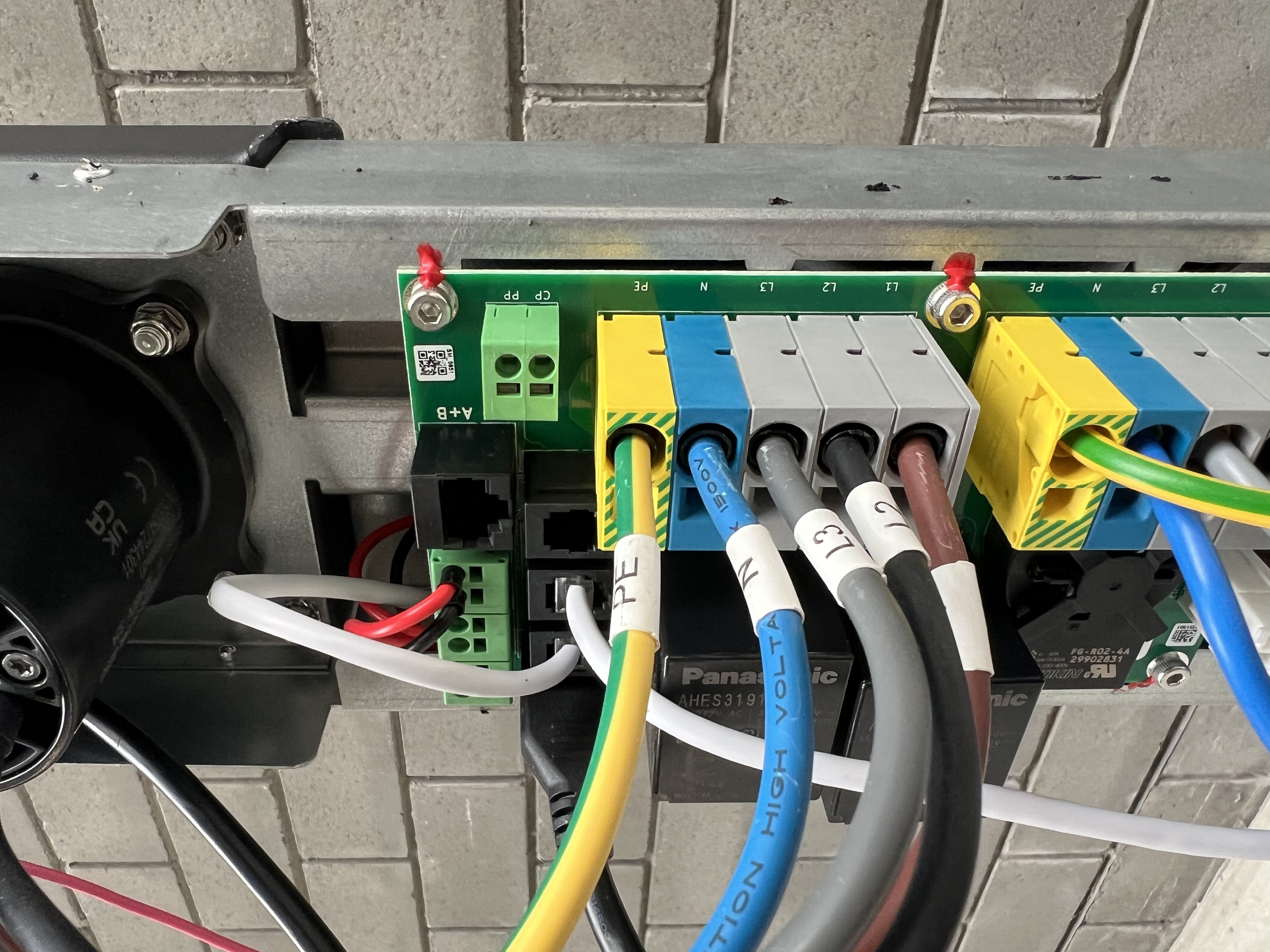

  8. Connect the phases, PE and neutral wires from the socket to the relay board by pushing them in the connector. Sequence from bottom of the unit to top is L1 (brown), L2 (black), L3 (grey), neutral (blue), PE (yellow) Check all cables are properly secured.

    Step image

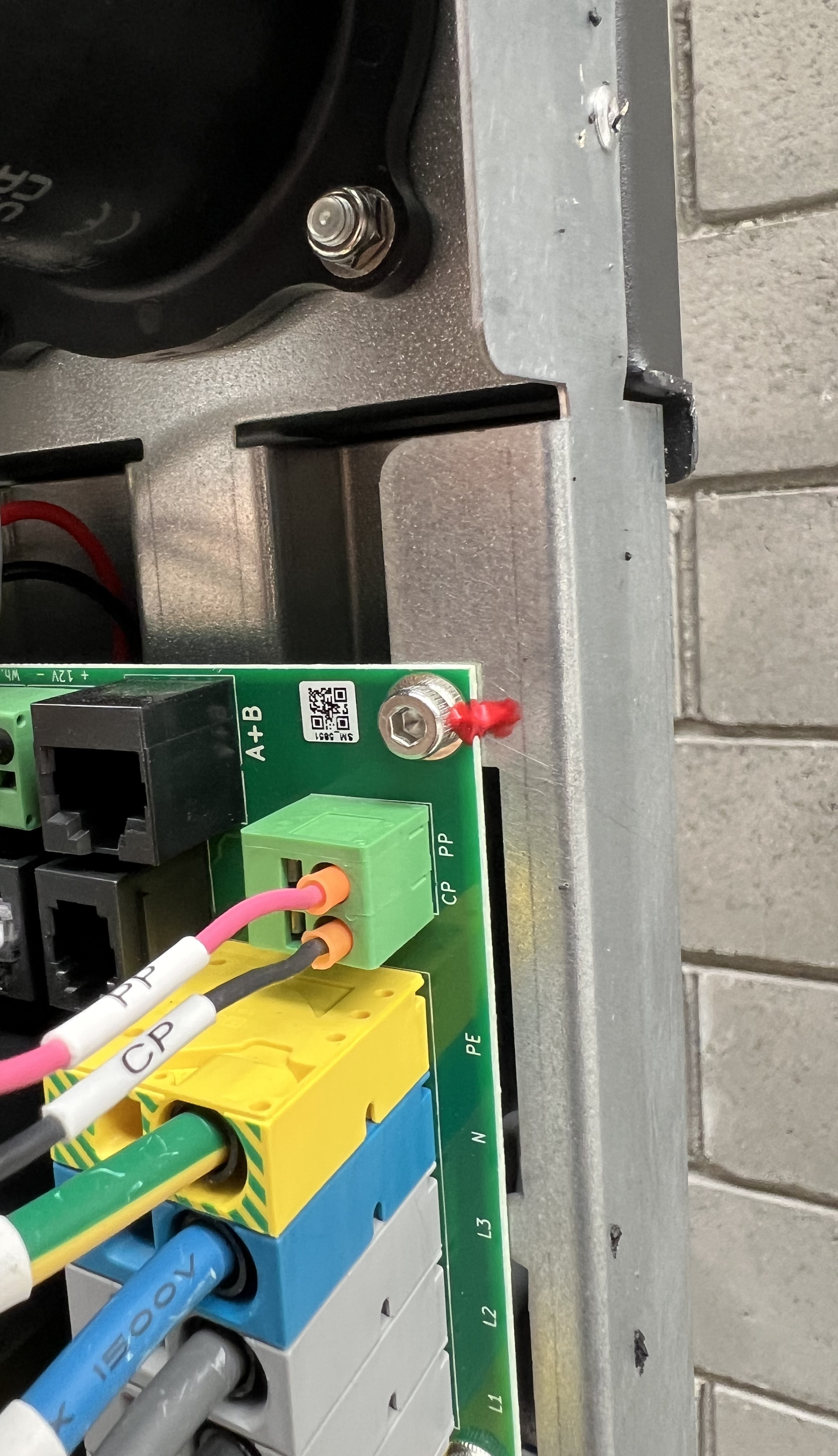

  9. Connect the CP & PP line from the socket to the charging controller by pushing them in the connector (follow CP and PP mention on the relay board) Check all cables are properly secured.

    Step image

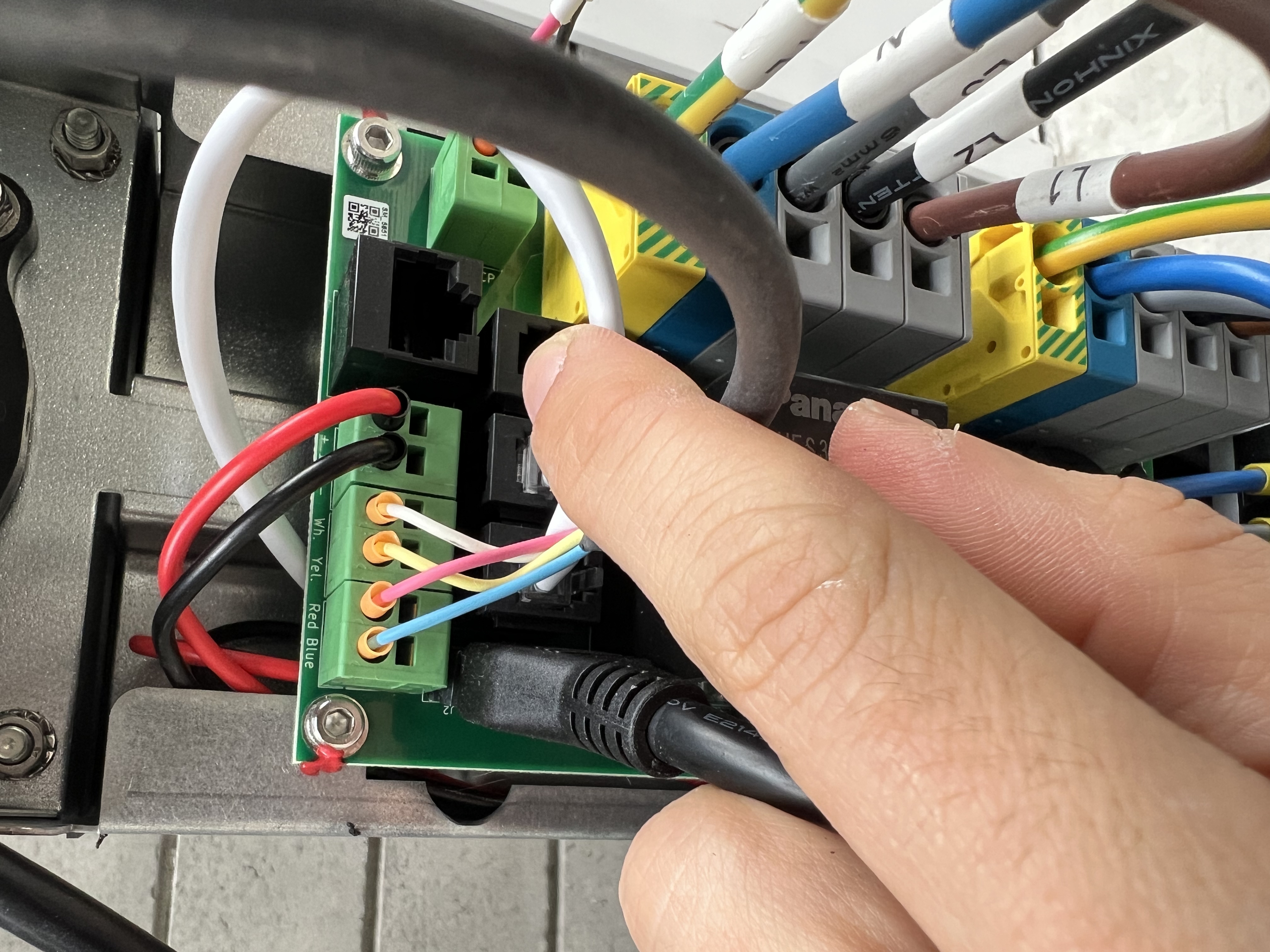

  10. Connect the solenoid wires to the relay board following the colour code (blue, red, yellow, white). Wires just need to be pushed in the connector Check all cables are properly secured.

    Step image

  11. Put the casing back in, secure the door and add the 2 screws at the bottom of the unit [Allen 2.5 (Handtight)]

    Step image

    Step image
