Version
Revision 1
Used in
EV One Home (V3) (manuals) (wiring)
(6521xxxxxx) (Socket version)
EV One Business (V3) (manuals) (wiring)
(6522xxxxxx) (Socket version)
EV One Latest version (manuals) (wiring)
(6531xxxxxx) (Socket version)
Parts needed
- [EVO-TOPOVER] EV One Top cover kit
Tools needed
- Allen H2.5
Replacement Instructions
-

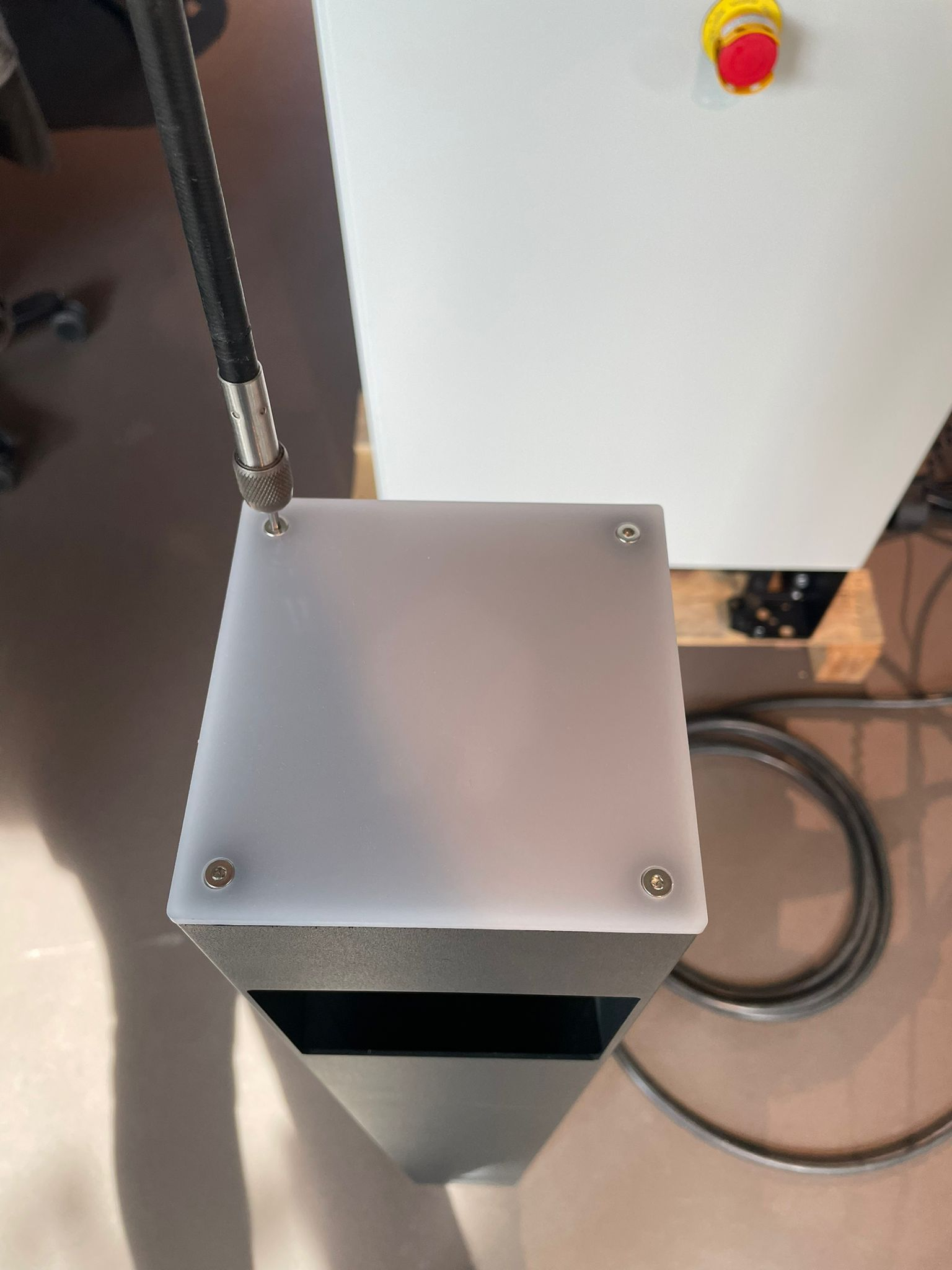

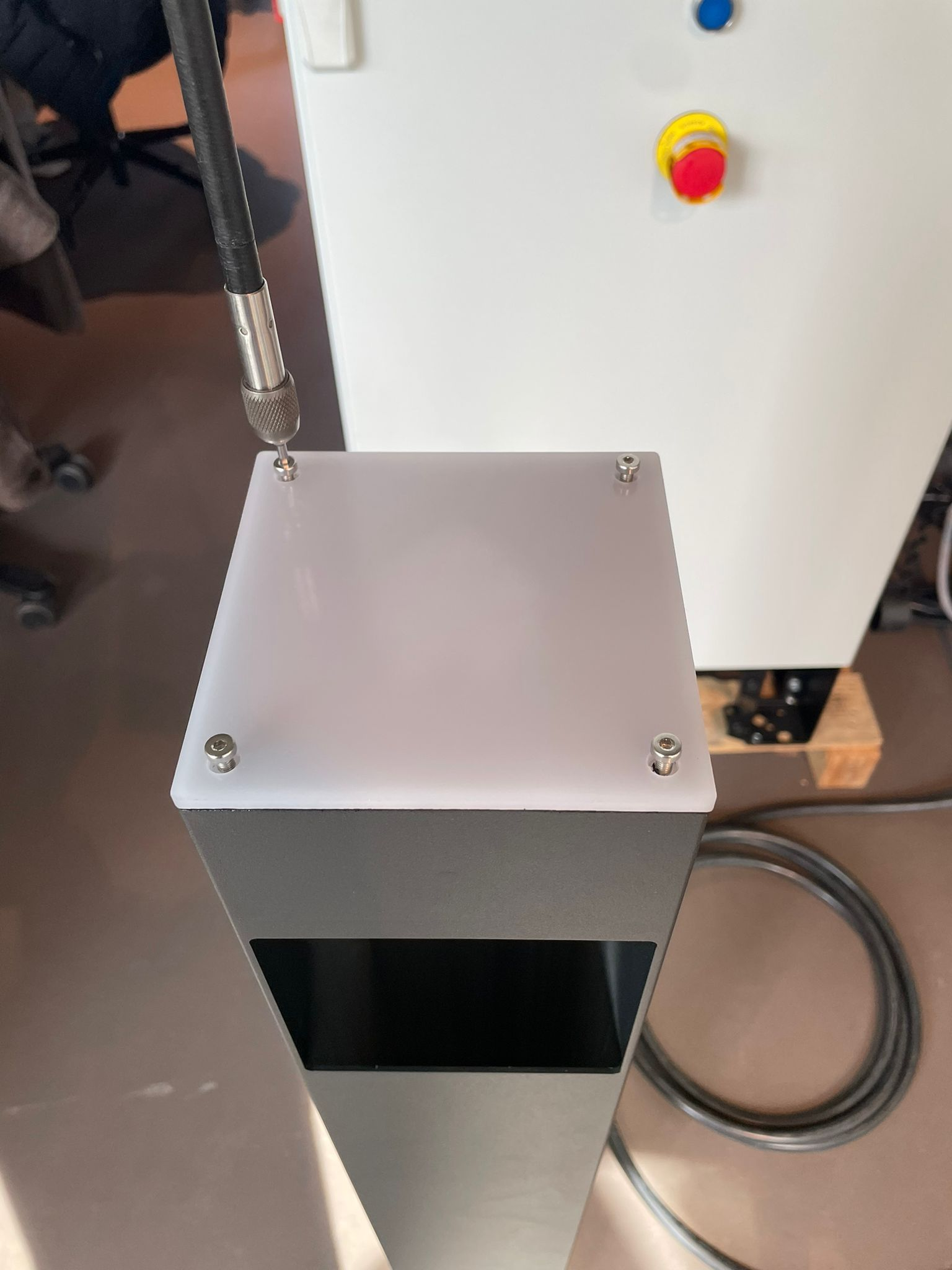

Remove the 4 screws at the top of the unit [Allen H2.5]
-

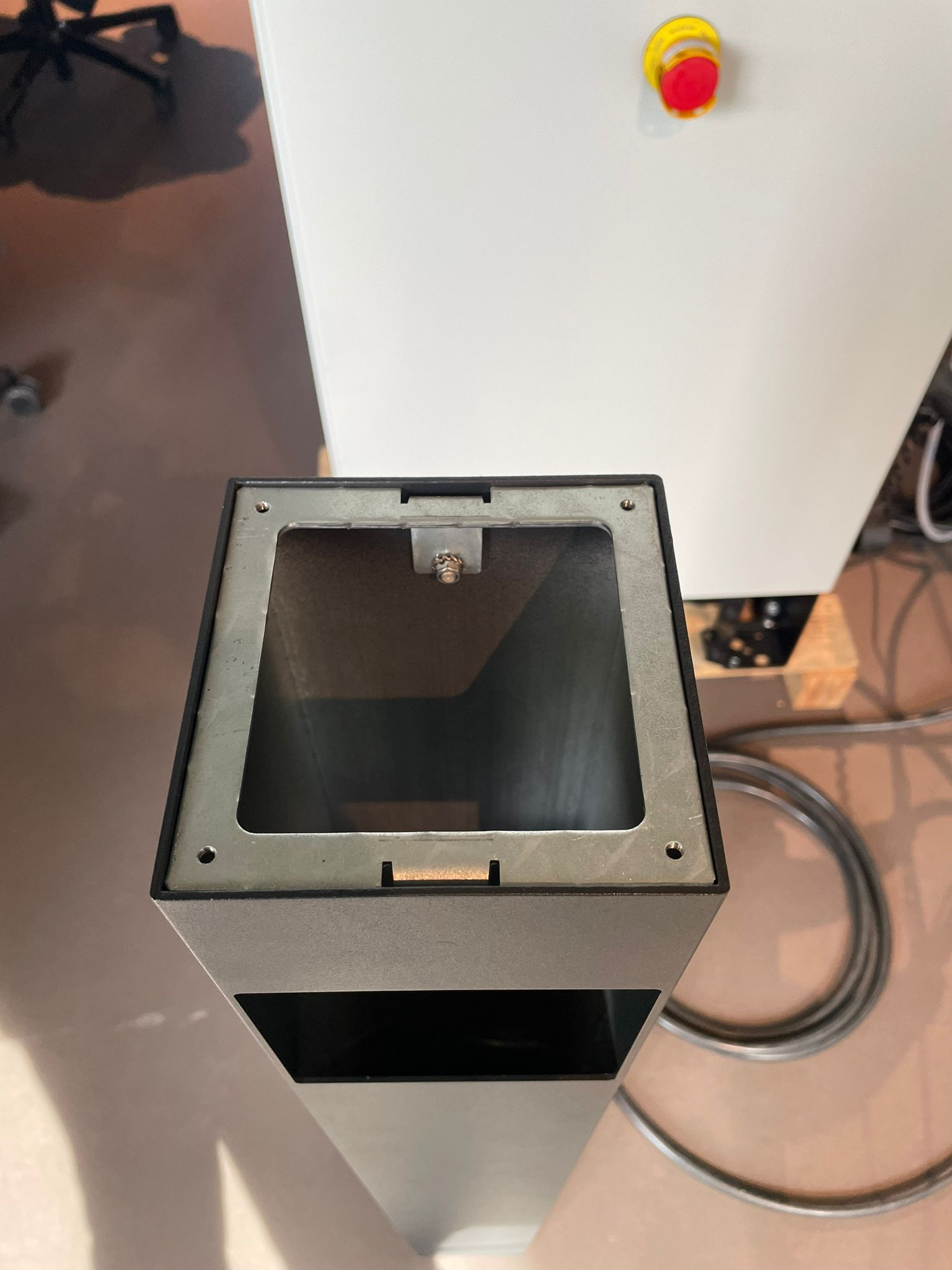

Remove top parts (plexi, rubber & white plastic) and put aside
-

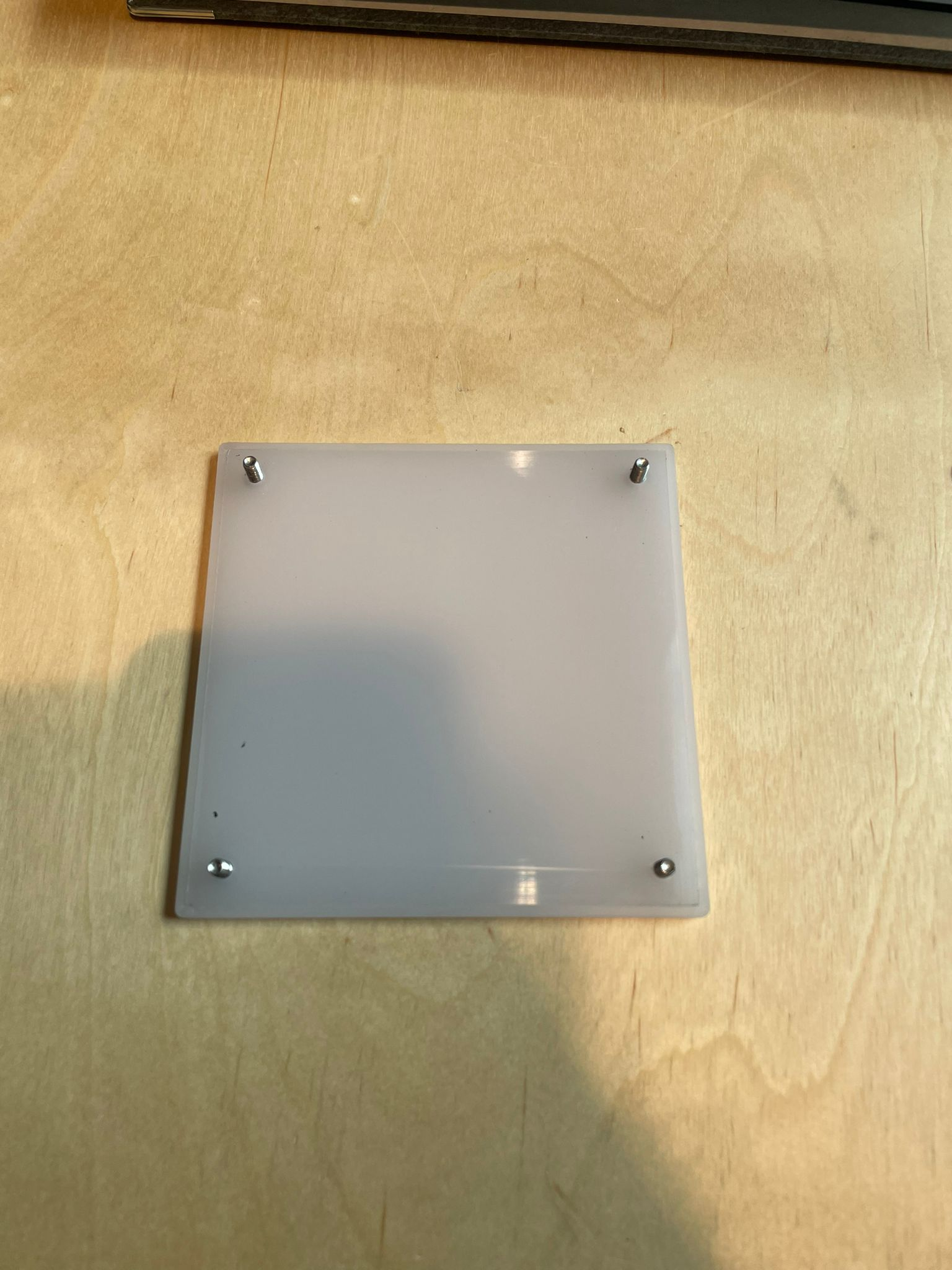

Place the 4 mounting screws in the provided holes of the top plexi and put upside down
-

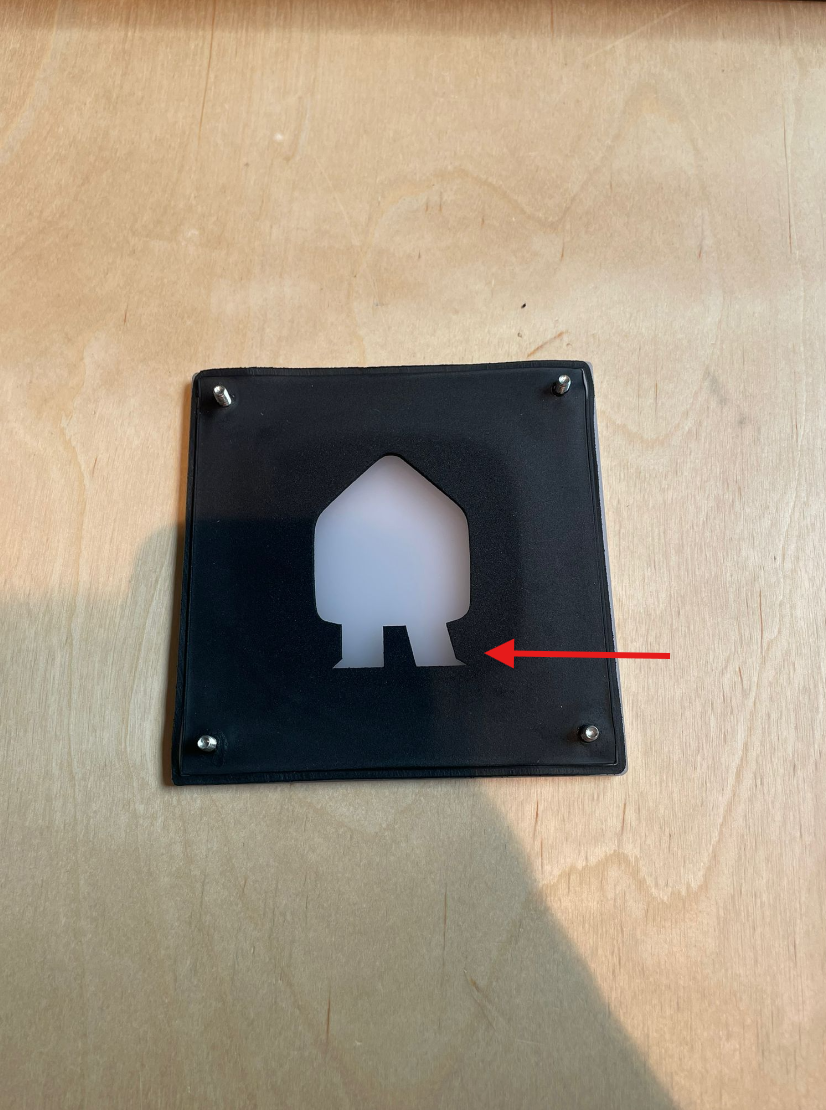

Place the rubber on top of the plexi, us the screws for alignment Make sure the angled leg (red arrow) is at the right side
-

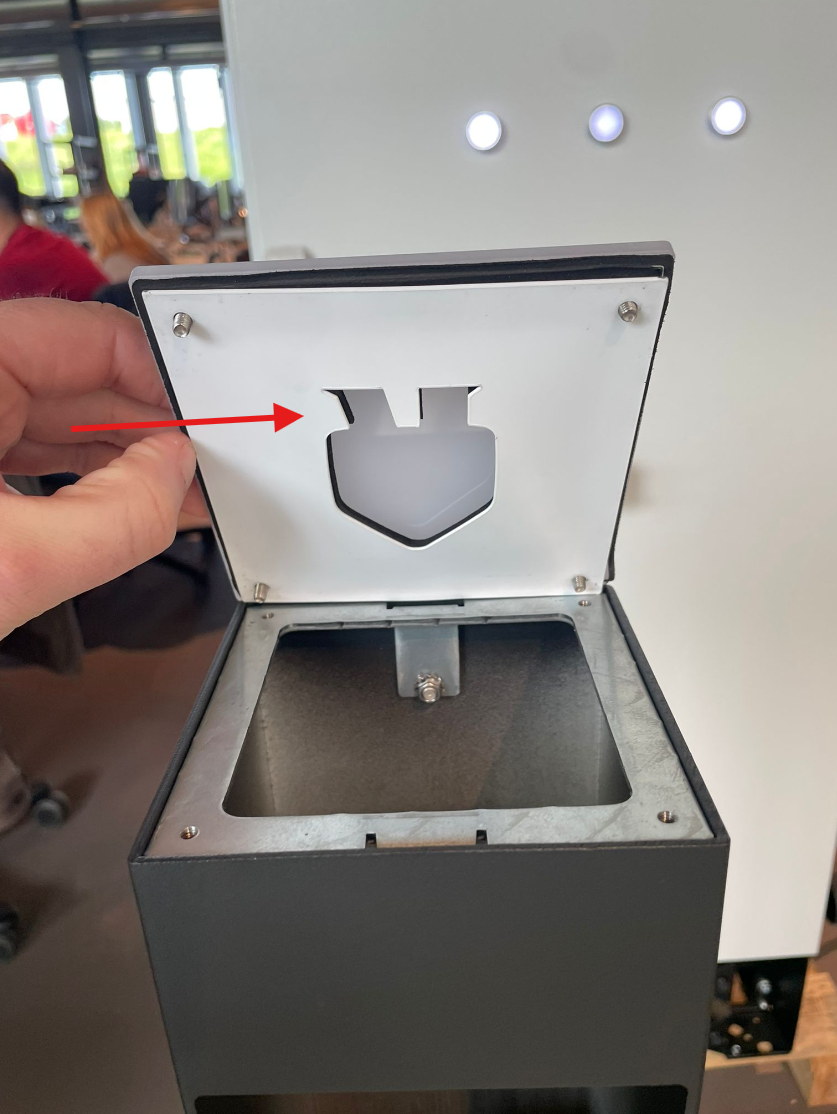

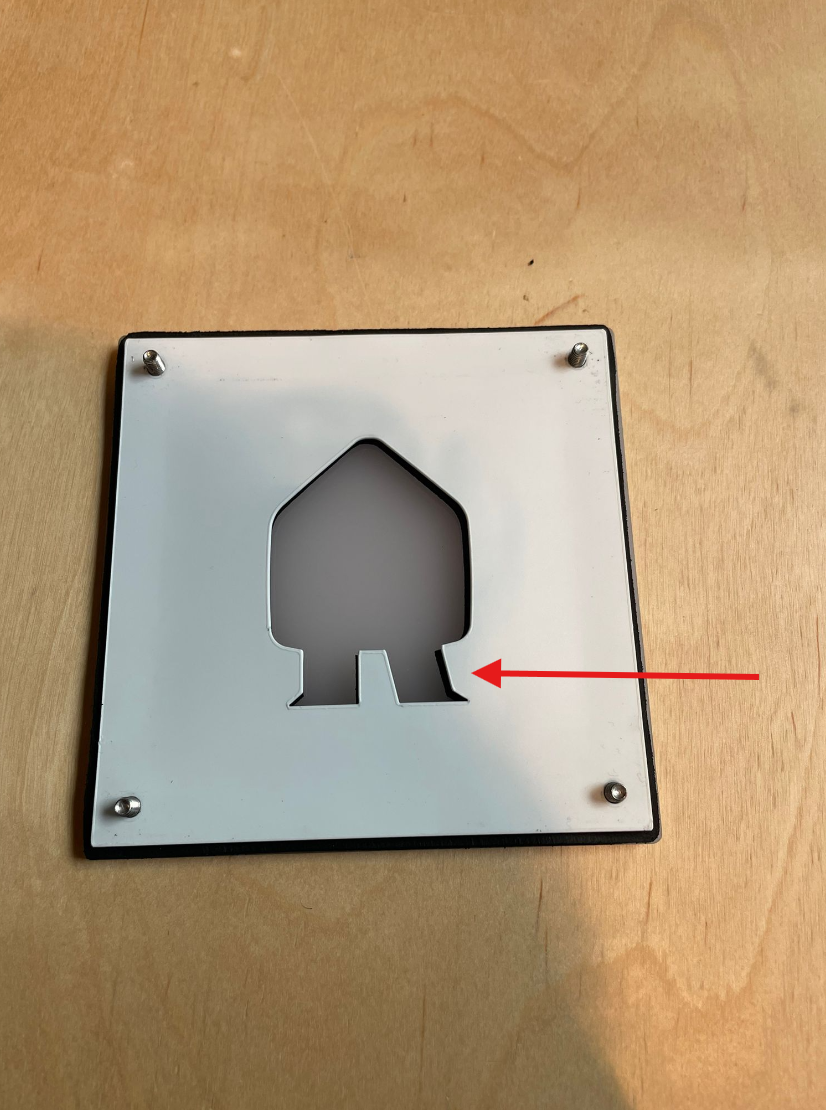

Place the white plastic part on top of the rubber, us the screws for alignment Make sure the angled leg (red arrow) is at the right side / same side as the rubber
-

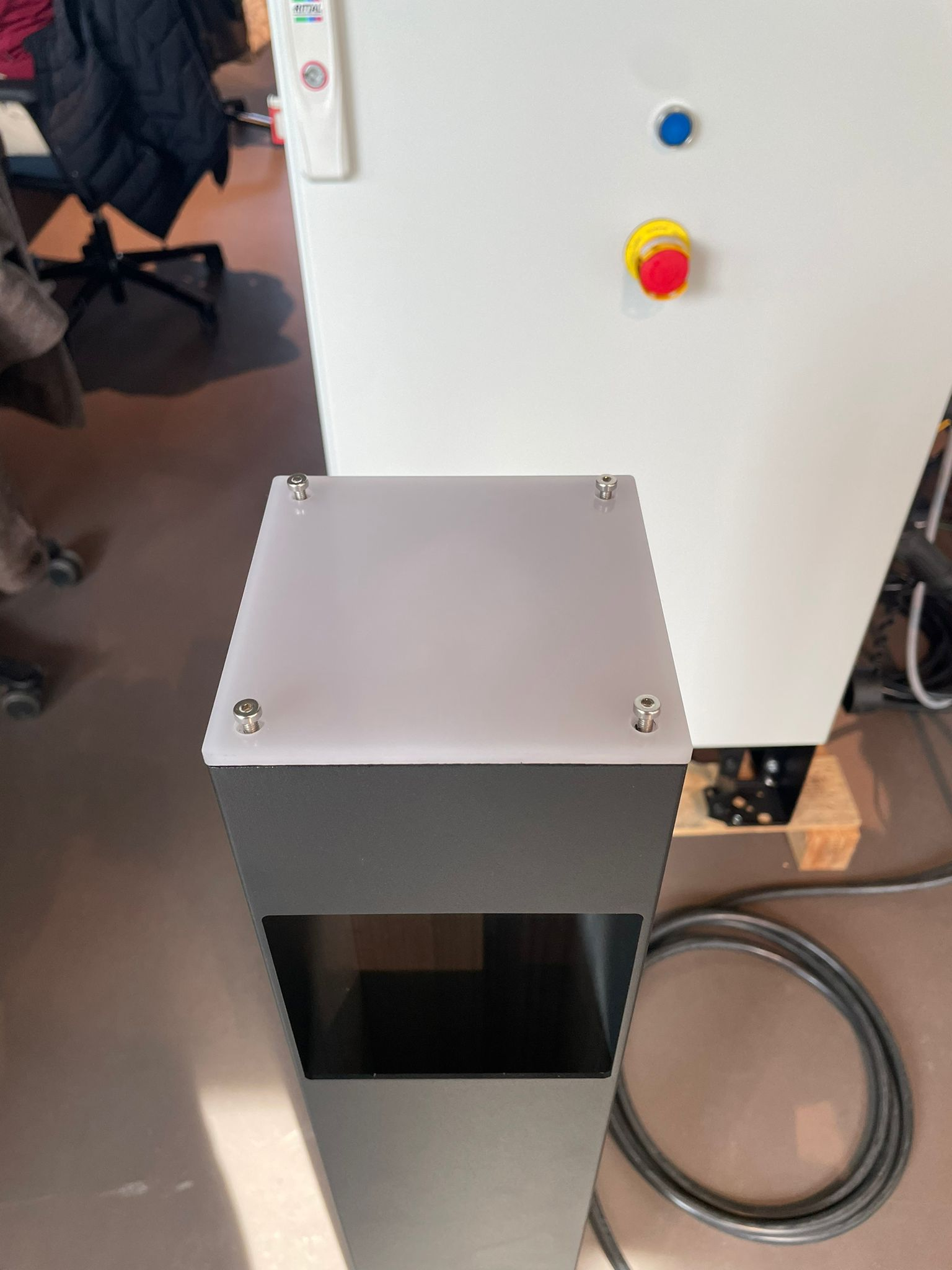

Position the assembly (plexi, rubber, white plastic and the screws) back on top of the tube and align the screws with the holes Make sure the angled leg at left side when standing in front of the tube with the door opening towards you
-

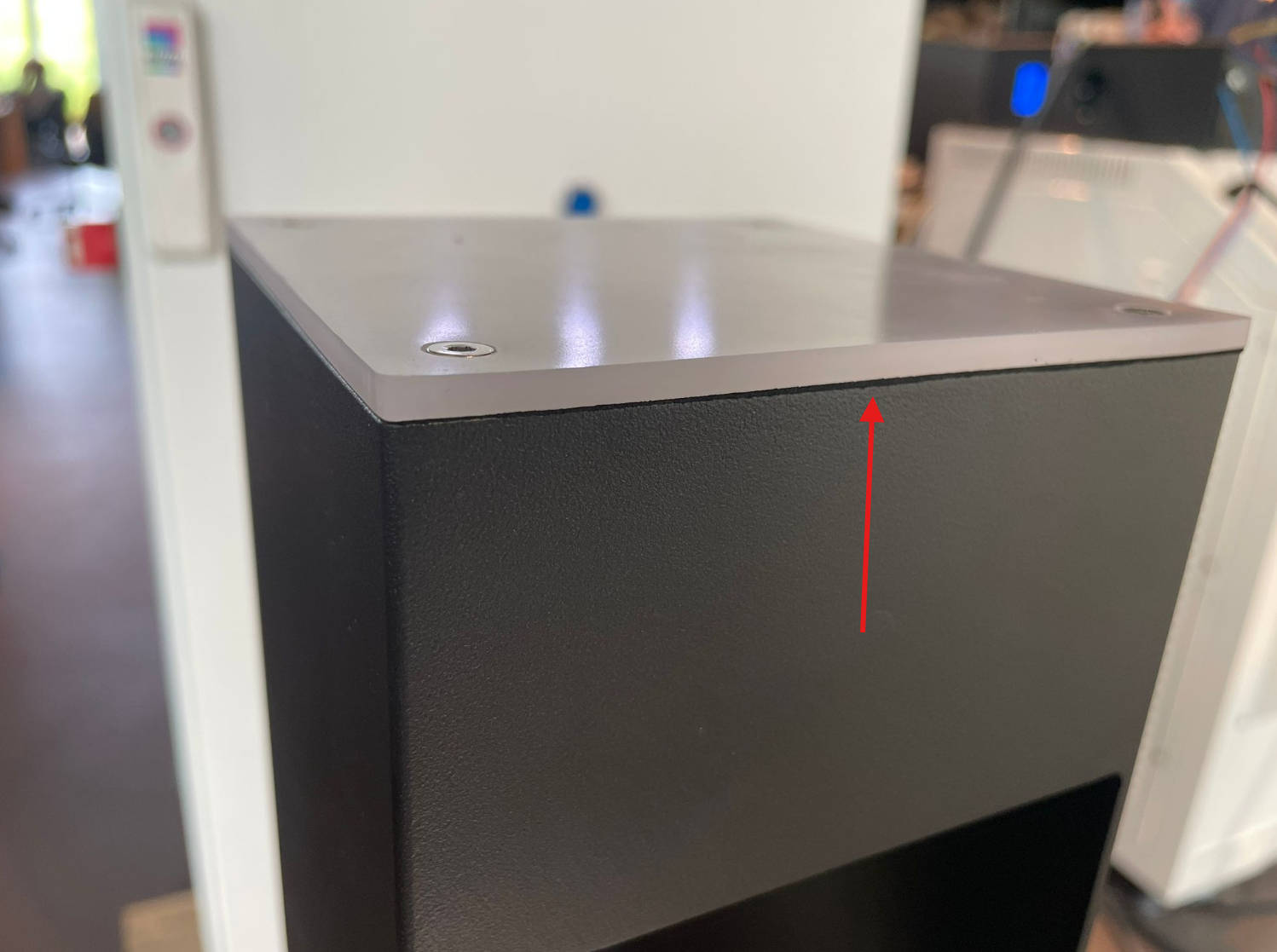

Fasten the 4 screws and make sure there is proper compression all around the tube. Check on all sides that the rubber is in between the plexi and the tube [Allen H2.5 1.5 Nm]
