EV Dual - How to replace the socket

Version

Revision 1 (ENG-WI-212)

Used in

EV Dual (manuals)
(6630xxxxxx) (Cable version)
(6631xxxxxx) (Socket version)

Parts needed

  • [EV-SOCKET-ASSY] EV Socket assembly

Tools needed

  • Key (Wall) or Safety TX20 bit (base)
  • Small flat screwdriver
  • Hex 8

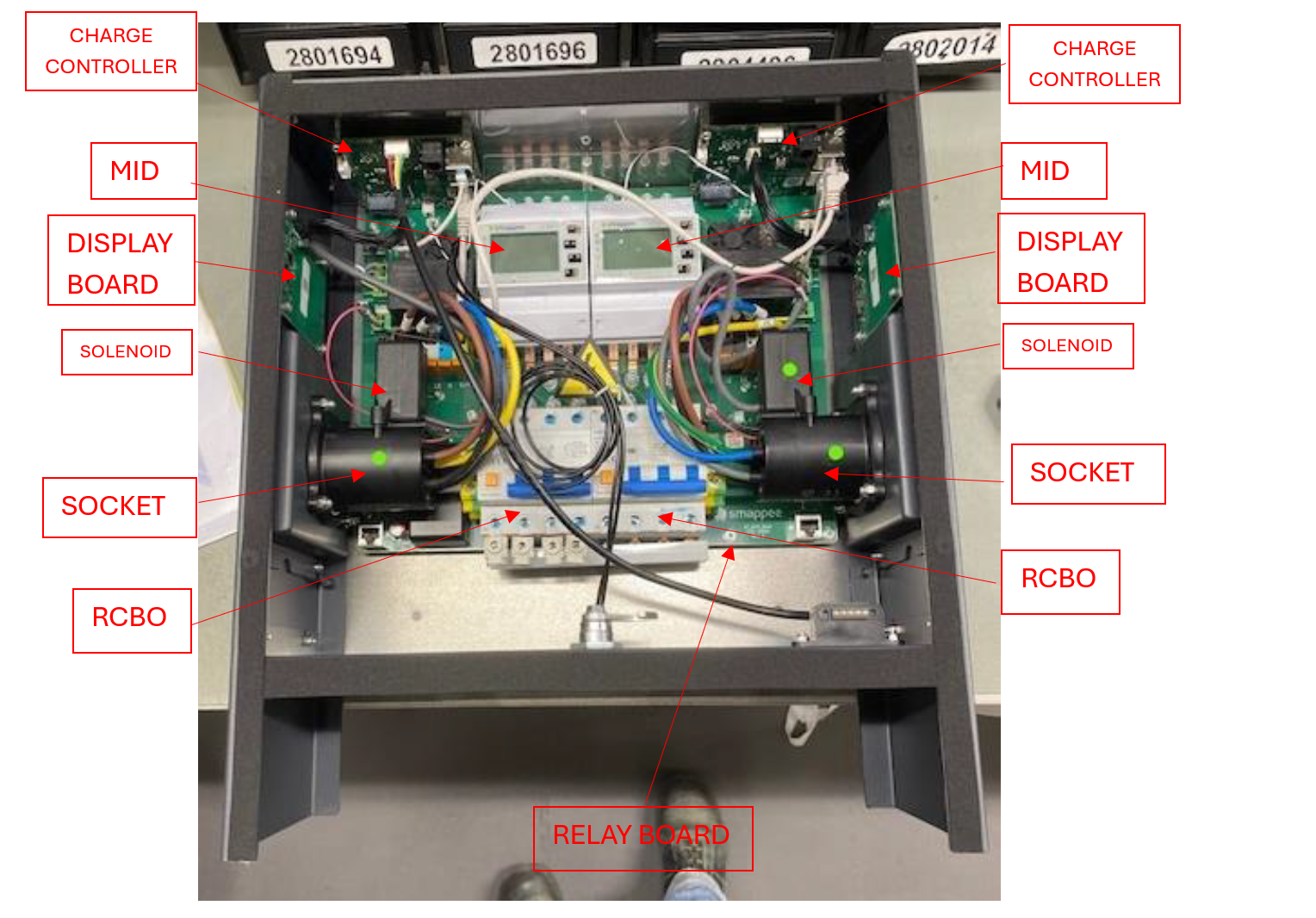

Charger Overview

Charger overview

Replacement Instructions

  1. Open the unit either by using the provided key (Wall version) or untightening the 6x safety screws (Base version). Place the front plate aside [Key (Wall) or Safety TX20 bit (base)]

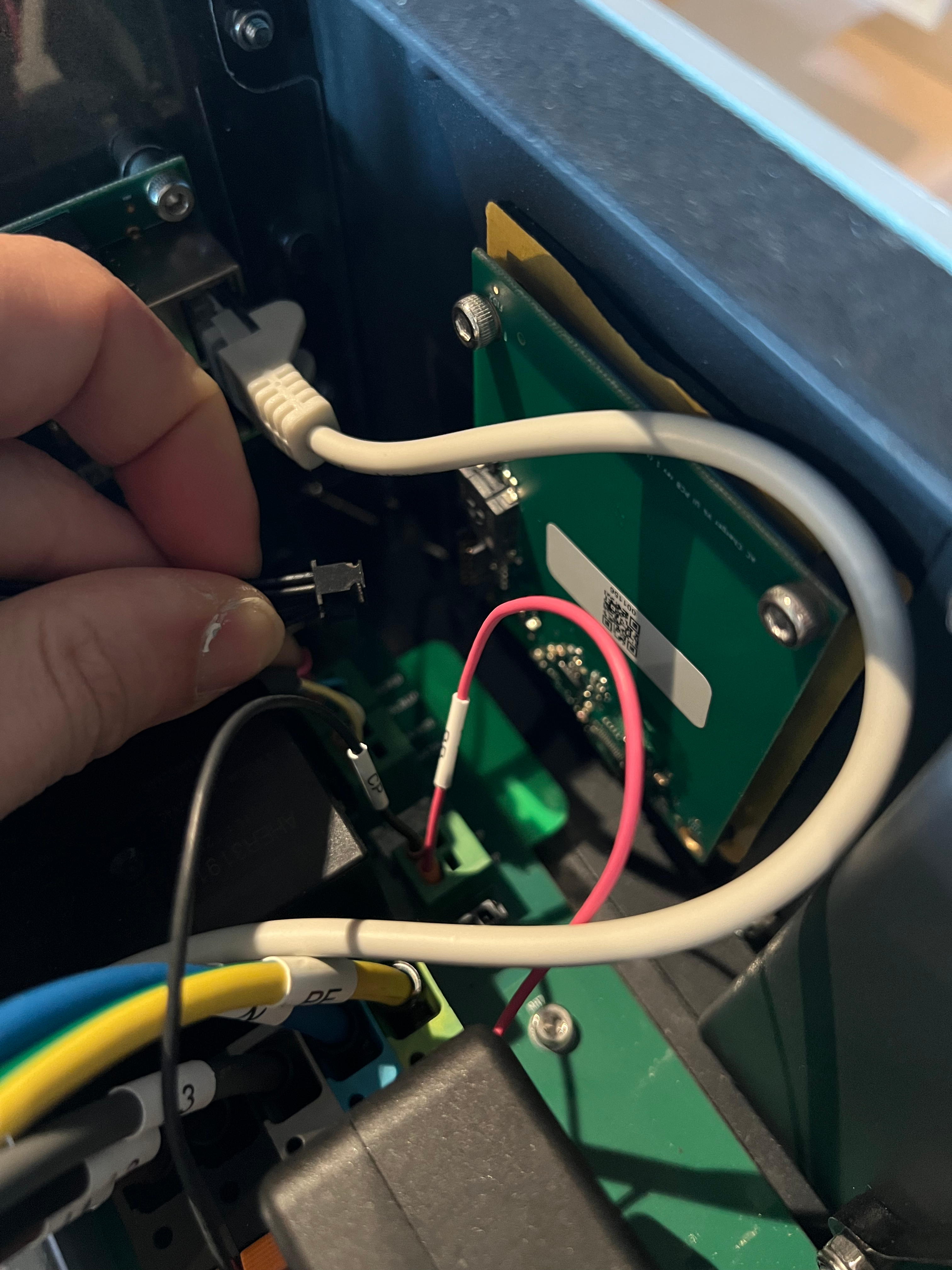

  2. Before starting the disassembly, it can be easier to disconnect the cable from the display board to have better access to the solenoid wires.

    Step image

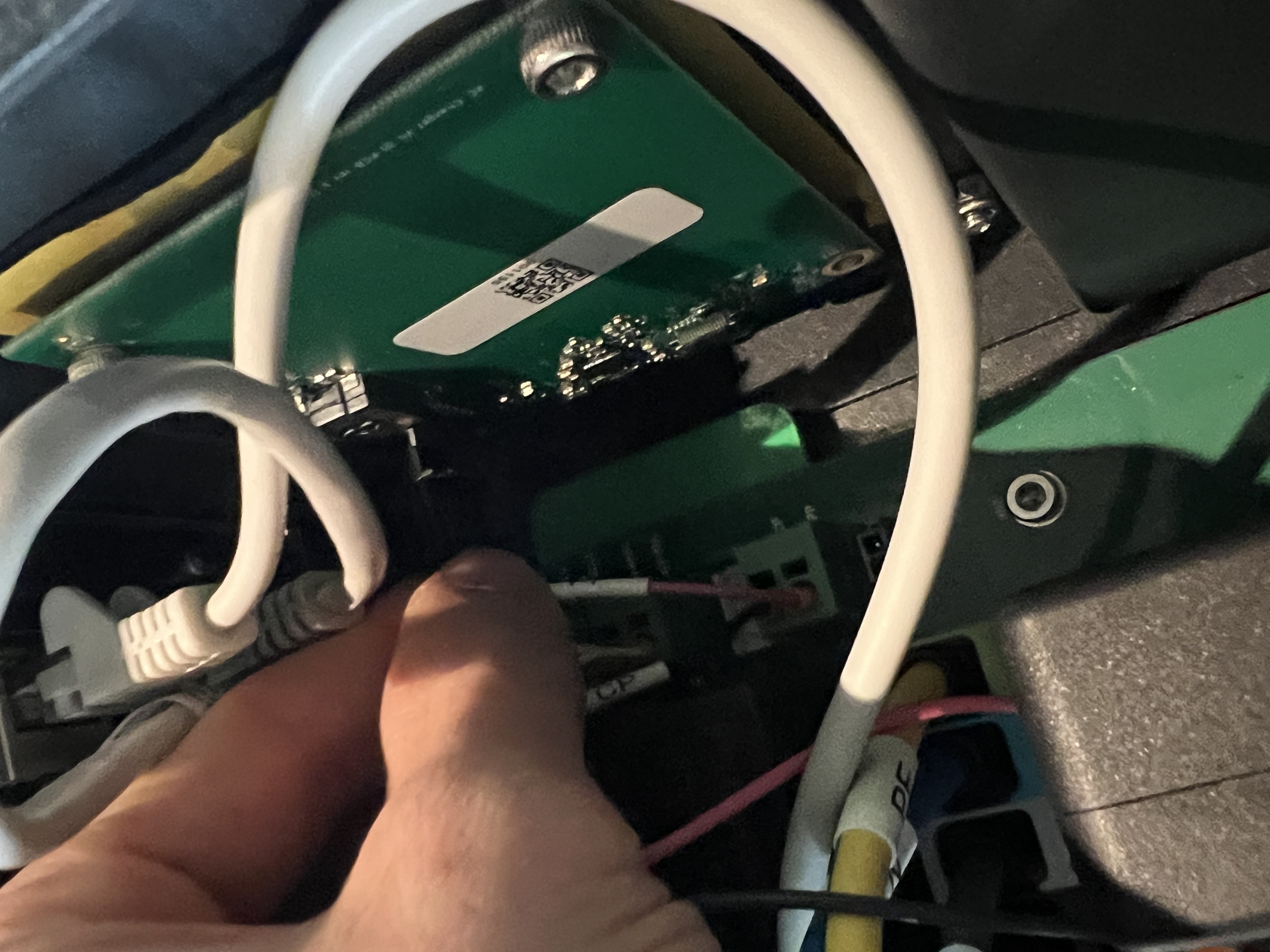

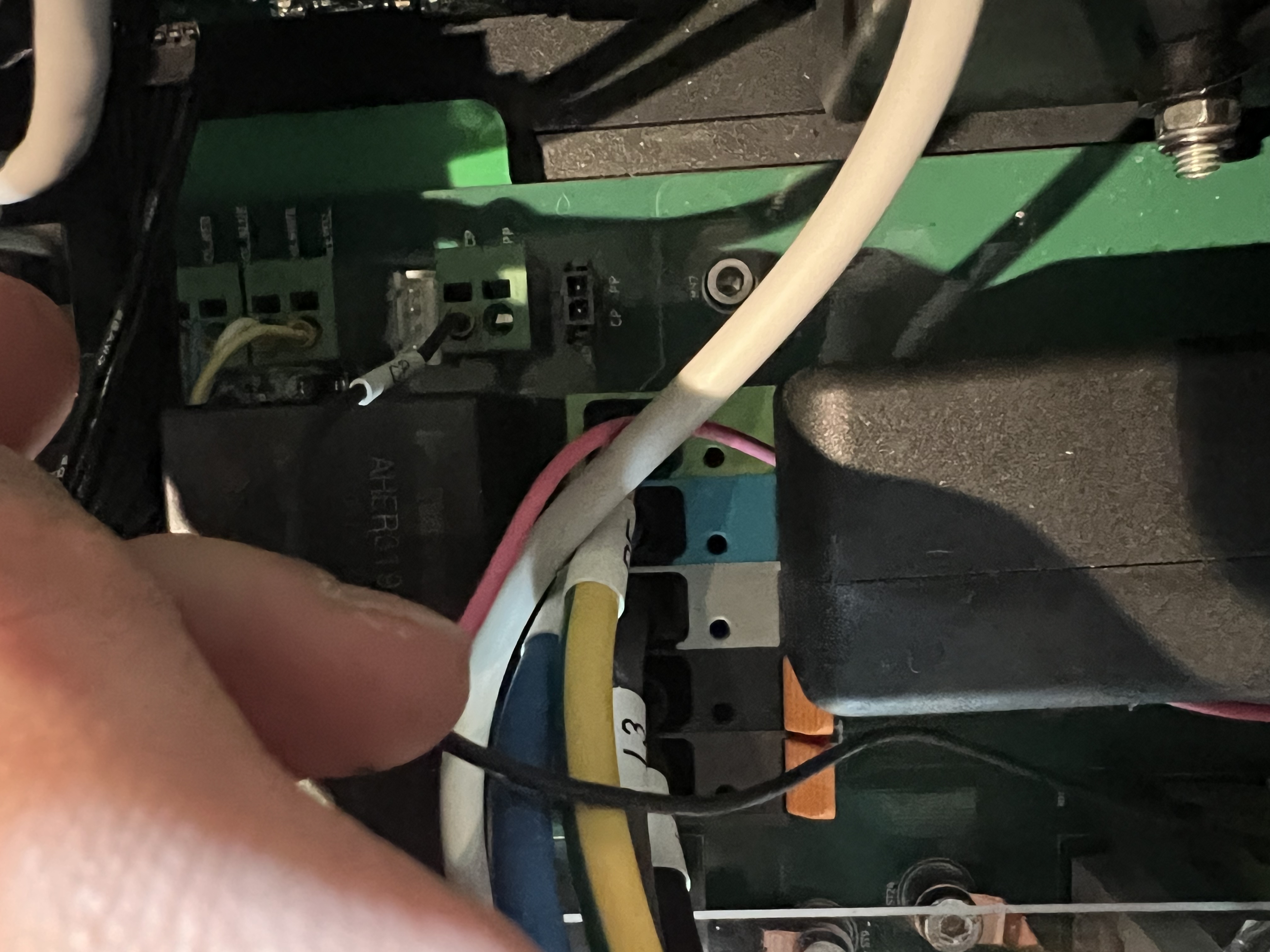

  3. Disconnect the CP and PP line of the socket to the relay board. Push in the openings of the connector to release the ferrules. [Small flat screwdriver]

    Step image

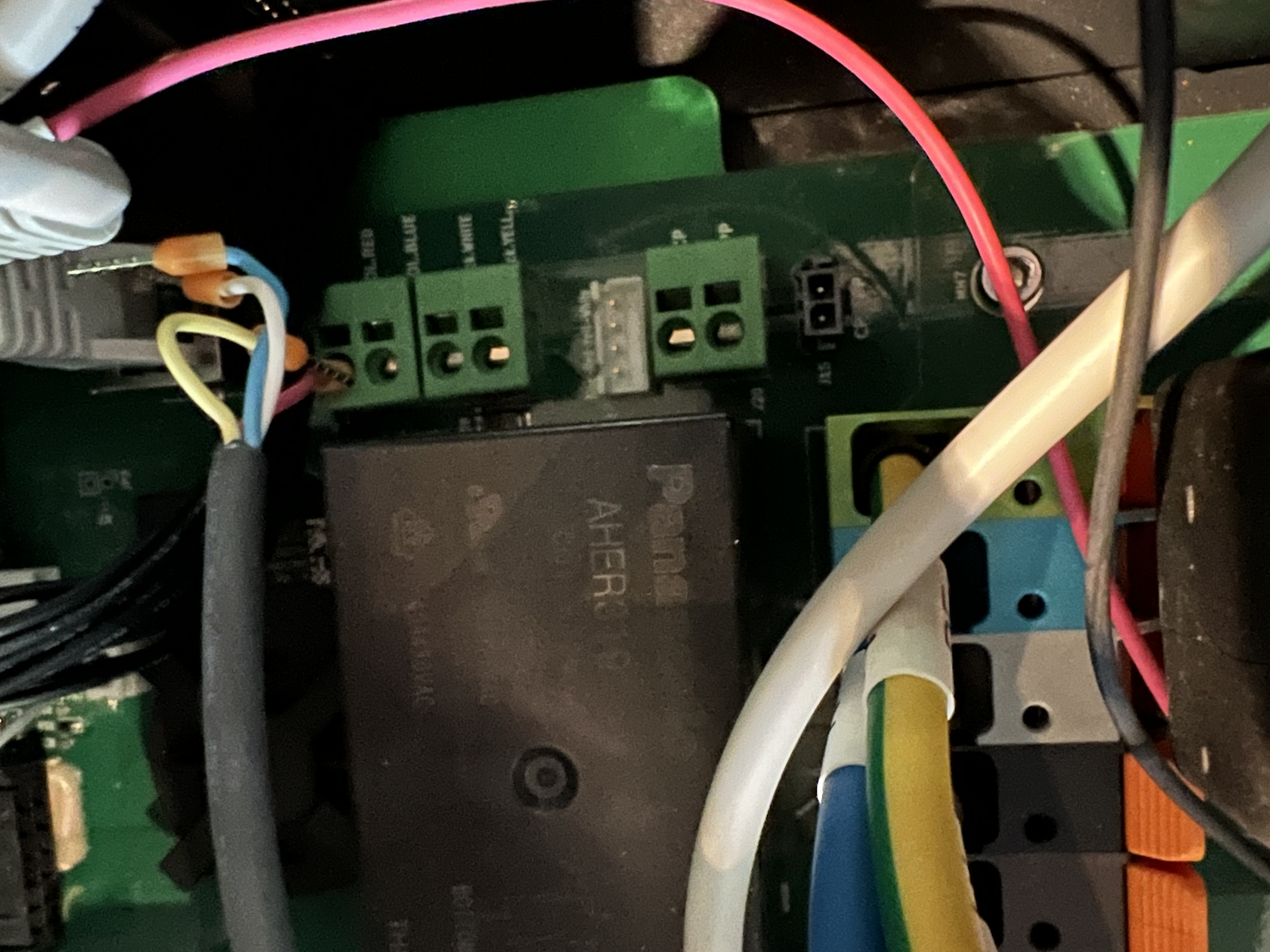

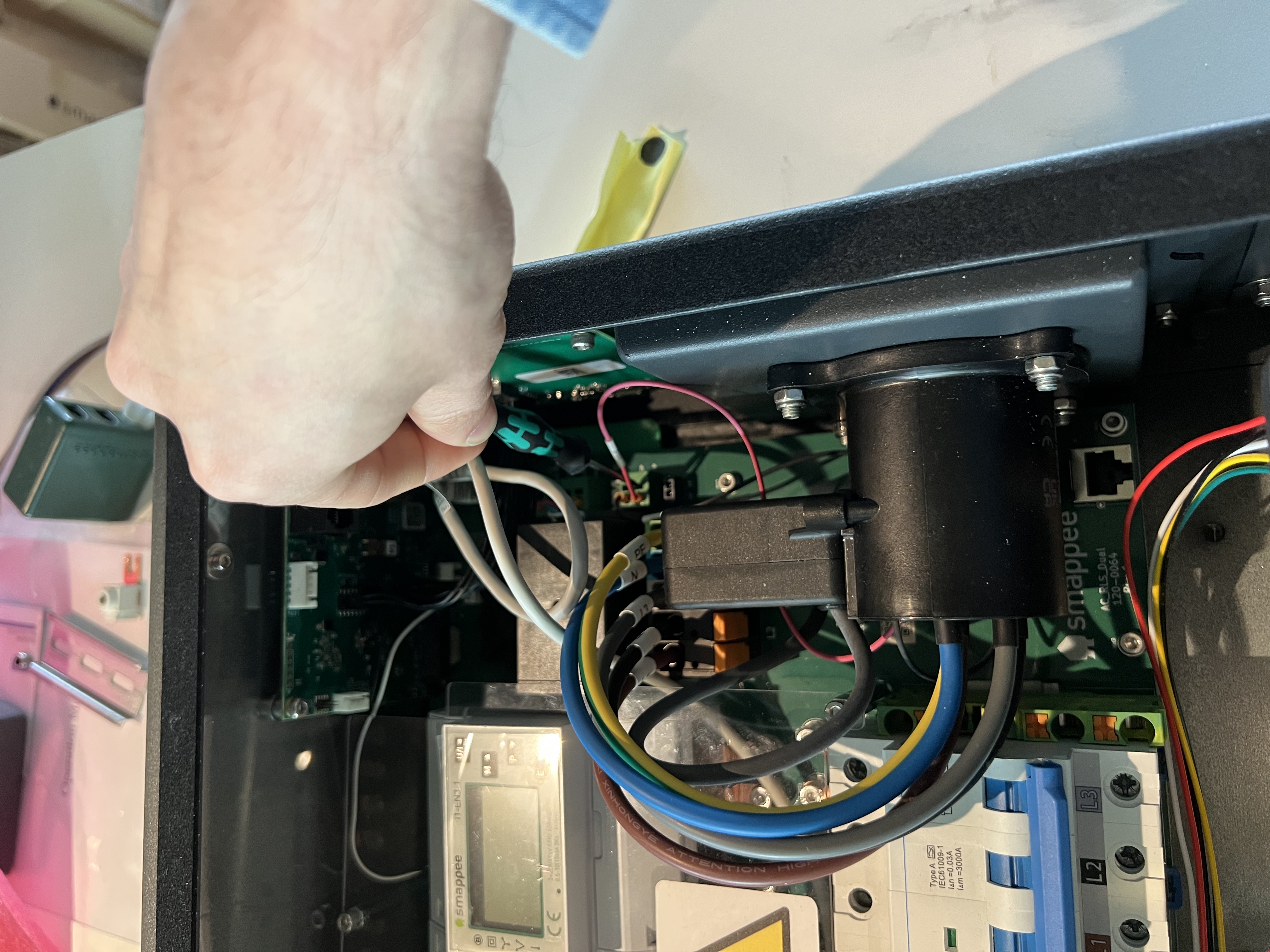

  4. Disconnect the solenoid wires from the relay board. Push in the openings of the connector to release the ferrules. [Small flat screwdriver]

    Step image

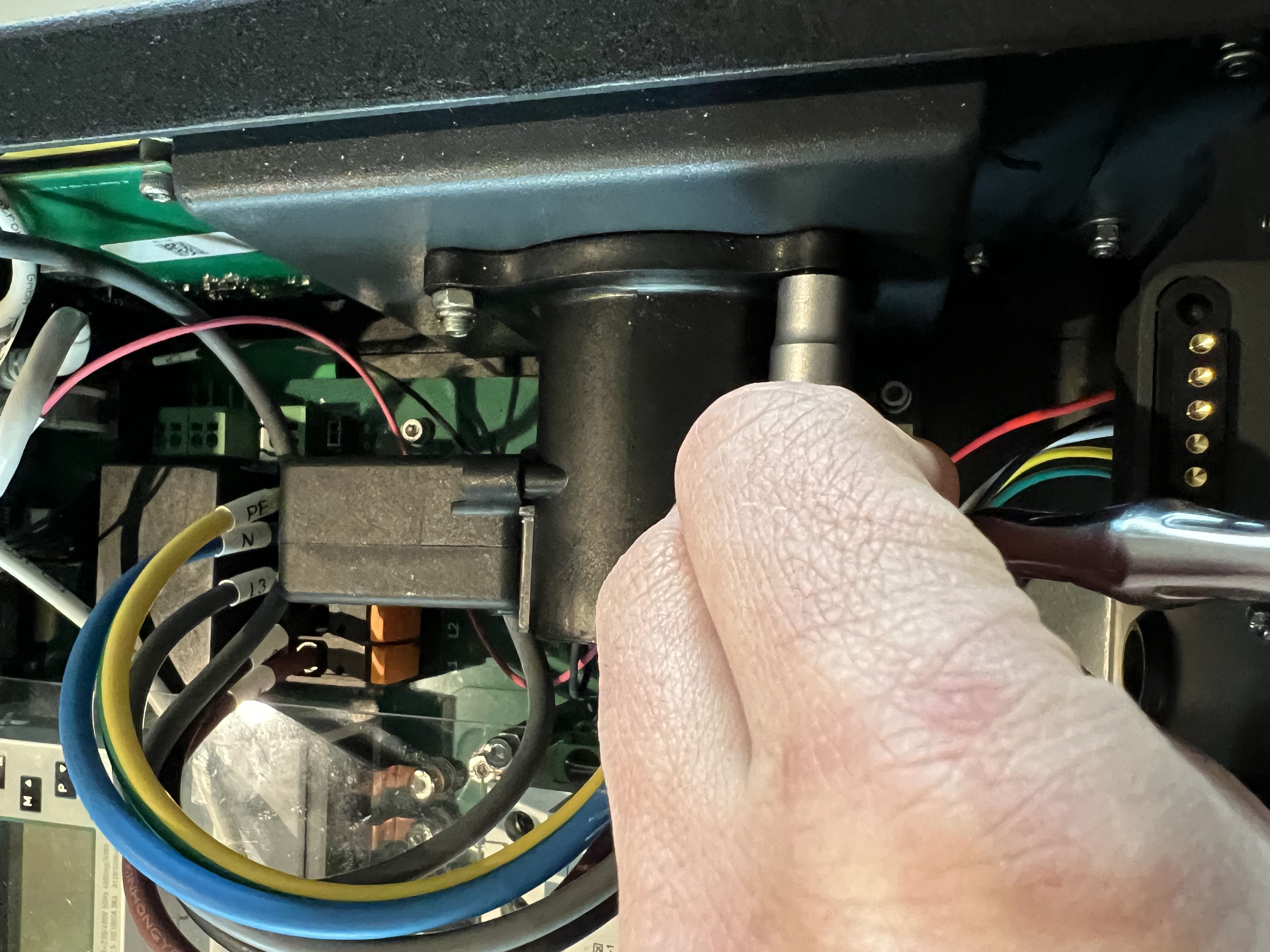

  5. Remove the socket from the side panel - Untighten the 4x M5 nuts of the socket Back nuts can be reached with a wrench [Hex 8]

    Step image

    Step image

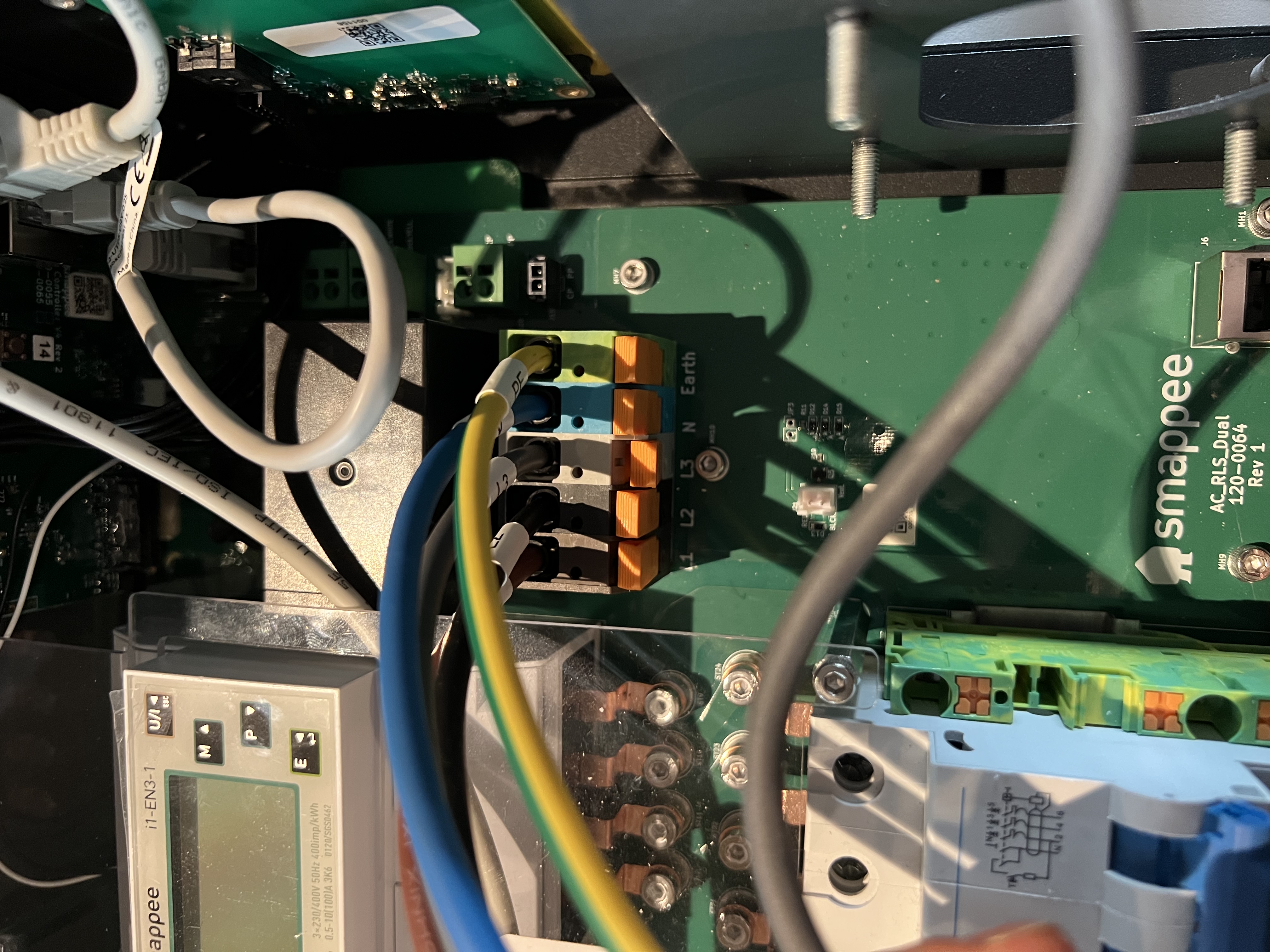

  6. Disconnect the phases, PE and neutral cables of the socket to the relay board Open each lever and pull each cable from the connector.

    Step image

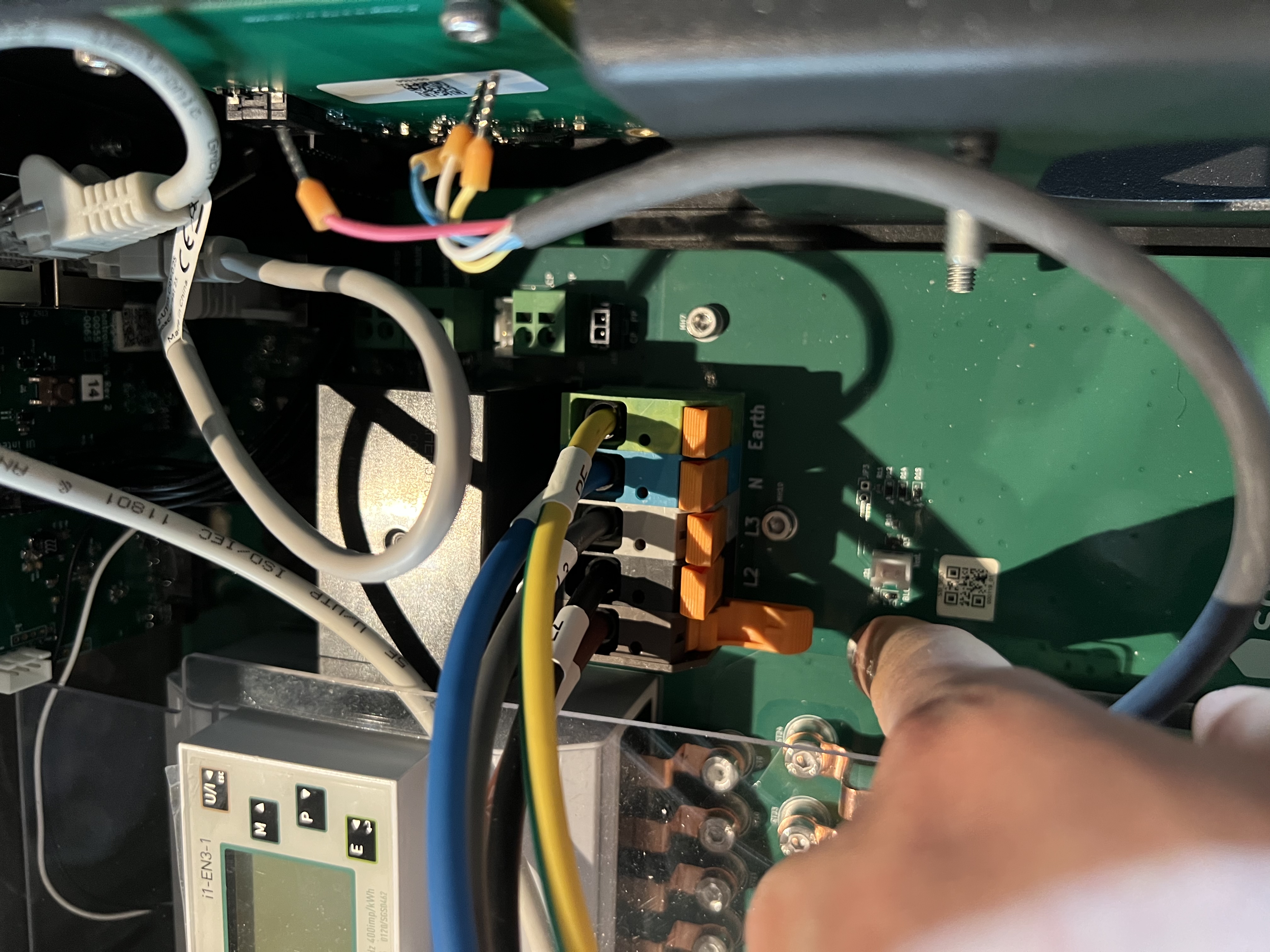

  7. Connect the phases, PE and neutral cables of the new socket to the relay board Close each lever and check each cable is firmly fastened.

    Step image

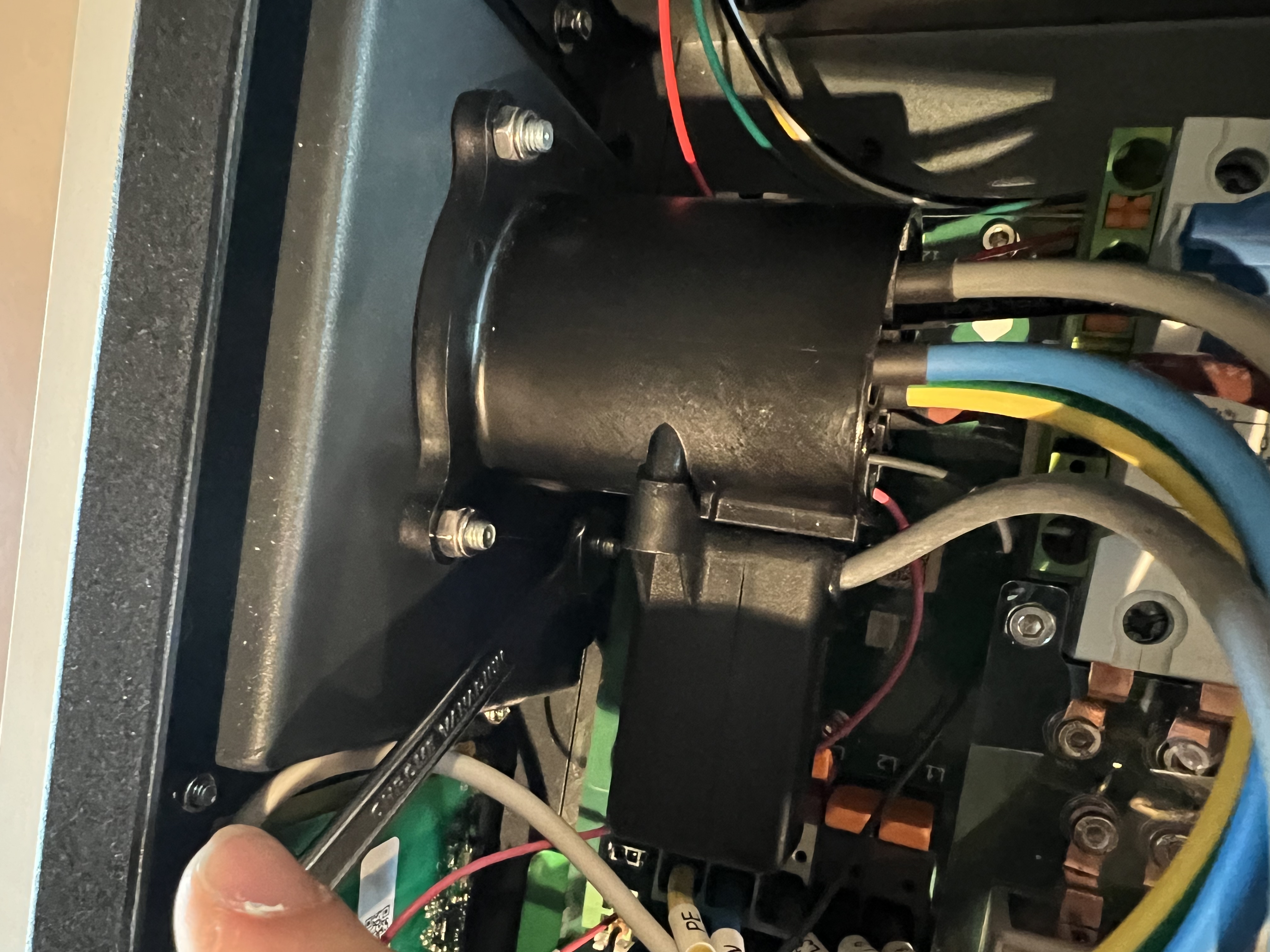

  8. Attach the socket to the side panel - Tighten the 4x M5 nuts with washer [Hex 8 Torque : 2.5 N.m]

    Step image

  9. Connect the solenoid wires to the relay board following the colour code written on the relay board. From top of the board, follow the order red, blue, white, yellow. Wires just need to be pushed in the connector Check all cables are properly secured.

    Step image

  10. Connect the CP & PP line from the socket to the charging controller by pushing them in the connector (follow CP and PP mention on the relay board, CP above PP) Check all cables are properly secured.

    Step image

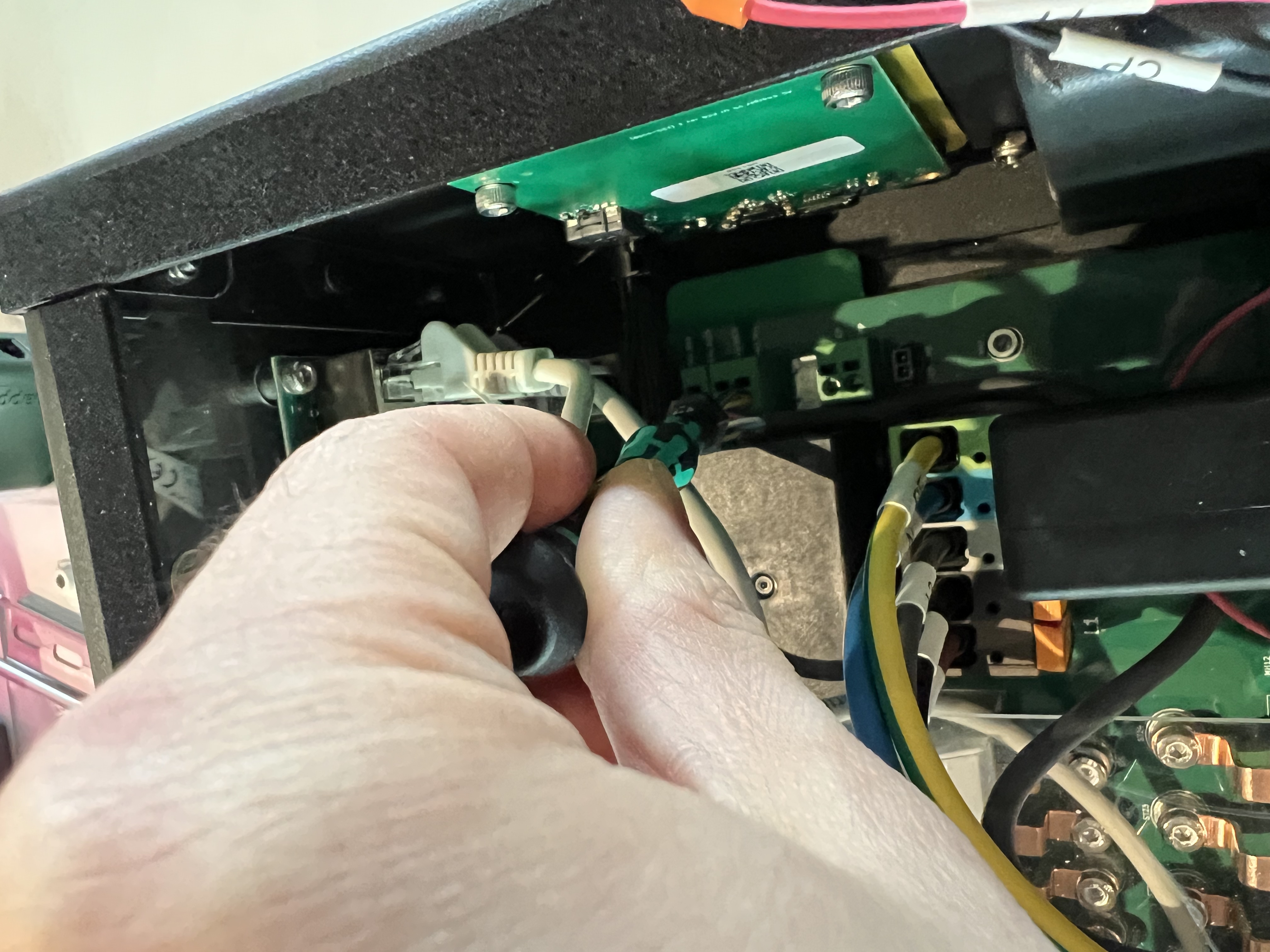

  11. Make sure to reconnect the cable to the display board if it was disconnected prior starting assembly

    Step image

  12. Close the unit either by using the provided key (Wall version) or tightening the 6x safety screws (Base version). [Key (Wall) or Safety TX20 bit (base)]

Replacement completion via Smappee App (Optional)

How to replace a Charging Station module via the Smappee App
