How and where to swipe a RFID card on a Smappee charging station?

Smappee charging stations offer a way to start charging sessions with RFID cards.

As an owner of a Smappee charging station,make sure your session- activation method is setup in the authenticated charging mode.
More information on the different session-activation methods, you can find here :
How can I start and stop charging at my Smappee charging station? How much does it cost to charge?

  • Be sure you've activate the charging in your car and the LED of the station shows a blue colour
  • Depending on the type of charging station you have the RFID reader located at different positions,
    but the sound and color signals are the same.

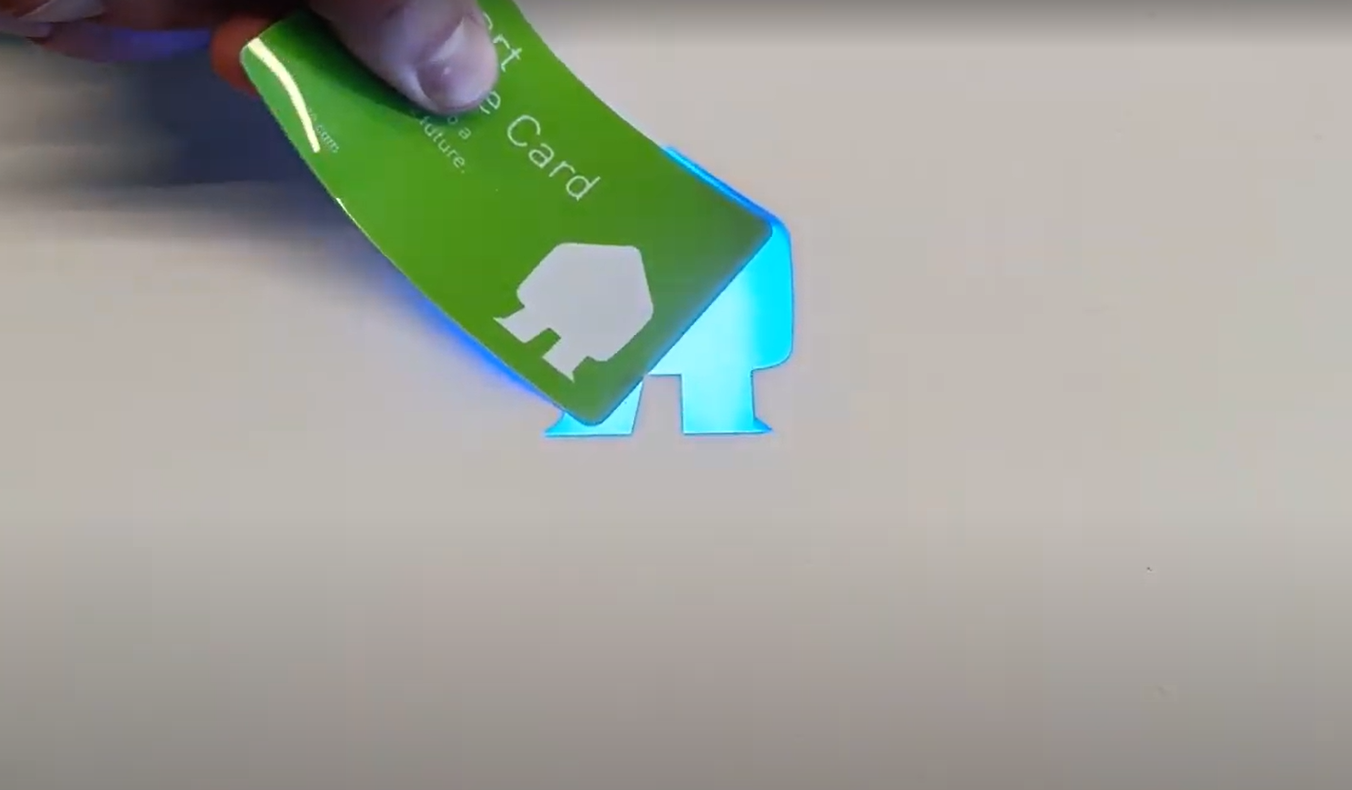

  • Swipe the card in front of the led-light.
  • You need to hear a sound and the LED will blink blue.
  • If the card gets accepted you will hear a confirmation sound and the LED will be green.
  • If the card is denied you will hear an error sound and the LED will blink red.



EV Wall

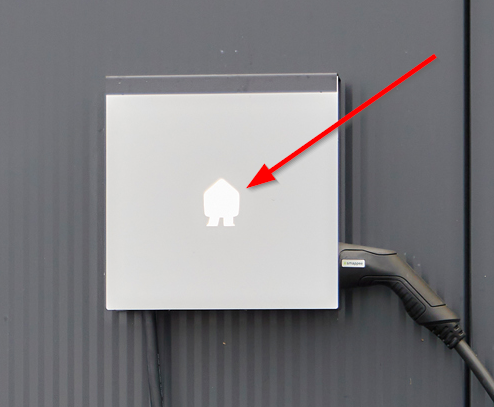

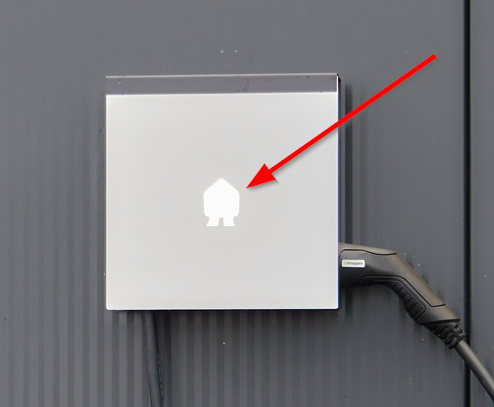

For all types of EV Wall products, the RFID reader is located on the front panel same location as the LED. You need to swipe over the LED until you hear a sound and the panel starts blinking blue.

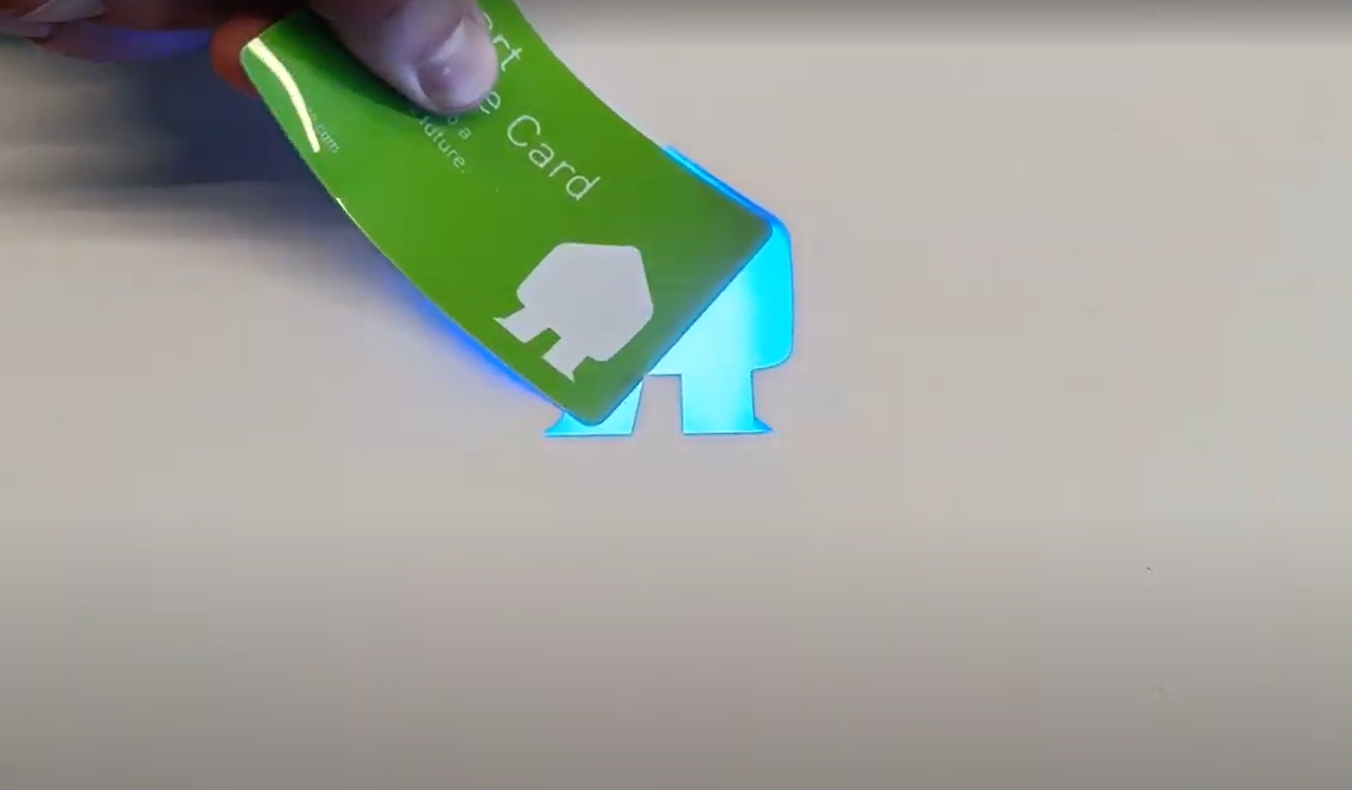

Tip: We noticed that some RFID cards have a weaker antenna due to which they are a bit harder to use with a EV Wall. We recommend to always put the card on the plexiglass and avoid touching the metal of the front plate as much as possible as demonstrated in the following image/video.

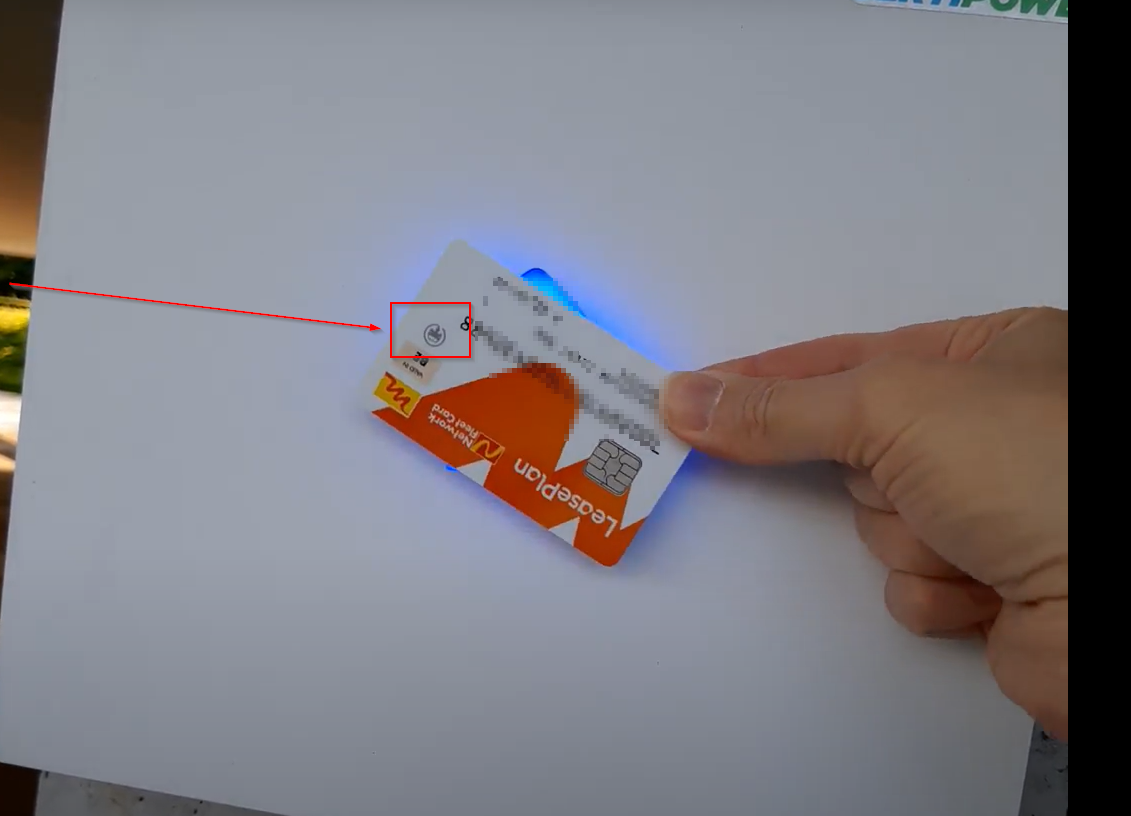

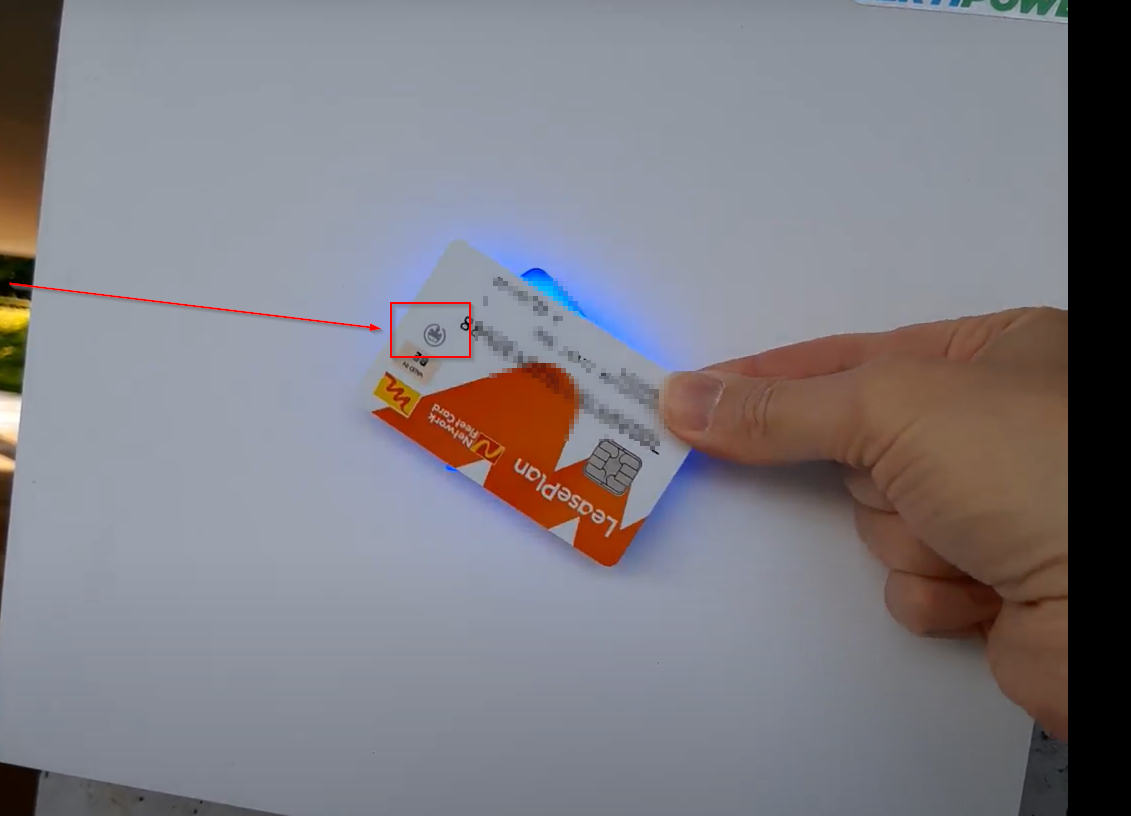

On some cards there is also symbol indicating where the antenna is located, it is best practice to swipe this on the RFID panel.







EV Base

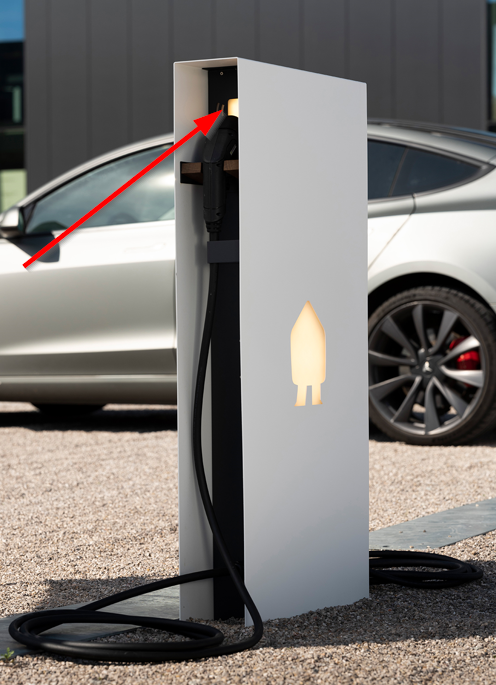

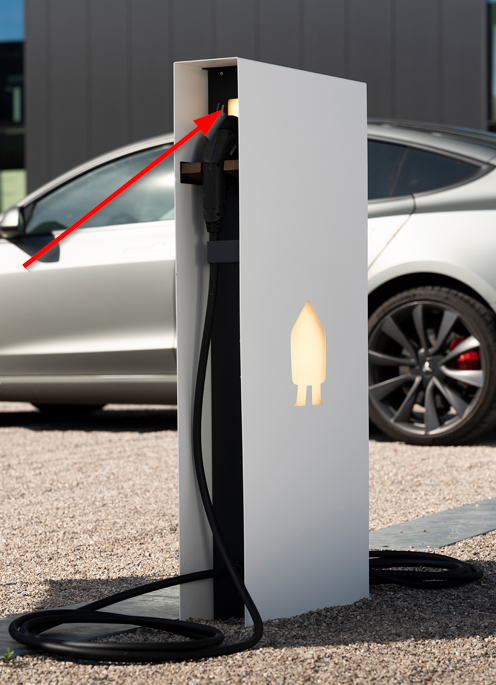

In the newest versions of the EV Base, there are 2 RFID readers located on each side also in the same location as the LED's.

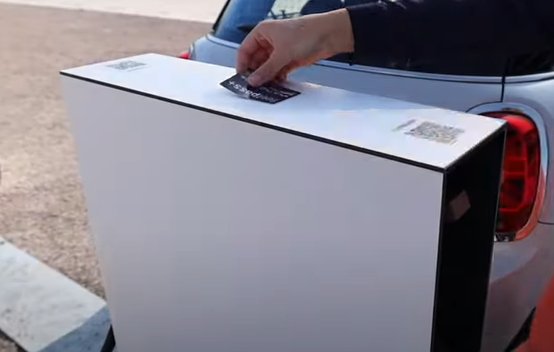

In the older version of the EV Base, it was located on top at the RFID symbol.

You can recognize the older version by the trespa chassis and their serial number.

EV Base (V1) (Trespa) (wiring)
(6000xxxxxx) (Cable version)
(6001xxxxxx) (Socket version)

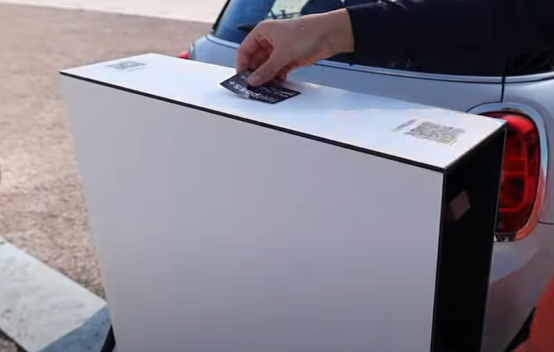

2023-05-15_10_37_34-Smappee_EV_Base__the_charging_station_tailored_to_businesses._-_YouTube.png

EV Ultra

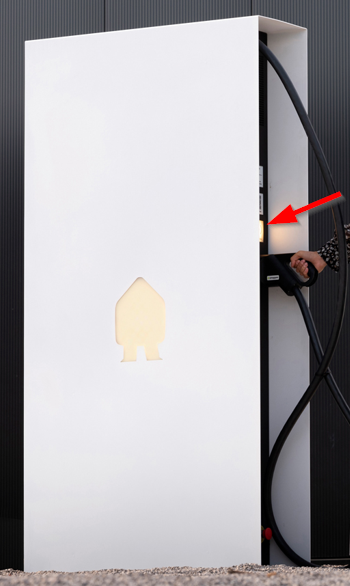

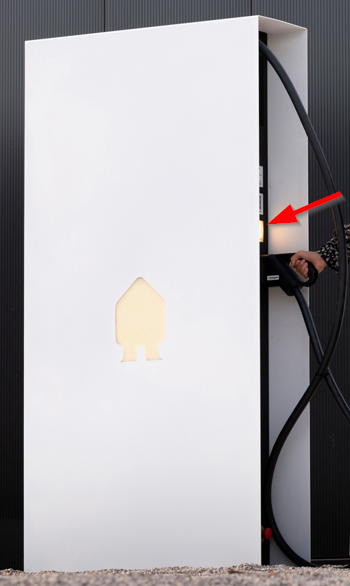

For the EV Ultra, it is located above the charging cable holder, where the smaller LED is located.

EV One

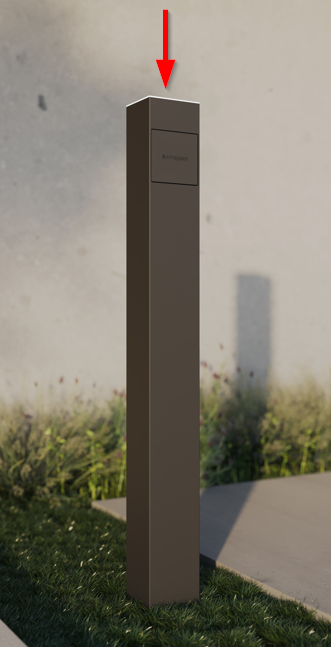

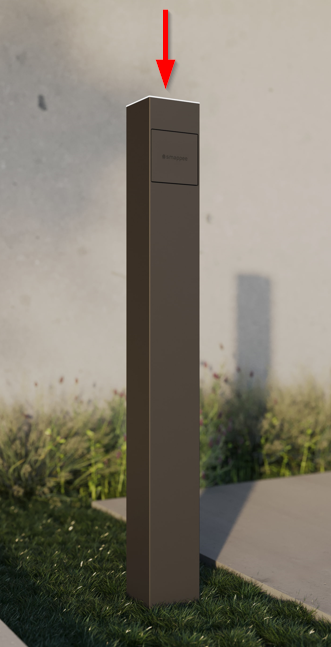

In the case of the EV One you will find the RFID reader on top of the station, where the LED is located.
