Serial number range

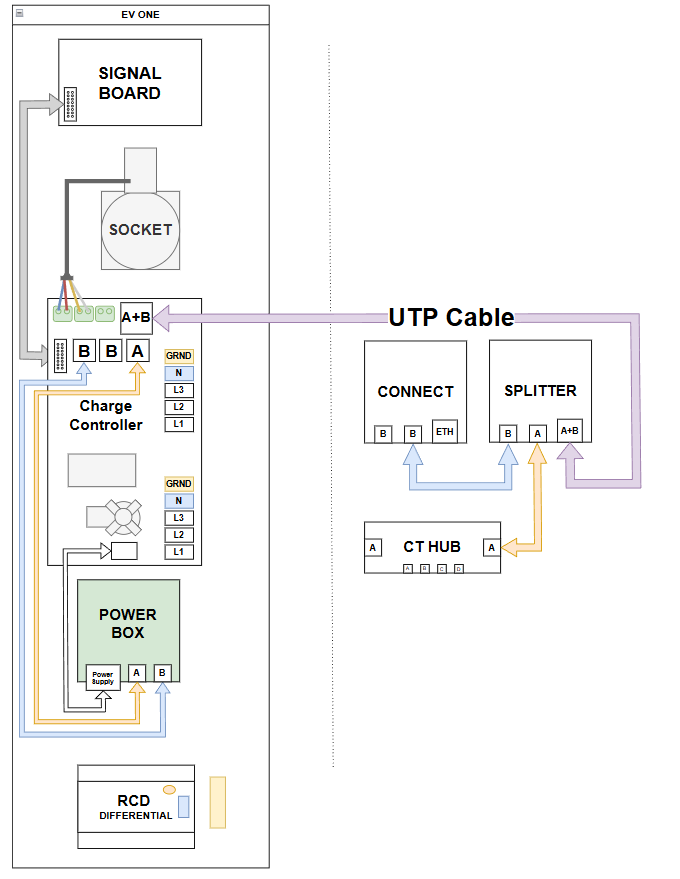

EV One Home (V3) (manuals) (wiring)
(6521xxxxxx) (Socket version)
Modules / Spareparts
| Module/Sparepart | Function | Article code | SN | Picture |
|---|---|---|---|---|

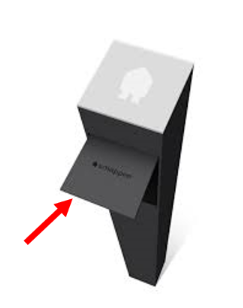

| EV One door | The door to protect the socket | 110-0112 | N/A | |

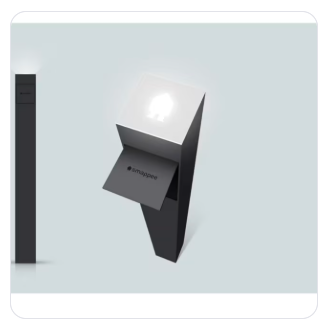

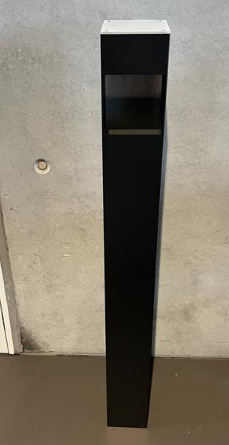

| EV One Tube | The housing | 170-0205 | N/A | |

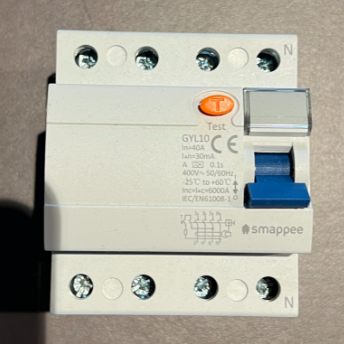

| RCD A | AC leak detection | AC-RCDA-4P40A | N/A | |

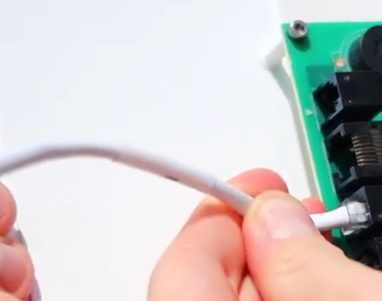

| RJ10 | Modbus/12v connection | AC-IBC80-10 | N/A | |

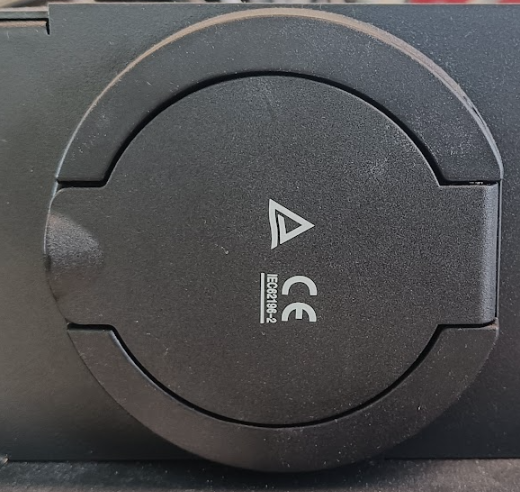

| Socket | Connect EV cable | On demand | N/A | |

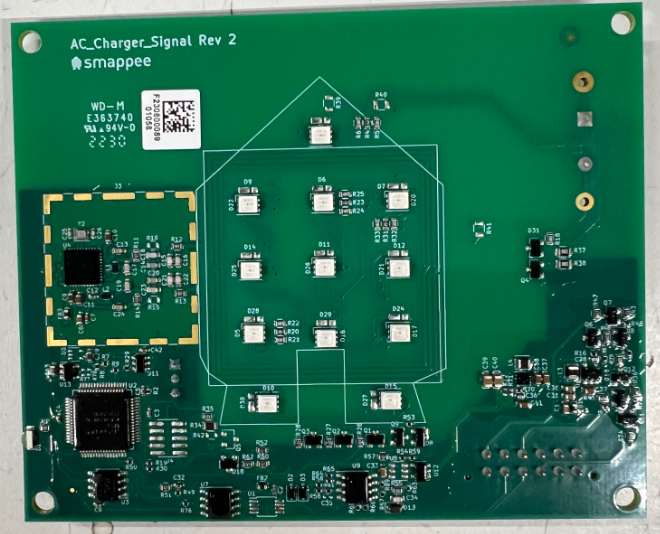

| Signal board | RFID token scanner Control Pilot |
EV-PCB-SIGNALBOARD-1 | 5821xxxxxx | |

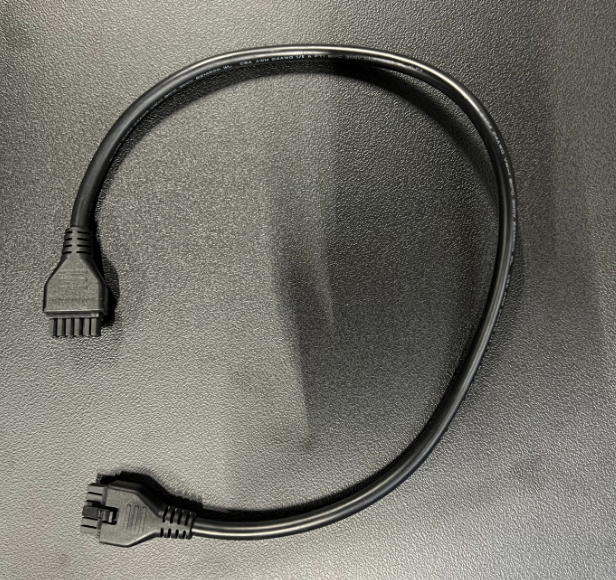

| Signal board cable | Cable between Signal and Relay board | EV-CABLE-12P-1 | N/A | |

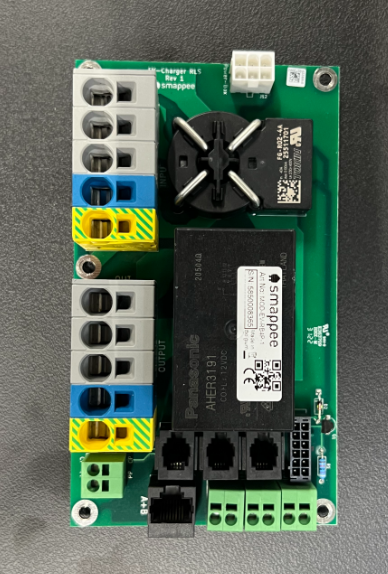

| Relay board Hard to replace! |
Control current (Relay) DC leak detection |
EV-PCB-RELAYBOARD-2x2P-1 | 5850 | |

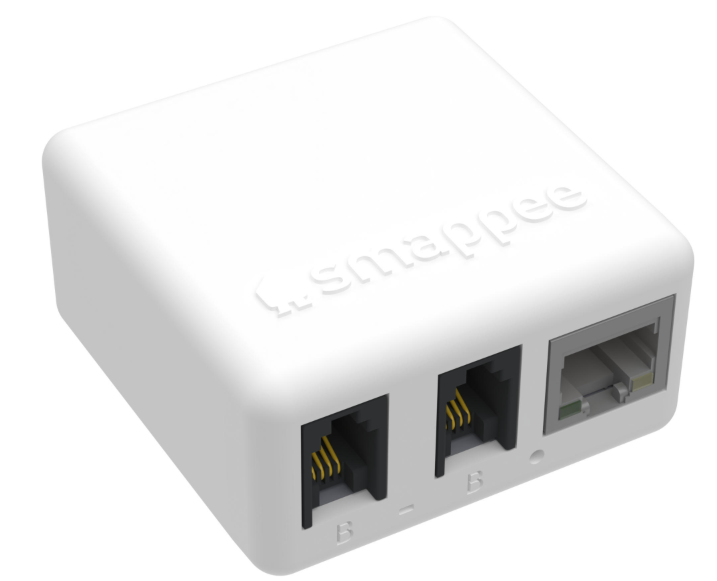

| Smappee Connect | Gateway (Internet) | i1-GW-3 | 5130xxxxxx | |

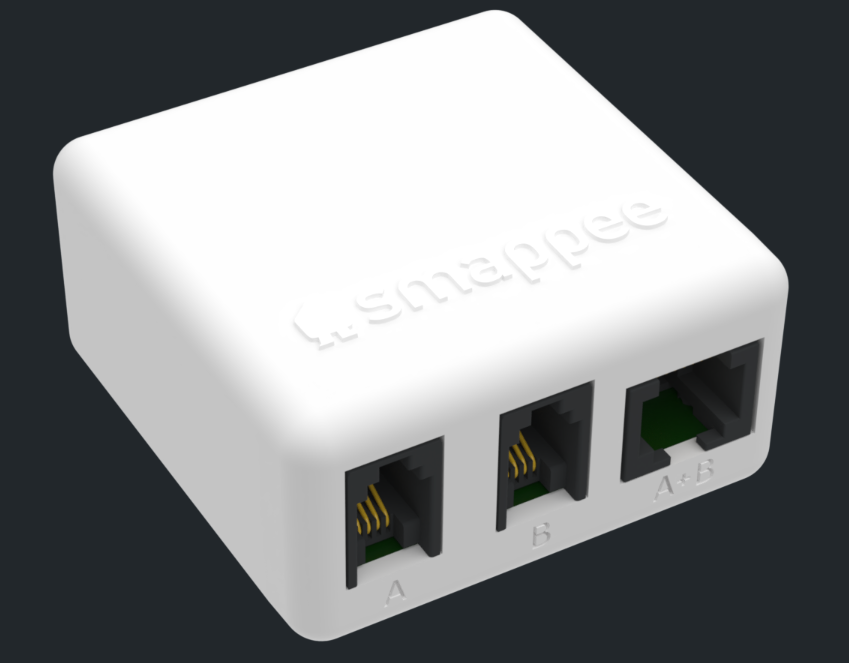

| (Optional) Splitter | Extention for B-Bus to put Connect in building for Wi-Fi | AC-AB-SPLITTER | N/A | |
| Solid Core 3 Phase CT | EV Measurements | I1-IAC-2 | 5600xxxxxx | |

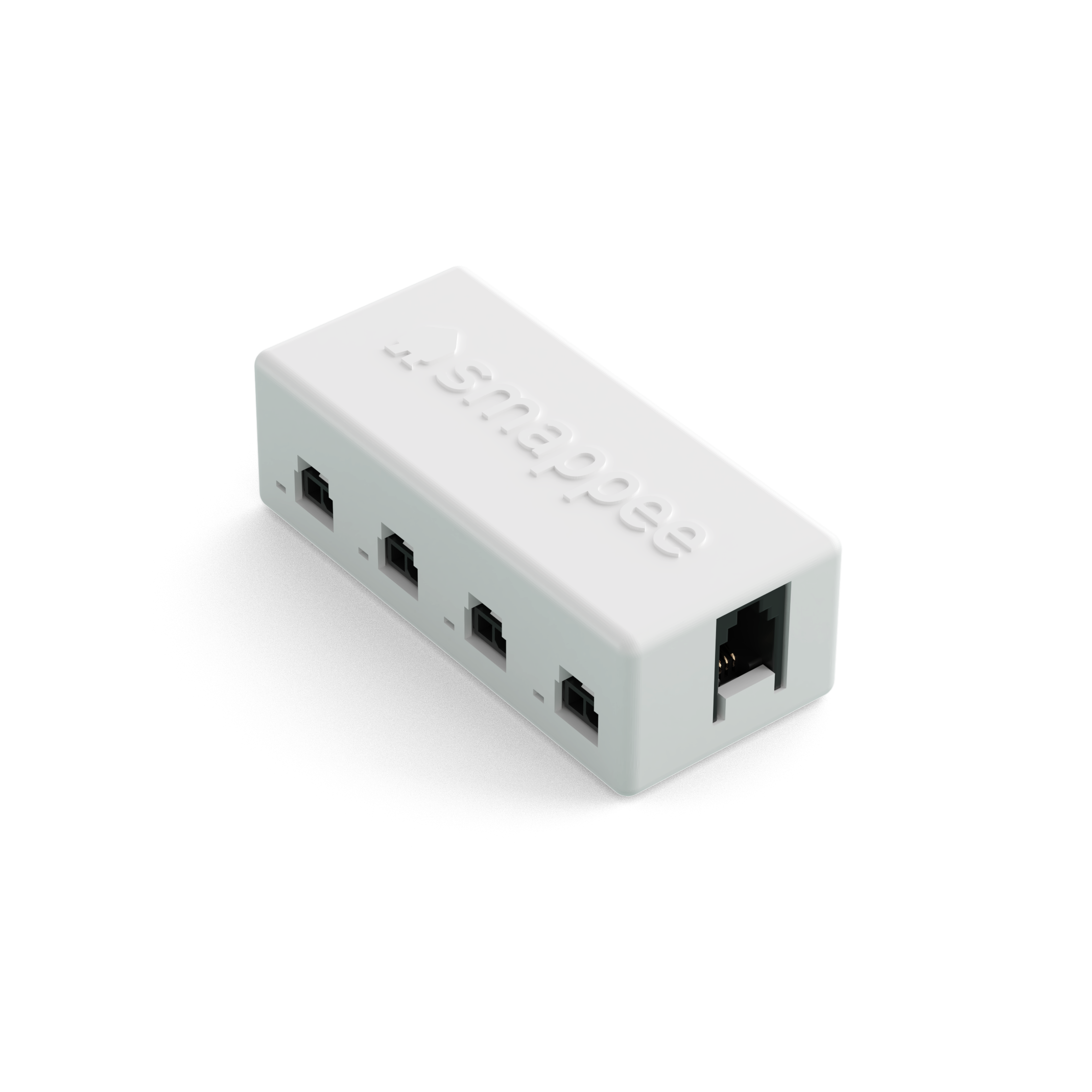

| CT Hub | Grid/Solar Measurements | I1-IAC-1 | 5500xxxxxx | |
| Smappee Power Box |
230v AC -> 12v DC Power supply for electronics Measurements |
I1-VAC-1 | 5400xxxxxx |
