This EV Wall variant has been discontinued and has been replaced by the new EV Wall
We do still offer modules for repairs.
Serial number range

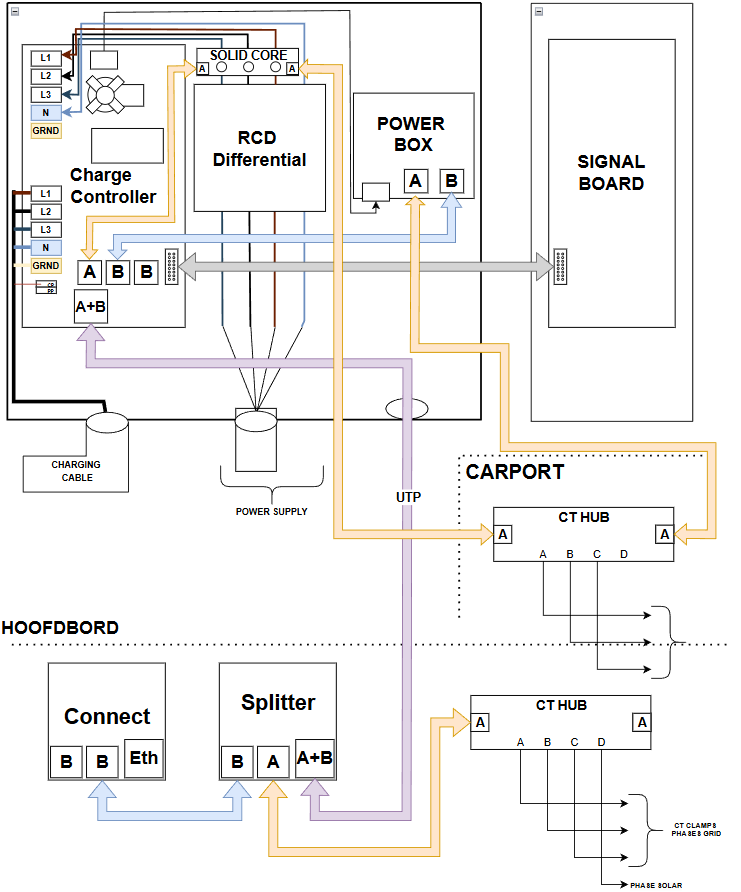

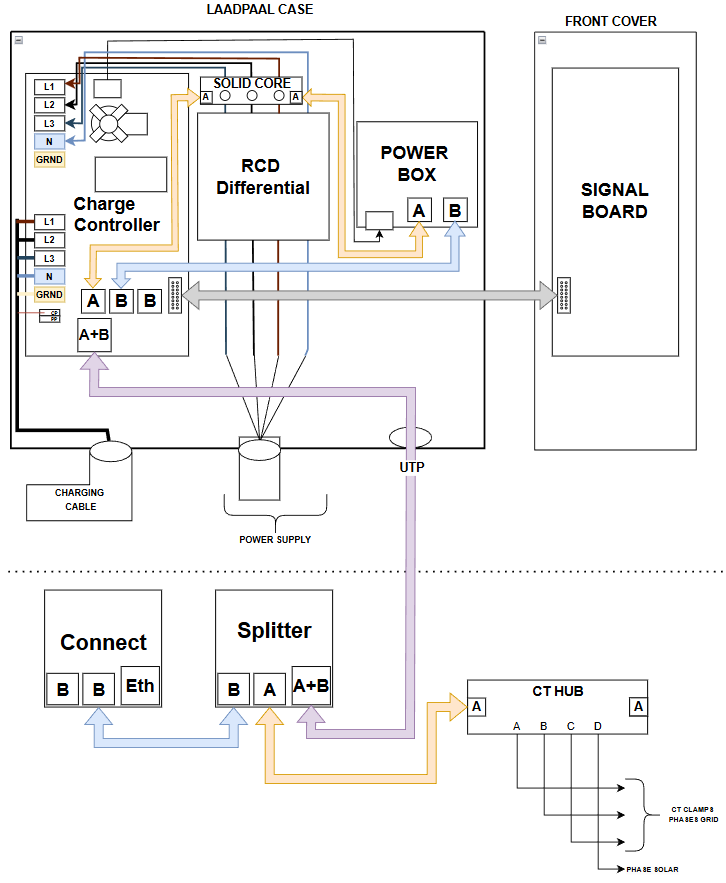

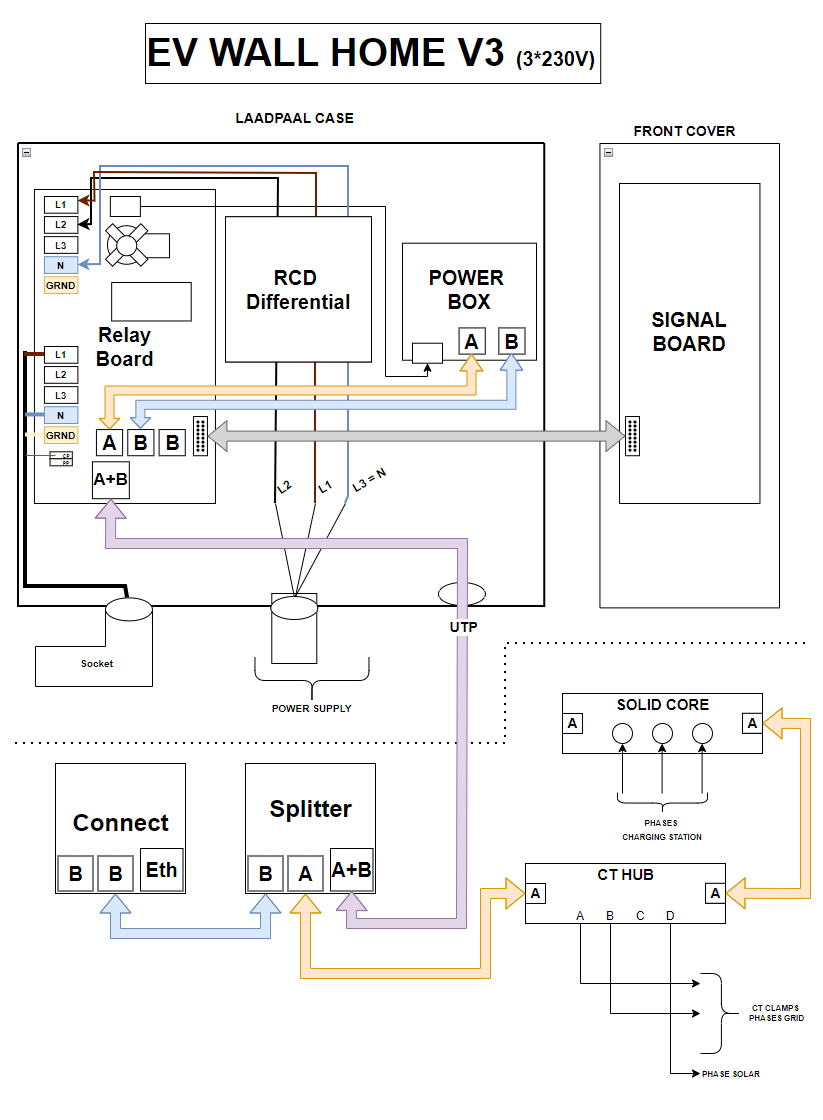

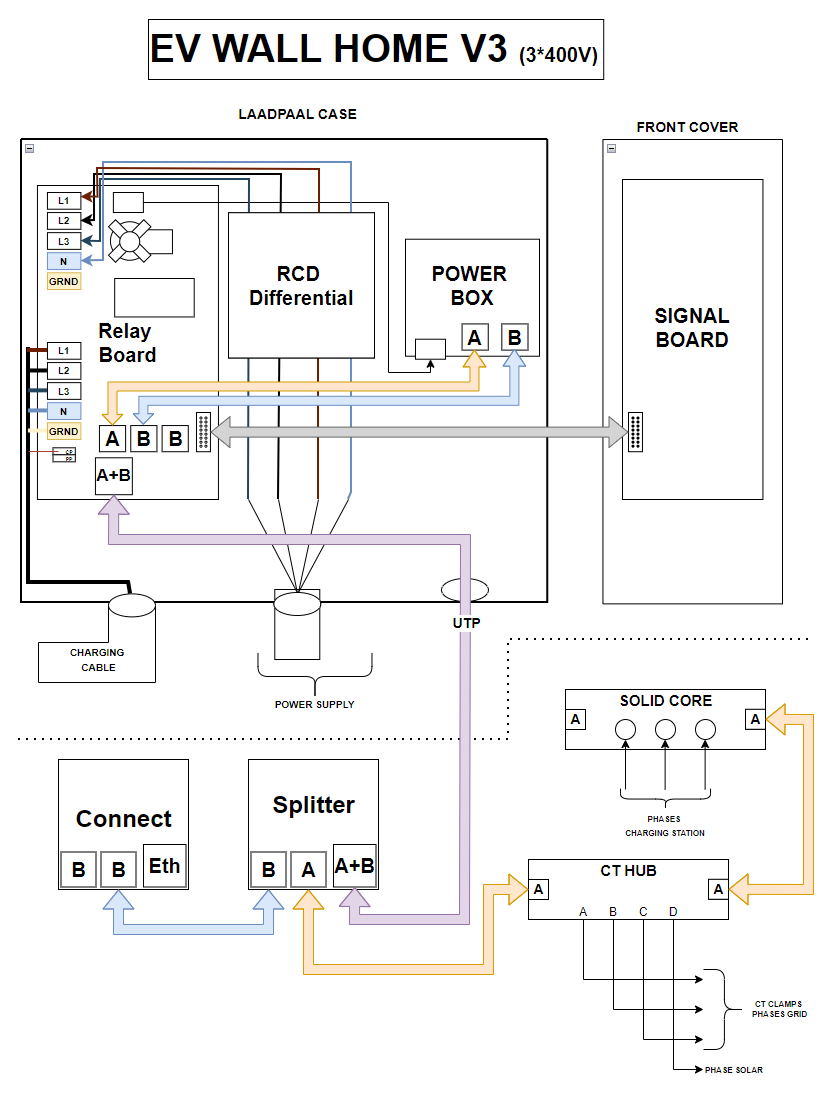

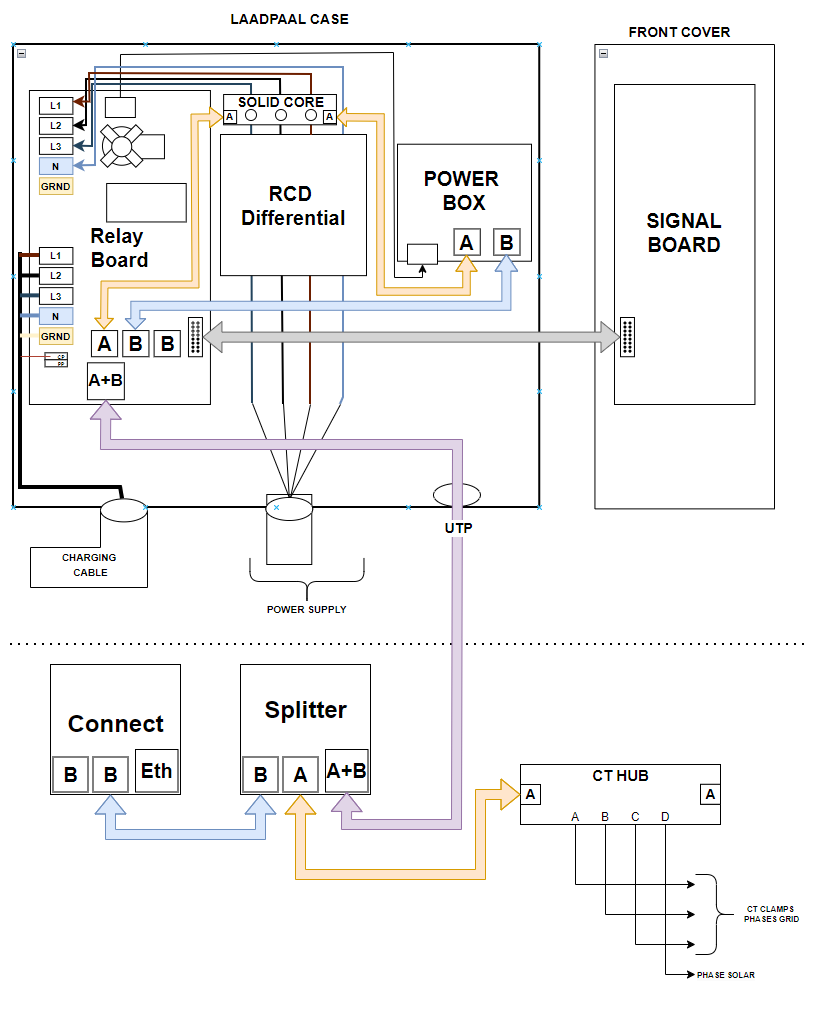

EV Wall Home (V3) (manuals) (wiring)

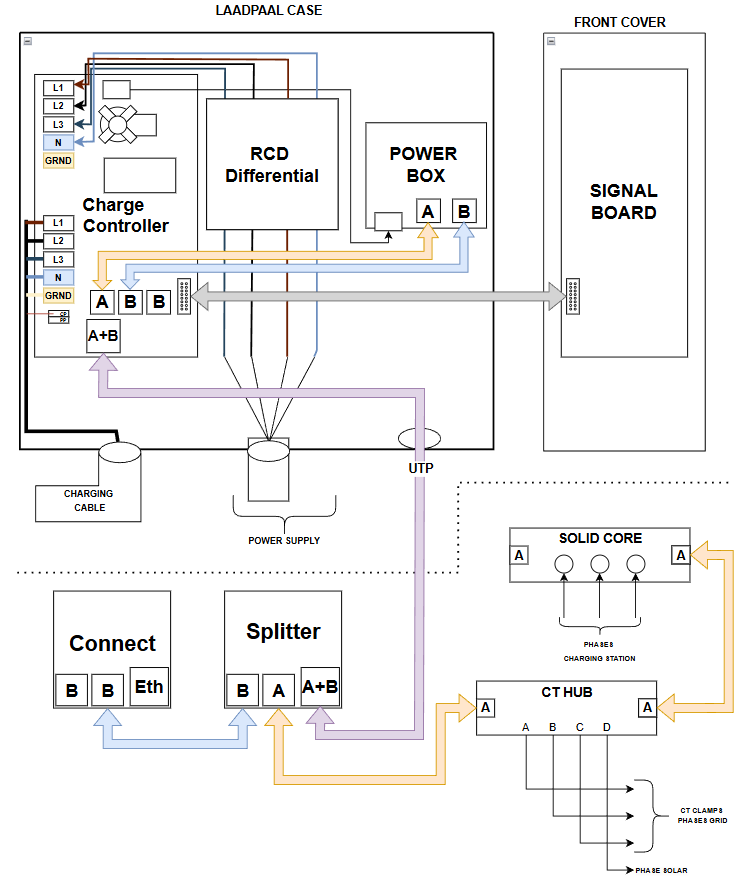

(6220xxxxxx) (Cable version)

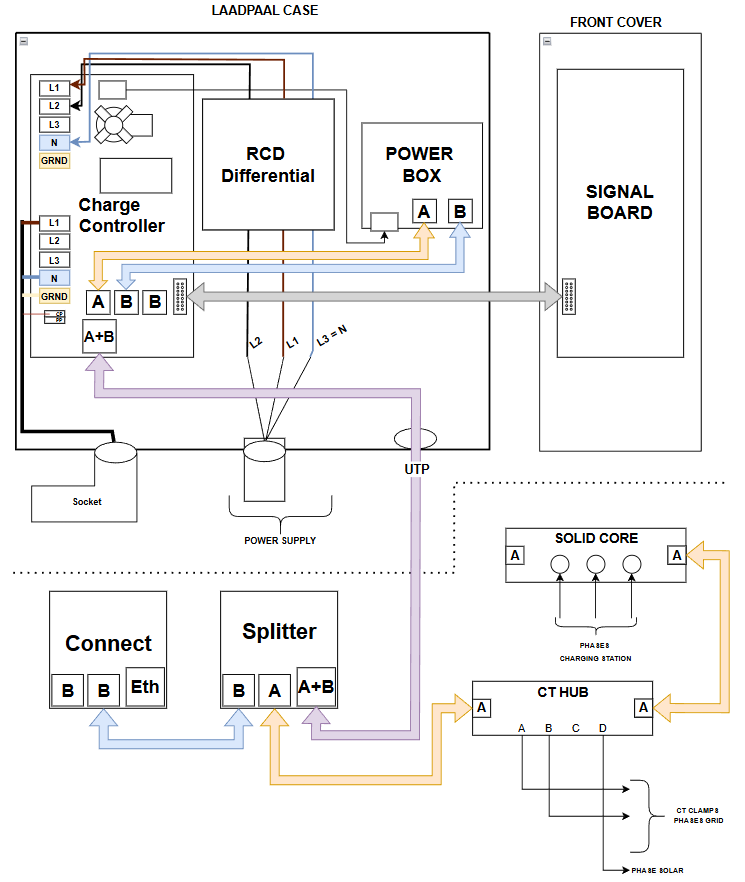

(6221xxxxxx) (Socket version)
Modules / Spareparts
| Module/Sparepart | Function | Article code | SN | Picture |
|---|---|---|---|---|

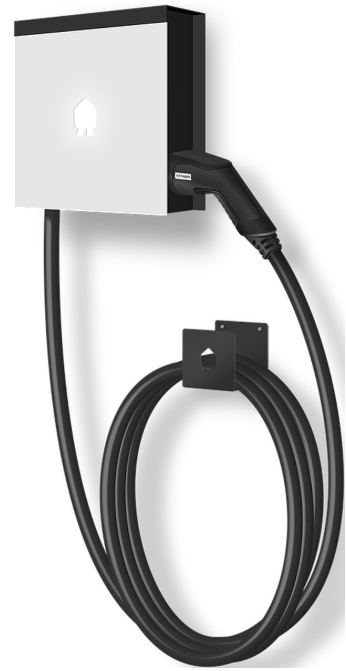

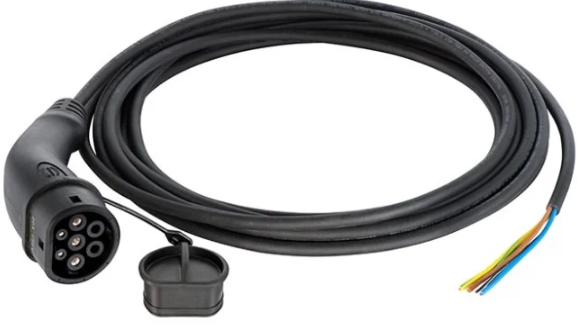

| Charging cable | Connect the EV | EVB-CBL-T2-332-5 | N/A | |

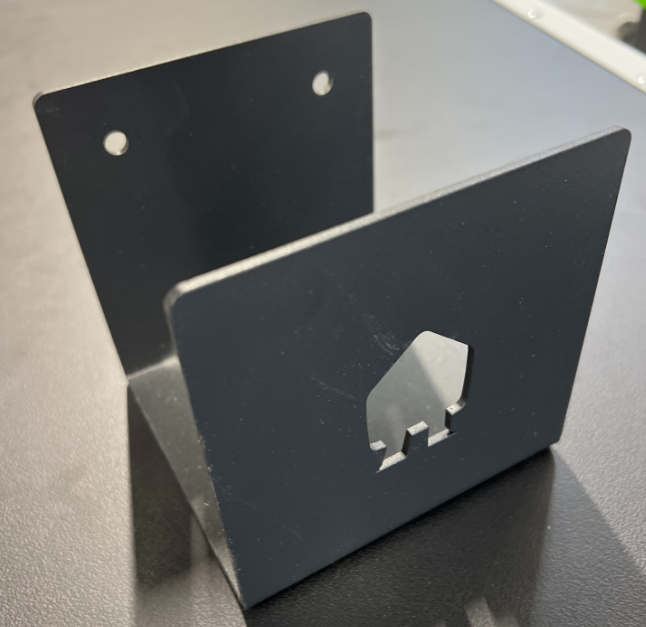

| Cable holder | Hold the charging cable | EVW-CBL-HOLDER-4 | N/A | |

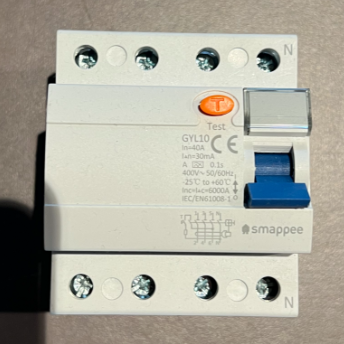

| RCD A | AC leak detection | AC-RCDA-4P40A | N/A | |

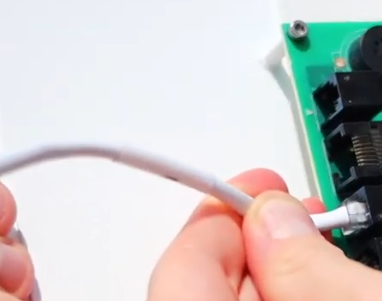

| RJ10 | Modbus/12v connection | AC-IBC80-10 | N/A | |

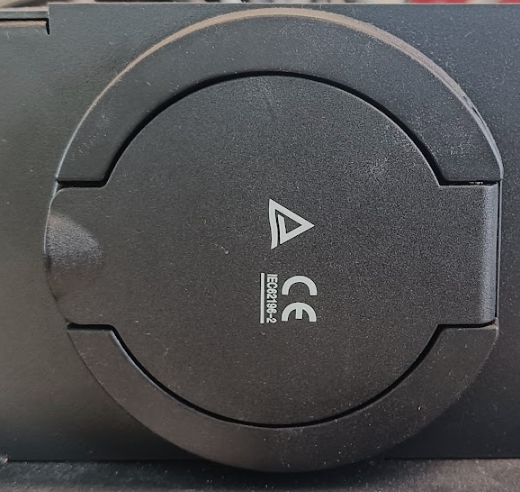

| Socket | Connect EV cable | On demand | N/A | |

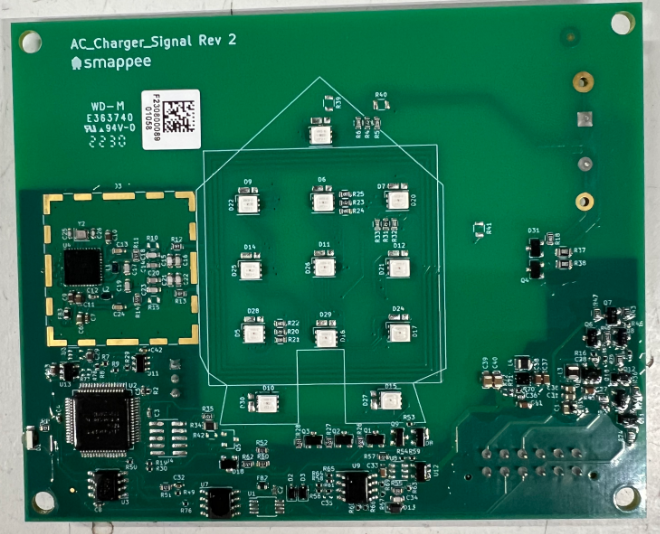

| Signal board | RFID token scanner Control Pilot |
EV-PCB-SIGNALBOARD-1 | 5821xxxxxx | |

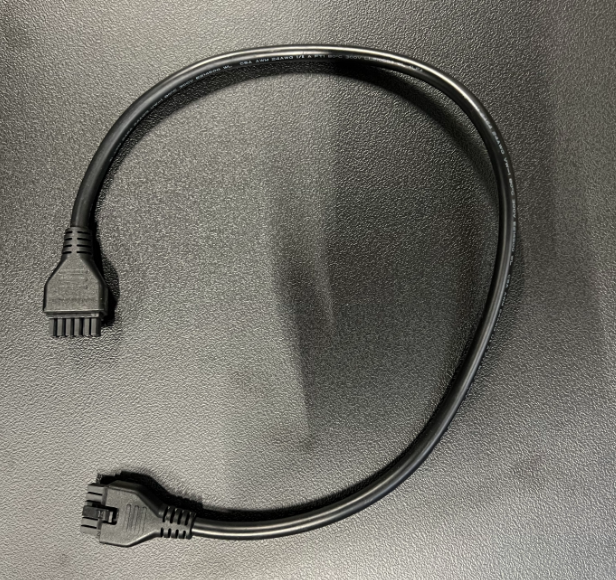

| Signal board cable | Cable between Signal and Relay board | EV-CABLE-12P-1 | N/A | |

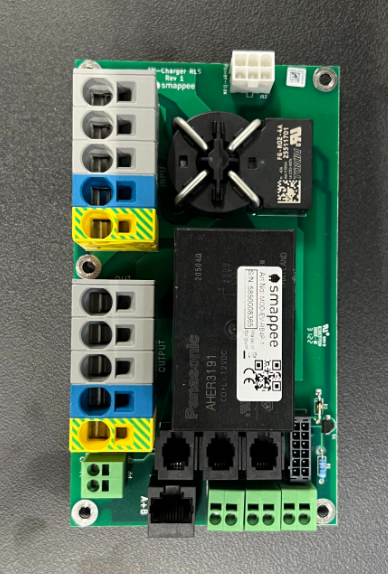

| Relay board Hard to replace! |
Control current (Relay) DC leak detection |
EV-PCB-RELAYBOARD-2x2P-1 | 5850 | |

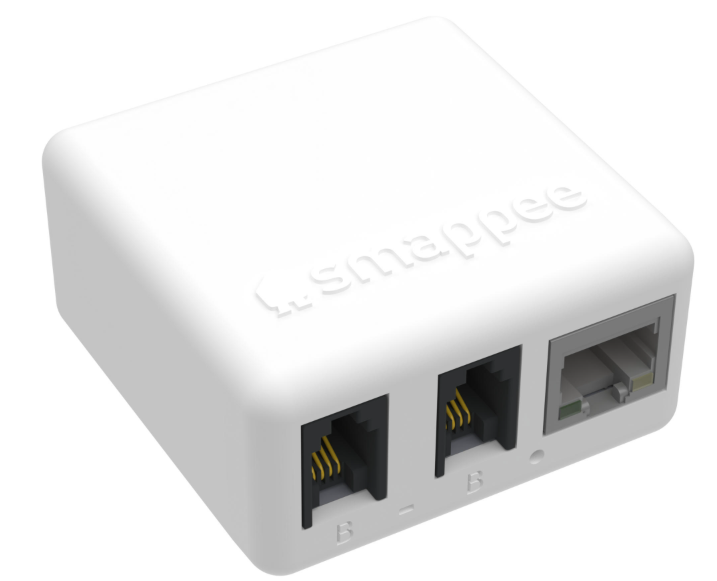

| Smappee Connect | Gateway (Internet) | i1-GW-3 | 5130xxxxxx | |

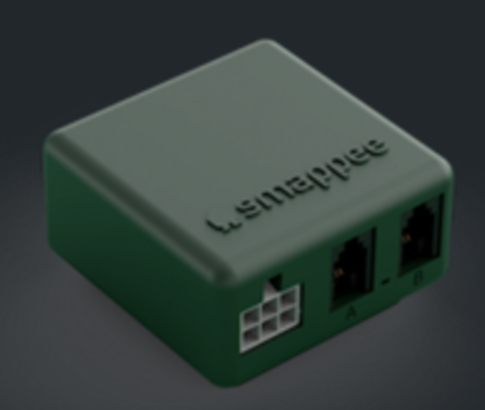

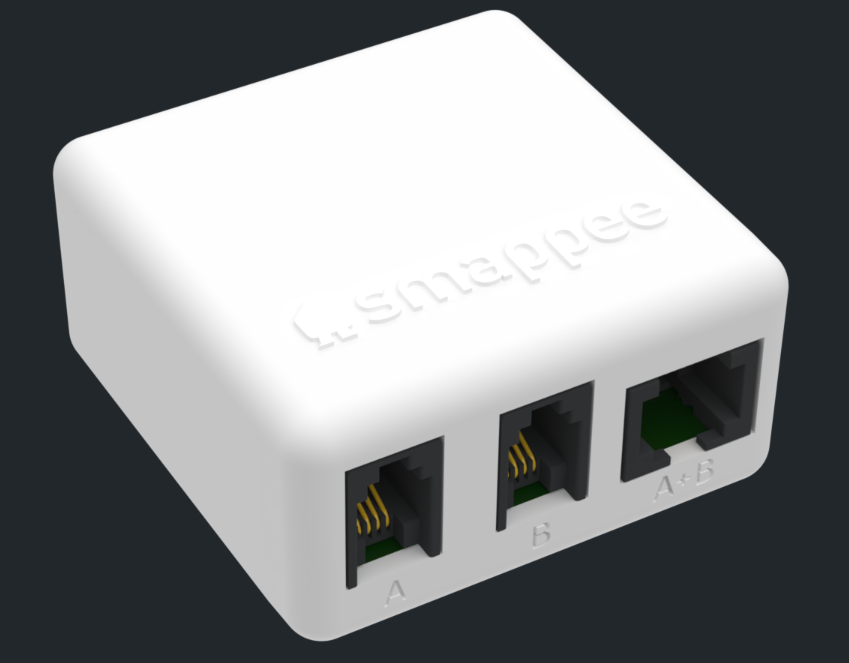

| Splitter | Modbus connection between Infinity and Charger | AC-AB-SPLITTER | N/A | |

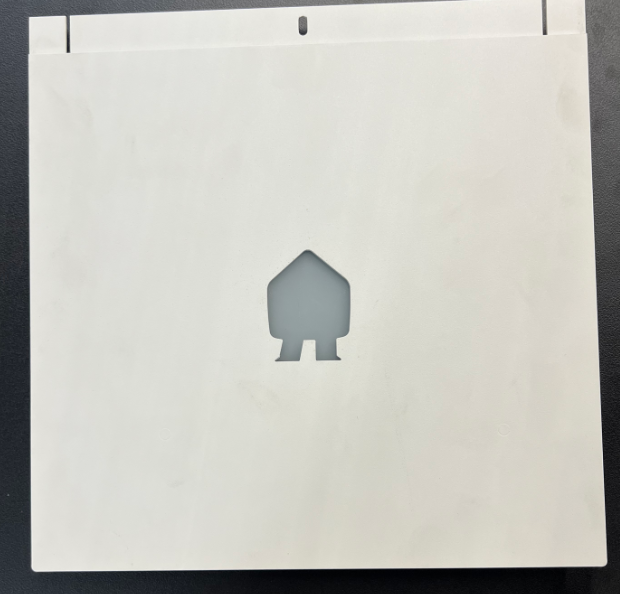

| Front plate white | Front panel | EVW-COVER-W | N/A | |
| Front plate black | Front panel | EVW-COVER-B | N/A | N/A |
| Smappee Power Box | 230ACv -> 12VDC Measurements |
i1-VAC-1 | 5400xxxxxx | |

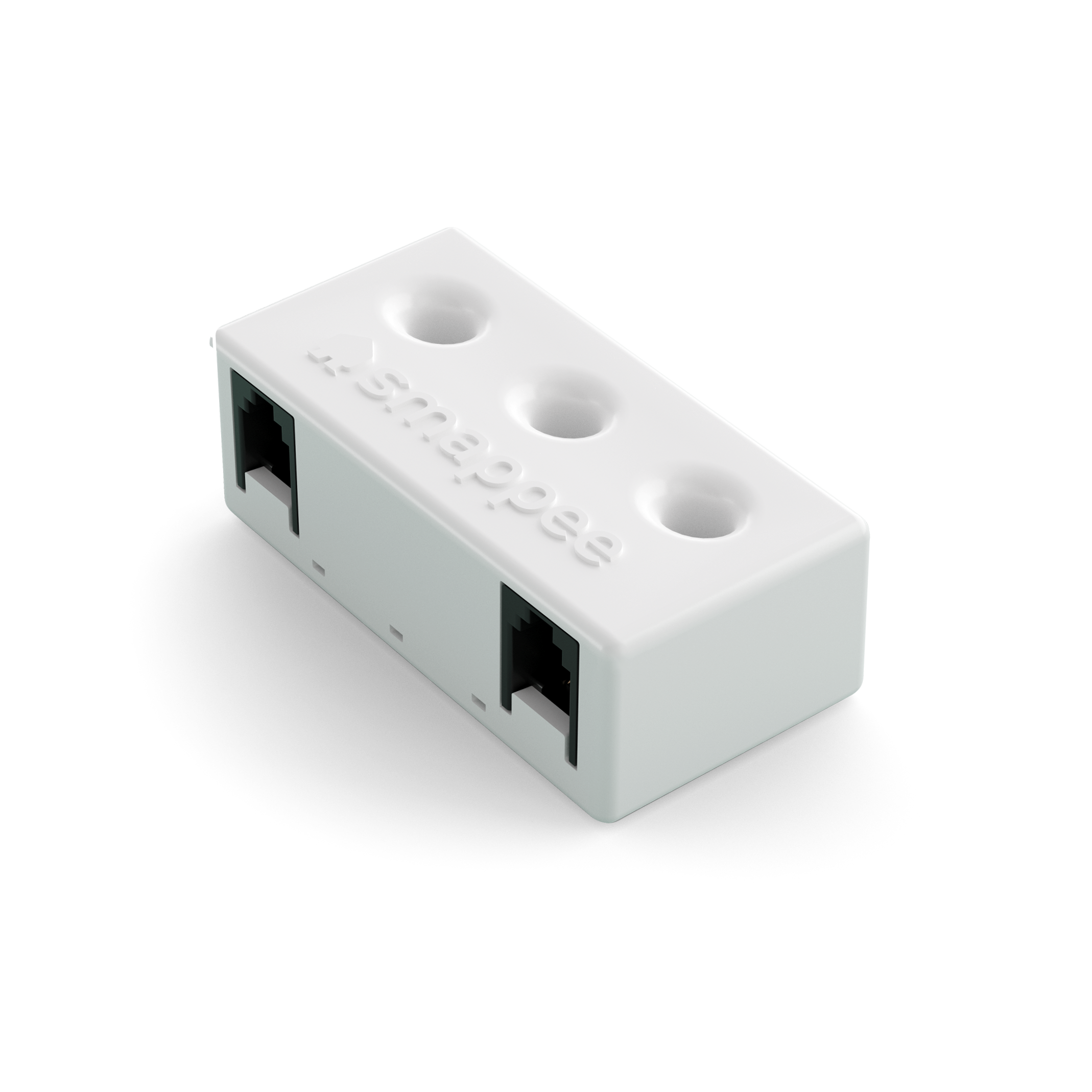

| Solid Core 3 phase CT | EV measurements | I1-IAC-2 | 5600xxxxxx | |

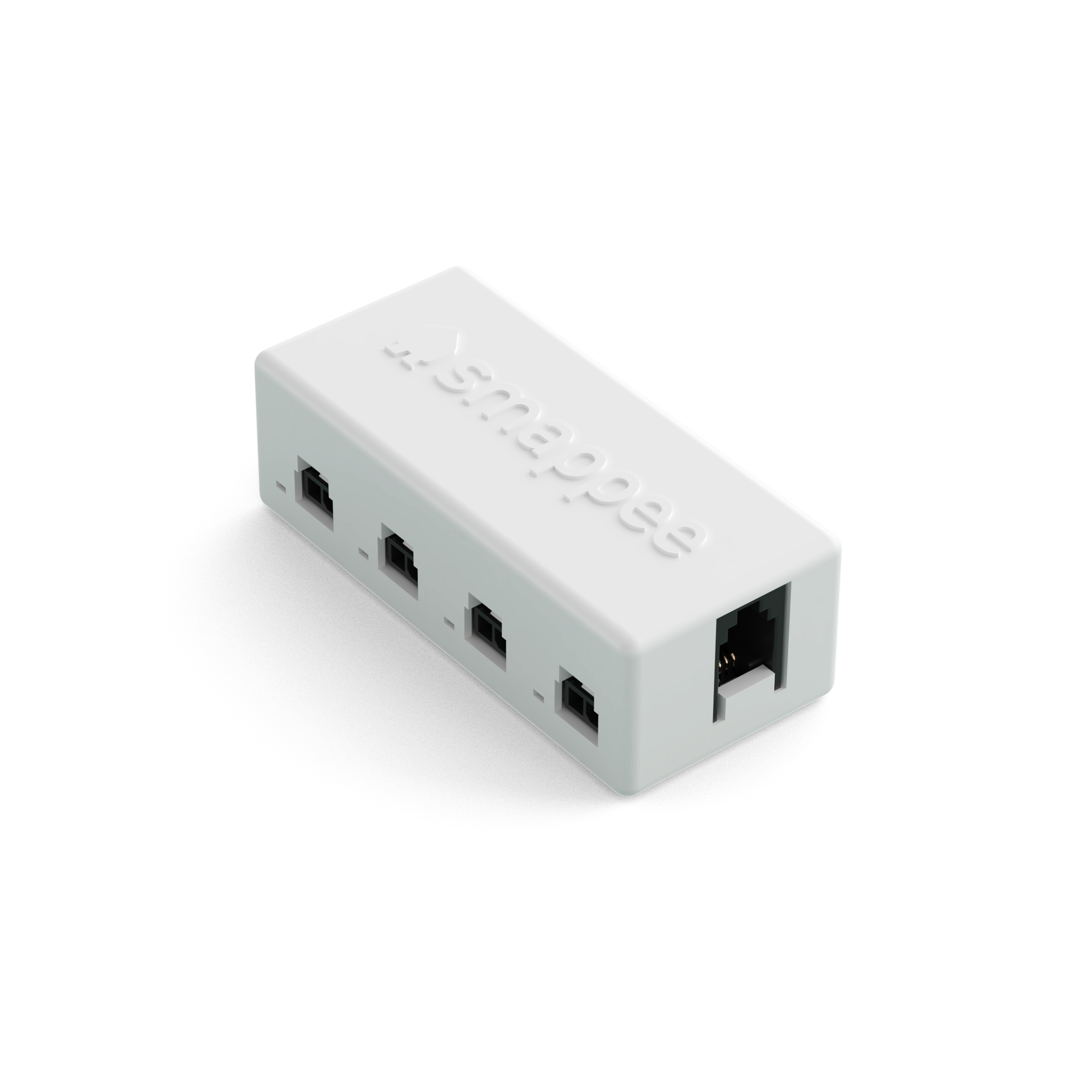

| CT Hub | Grid + Solar measurements | I1-IAC-1 | 5500xxxxxx |
