Product has been discontinued and is replaced with EV Dual, we do still offer parts for repairs.

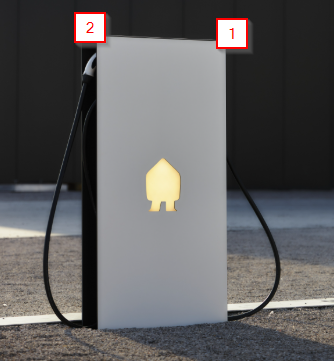

EV Base V1 has trespa as chassis, also when looking at it from the front as in the picture below, the connectors are numbered in the following way.
Serial number range
EV Base (V1) (Trespa) (wiring)
(6000xxxxxx) (Cable version)
(6001xxxxxx) (Socket version)
Modules
| Module | Function | Article code | SN | Picture |
|---|---|---|---|---|

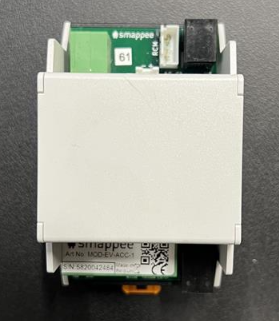

| EV Line AC Charging controller | Control Pilot | EV-ACC-1 | 5820xxxxxx | |
| LED Module | Front led | On demand (hard to replace) | 5830xxxxxx | |

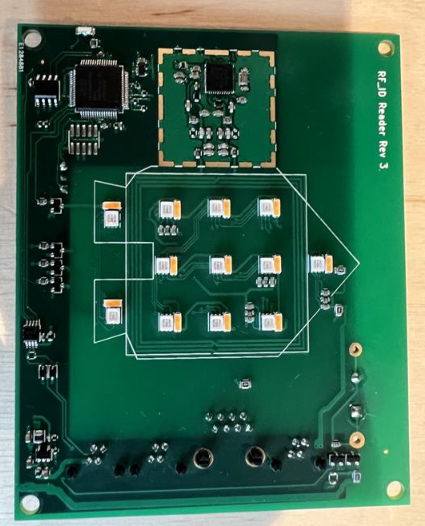

| RFID module | Scan NFC tokens | EV-RFID-READER | 5840xxxxxx | |

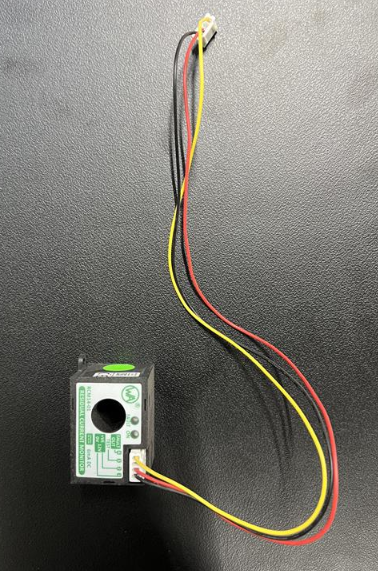

| RCM | Detect DC leaks | (on demand RCM 6mA DC) | N/A | |

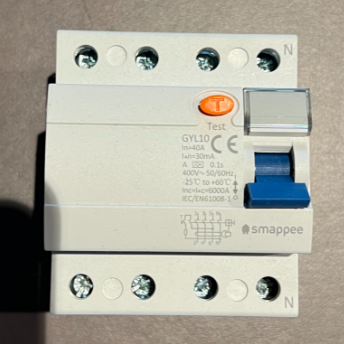

| RCD A | Detects AC leaks | AC-RCDA-4P40A | N/A | |

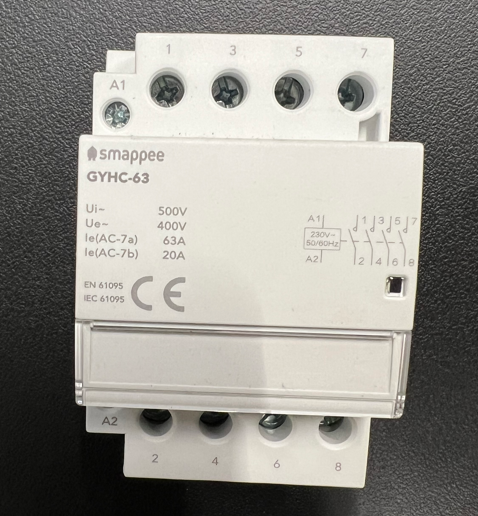

| Contactor | Controls current flow | (On demand : AC-CONTACTOR-4P63A-1) | N/A | |

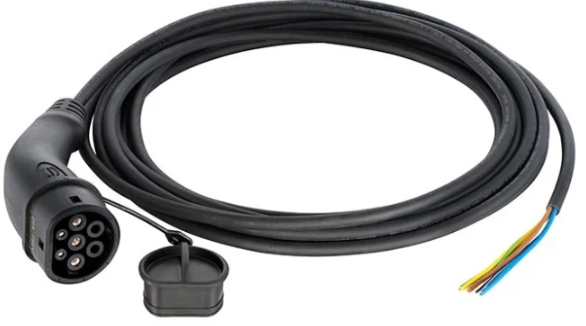

| Charging cable | Connect EV With charger | EVB-CBL-T2-332-5 | N/A | |

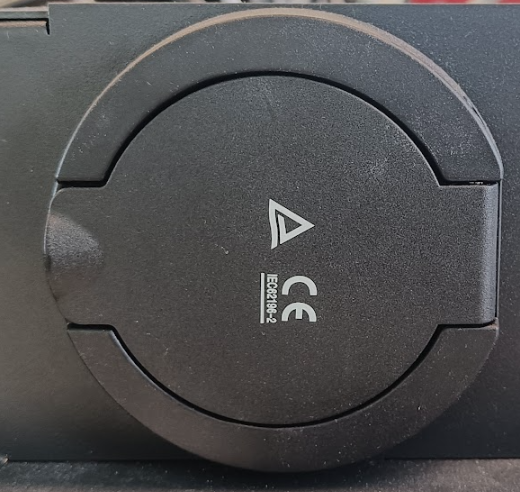

| Socket | Connect your own charging cable | (on demand) | N/A | |

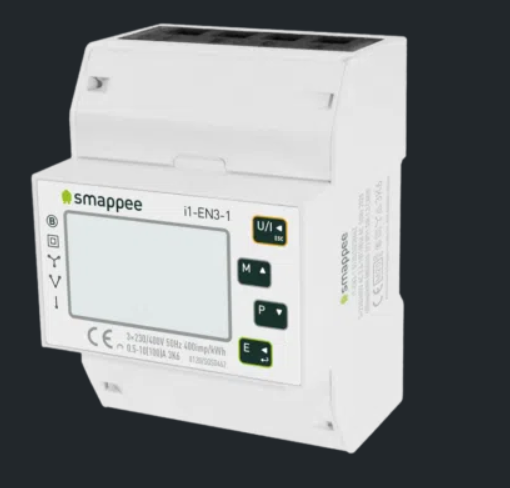

| MID | Measurements | i1-EN3-1 | N/A | |
| RJ10 | Modbus + 12v inter module connection | AC-IBC80-10 | ||

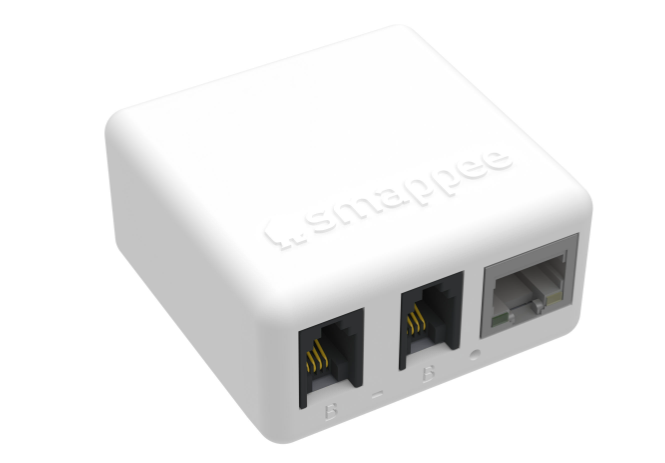

| Connect | Internet + General controls | i1-GW-3 | 5130xxxxxx |
