Requirements
You need a Smappee Genius or a Connect linked to a Smappee Genius in multigateway mode.
A Output Module must always be connected to the B-Bus of the Smappee ecosystem.

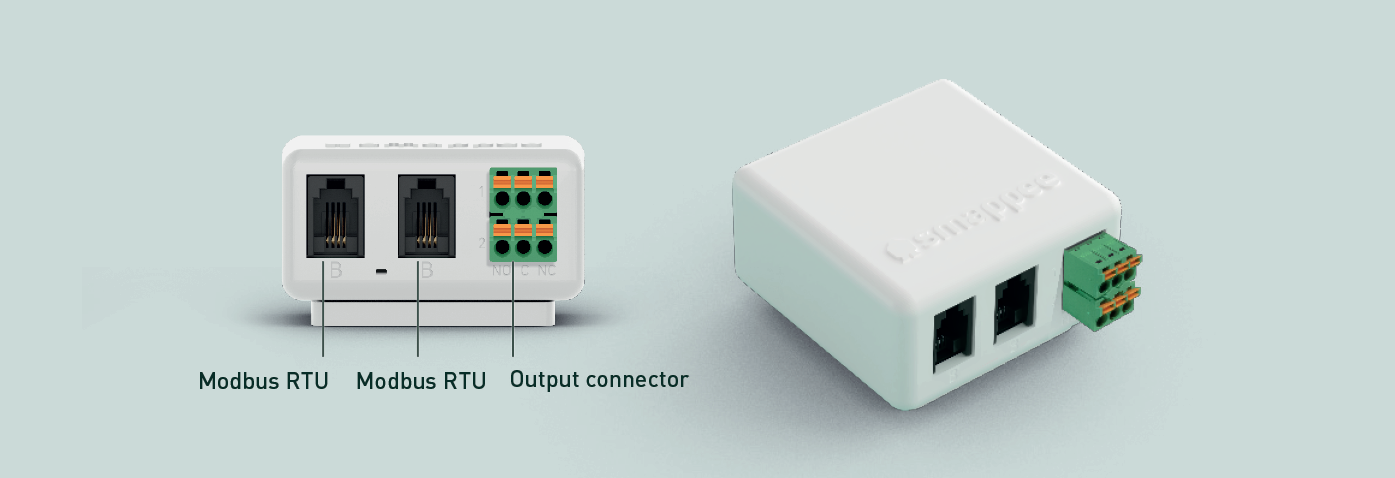

What is the Smappee Output Module?
The Smappee Output module is, next to the Smappee Switch and Smappee scenes, a cost-efficient way
to add smart control to the Smappee Infinity ecosystem. The module has 2 separate power relay outputs
(dual throw: NO/NC/Common). This allows remote control of devices that are either directly powered
(max. 5 A switching capability) or control a breaker (single or 3-phase) to steer high power equipment
e.g. a motor, EV charging station, hot water boiler. It can also be used as control signal for smart devices
such as Smart Grid Ready heat pumps. You can add up to 10 output modules to the Smappee Infinity
setup thanks to its RJ10 connection. The modules communicate via Modbus RTU (RS-485) with the
Smappee Genius or any third party data logger.
- Add control to the Smappee Infinity ecosystem.
- 2 relay outputs (NO/NC/Common).
- Daisy-chain up to 10 output modules.
- The output modules can easily be added thanks to a quick RJ10 connection.
For more details about the Smappee Output Module you can check out the Technical Specifications here.
Use case example
When you have a boiler that you only want turned on, on specific timestamps. You can link one of the outputs of Output module to a contactor, on this contactor you connect the boiler.
Via the Smappee Genius in the Smappee App you can then set automations that turn the Output On/Off based on time, measurements, etc...
