Smappee has its own CPO, but if for some reason you wish to use another CPO, that is certainly possible. Once this is correctly set up, the Smappee charging station will communicate with this external E-mobility platform via the OCPP 1.6-J communication protocol.
To set this up, go to the Smappee Dashboard (dashboard.smappee.net) and follow these steps:

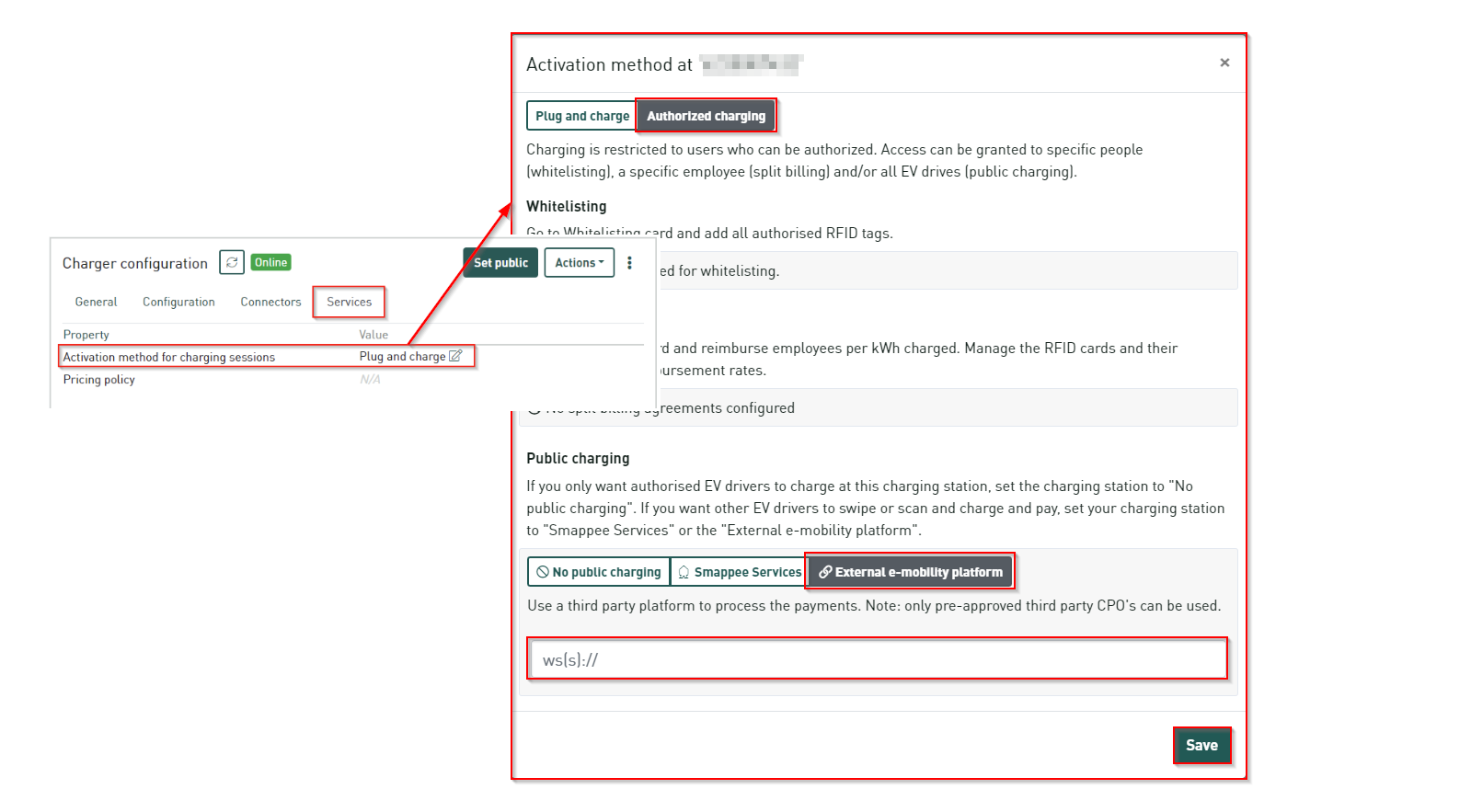

- Login to the Smappee Dashboard and navigate to your location. Then go the the card Charger configuration.
- Go to tab 4 - Services and click the symbol next to Activation method for charging sessions.
- In the next screen, click Authorized charging, then External e-mobility platform.
- Now input the Host URL of the e-mobility platform (for example wss://test.example.eu/ocppj)
- Click Save.

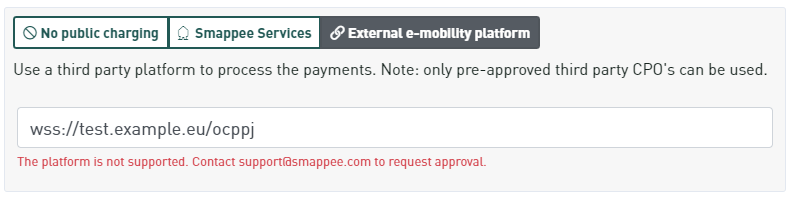

Getting an error message? That means the Host URL you input is not yet whitelisted on the Smappee database. Not just any URL is compatible with Smappee. If you wish to whitelist the URL you input on our database, please send a support ticket to us at support@smappee.com.
Please provide the Host URL and request Whitelisting + integration testing (if required).
Authorisation
When you also need to provide an ID/Password with URL, it is possible in the following way:
wss://SMP_xxxxxxxxxx:password@websocketURL
